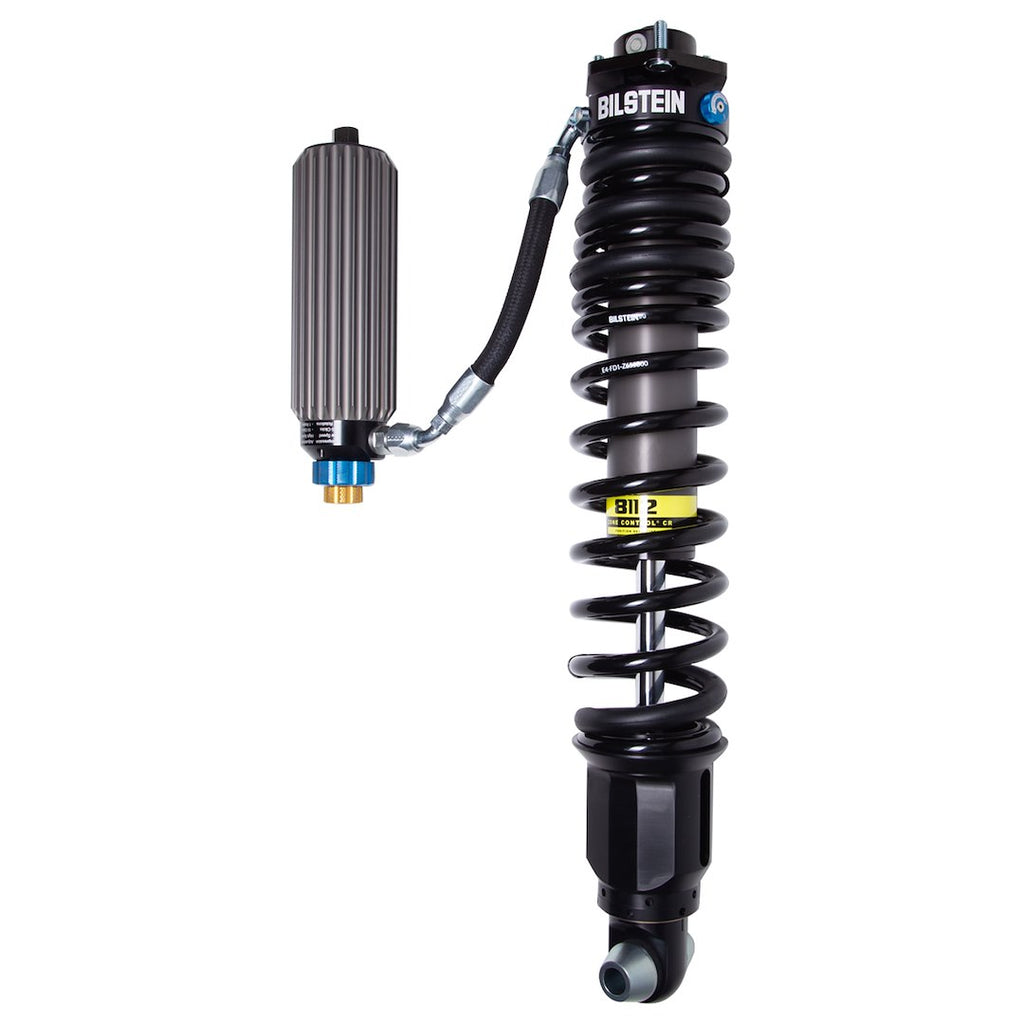

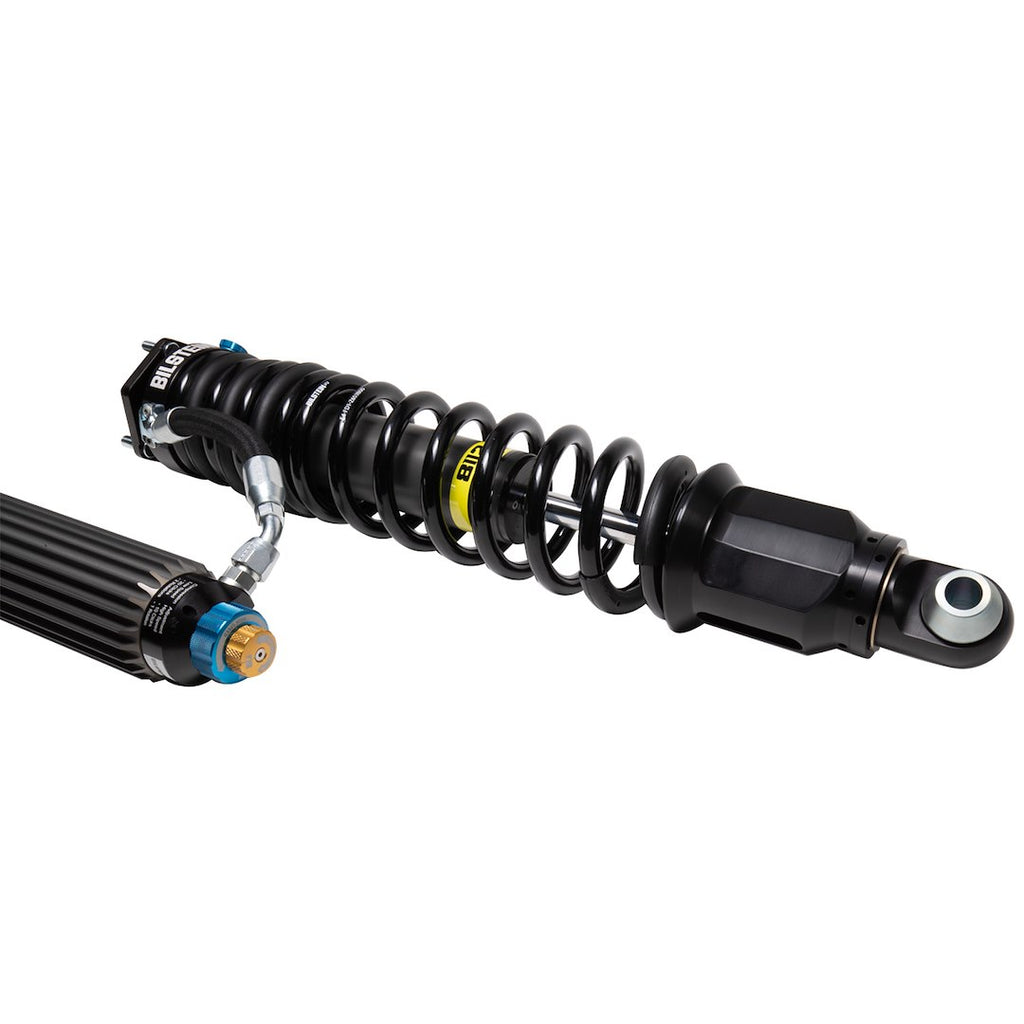

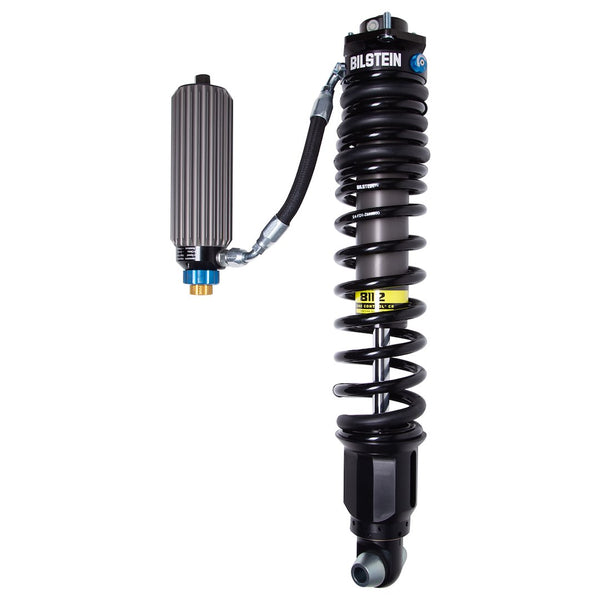

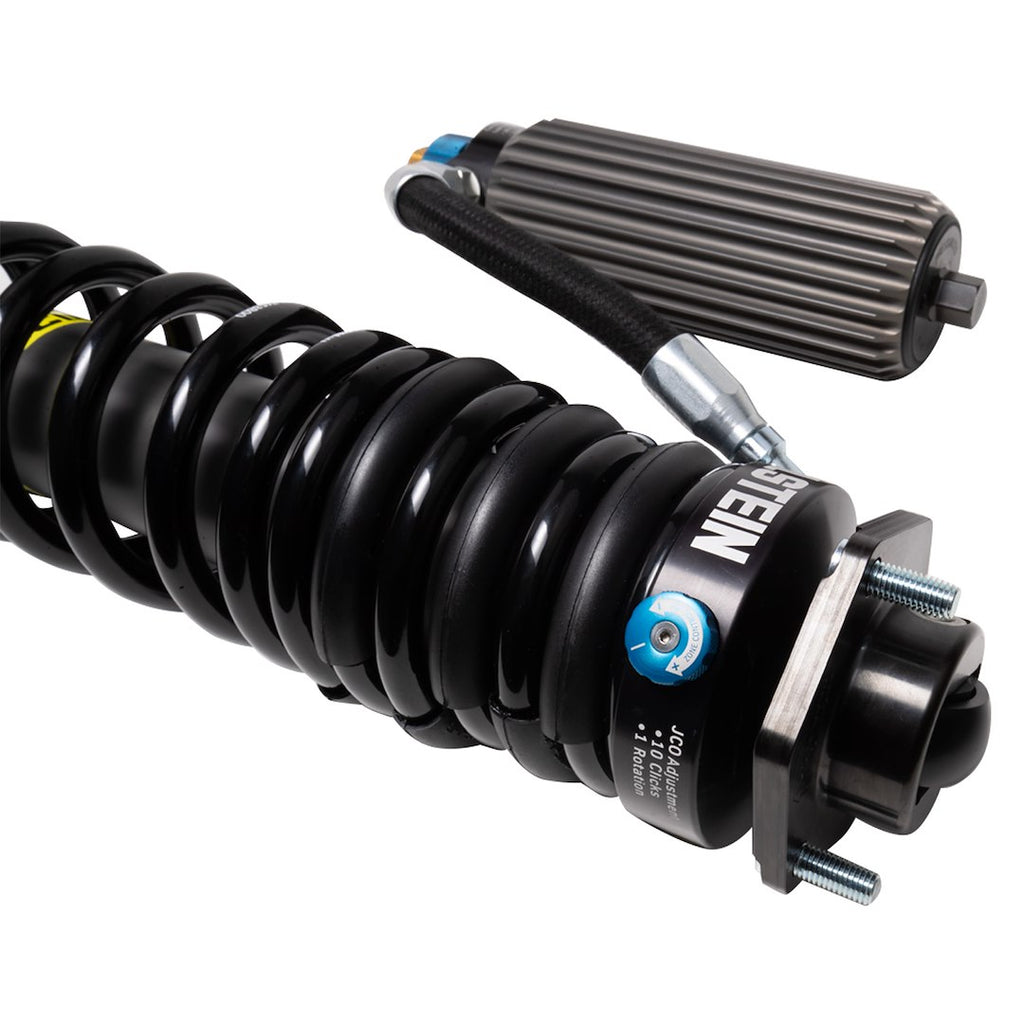

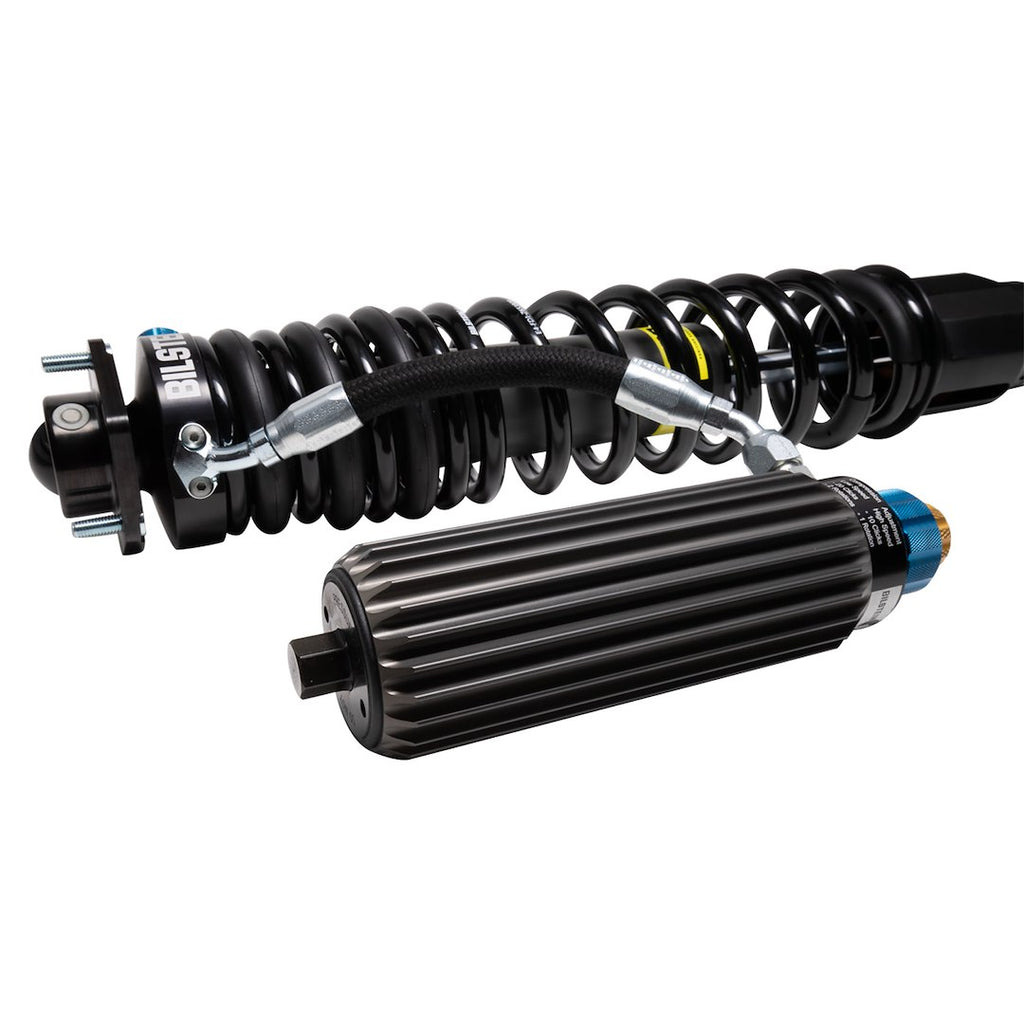

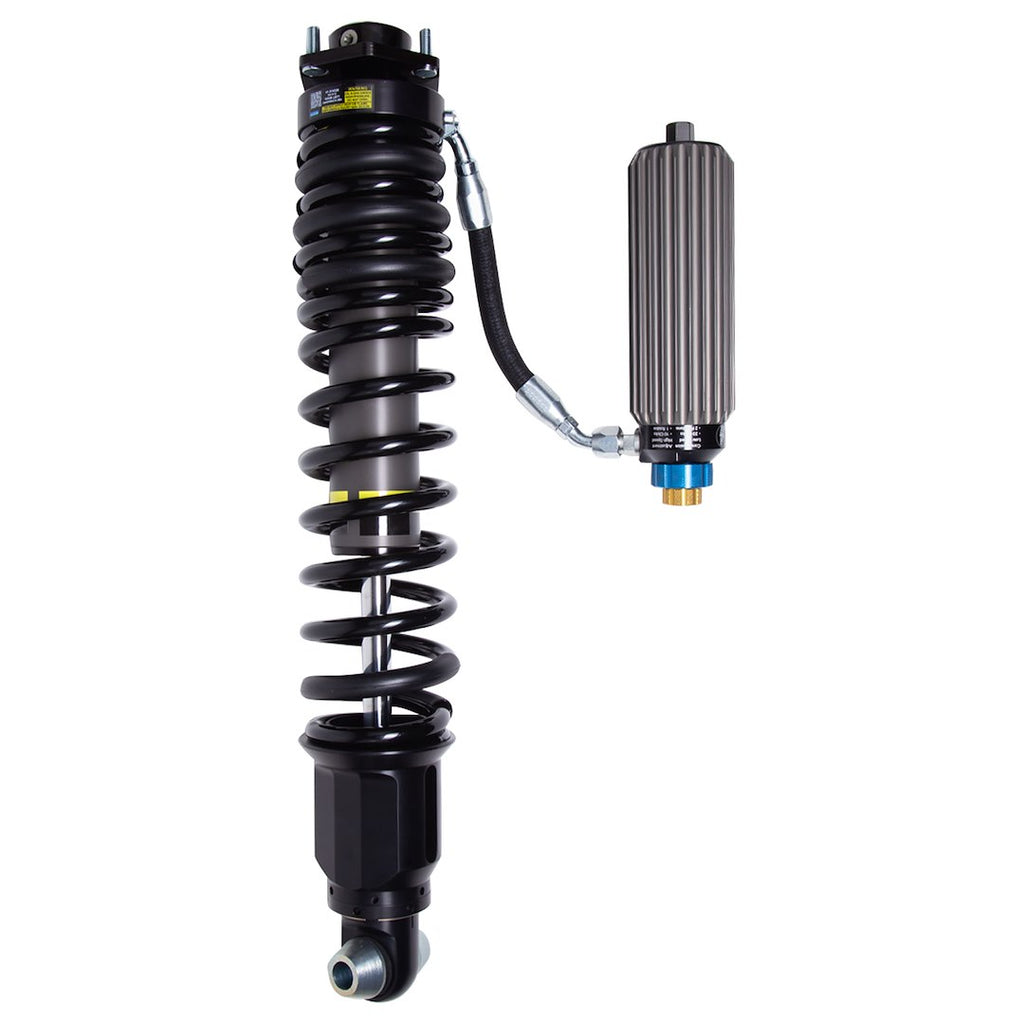

Bilstein B8 8112 Coil Over Shock Absorber (MPN: 41-314326)

Advanced adjustable shock absorber for enhanced ride comfort and control.

The Bilstein B8 8112 Coil Over Shock Absorber is engineered for light trucks and SUVs, featuring a direct fit design that incorporates advanced technology for superior performance. This shock absorber utilizes a 60 millimeter remote reservoir that increases oil capacity and cooling efficiency, ensuring optimal performance under various driving conditions. The innovative ZoneControl CR DSA+ technology offers position sensitive damping with dual speed adjustability, allowing users to fine-tune their ride experience with ease.

With a triple piston design, the B8 8112 provides three stages of compression valving and two stages of rebound valving, delivering exceptional comfort during everyday driving while maintaining maximum control during demanding situations. The adjustable ride height feature allows for customization ranging from 0 to 3 inches, accommodating various vehicle applications. Additionally, the coilover module is supplied as a complete unit, pre-loaded to the factory recommended ride height for straightforward installation.

Constructed with aerospace quality components, the Bilstein B8 8112 is specifically designed to optimize wheel travel and clearance, ensuring a tailored fit for your vehicle. The monotube shock design, combined with a durable aluminum body and black coil springs, enhances both performance and aesthetics. This shock absorber is also factory rebuildable, providing longevity and sustained performance over time.

Features

• Triple Piston Design Delivers Comfort During Every Day Driving Conditions And Maximum Control Under Large Suspension Inputs

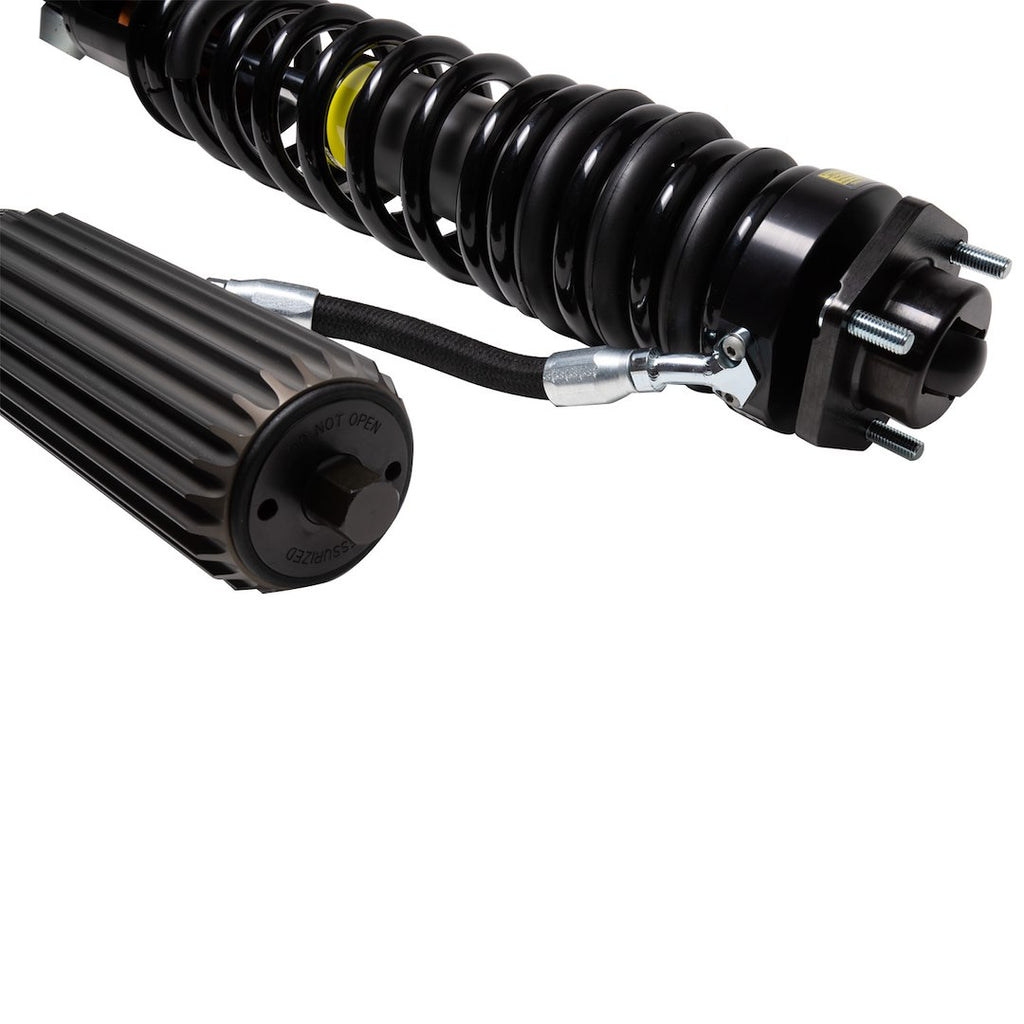

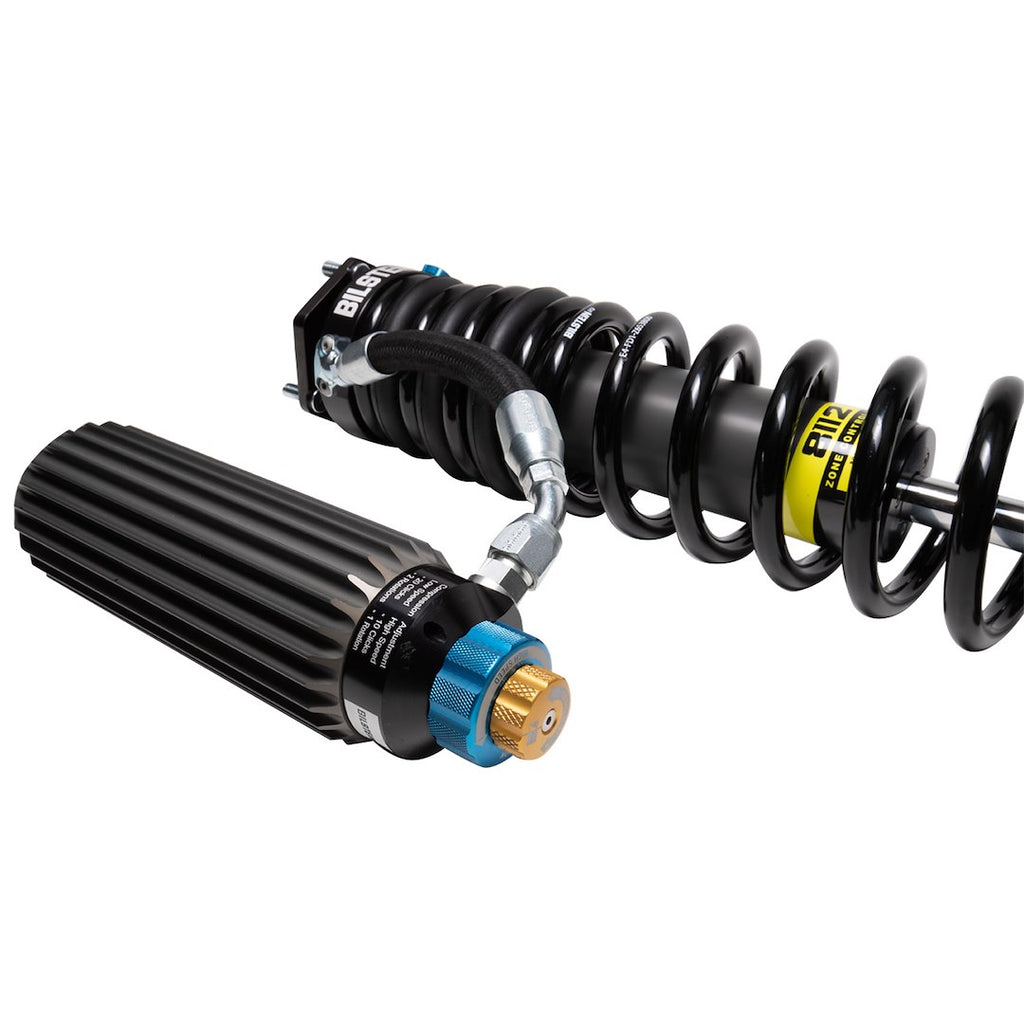

• 60 Millimeter Remote Reservoir For Increased Oil Capacity And Cooling
• Aerospace Quality Components Are Vehicle Specific To Optimize Wheel Travel And Clearance
• Factory Rebuildable
• Vehicle Specific Design And Tuning Provides The Ultimate Driving Experience

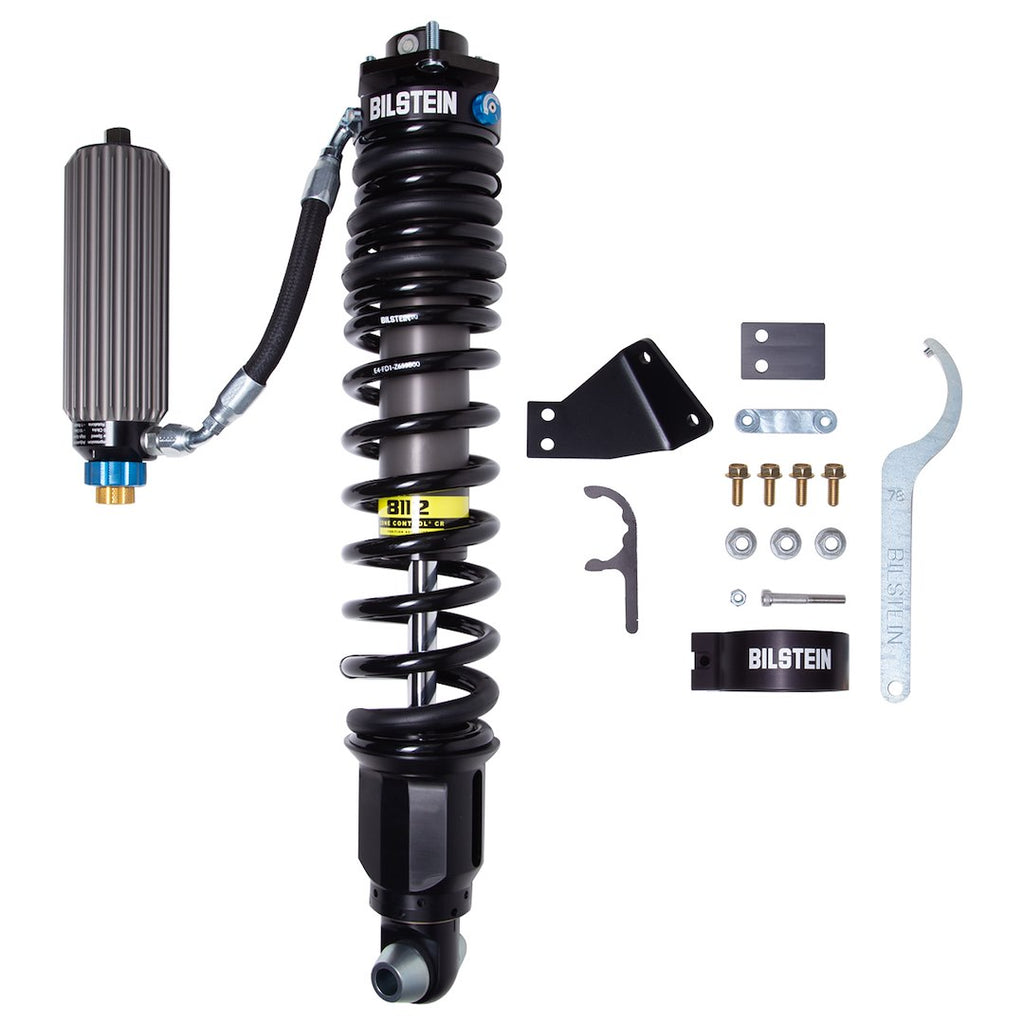

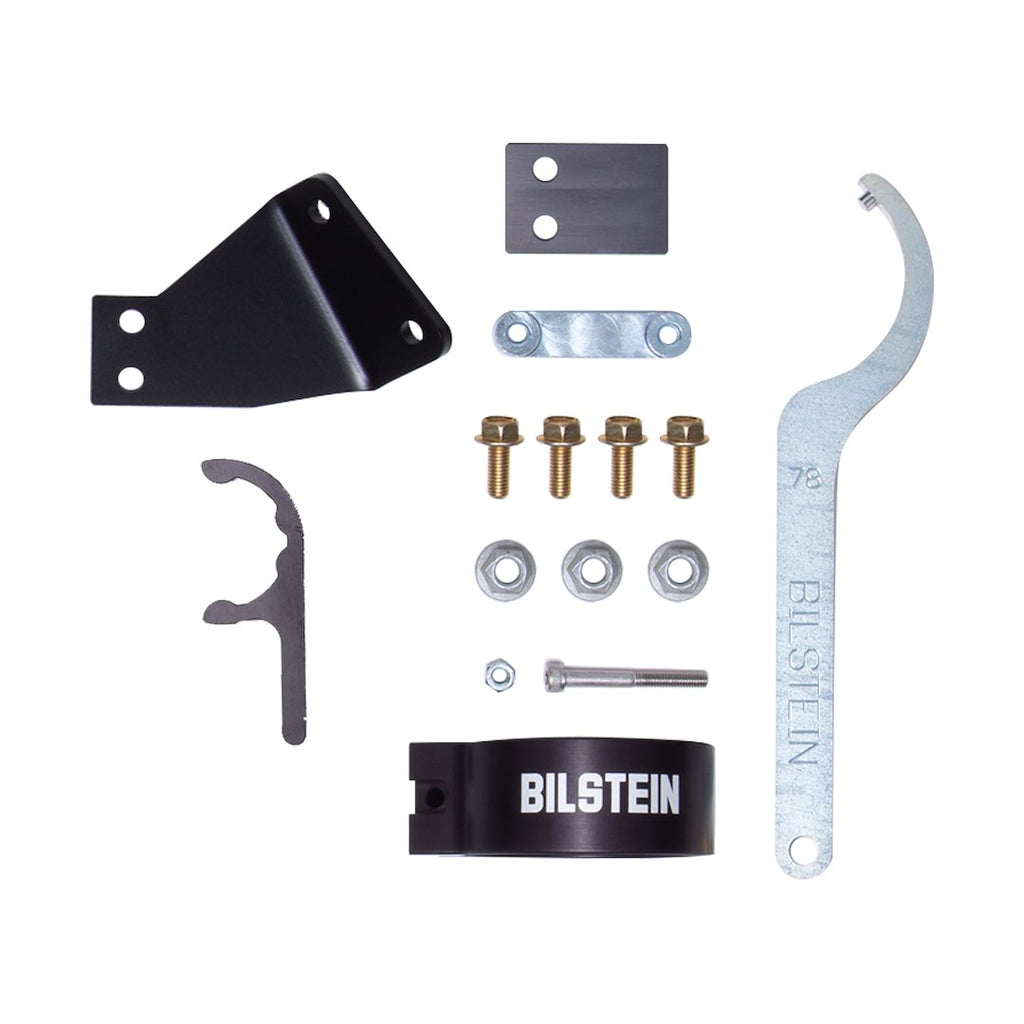

• Coilover Supplied As A Complete Module For Easy Installation: Spring Is Pre-Loaded To The Factory Recommended Ride Height

Specifications

• Manufacturer: Bilstein
• Manufacturer Part Number: 41-314326
• Adjustable: Yes
• Upper Mounting Type: Special
• Lower Mounting type: Eyelet
• Front/Rear Drop (IN): 0 To 3 Inch
• Extended Height (IN): 26.6 Inch
• Compressed Height (IN): 18.4 Inch
• Quantity: Single
• Valving Type: 3 Stages Of Compression And 2 Stages Of Rebound Valving
• Shock Type: Monotube
• Shock Body Color: Gray
• Shock Body Material: Aluminum
• Spring Color: Black

Compatibility / Fit

• 2021-2026 Ford Bronco

Technical Documents

• E-WM05-0000089_1.pdf
• warranty_all_v4.2.pdf
• B8_8112_Flyer.pdf
• USA_SDS_Shock_Air_Spring_V2_EN.pdf
• USA_SDS_Shock_Air_Spring_V2_EN.pdf
