Advanced suspension technology for enhanced comfort and control.

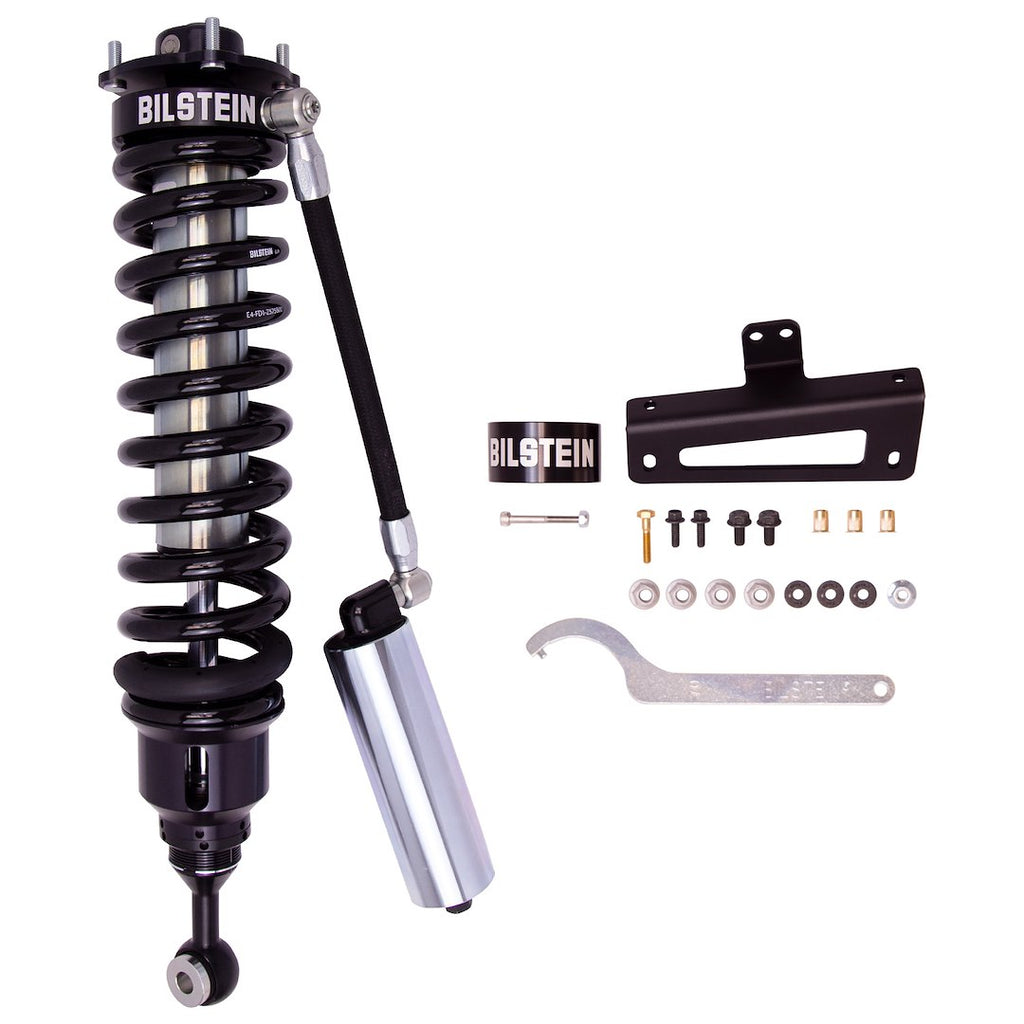

The Bilstein B8 8112 Coil Over Shock Absorber is engineered to provide superior suspension performance through innovative technology. Featuring ZoneControl CR, this shock absorber utilizes position sensitive damping with three compression zones and two rebound zones, allowing for optimal comfort during daily driving while maintaining control during significant suspension inputs. The design includes a triple piston system that enhances comfort and stability, effectively managing large compression events without harsh top-out impacts.
This shock absorber is adjustable, allowing for fine-tuning of ride height with a threaded spring seat, accommodating a lift height range of 0 to 3.8 inches. The 60 millimeter remote reservoir increases oil capacity and cooling efficiency, ensuring consistent performance under various driving conditions. Constructed with high-quality materials, including zinc plated shock bodies and durable aluminum components, the Bilstein B8 8112 is built to withstand harsh off-road environments while providing a vehicle-specific design that optimizes wheel travel and clearance.
Installation is straightforward as the coilover is supplied as a complete module, pre-loaded to the factory recommended ride height. The shock absorber's robust construction features chrome heim joint mounting with rubber sealed misalignment spacers, ensuring a reliable and load-bearing mount solution. The Bilstein B8 8112 Coil Over Shock Absorber represents a significant advancement in suspension technology, delivering an unparalleled driving experience.
Features
- ZoneControl CR: Position Sensitive Damping With 3 Compression Zones And 2 Rebound Zones, Controlled By 3 Independent Pistons
- Compression : Provides Superior Bottom Out Control Through A 2-Stage, Telescoping Internal Compression Stop. This Feature Eliminates The Need For An External Hydraulic Bump Stop
- Secondary Rebound Stop Dissipate Spring Energy And Stabilize The Suspension Directly Following A Large Compression Event. Internal Rebound Stop Eliminate Harsh Top-Out Events
- Triple Piston Design Delivers Comfort During Every Day Driving Conditions And Maximum Control Under Large Suspension Inputs
- Adjustable Threaded Spring Seat Allows For Fine-Tuned Ride Height
- 60 Millimeter Remote Reservoir For Increased Oil Capacity And Cooling, Coilover Supplied As A Complete Module For Easy Installation. Spring Is Pre-Loaded To The Factory Recommended Ride Height
- Vehicle Specific Design And Tuning Provides The Ultimate Driving Experience. Aerospace Quality Components Are Vehicle Specific To Optimize Wheel Travel And Clearance
- High Quality Chrome 5/8 Inch Heim Joint Mounting With Rubber Sealed Misalignment Spacers Offer The Most Durable, Load Bearing Mount Solution
- Aluminum Components With Zinc Plated Shock Bodies Will Resist Harsh Off-Road Elements
Specifications
- Manufacturer: Bilstein
- Manufacturer Part Number: 41-284544
- Adjustable: Yes
- Upper Mounting Type: Strut
- Lower Mounting type: Eyelet
- Front/Rear Drop (IN): 2-1/4 To 3-1/4 Inch
- Extended Height (IN): 25.79 Inch
- Compressed Height (IN): 19.43 Inch
- Quantity: Single
- Valving Type: 3 Stage Compression Valving
- Shock Type: Gas Charged
- Shock Body Color: Silver
- Shock Body Material: Steel
- Spring Color: Black
- Includes Mounting Hardware: No
Compatibility / Fit
- 2007-2021 Toyota Tundra
Technical Documents
- E4-WM5-Y627A00_1.pdf
- warranty_all_v4.2.pdf
- B8_8112_Flyer.pdf
- USA_SDS_Shock_Air_Spring_V2_EN.pdf
- USA_SDS_Shock_Air_Spring_V2_EN.pdf
