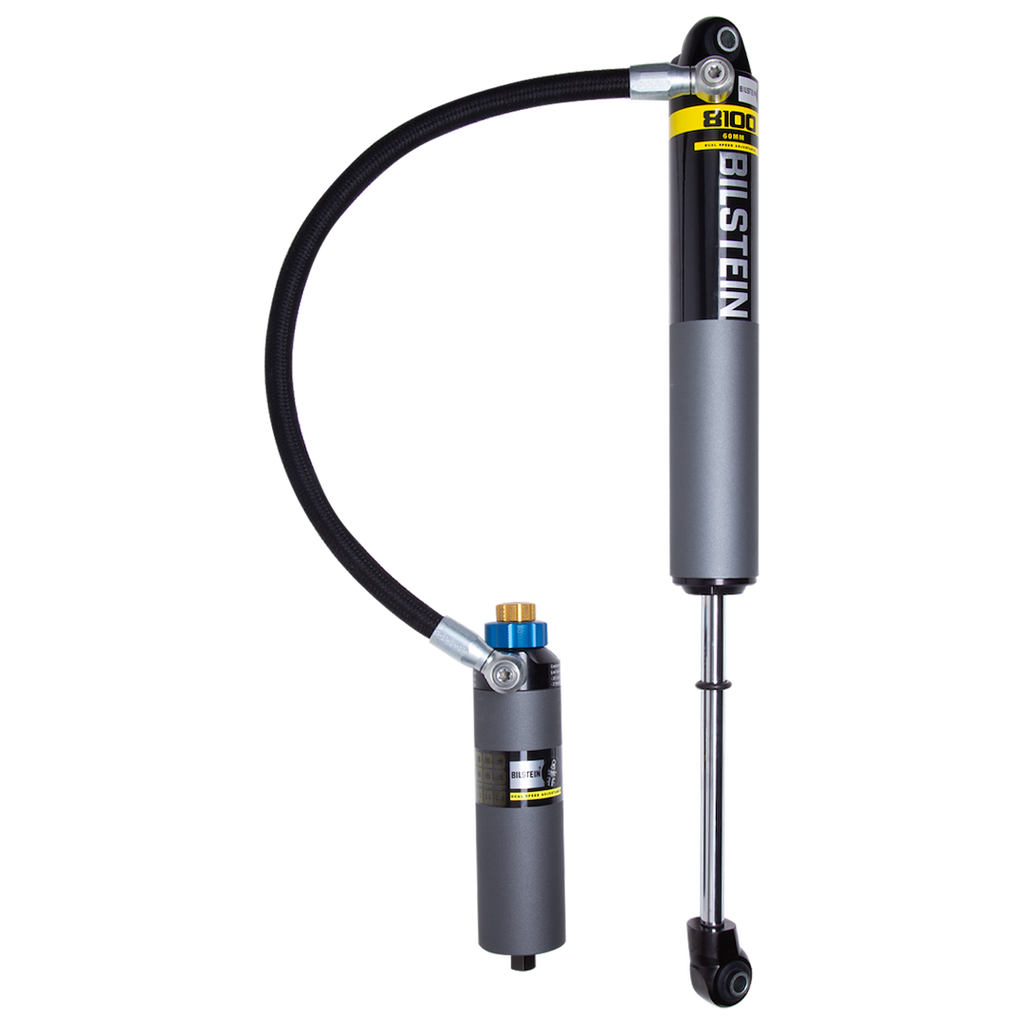

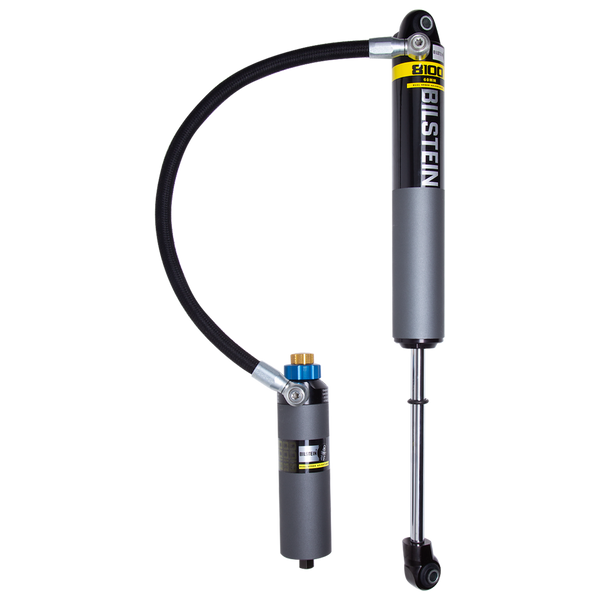

Bilstein B8 8100 Series Shock Absorber (MPN: 25-330533)

High-performance shock absorber designed for lifted trucks and SUVs.

The Bilstein B8 8100 Series Shock Absorber is engineered for lifted trucks and SUVs, providing a direct fit solution that enhances vehicle performance. Constructed from aerospace quality billet components, this shock absorber features a large 60 millimeter body that increases oil volume capacity, effectively managing heat during demanding driving conditions. The monotube design ensures consistent fade-free performance, while the velocity sensitive digressive valve settings are specifically tuned for each application, delivering superior comfort and control.

With an extended length of 28.89 inches and a collapsed length of 18.22 inches, the B8 8100 is designed for optimal fitment and functionality. The shock absorber includes a remote reservoir that simplifies installation and enhances bottom-out control during compression cycles. The robust 18 millimeter piston rod contributes to the overall strength and smoothness of the ride, while the incremental flow adjuster allows for precise tuning of damping force.

The Bilstein B8 8100 Series is built for durability, featuring a hard anodized aluminum piston and billet rod end with vulcanized mounts that ensure a long-lasting, exact OE fit. This shock absorber is a reliable choice for those looking to improve their vehicle's handling and comfort on various terrains.

Features

• Vehicle Specific Tuning With The Ability To Make A Wide Range Of Adjustments
• Bottom Port Reservoir Hose Provides Increased Bottom Out Control During The Compression Cycle
• 18 Millimeter Piston Rod Provides Brute Tensile Strength And Reduces Internal Gas Force Ramp-Up Providing A Smoother Ride
• Incremental Flow Adjuster Offers Finite And Incremental Changes In Damping Force For Precise Adjustments
• Billet Rod End With Vulcanized Mounts For An Exact OE Fit And Long-Term Durability
• 60 Millimeter Large Bore Hard Anodized Aluminum Piston Offers A Greater Range Of Damping Control And Delivers Exceptional Long-Term Durability
• 60 Millimeter Remote Reservoir With Machined Aluminum Chassis Mounts
• Direct Fit For Easy Installation

Specifications

• Manufacturer: Bilstein
• Manufacturer Part Number: 25-330533
• Type: Nitrogen Gas Charged
• With Coil Spring: No
• Extended Length (IN): 28.89 Inch
• Compressed Length (IN): 18.22 Inch
• Upper Mounting Style: Eyelet
• Lower Mounting Style: Eyelet
• Adjustable Valving: No
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Gray
• With Reservoir: Yes
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2018-2025 Jeep Wrangler JL
