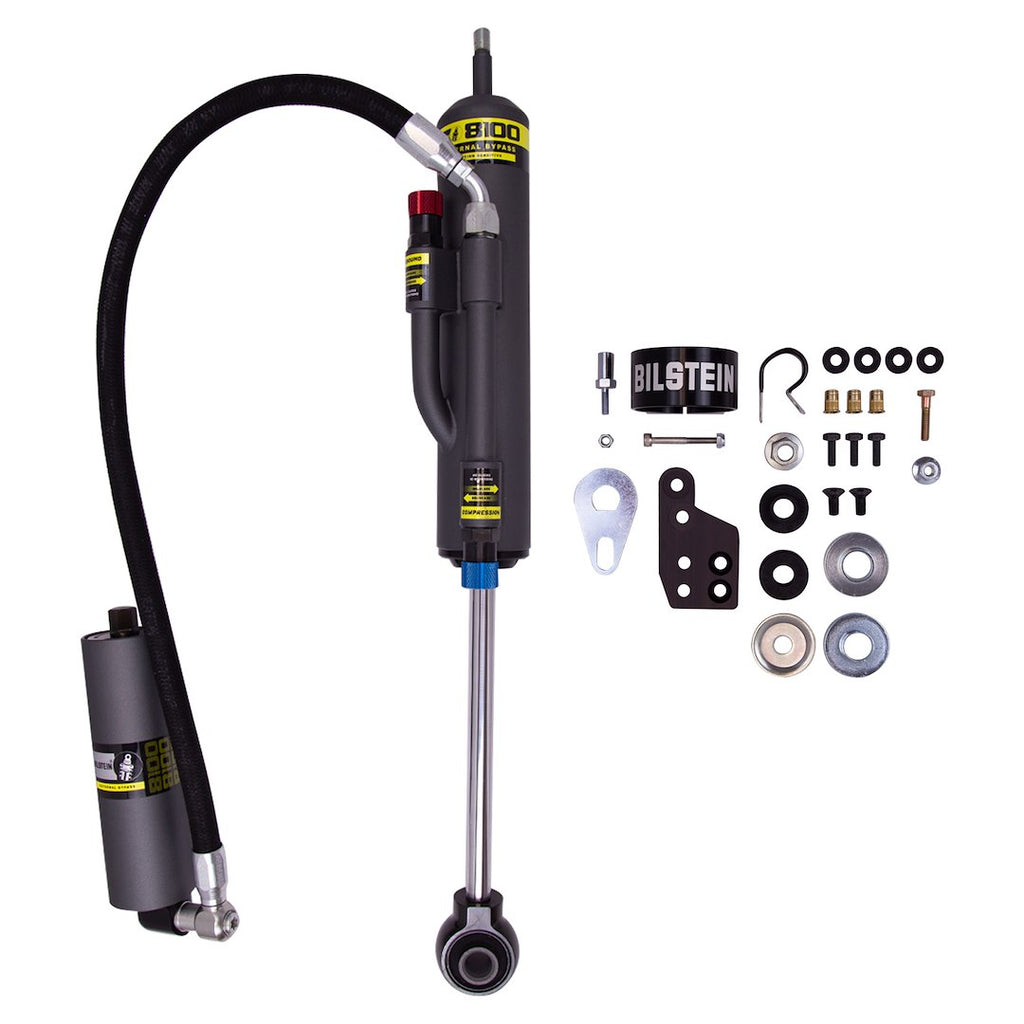

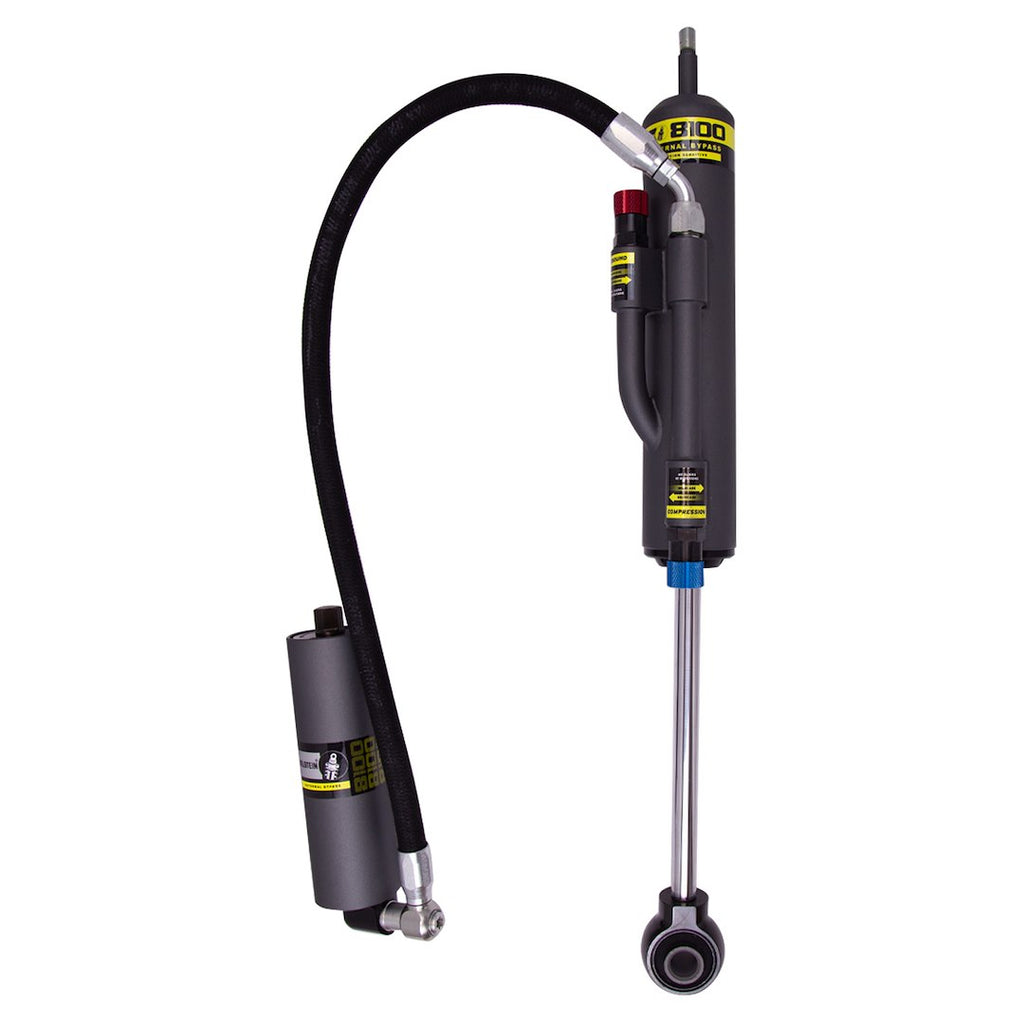

Bilstein B8 8100 Bypass Shock Absorber (MPN: 25-288162)

Advanced adjustable bypass design for enhanced suspension performance.

The Bilstein B8 8100 Bypass Shock Absorber is engineered for light trucks and SUVs, providing a direct fit and position-sensitive damping. This shock absorber features an adjustable external bypass design that allows for independent tuning of compression and rebound, ensuring optimal performance across various driving conditions. The nitrogen gas charged system enhances ride quality while maintaining control during rough terrain.

With a robust 18 millimeter piston rod and a 60 millimeter large bore hard anodized aluminum piston, this shock absorber delivers exceptional durability and a smoother ride. The bottom port reservoir hose increases bottom out control during compression, making it suitable for demanding applications. The incremental flow adjuster allows for precise adjustments in damping force, catering to specific vehicle needs.

Installation is straightforward due to its direct fit design, and the shock absorber is built to last with billet rod ends and vulcanized mounts. The Bilstein B8 8100 is a single unit that does not include shock boots, making it a reliable choice for those seeking enhanced suspension tuning capabilities.

Features

• Dual Tube External Bypass Offers Position Sensitive Damping With Independent Adjustment For Rebound And Compression
• Vehicle Specific Tuning With The Ability To Make A Wide Range Of Adjustments
• Bottom Port Reservoir Hose Provides Increased Bottom Out Control During The Compression Cycle
• 18 Millimeter Piston Rod Provides Brute Tensile Strength And Reduces Internal Gas Force Ramp-Up Providing A Smoother Ride
• Incremental Flow Adjuster Offers Finite And Incremental Changes In Damping Force For Precise Adjustments

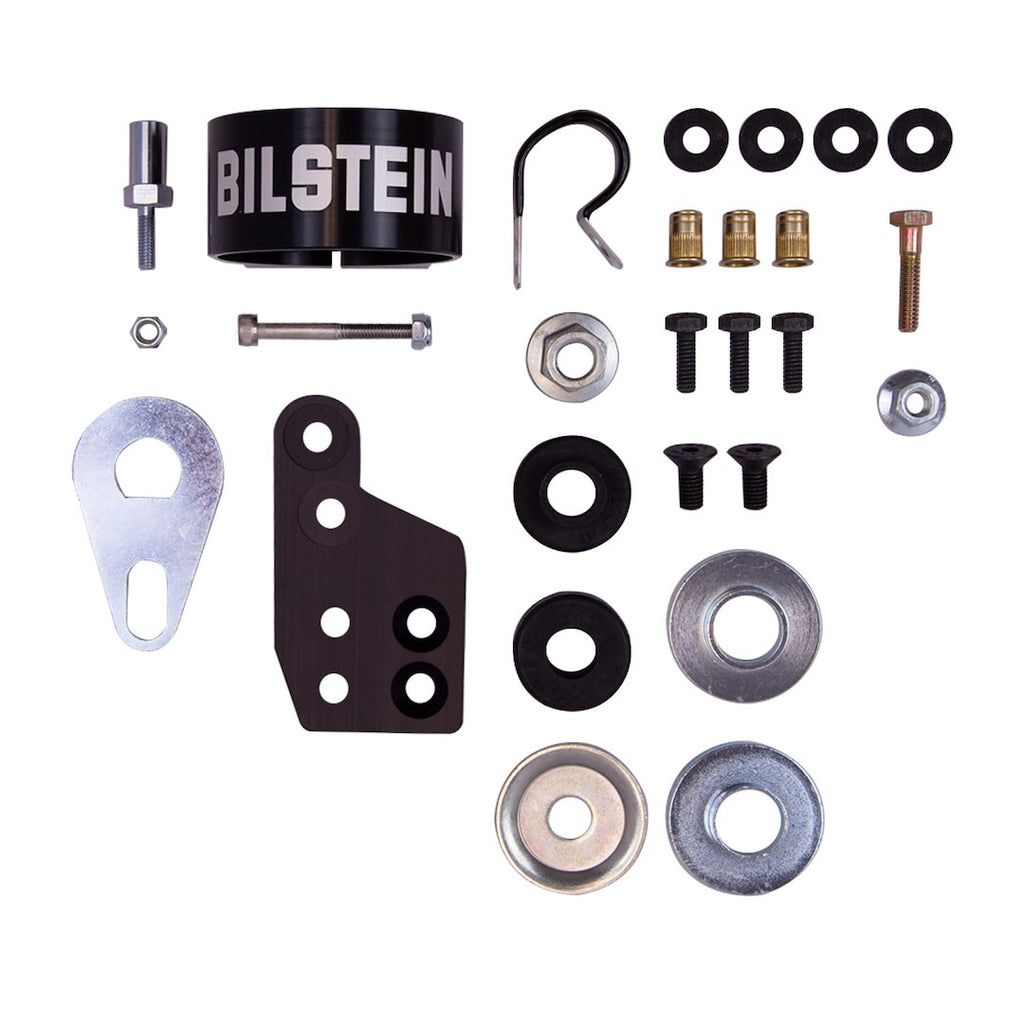

• Billet Rod End With Vulcanized Mounts For An Exact OE Fit And Long-Term Durability
• 60 Millimeter Large Bore Hard Anodized Aluminum Piston Offers A Greater Range Of Damping Control And Delivers Exceptional Long-Term Durability
• 60 Millimeter Remote Reservoir With Machined Aluminum Chassis Mounts
• Direct Fit For Easy Installation

Specifications

• Manufacturer: Bilstein
• Manufacturer Part Number: 25-288162
• Type: Nitrogen Gas Charged
• With Coil Spring: No
• Extended Length (IN): 24.09 Inch
• Compressed Length (IN): 14.72 Inch
• Upper Mounting Style: Stud
• Lower Mounting Style: Eyelet
• Adjustable Valving: Yes
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Gray
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2007-2014 Toyota FJ Cruiser
