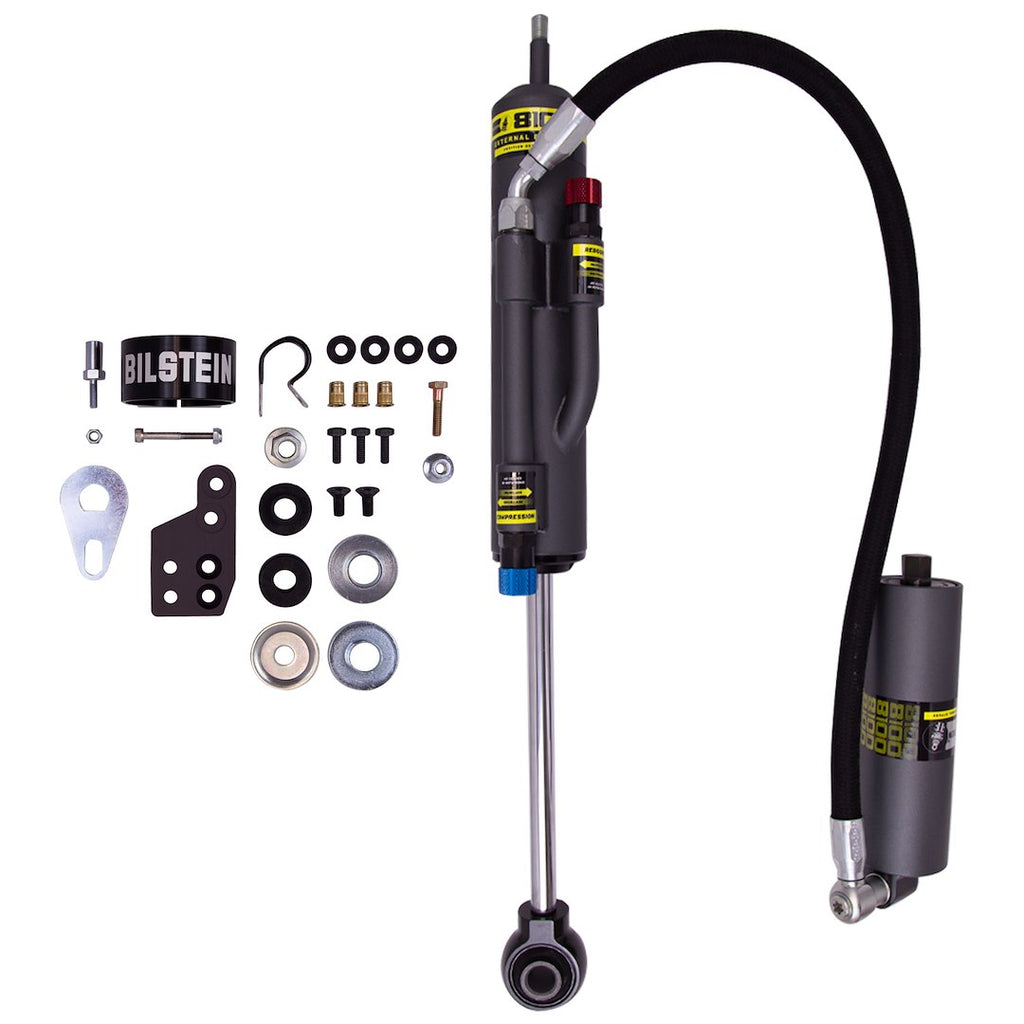

Bilstein B8 8100 Bypass Shock Absorber (MPN: 25-288155)

Advanced adjustable bypass design for enhanced suspension performance.

The Bilstein B8 8100 Bypass Shock Absorber is engineered for light trucks and SUVs, providing a direct fit and position-sensitive damping. This shock absorber features an adjustable external bypass design that allows for independent tuning of compression and rebound, ensuring optimal performance across various driving conditions. The nitrogen gas charged system enhances ride quality while maintaining control during rough terrain, making it a reliable choice for off-road enthusiasts.

With a robust 18 millimeter piston rod and a 60 millimeter large bore hard anodized aluminum piston, the B8 8100 delivers exceptional durability and a smoother ride. The bottom port reservoir hose increases bottom out control during compression, while the incremental flow adjuster allows for precise adjustments in damping force. This shock absorber is designed for easy installation, making it a practical upgrade for those seeking improved suspension dynamics.

The Bilstein B8 8100 is built with a billet rod end and vulcanized mounts, ensuring a perfect OE fit and long-term reliability. Its vehicle-specific tuning capabilities provide a wide range of adjustments, allowing users to customize their suspension setup to meet their specific needs. This shock absorber is a single unit and does not include shock boots, making it a straightforward addition to your vehicle's suspension system.

Features

• Dual Tube External Bypass Offers Position Sensitive Damping With Independent Adjustment For Rebound And Compression
• Vehicle Specific Tuning With The Ability To Make A Wide Range Of Adjustments
• Bottom Port Reservoir Hose Provides Increased Bottom Out Control During The Compression Cycle
• 18 Millimeter Piston Rod Provides Brute Tensile Strength And Reduces Internal Gas Force Ramp-Up Providing A Smoother Ride
• Incremental Flow Adjuster Offers Finite And Incremental Changes In Damping Force For Precise Adjustments
• Billet Rod End With Vulcanized Mounts For An Exact OE Fit And Long-Term Durability
• 60 Millimeter Large Bore Hard Anodized Aluminum Piston Offers A Greater Range Of Damping Control And Delivers Exceptional Long-Term Durability
• 60 Millimeter Remote Reservoir With Machined Aluminum Chassis Mounts
• Direct Fit For Easy Installation

Specifications

• Manufacturer: Bilstein
• Manufacturer Part Number: 25-288155
• Type: Nitrogen Gas Charged
• With Coil Spring: No
• Extended Length (IN): 24.09 Inch
• Compressed Length (IN): 14.72 Inch
• Upper Mounting Style: Stud
• Lower Mounting Style: Eyelet
• Adjustable Valving: Yes
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Gray
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2007-2014 Toyota FJ Cruiser

Technical Documents

• E4-WM5-Y710A00.pdf
• warranty_all_v4.2.pdf
• B8_8100_Flyer.pdf
• USA_SDS_Shock_Air_Spring_V2_EN.pdf
• USA_SDS_Shock_Air_Spring_V2_EN.pdf
