Enhanced Suspension Performance for All Conditions

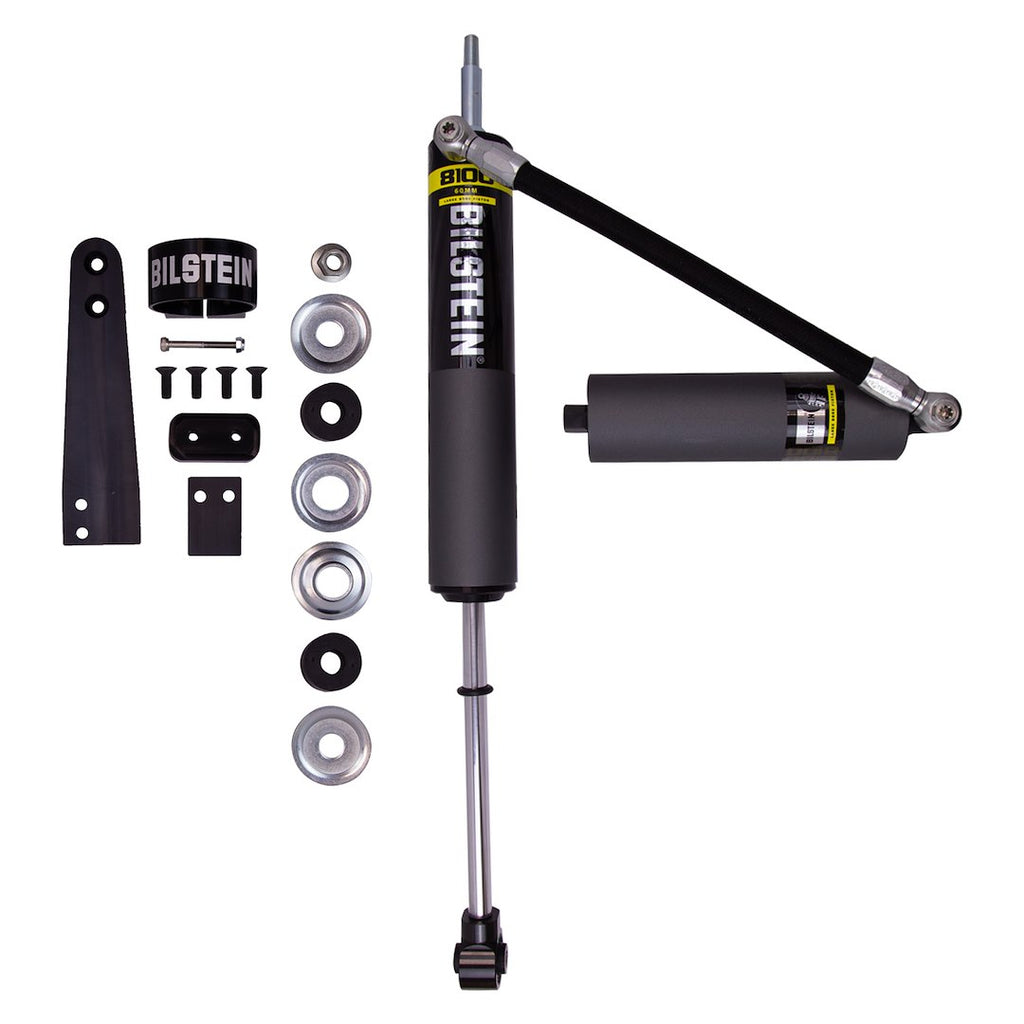

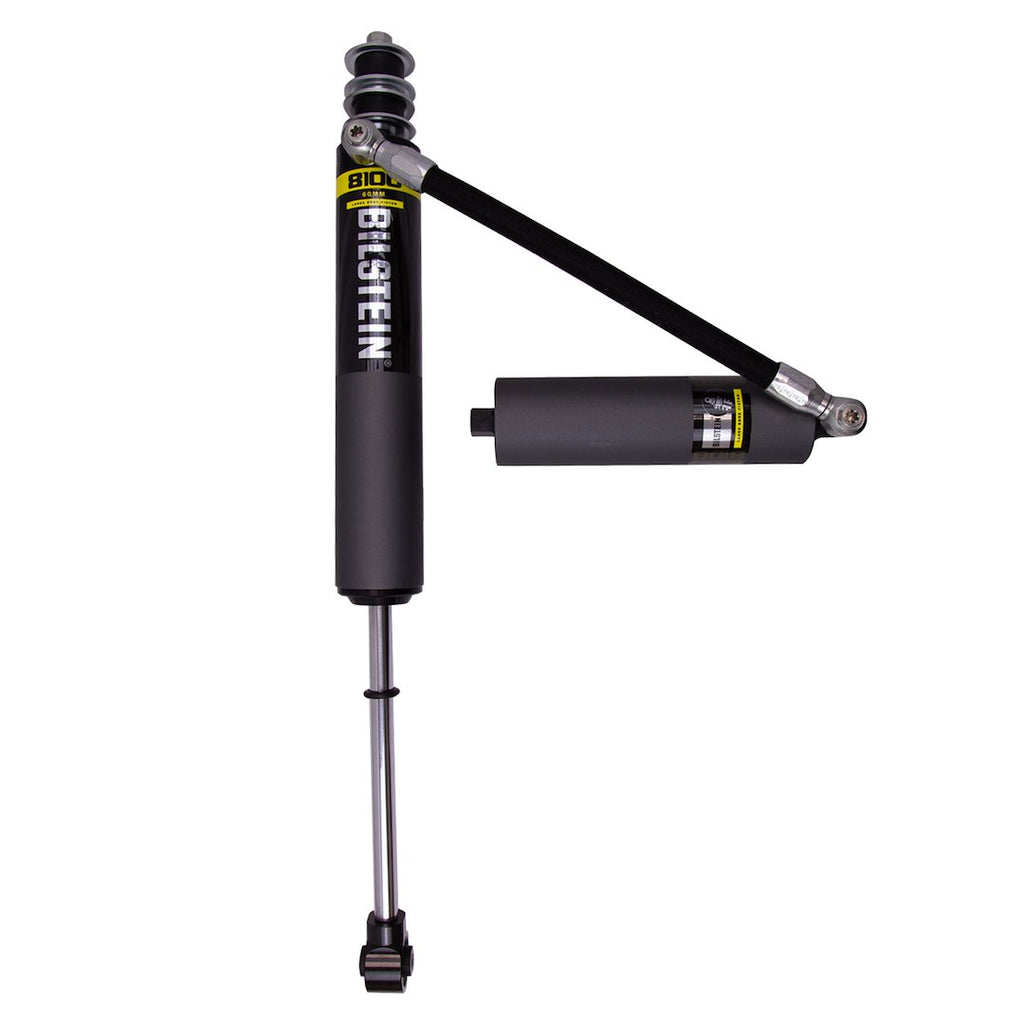

The Bilstein B8 8100 BP Shock Absorber is designed to provide superior ride quality and control in various driving conditions. This nitrogen gas charged shock absorber features a reservoir and is engineered for maximum bottom-out control, ensuring a smooth and compliant ride even on rough terrain.
Features
- The Bump Zone above the compression bypass tube enhances bottoming control and eliminates the need for a hydraulic bump stop.
- Dual tube external bypass design offers position-sensitive damping with independent adjustments for rebound and compression.
- Incremental flow adjuster allows for precise and finite changes in damping force.
- Bottom port reservoir hose increases bottom-out control during the compression cycle.

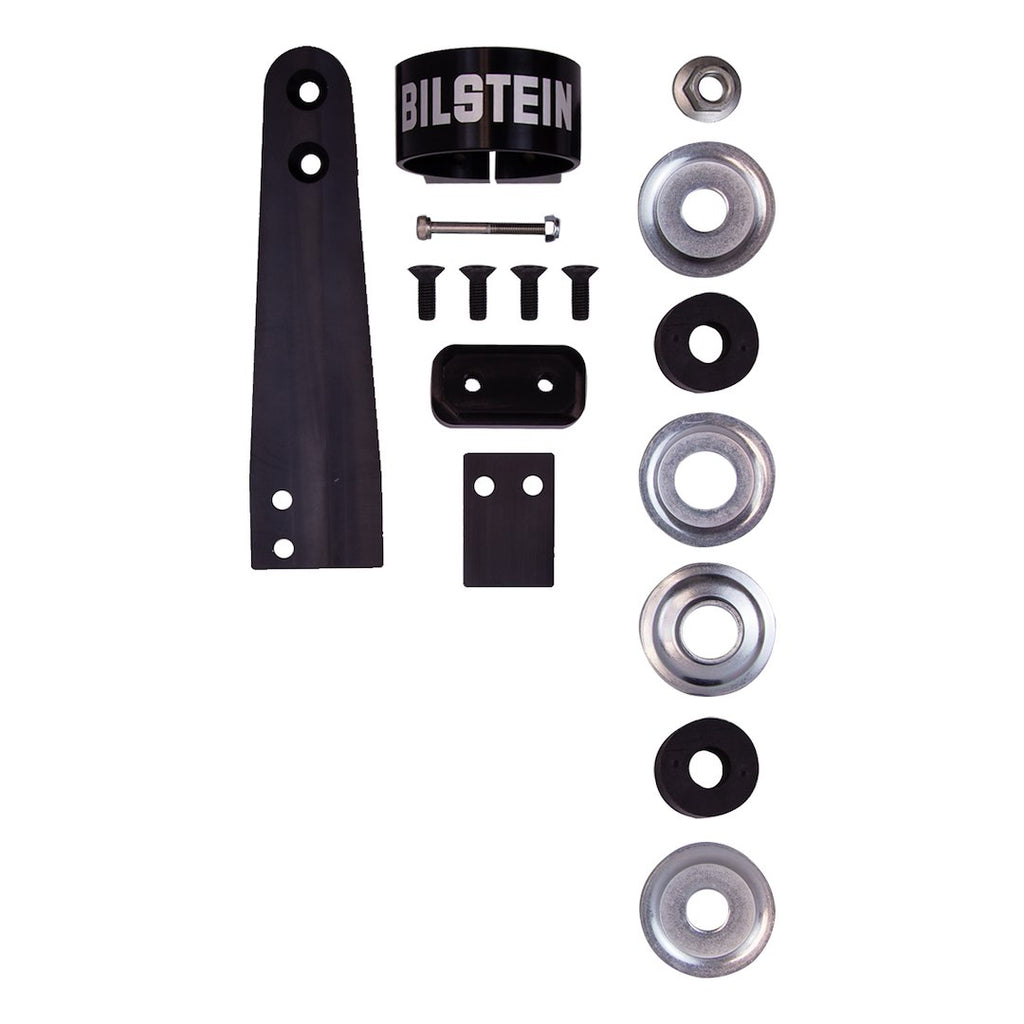

- Billet rod end with vulcanized mounts ensures an exact OE fit and long-term durability.
- Vehicle-specific tuning provides a wide range of adjustment capabilities.
- 60 millimeter large bore hard anodized aluminum piston delivers exceptional long-term durability and a greater range of damping control.
- Direct fit design facilitates easy installation.
- 18 millimeter piston rod offers robust tensile strength and reduces internal gas force ramp-up for a smoother ride.
Specifications
- Manufacturer: Bilstein
- Manufacturer Part Number: 25-325805
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length: 25.12 Inch
- Compressed Length: 15.63 Inch
- Upper Mounting Style: Stud
- Lower Mounting Style: Eyelet
- Adjustable Valving: No
- Quantity: Single
- Universality: Vehicle Specific
- Internal Design: Twin Tube
- Body Color: Gray
- Rod Diameter: 0.7 Inch
- Valving Type: Non Adjustable Valving
- Ride Height Adjustable: Yes
- Rod Material: Aluminum
- With Reservoir: Yes
- Includes Dust Shield: No
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time: 0.5 Hours
Technical Documents
USA_SDS_Shock_Air_Spring_V2_EN.pdf
USA_SDS_Shock_Air_Spring_V2_EN.pdf
Product Video
Compatibility/Fit
- 2007-2021 Toyota Tundra
