Enhanced Suspension Performance for All Conditions

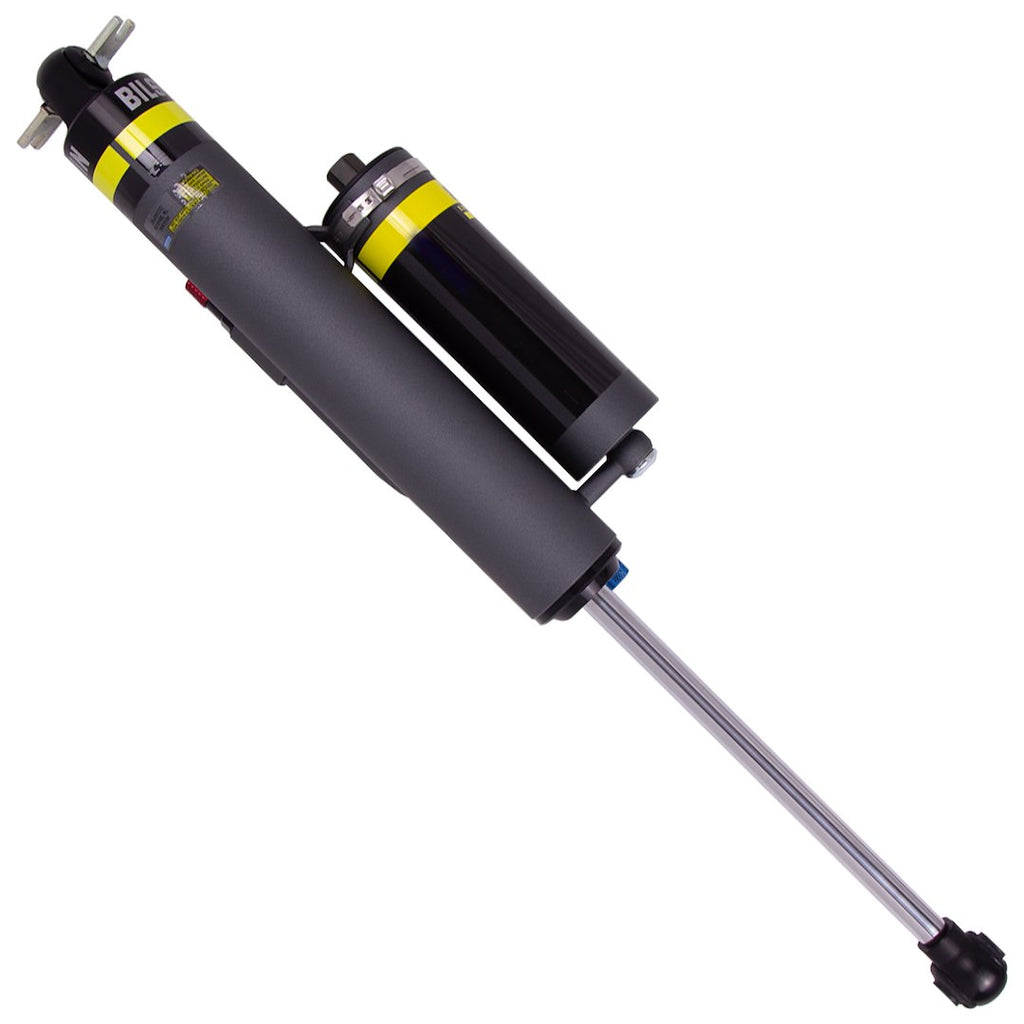

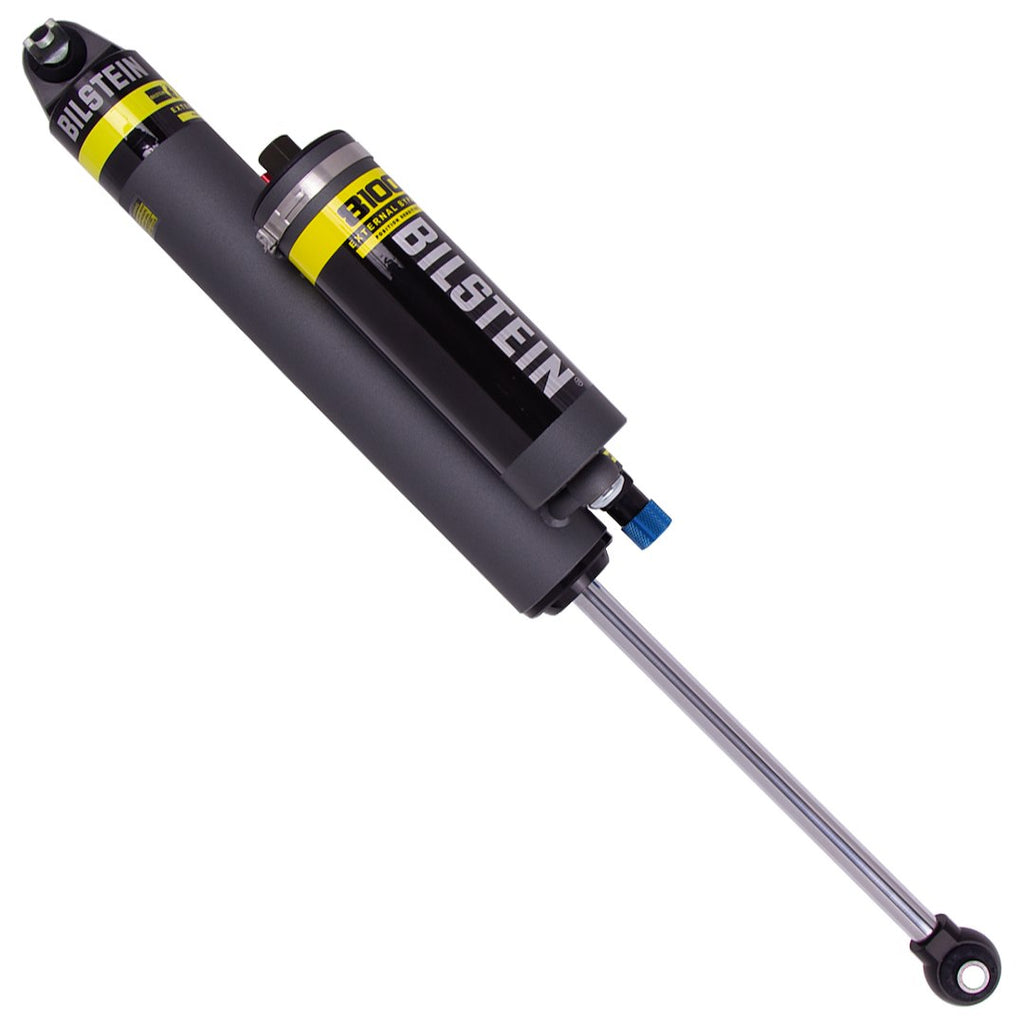

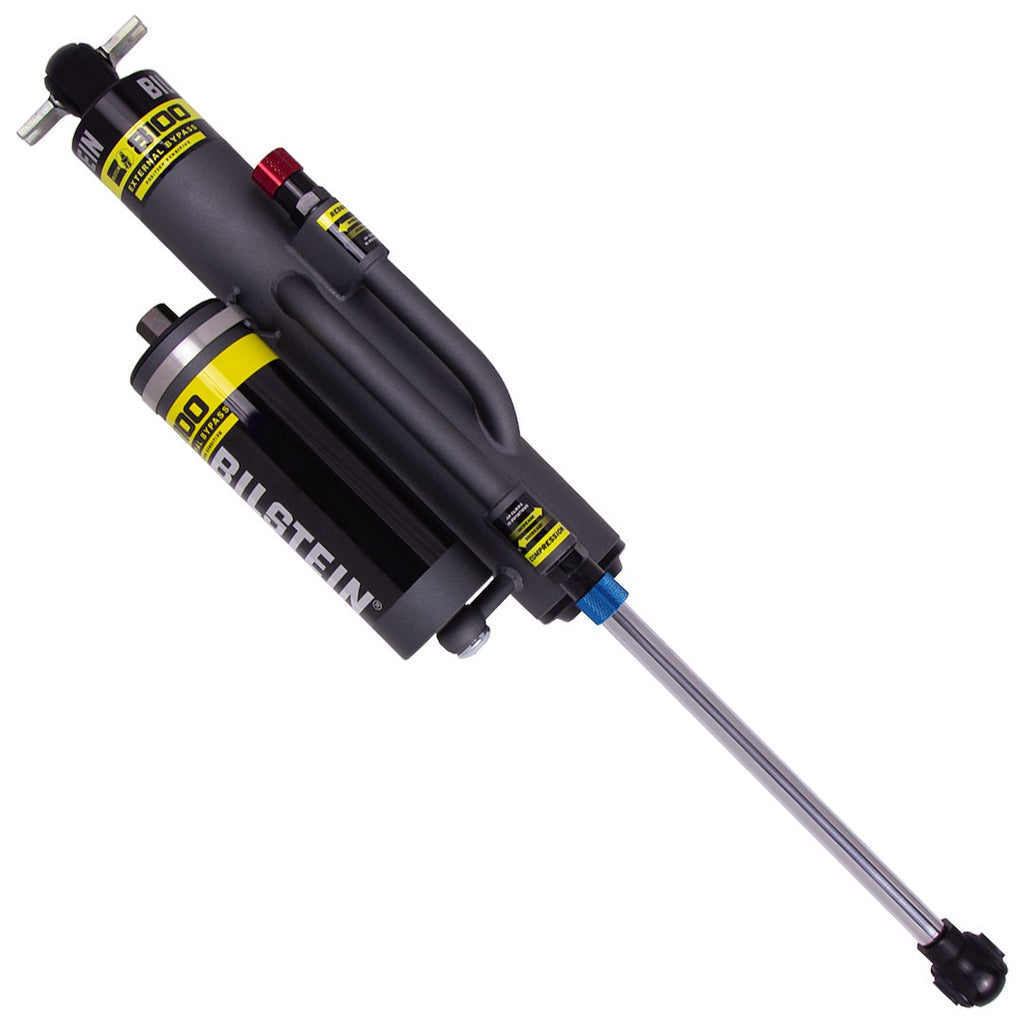

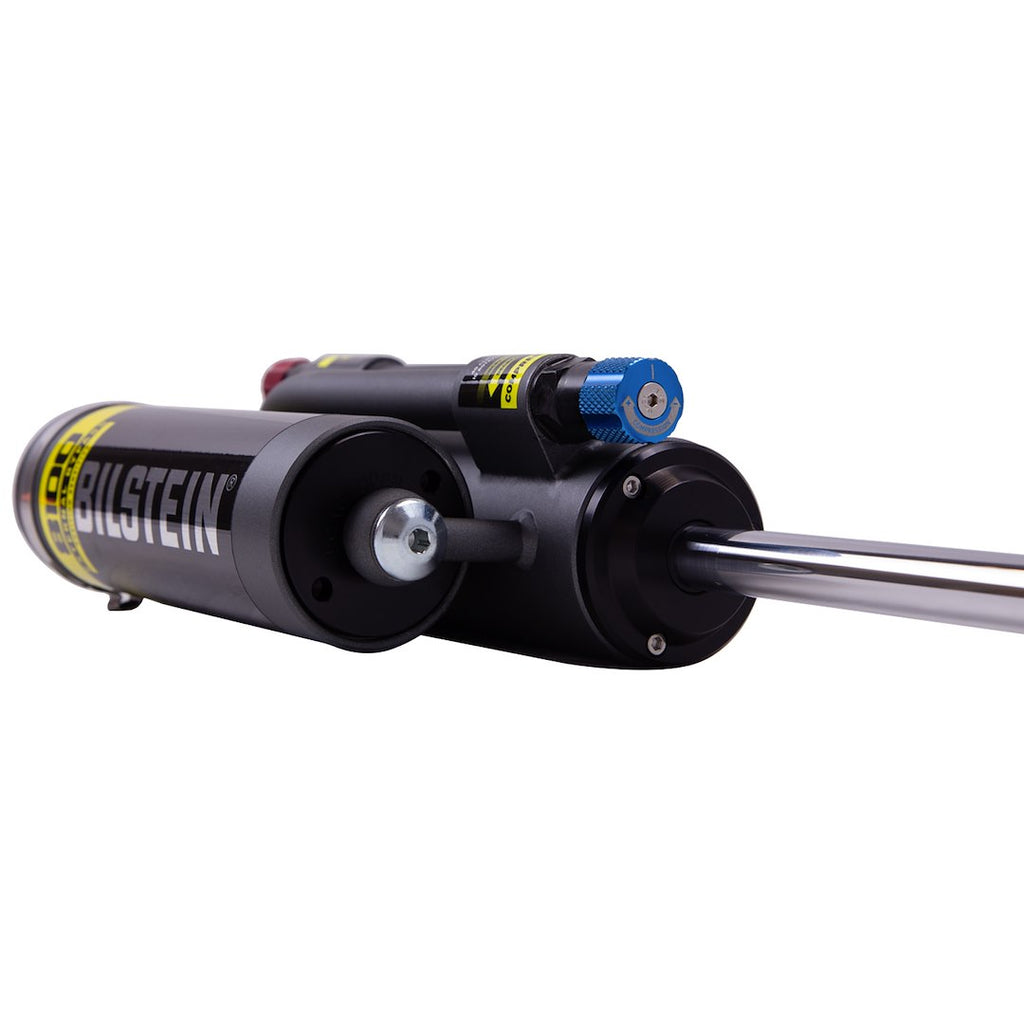

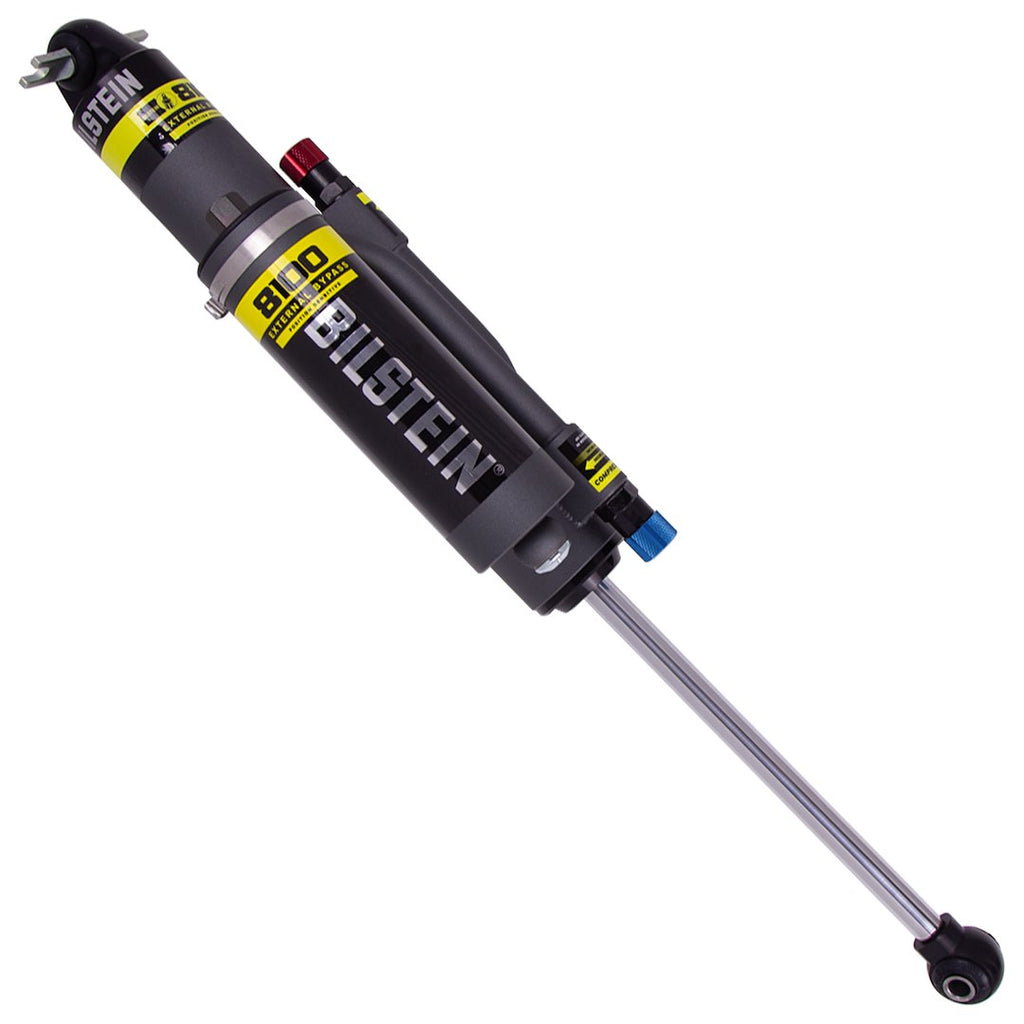

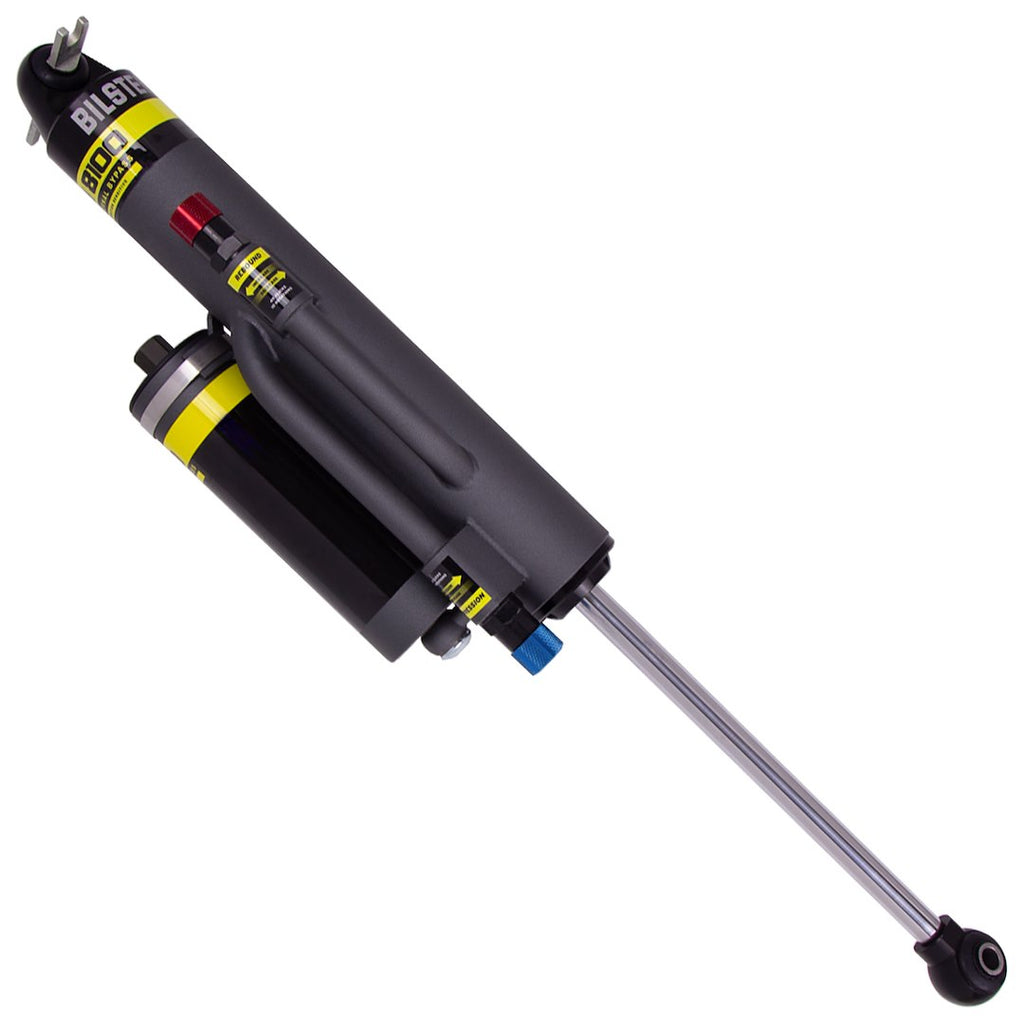

The Bilstein B8 8100 BP Shock Absorber is designed to provide superior ride quality and handling across various terrains. This nitrogen gas charged shock absorber features a double adjustable compression and rebound system, allowing for precise tuning to meet your specific driving needs. With its robust construction and advanced technology, it ensures maximum control and comfort, even on the roughest roads.
Features
- The Bump Zone above the compression bypass tube enhances bottoming control and eliminates the need for a hydraulic bump stop.
- Dual tube external bypass design offers position-sensitive damping with independent adjustments for both rebound and compression.
- Incremental flow adjuster allows for fine-tuning of damping force for precise adjustments.
- Bottom port reservoir hose increases bottom out control during the compression cycle.
- Billet rod end with vulcanized mounts ensures an exact OE fit and long-term durability.
- Vehicle-specific tuning provides a wide range of adjustment options.
- 60 millimeter large bore hard anodized aluminum piston delivers exceptional long-term durability and a greater range of damping control.
- Direct fit design facilitates easy installation.
- 18 millimeter piston rod offers high tensile strength and reduces internal gas force ramp-up for a smoother ride.
Specifications
- Manufacturer: Bilstein
- Manufacturer Part Number: 25-291322
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length: 27.83 Inch
- Compressed Length: 17.17 Inch
- Upper Mounting Style: Cross Pin
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Single
- Universality: Vehicle Specific
- Internal Design: Twin Tube
- Body Color: Gray
- Rod Diameter: 0.7 Inch
- Valving Type: Independent Compression and Adjustable Rebound Valving
- Ride Height Adjustable: Yes
- Rod Material: Aluminum
- With Reservoir: Yes
- Includes Dust Shield: No
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time: 0.5 Hours
Technical Documents
USA_SDS_Shock_Air_Spring_V2_EN.pdf
USA_SDS_Shock_Air_Spring_V2_EN.pdf
Product Video
Compatibility/Fit
- 2007-2018 Jeep Wrangler JK
