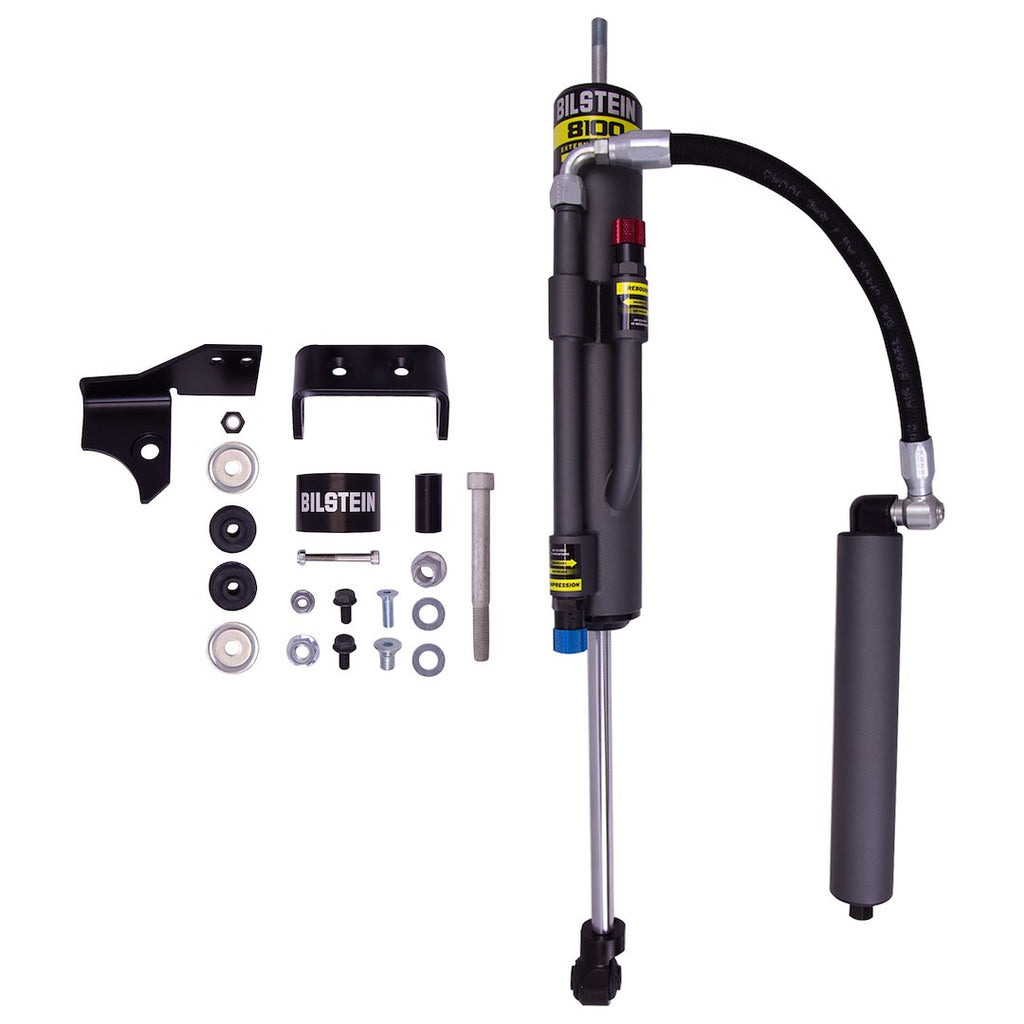

Bilstein B8 8100 BP Shock Absorber (MPN: 25-291292)

Advanced nitrogen gas charged shock for superior ride quality and control.

The Bilstein B8 8100 BP shock absorber is engineered to provide exceptional performance in various driving conditions. This nitrogen gas charged shock features a double adjustable compression and rebound system, allowing for precise tuning to enhance vehicle handling and comfort. With an extended length of 27.03 inches and a collapsed length of 17.2 inches, it is designed for a direct fit, ensuring easy installation without the need for additional modifications.

This shock absorber incorporates a dual tube external bypass design that offers position sensitive damping, which can be independently adjusted for both rebound and compression. The innovative bump zone above the compression bypass tube increases bottoming control, eliminating the necessity for a hydraulic bump stop. Additionally, the bottom port reservoir hose enhances bottom out control during compression cycles, making it suitable for off-road and rugged terrain.

Constructed with a 60 millimeter large bore hard anodized aluminum piston and an 18 millimeter piston rod, the Bilstein B8 8100 BP delivers superior durability and a smoother ride by reducing internal gas force ramp-up. The shock is vehicle specific, allowing for a wide range of adjustments to meet individual performance needs, making it a reliable choice for those seeking to optimize their suspension system.

Features

• The Bump Zone, Located Above The Compression Bypass Tube, Increases Bottoming Control And Eliminates The Need For A Hydraulic Bump Stop
• Dual Tube External Bypass Offers Position Sensitive Damping With Independent Adjustment For Rebound And Compression
• Incremental Flow Adjuster Offers Finite And Incremental Changes In Damping Force For Precise Adjustments
• Bottom Port Reservoir Hose Provides Increased Bottom Out Control During The Compression Cycle
• Billet Rod End With Vulcanized Mounts For An Exact OE Fit And Long-Term Durability
• Vehicle Specific Tuning With The Ability To Make A Wide Range Of Adjustments
• 60 Millimeter Large Bore Hard Anodized Aluminum Piston Offers A Greater Range Of Damping Control And Delivers Exceptional Long-Term Durability
• Direct Fit For Easy Installation
• 18 Millimeter Piston Rod Provides Brute Tensile Strength And Reduces Internal Gas Force Ramp-Up Providing A Smoother Ride

Specifications

• Manufacturer: Bilstein
• Manufacturer Part Number: 25-291292
• Type: Nitrogen Gas Charged
• With Coil Spring: No
• Extended Length (IN): 27.03 Inch
• Compressed Length (IN): 17.02 Inch
• Upper Mounting Style: Stud
• Lower Mounting Style: Eyelet
• Adjustable Valving: Yes
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Twin Tube
• Body Color: Gray
• Rod Diameter (IN): 0.7 Inch
• Valving Type: Independent Compression And Adjustable Rebound Valving
• Ride Height Adjustable: Yes
• Rod Material: Aluminum
• With Reservoir: Yes
• Includes Dust Shield: No
• Includes Hardware: No
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2007-2018 Jeep Wrangler JK

Technical Documents

• E-WM05-0000005_1.pdf
• warranty_all_v4.2.pdf
• USA_SDS_Shock_Air_Spring_V2_EN.pdf
• B8_8100_Flyer.pdf
• USA_SDS_Shock_Air_Spring_V2_EN.pdf
