Bilstein B8 5125 Shock Absorber (MPN: 33-230375)

High-performance monotube shock for custom suspension applications.

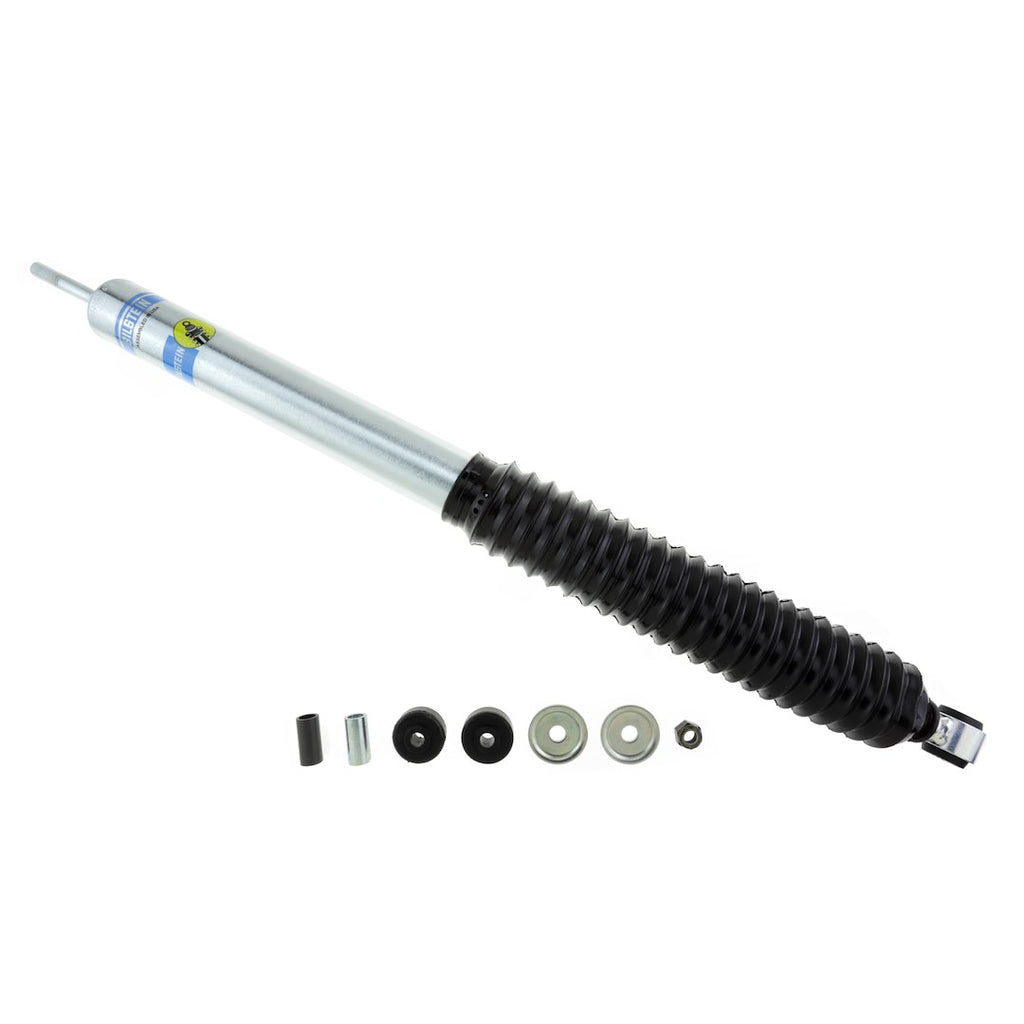

The Bilstein B8 5125 shock absorber is engineered for custom applications, providing a robust solution for vehicles lacking direct Bilstein fitment. This nitrogen gas charged monotube shock absorber features a self-adjusting deflective disc valving system, ensuring optimal performance across various driving conditions. With an extended height of 28.35 inches and a collapsed height of 17.11 inches, it offers an impressive travel length of 11-1/4 inches, making it suitable for a wide range of custom setups.

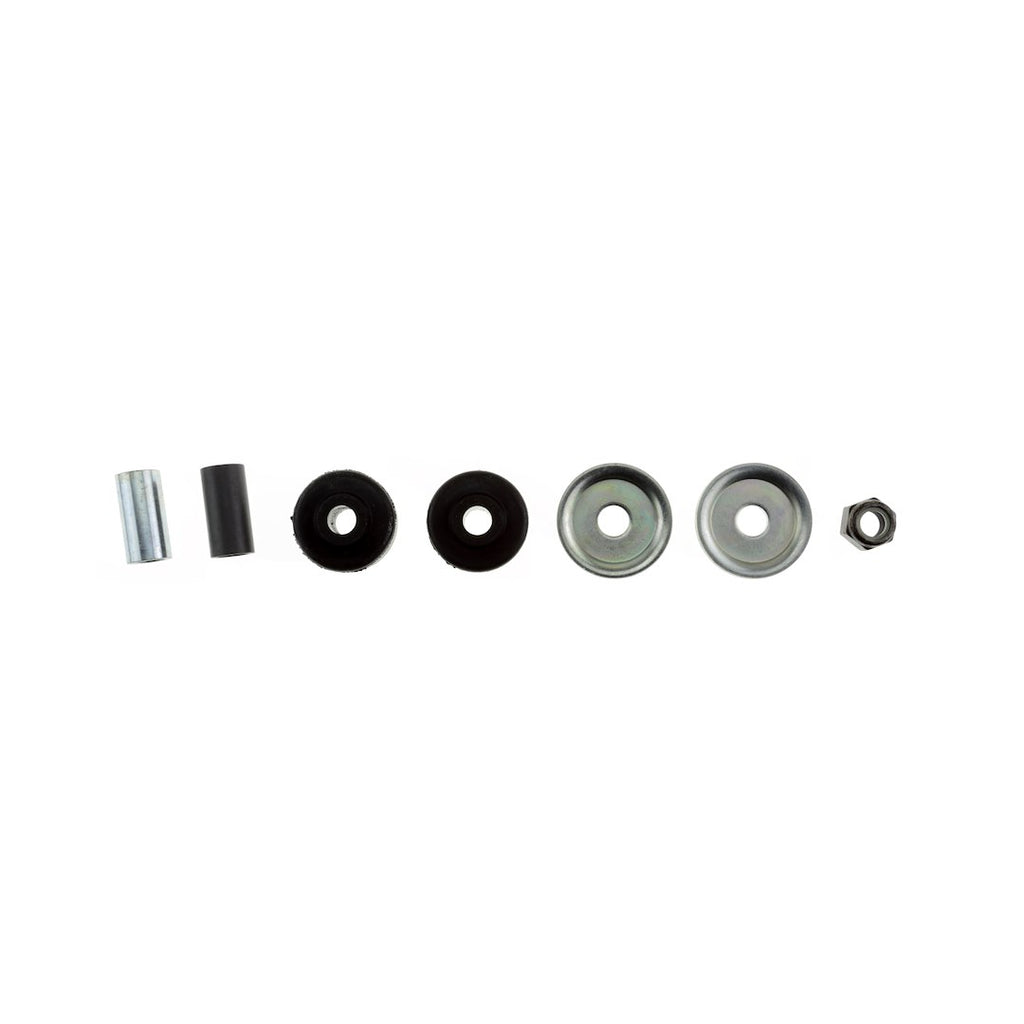

Designed with a 46 millimeter piston and independent rebound and compression tuning, the B8 5125 enhances vehicle control, particularly for those equipped with larger diameter tires. The shock's construction includes industry-standard 5/8 inch hour glass bushings and is available in both eye/eye and stem/eye mount configurations. The monotube design contributes to superior damping characteristics, reducing harshness and improving overall ride quality.

Bilstein B8 5125 shock absorbers are a single unit solution, featuring a zinc plated body for durability and longevity. The inclusion of shock boots protects the unit from debris, ensuring consistent performance over time. This shock absorber is an excellent choice for custom suspension builders seeking reliable and high-quality components.

Features

• Monotube Gas Pressure Construction
• Self Adjusting Deflective Disc Valving System
• High Flow Piston Reduces Harshness
• Independent Rebound And Compression Tuning
• Larger Working Piston Area For Exact Damping
• Superior Control For Large Diameter Tires
• Available By Travel Lengths For Custom Applications

Specifications

• Manufacturer: Bilstein
• Manufacturer Part Number: 33-230375
• Type: Nitrogen Gas Charged
• With Coil Spring: No
• Extended Length (IN): 28.35 Inch
• Compressed Length (IN): 17.11 Inch
• Upper Mounting Style: Stud
• Lower Mounting Style: Eyelet
• Adjustable Valving: No
• Quantity: Single
• Universality: Semi-Universal
• Internal Design: Monotube
• Body Color: Silver
• Rod Diameter (IN): 1.81 Inch
• Valving Type: Self-Adjusting Deflective Disc Valving
• Ride Height Adjustable: No
• With Reservoir: No
• Includes Dust Shield: No
• Includes Boot: Yes
• Estimated Install Time (Hours): 0.5

Technical Documents

• E4-WM5-Y217A00.pdf
• warranty_all_v4.2.pdf
• BILSTEIN_Measure_a_Shock.pdf
• BILSTEIN_Measure_a_Shock.pdf
• USA_SDS_Shock_Air_Spring_V2_EN.pdf
• USA_SDS_Shock_Air_Spring_V2_EN.pdf
