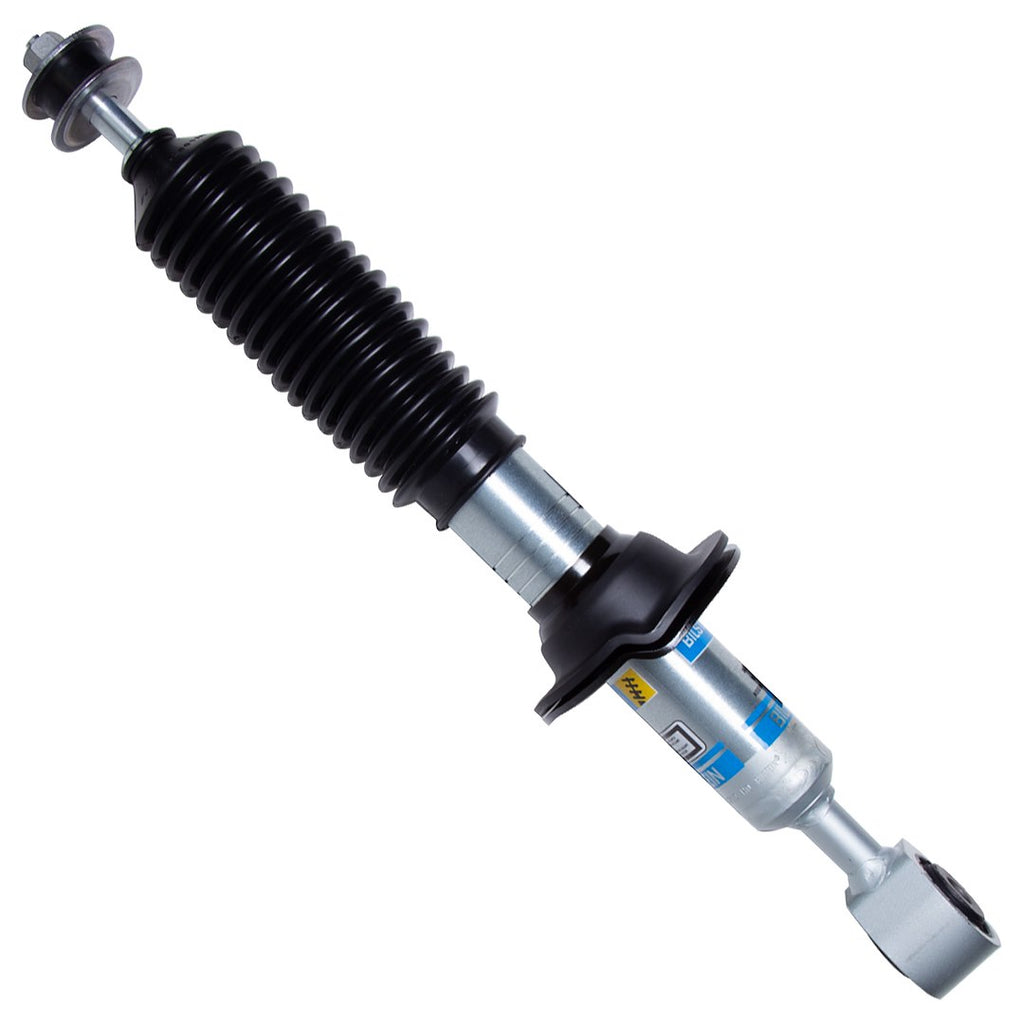

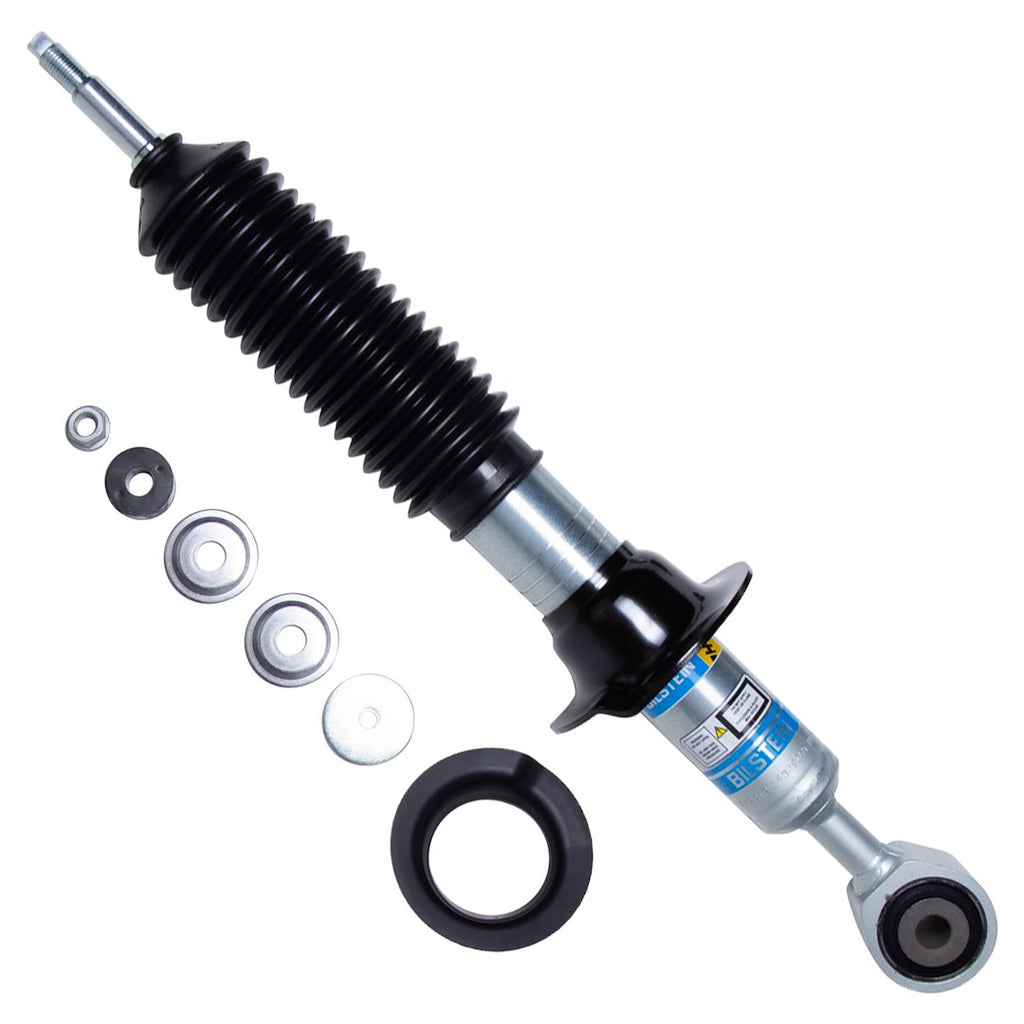

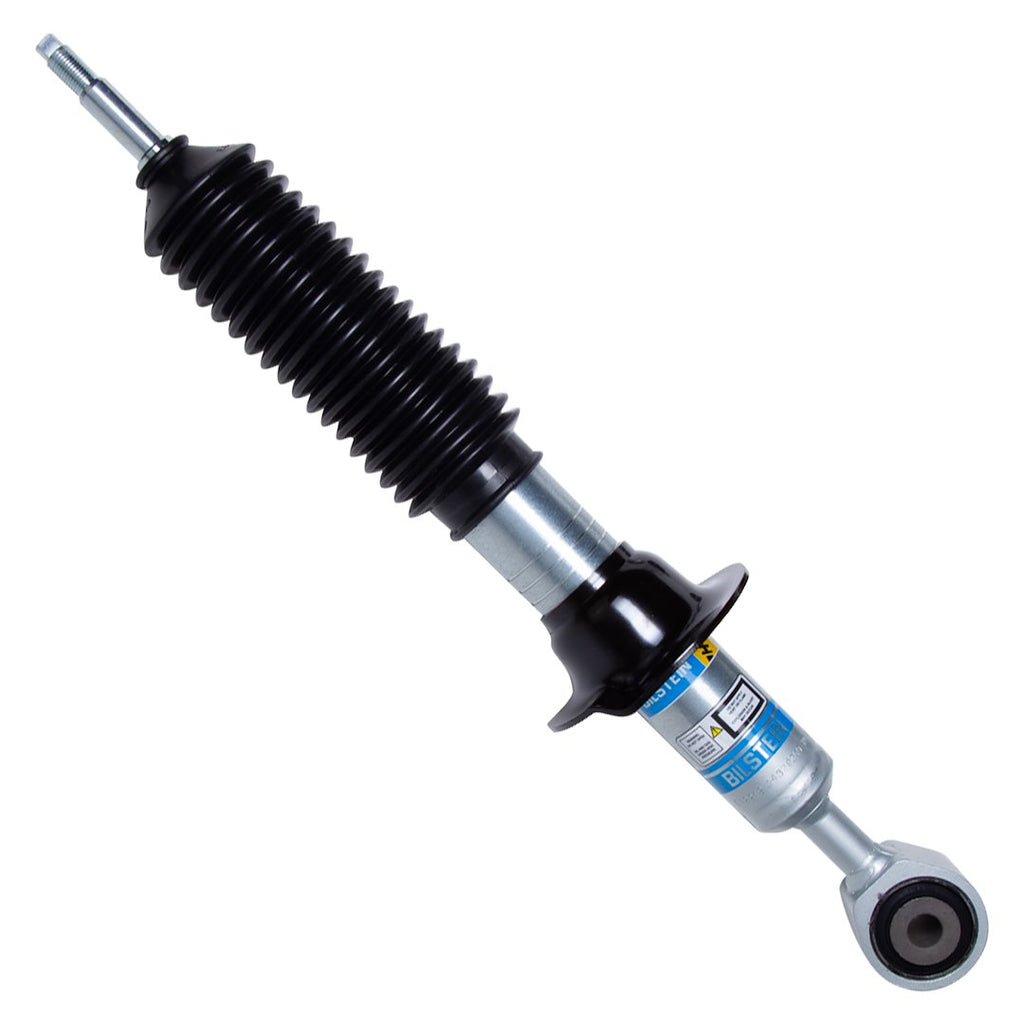

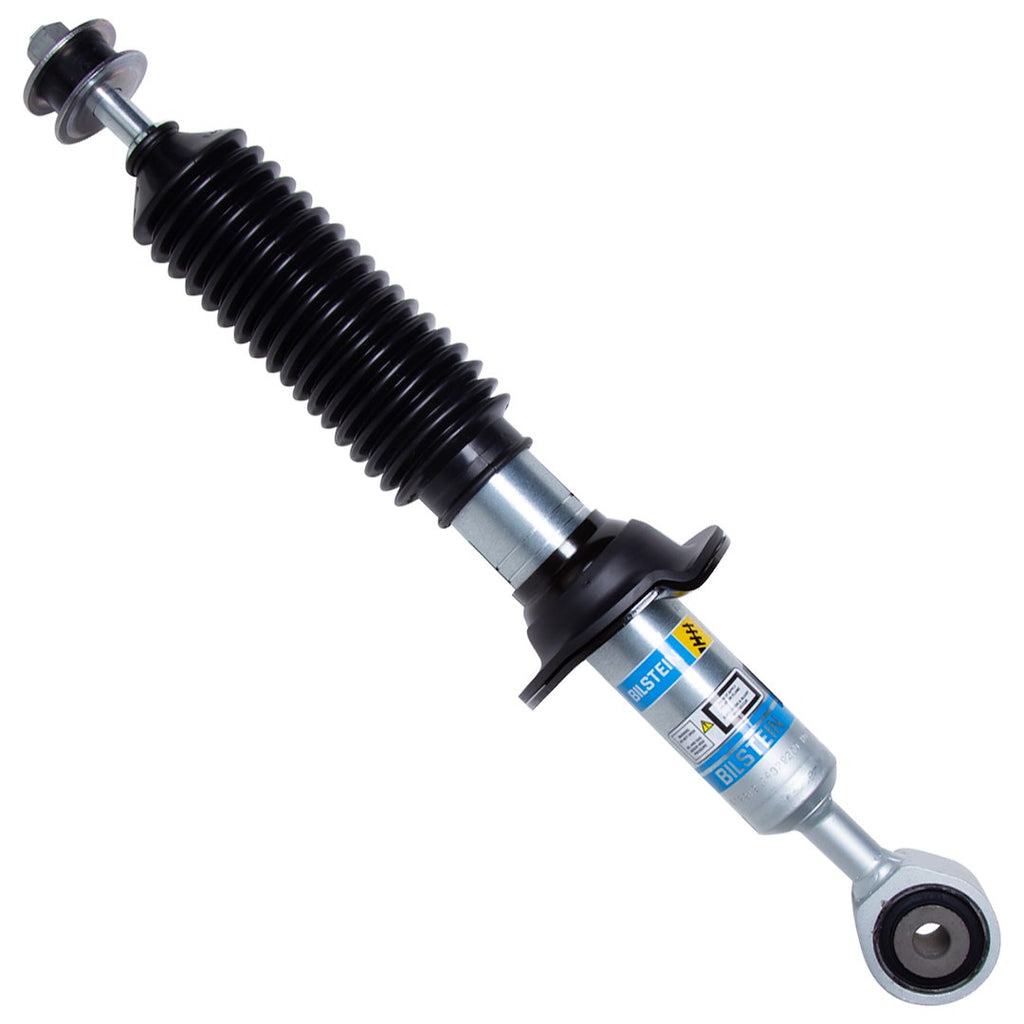

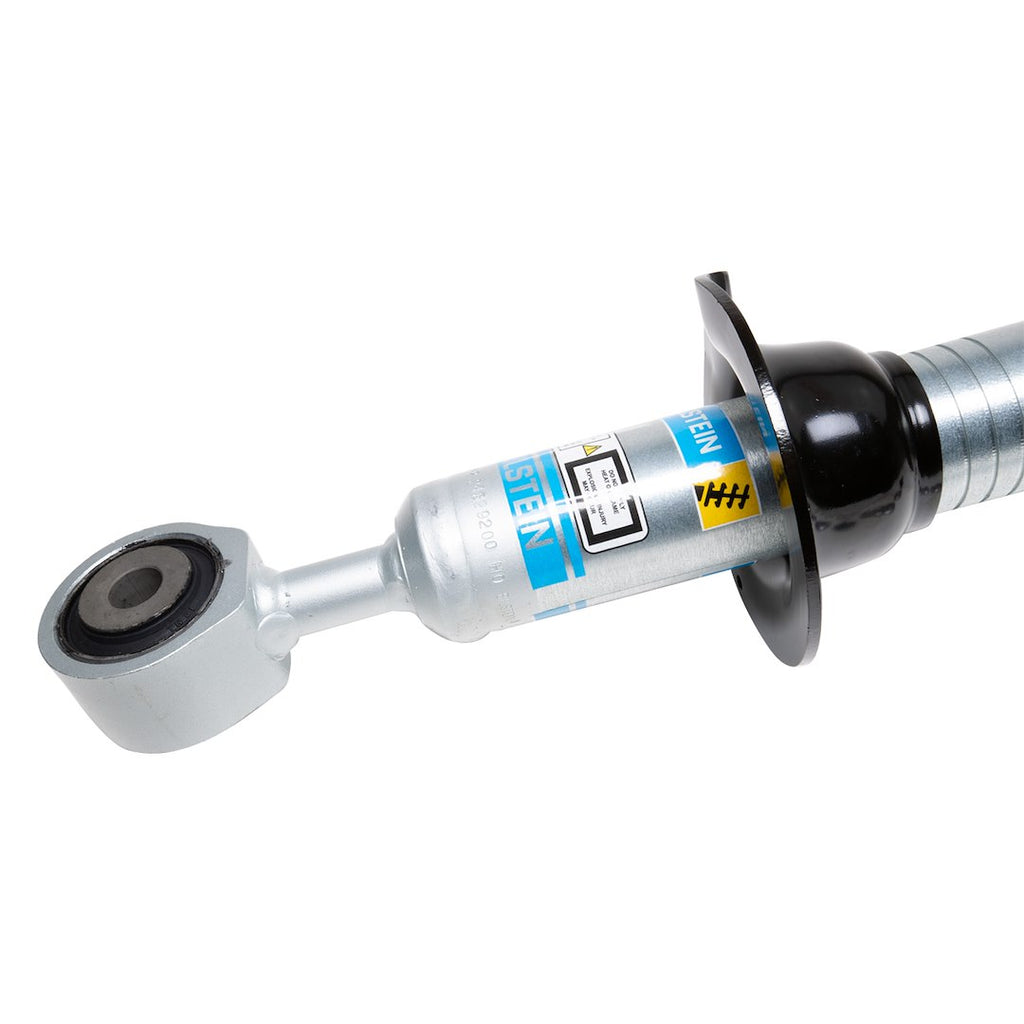

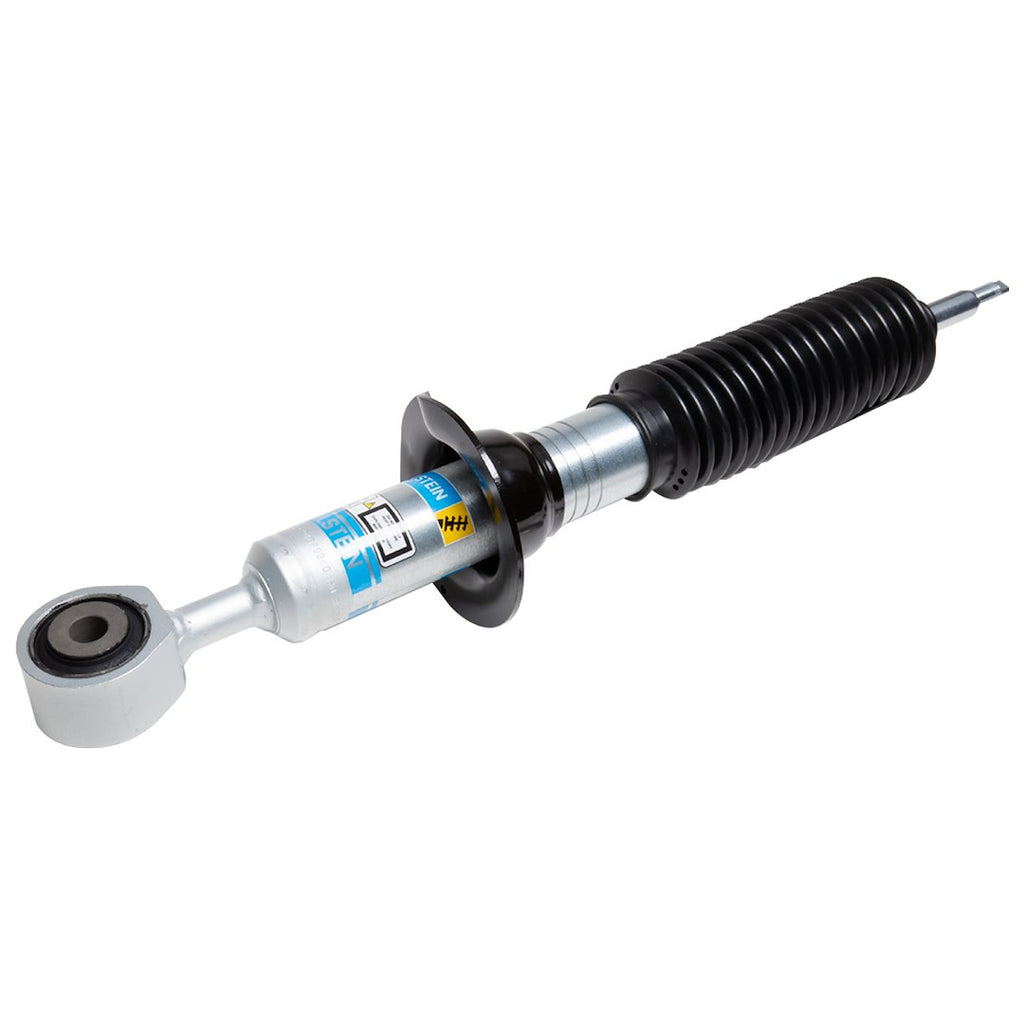

Bilstein B8 5100 Shock Absorber (MPN: 24-329200)

Enhance your vehicle's handling and ride height with advanced technology.

The Bilstein B8 5100 shock absorber is engineered for trucks and SUVs featuring a front OE coilover style suspension. This product allows for ride height adjustment, providing a lift of 0 to 3 inches depending on the application, thanks to multiple snap-ring grooves in the body. The monotube design incorporates a 46 millimeter digressive piston and a self-adjusting deflective disc valve, ensuring optimal performance and handling under various driving conditions.

Designed to improve wheel travel and enhance overall vehicle stability, the Bilstein B8 5100 is particularly effective when used in conjunction with lifting kits. Its nitrogen gas charged construction offers higher power reserves and a longer service life, making it suitable for both on-road and off-road applications. The shock absorber is equipped with a dust boot for added protection and features a zinc plated finish for durability.

With its advanced gas-pressure technology and fine-tuning from rigorous road testing, the Bilstein B8 5100 provides enhanced grip and lane stability, contributing to a safer driving experience. This shock absorber is a single unit, specifically designed for vehicle compatibility, ensuring a precise fit and performance.

Features

• Higher Power Reserves And A Longer Service Life Even When Pulling Trailers Or Driving Offroad
• Optimum Grip And Enhanced Lane Stability In Day To Day And Extreme Situations
• Perceivably Enhanced Safety
• Perfect In Combination With Lifting Kits
• BILSTEIN Gas-Pressure Technology
• BILSTEIN Mono-Tube Upside-Down Technology Possible
• Individually Fine-Tuned In The BILSTEIN Road Test

Specifications

• Manufacturer: Bilstein
• Manufacturer Part Number: 24-329200
• Type: Nitrogen Gas Charged
• With Coil Spring: No
• Extended Length (IN): 20.22 Inch
• Compressed Length (IN): 15.91 Inch
• Upper Mounting Style: Stud
• Lower Mounting Style: Eyelet
• Adjustable Valving: No
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Monotube
• Valving Type: Self-Adjusting Deflective Disc Valving
• Ride Height Adjustable: Yes
• With Reservoir: No
• Includes Dust Shield: No
• Includes Boot: Yes
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2023-2025 Toyota Sequoia
• 2022-2025 Toyota Tundra

Technical Documents

• E-WM05-0000038_2.pdf
• warranty_all_v4.2.pdf
• USA_SDS_Shock_Air_Spring_V2_EN.pdf
• USA_SDS_Shock_Air_Spring_V2_EN.pdf
• B8_5100_RHA_Flyer.pdf
• B8_5100_RHA_Flyer.pdf
• B8_5100_RHA_Flyer.pdf
