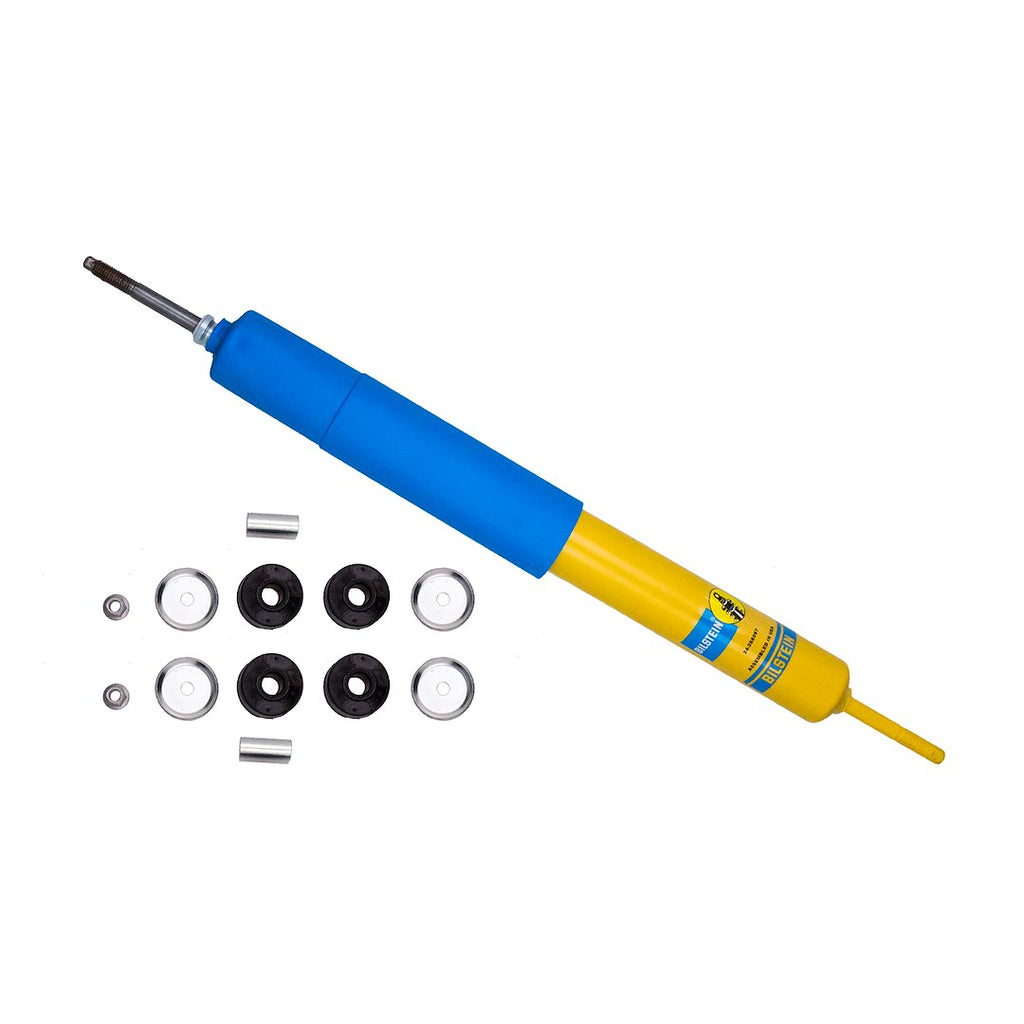

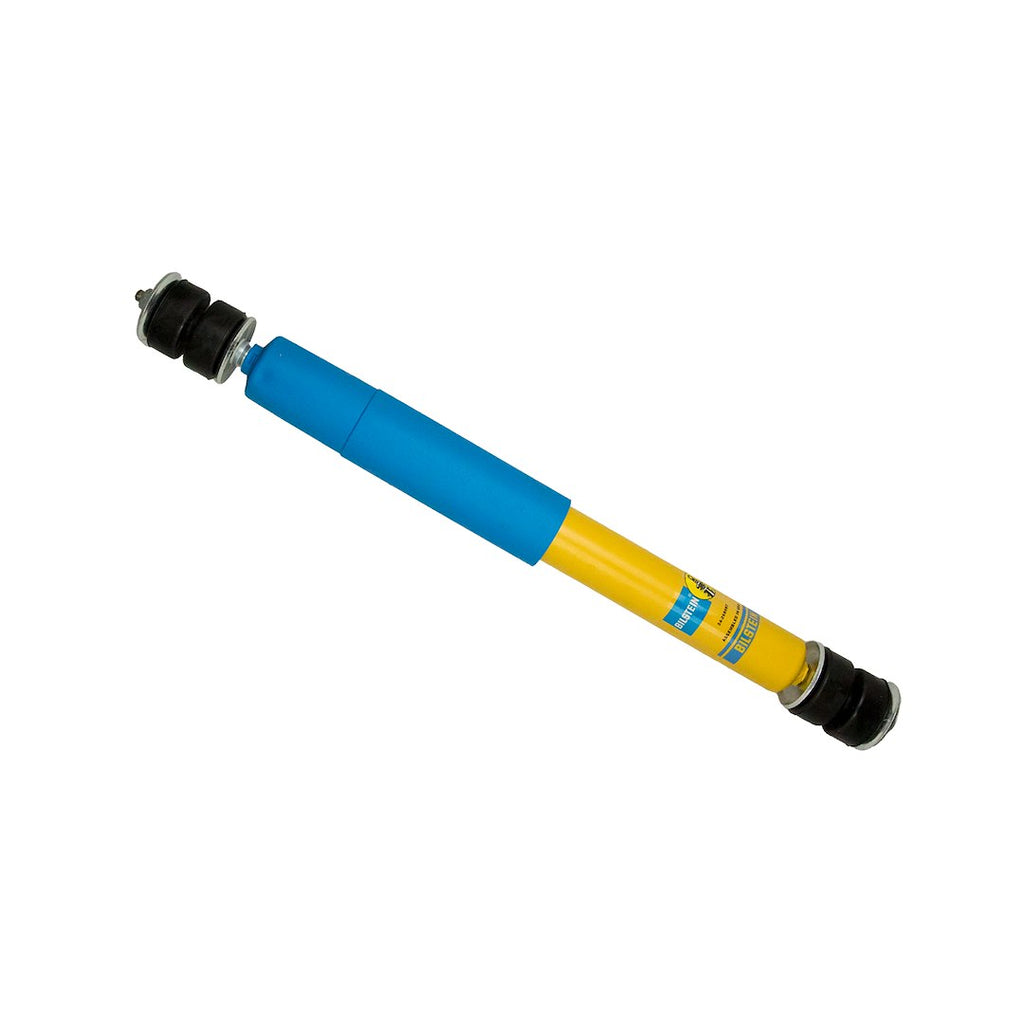

Bilstein B6 HD Series Shock Absorber (MPN: 24-268097)

Advanced monotube design for enhanced vehicle stability and control.

The Bilstein B6 HD Series Shock Absorber is engineered to provide superior performance for motorhomes, utilizing a nitrogen gas charged monotube design. This technology effectively minimizes excessive sway and bounce, which are common issues with traditional twin-tube shock absorbers. Each shock is specifically tested and tuned for individual motorhome models, ensuring a safe and comfortable ride that is trusted by leading RV manufacturers.

Featuring patented COMFITRACTM piston technology, the B6 HD shock absorber responds swiftly to sudden changes in road conditions, enhancing driver control and comfort. The one-piece aluminum rod guide and seal design keeps dirt out, promoting a nearly friction-free surface that extends the lifespan of the shock. Additionally, the high-pressure nitrogen gas and floating dividing piston work together to prevent oil foaming, maintaining consistent performance under various driving conditions.

The shock absorber's self-adjusting digressive valving increases sensitivity and vehicle control while reducing road harshness through high-frequency bypass technology. This results in improved handling and stability, making it a reliable choice for those seeking enhanced performance from their motorhome suspension system. With fewer moving parts than traditional twin-tube shocks, the Bilstein B6 HD offers better durability and heat dissipation, reducing the risk of premature shock failure.

Features

• One Piece Aluminum Rod Guide And Seal Keeps Dirt Out And Maintains A Nearly Friction-Free Surface For Longer Life
• High Pressure Nitrogen Gas And “Floating” Dividing Piston Eliminates The Possibility Of Oil Foaming And Performance Loss
• Increases Sensitivity And Vehicle Control
• Reduces Road Harshness Using High Frequency Bypass Technology; Eliminates Excessive Sway And Bouncing
• Maintains A Safe, Smooth And Comfortable Ride; Ensures Overall Vehicle Stability
• Provides Greater Damping Power Than Traditional Twin-Tubes For Improved Handling And Consistent Performance
• Self-Adjusting Digressive Valving
• Better Heat Dissipation Reducing Premature Shock Failure
• Less Moving Parts Than Twin Tube Shock For Better Durability

Specifications

• Manufacturer: Bilstein
• Manufacturer Part Number: 24-268097
• Type: Nitrogen Gas Charged
• With Coil Spring: No
• Extended Length (IN): 20.37 Inch
• Compressed Length (IN): 12.26 Inch
• Upper Mounting Style: Stud
• Lower Mounting Style: Cross Pin
• Adjustable Valving: No
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Silver
• Rod Diameter (IN): 1/2 Inch
• Valving Type: Self-Adjusting Deflective Disc Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: No

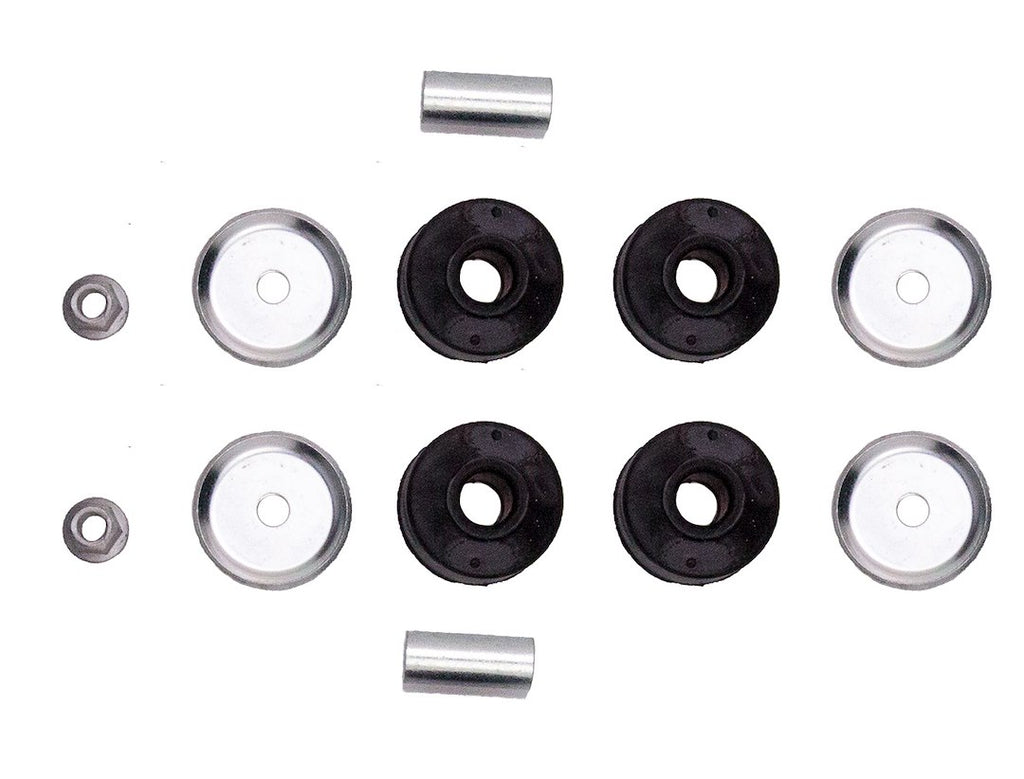

• Includes Hardware: Yes
• Includes Boot: Yes
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2004-2009 Chevrolet C4500 Kodiak
• 2004-2009 Chevrolet C5500 Kodiak
• 2004-2009 GMC C4500 Topkick
• 2004-2009 GMC C5500 Topkick
• 2005-2007 Holiday Rambler Vacationer
• 2009-2009 Holiday Rambler Vacationer
• 2006-2008 Holiday Rambler Vacationer XL
• 2005-2006 Monaco Coach La Palma
• 2009-2009 Monaco Coach La Palma
• 2006-2006 Monaco Coach La Palma Diesel
• 2007-2008 Monaco Coach La Palma XL
• 2006-2011 Monaco Coach Monarch
• 2005-2005 Monaco Coach Monarch SE
• 2007-2007 Monaco Coach Monarch SVE
