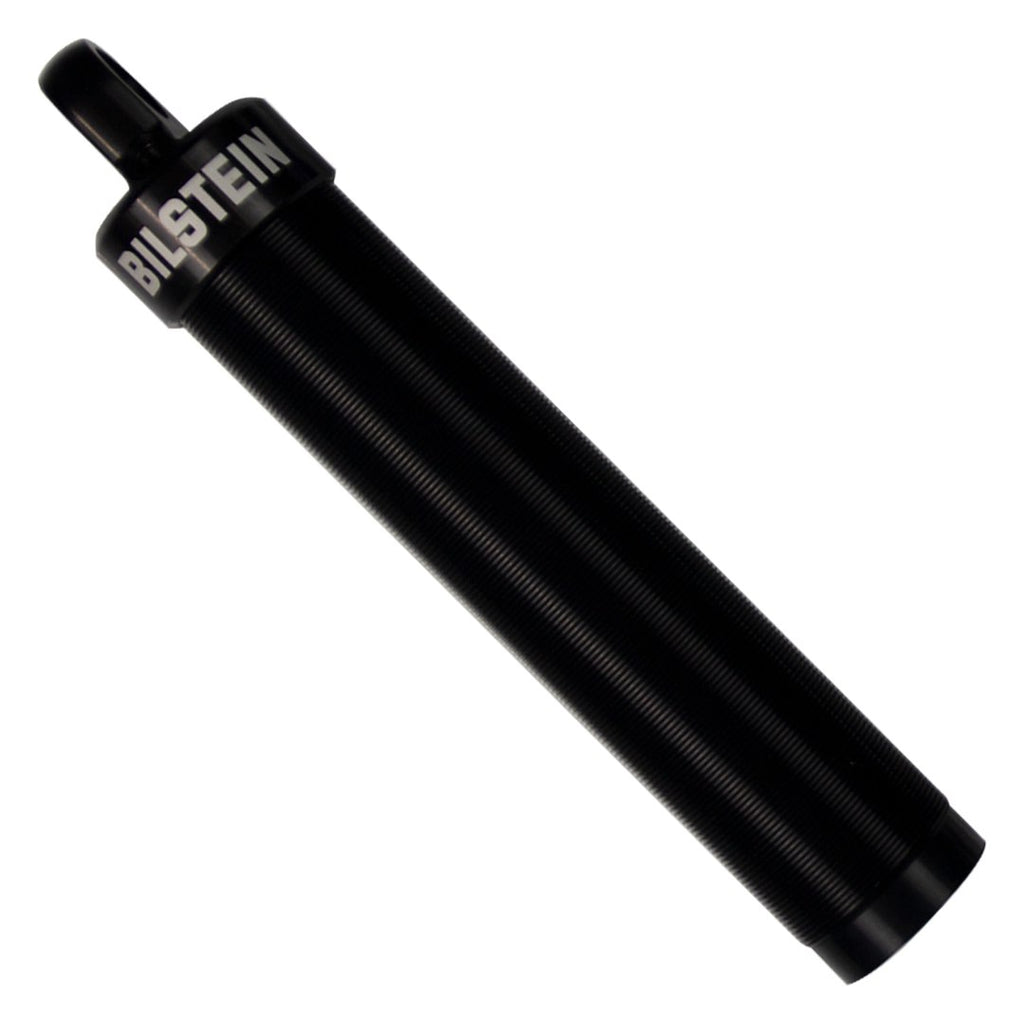

Advanced aluminum shock absorber with adjustable compression and rebound features.
The Bilstein AS2 Series Shock Absorber is engineered for high-performance applications, utilizing lightweight modular aluminum construction. This shock absorber features Bilstein's advanced reservoir technology, which includes independent high and low compression adjusters for precise tuning. The tunable base valve assembly enhances versatility, making it suitable for various track conditions and driver preferences.
Constructed from 6061 aluminum with a hard anodized finish, the AS2 Series ensures durability and maintains tighter tolerances. The shock absorber offers a 3-way tuning system, allowing for independent adjustments of high and low compression on the reservoir and rebound on the shaft. This design provides optimal flow and replenishment balance, resulting in improved performance and handling.
The AS2 Series is equipped with a high-performance rod guide seal pack that exceeds original equipment quality standards, ensuring low shaft friction and reliability in harsh racing environments. Additionally, the braided stainless steel hose enhances oil flow while minimizing hysteresis, making installation straightforward with banjo fittings for easier mounting.
Features
- 6061 Aluminum Extruded, Hard Anodized Body And Reservoir Provides Durability And Maintains Tighter Tolerances
- Completely Independent High And Low Speed Adjustment
- High Speed Control Through Preloaded Cage For Consistent Adjustments And Better Range, And Low Speed Control Through Needle And Jet Assembly For Extra Fine Tunability
- 46 Millimeter Base Valve Provides Optimal Flow And Replenishment Balance While Allowing Lower Rod Forces To Be Used
- Components Are Billet Machined Anodized Aluminum For Precision Tolerance And Fit
- 3-Way Tuning: High/Low Compression On Reservoir And Rebound On Shaft

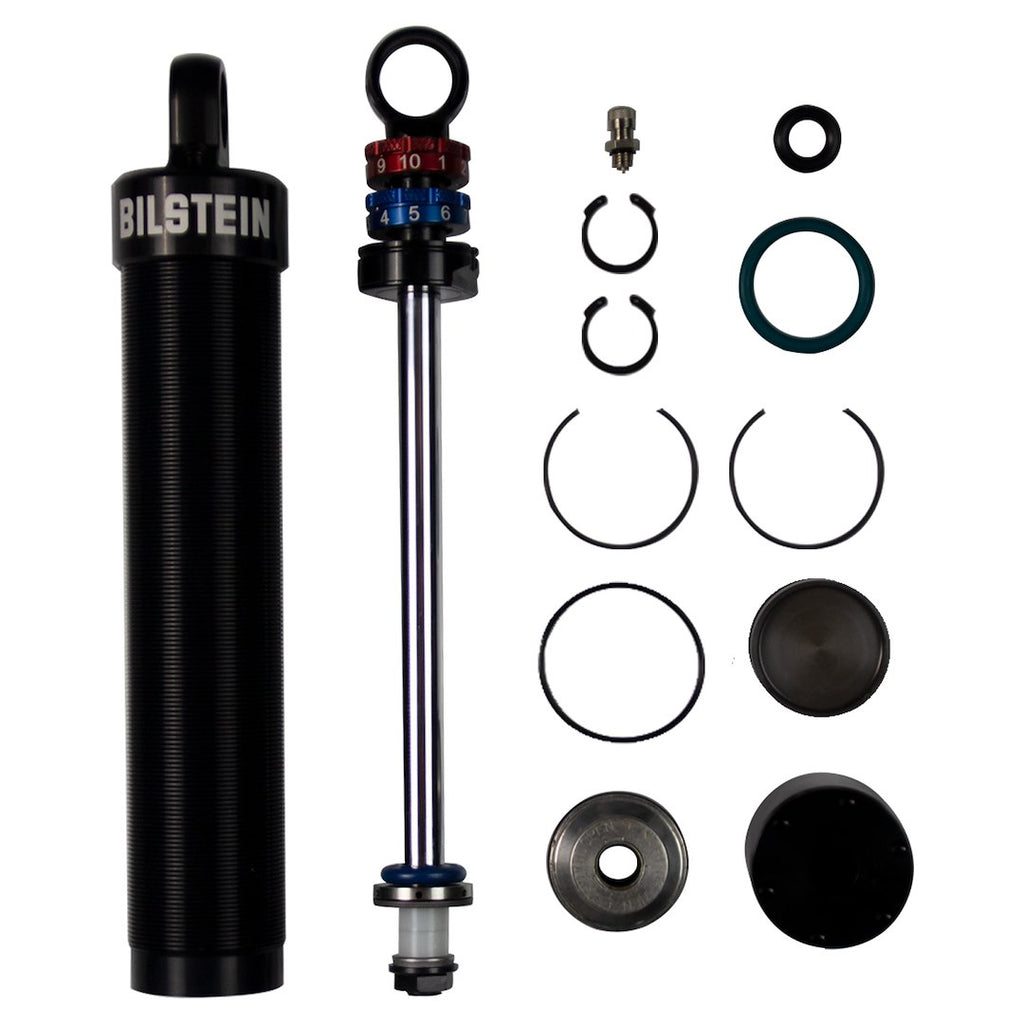

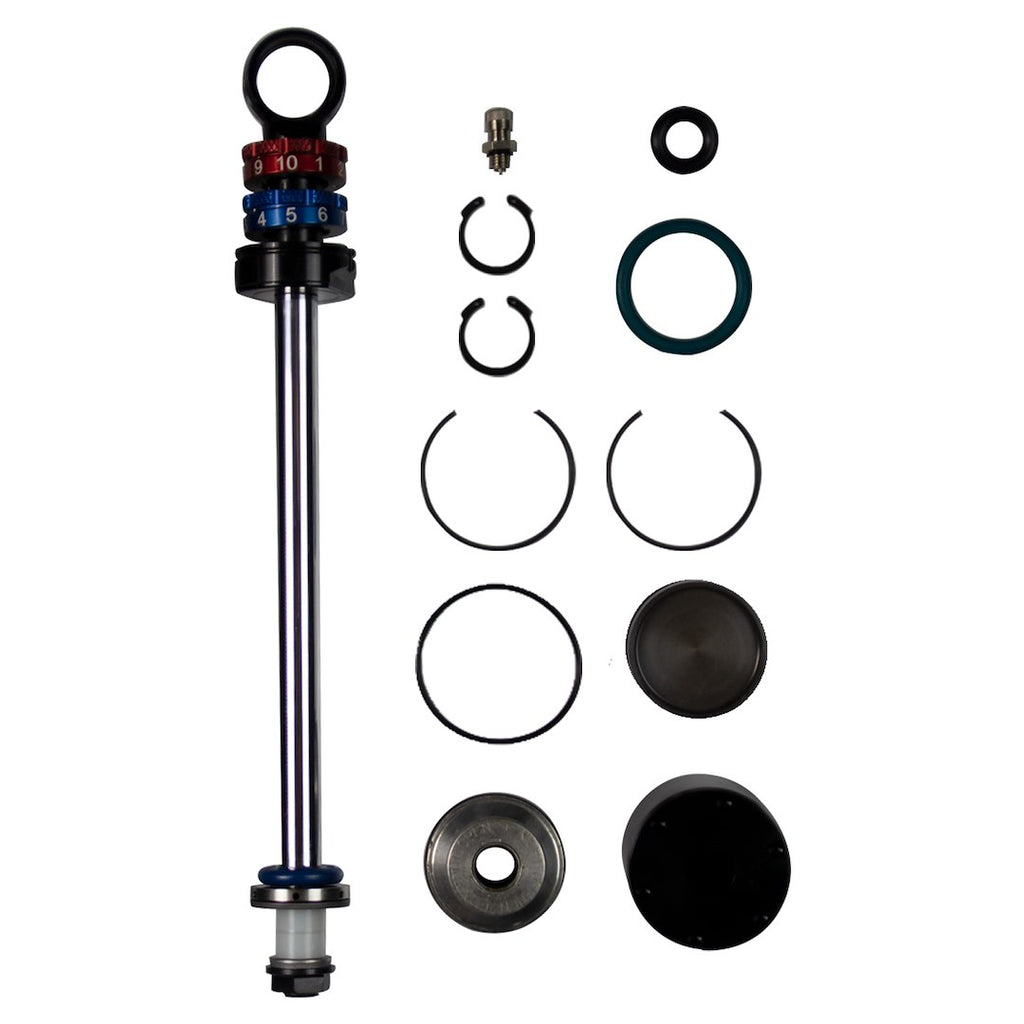

- Modular Configuration For Easy Rebuild And Repair
- High Performance Rod Guide Seal Pack That Exceeds OE Quality Durability Requirements, Provides Low Shaft Friction And Withstands Harsh Racing Environments
- Braided Stainless Steel Dash 5 Hose Delivers Better Oil Flow With Less Hysteresis. Banjo Fittings For Easier Mounting
Specifications
- Manufacturer: Bilstein
- Manufacturer Part Number: 33-315492
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 20.05 Inch
- Compressed Length (IN): 13.86 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Single
- Universality: Semi-Universal
- Internal Design: Monotube
- Body Color: Yellow
- Estimated Install Time (Hours): 0.5
