High-performance shock absorber designed for off-road applications.

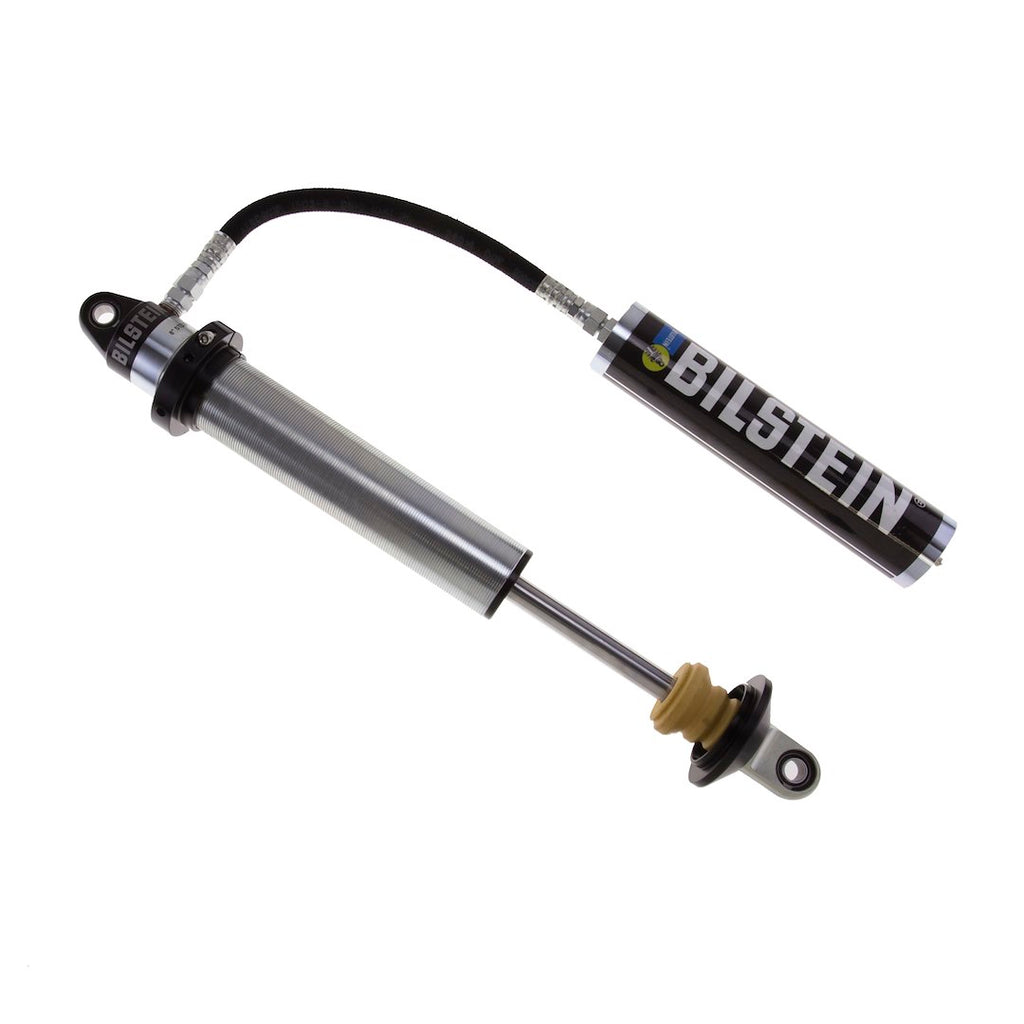

The Bilstein 8125 Series Shock Absorber is engineered for serious off-road enthusiasts seeking durability and performance. This shock features a monotube design that ensures fade-free performance, making it suitable for a variety of rugged terrains. With a remote reservoir, it offers enhanced resistance to heat, which is critical during extended off-road use. The shock is constructed with high-quality machined components, including a 22 millimeter case hardened piston rod that provides exceptional tensile strength while resisting damage from sand and rocks.
Designed for versatility, the 8125 Series is available in multiple lengths to accommodate a wide range of custom applications. The zinc plated shock body enhances resistance to off-road elements, ensuring longevity in harsh conditions. Additionally, the shock is owner rebuildable, allowing for maintenance and extended use. The industry-standard 5/8 inch bearing and threaded body with dual rate coil over hardware further contribute to its robust design, making it a reliable choice for off-road performance.
Features
- Threaded Body With Dual Rate Coil Over Hardware
- Monotube Design For Fade-Free Performance
- Remote Reservoir For Greater Resistance To Heat
- High Temperature Seal Extends Life Of Shock
- 22 Millimeter Case Hardened Piston Rod Provides Brute Tensile Strength While Resisting Sand Blasting And Rock Chipping
- Zinc Plated For Resistance To Off-Road Elements
- Owner Rebuildable
- Industry Standard 5/8 Inch Bearing
- All Components Are Billet Machined
Specifications
- Manufacturer: Bilstein
- Manufacturer Part Number: 33-225579
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 25-1/2 Inch
- Compressed Length (IN): 17-1/2 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Single
- Universality: Semi-Universal
- Internal Design: Monotube
- Body Color: Silver
- Rod Diameter (IN): 0.86 Inch
- Valving Type: Non Adjustable Valving
- Rod Material: Steel
- Body Material: Steel
- With Reservoir: Yes
- Includes Dust Shield: No
- Includes Hardware: Yes
- Includes Boot: Yes
- Estimated Install Time (Hours): 0.5
