High-performance shock absorber designed for off-road applications.

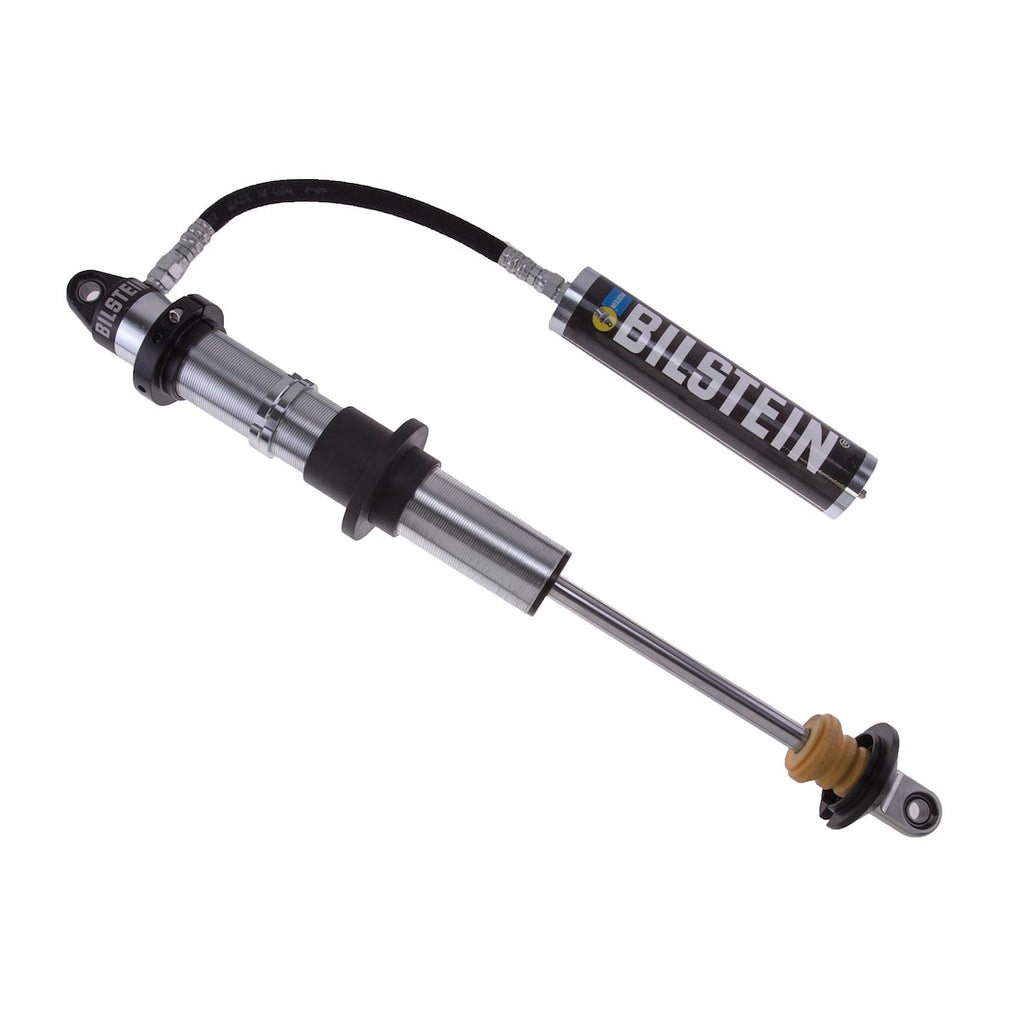

The Bilstein 8125 Series Shock Absorber is engineered for serious off-road enthusiasts seeking durability and performance. This shock features a monotube design that ensures fade-free performance, making it suitable for a variety of rugged terrains. With a remote reservoir, it offers enhanced resistance to heat, which is critical during extended off-road use. The shock is constructed with high-quality machined components, including a 22 millimeter case hardened piston rod that provides exceptional tensile strength while resisting damage from sand and rocks.
Designed to be owner rebuildable, the 8125 Series allows for maintenance and longevity, ensuring that it can withstand the harshest conditions. The zinc-plated shock body adds an extra layer of protection against off-road elements, while the threaded body with dual rate coil over hardware provides versatility for various applications. This shock absorber is compatible with a 3 inch inside diameter coil spring and features industry-standard 5/8 inch bearings for reliable performance.
Features
- Threaded Body With Dual Rate Coil Over Hardware
- Monotube Design For Fade-Free Performance
- Remote Reservoir For Greater Resistance To Heat
- High Temperature Seal Extends Life Of Shock
- 22 Millimeter Case Hardened Piston Rod Provides Brute Tensile Strength While Resisting Sand Blasting And Rock Chipping
- Zinc Plated For Resistance To Off-Road Elements
- Owner Rebuildable
- Industry Standard 5/8 Inch Bearing
- All Components Are Billet Machined
Specifications
- Manufacturer: Bilstein
- Manufacturer Part Number: 33-225531
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 32-1/2 Inch
- Compressed Length (IN): 20-1/2 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Single
- Universality: Semi-Universal
- Internal Design: Monotube
- Body Color: Silver
- Rod Diameter (IN): 0.86 Inch
- Valving Type: Non Adjustable Valving
- Rod Material: Steel
- Body Material: Steel
- With Reservoir: Yes
- Includes Dust Shield: No
- Includes Hardware: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
