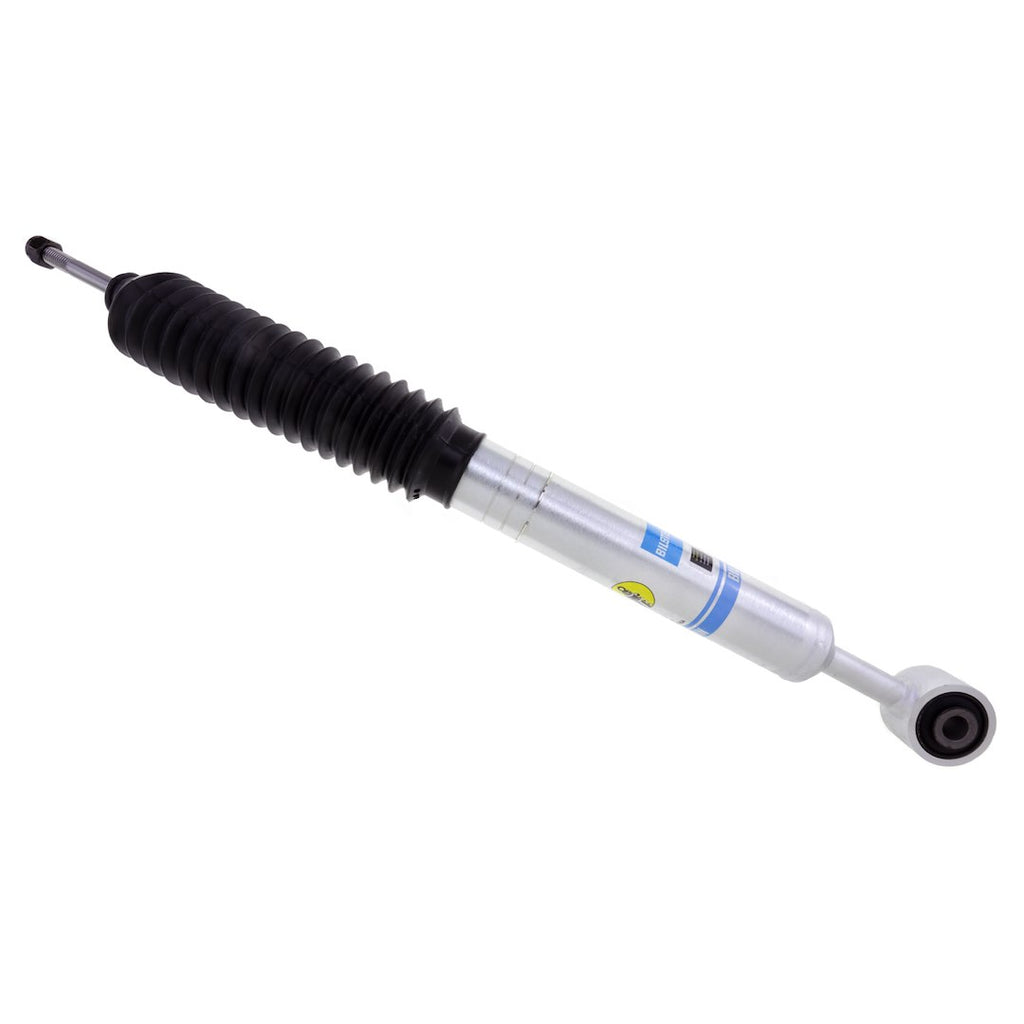

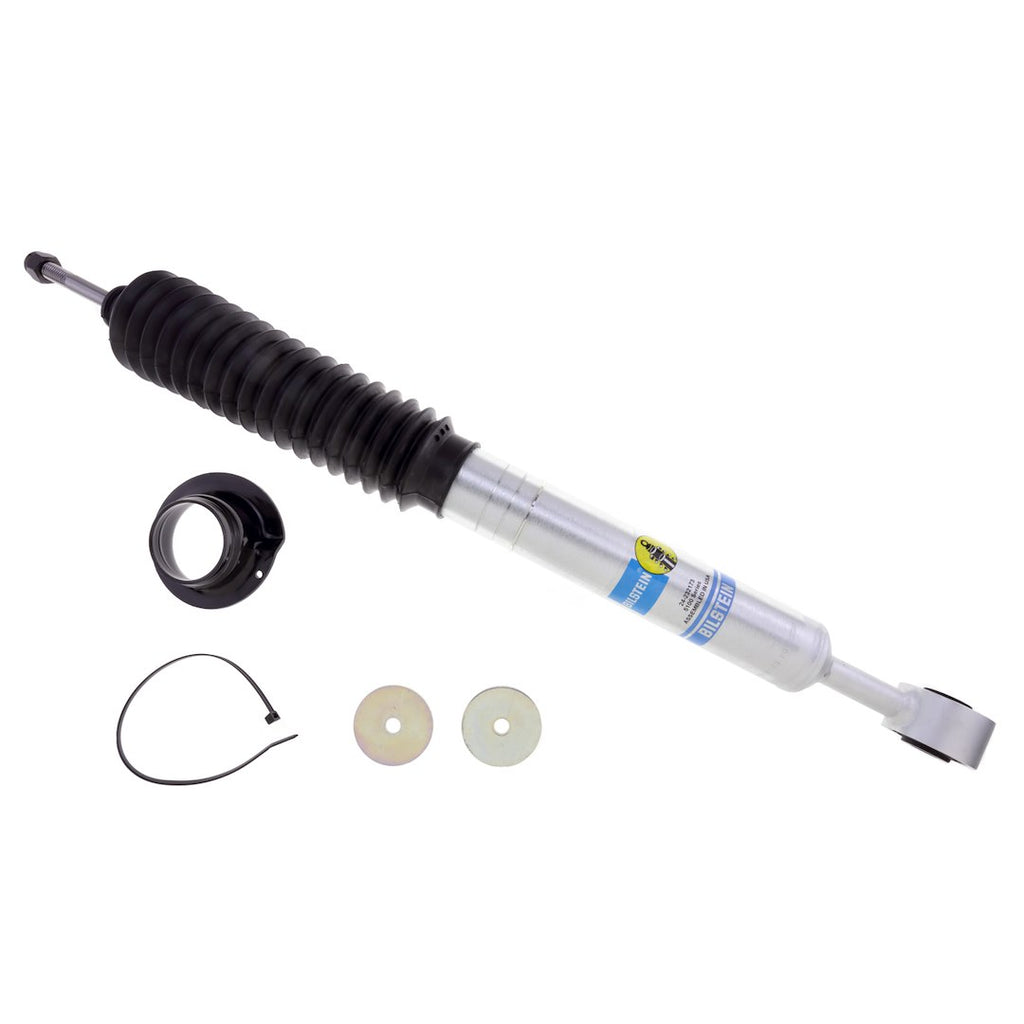

Bilstein 5100 Series Ride Height Adjustable Shock Absorber (MPN: 24-232173)

Enhance your vehicle's suspension with adjustable ride height and superior performance.

The Bilstein 5100 Series Ride Height Adjustable Shock Absorber is engineered for front coilover style pickup and SUV suspensions. This shock absorber features multiple snap ring grooves that allow for ride height adjustments ranging from 0 to 2.5 inches, providing versatility based on specific vehicle applications. Utilizing the vehicle's stock front coil springs, it offers a practical alternative to coil spring spacers while maintaining Bilstein's renowned monotube design for enhanced performance.

Constructed with a zinc-plated shock body and a black shock boot, this shock absorber is designed for durability and protection against harsh conditions. The self-adjusting deflective disc valving allows for independent tuning of rebound and compression, ensuring optimal handling and comfort. With a compressed length of 17.77 inches and an extended length of 24.12 inches, it is tailored to fit specific vehicle requirements.

This single shock absorber is vehicle specific and features a twin tube internal design, making it suitable for a wide range of applications. The robust steel construction and unique multi-layer coating provide extreme protection, ensuring longevity and reliability in performance. Installation is straightforward, with included hardware and a dust shield for added convenience.

Features

• An Extremely Affordable And Practical Alternative To Coil Spring Spacers, With The Benefit Of Bilstein's Superior Monotube Design
• Utilizes The Vehicle's Stock Front Coil Springs
• Zinc Finish With Multi-Layer Unique Bilstein Coating For Extreme Protection
• Self-Adjusting Deflective Disc Valving With Independent Rebound And Compression Tuning

Specifications

• Manufacturer: Bilstein
• Manufacturer Part Number: 24-232173
• Type: Hydraulic
• With Coil Spring: No
• Extended Length (IN): 24.12 Inch
• Compressed Length (IN): 17.77 Inch
• Upper Mounting Style: Stud
• Lower Mounting Style: Eyelet
• Adjustable Valving: Yes
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Twin Tube
• Body Color: Silver
• Rod Diameter (IN): 1/2 Inch
• Valving Type: Self-Adjusting Deflective Disc Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: No

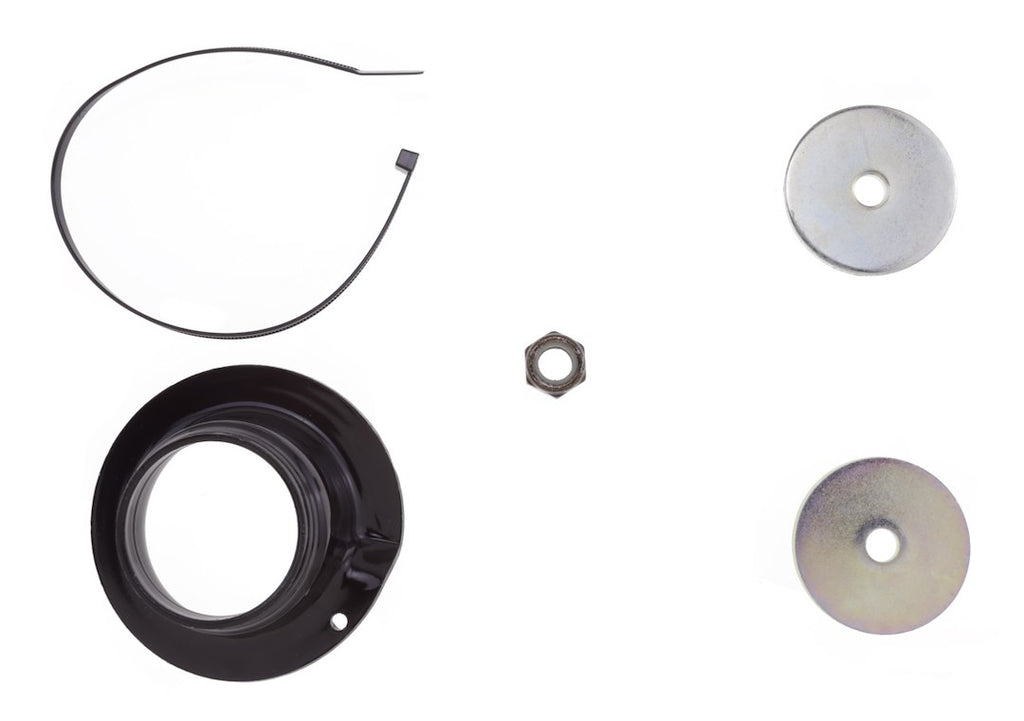

• Includes Hardware: Yes
• Includes Boot: Yes
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2007-2021 Toyota Tundra

Technical Documents

• E4-WM5-Y337A02_1.pdf
• warranty_all_v4.2.pdf
• B8_5100_RHA_Flyer.pdf
• USA_SDS_Shock_Air_Spring_V2_EN.pdf
• USA_SDS_Shock_Air_Spring_V2_EN.pdf
• B8_5100_RHA_Flyer.pdf
• B8_5100_RHA_Flyer.pdf

Product Videos
