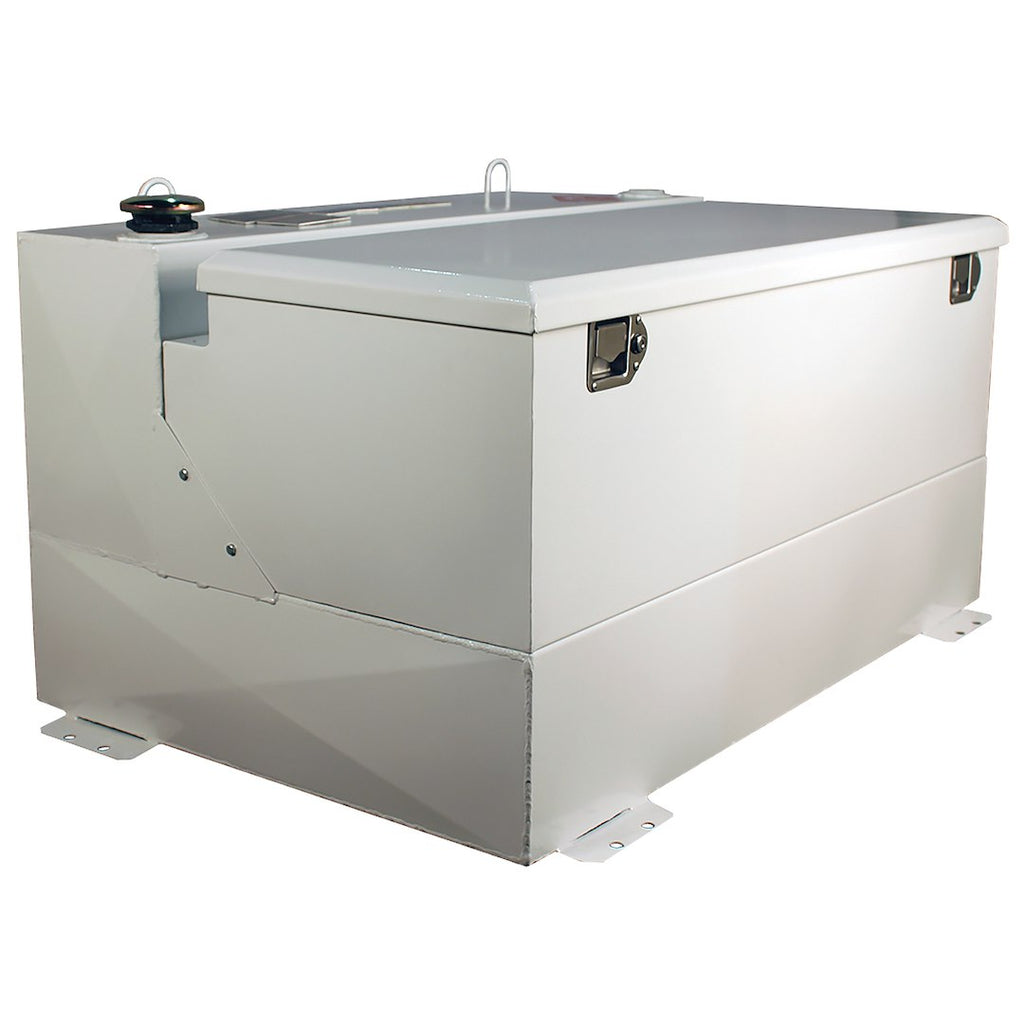

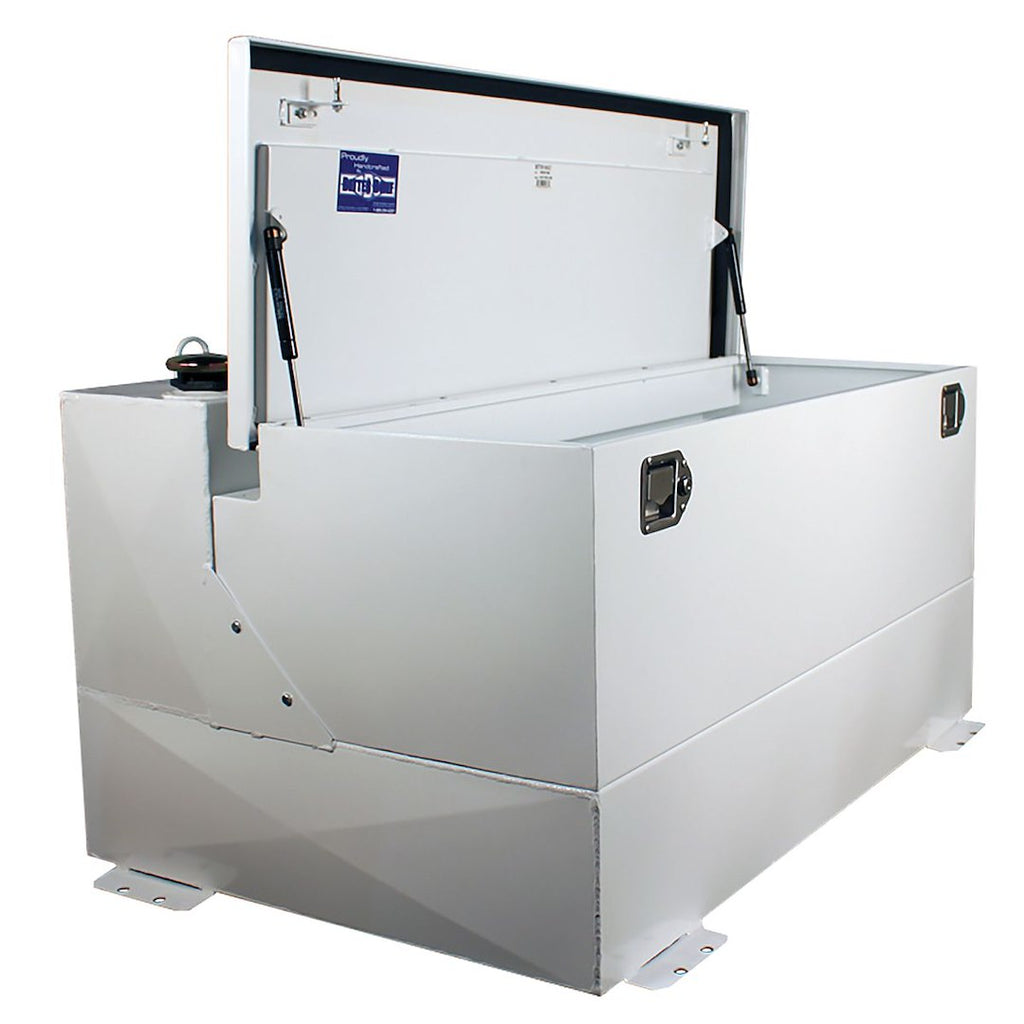

Better Built Steel Transfer Tank (MPN: 29224168)

Durable and secure tank for transporting non-flammable liquids

The Better Built Steel Transfer Tank is designed for the safe transportation of non-flammable liquids, including diesel fuel and hydraulic fluid. Constructed from 14 gauge steel, this tank is 100 percent pressure tested to ensure reliability and durability. The powder-coated white finish not only enhances the tank's appearance but also provides resistance against scratching and corrosion, making it suitable for various environments.

This tank features a baffle design that adds structural strength while minimizing liquid movement during transport. A lockable cap and coupler enhance security, ensuring that the contents remain safe and contained. The fully welded, 11-gauge mounting brackets provide a secure installation, while the overfill restriction feature automatically shuts off the pump to prevent spills.

With a capacity of 75 gallons, the tank is equipped with dual 2-inch reinforced bungs that allow for versatile installation options. It is important to note that this tank is not intended to be connected to an existing fuel system, making it a standalone solution for transporting liquids. The sturdy lifting eyes facilitate easy handling when the tank is empty, and the included mounting kit ensures a straightforward installation process.

Features

• 75 Gallon Capacity Fuel Transfer Tank; Durable White Powder Coated Finish Resists Scratching
• Baffles Add Strength While Preventing Contents From Shifting
• Lockable Cap And Coupler For Security
• Fully Welded, 11-Gauge Mounting Brackets Hold The Unit Securely In Place
• 100 Percent Quality Inspected With A Dual Pressure And Submersion Leak Test
• Overfill Restriction Provides Automatic Shutoff At The Pump To Prevent Spilling
• Dual 2 Inch Reinforced Bungs Allow Reversing The Filler Cap And Pump Mount To Suit Any Need; Not To Be Connected To An Existing Fuel System
• Easy Transport Of Non-Flammable Liquids Such As Diesel Fuel, Water And Fertilizer
• Sturdy 5/16 Inch Lifting Eyes For Installation When Tank Is Empty; Features Mounting Kit With Fully Welded Mounting Brackets

Specifications

• Manufacturer: Better Built Company
• Manufacturer Part Number: 29224168
• Type: Liquid Transfer Tank/ Tool Box Unit (Combo)
• Liquid Type: Diesel
• Shape: L-Shape
• Tank Volume: 75 Gallon
• Tank Length: 31 Inch
• Tank Width: 42-3/4 Inch
• Tank Height: 24 Inch
• Deck Height: Not Applicable
• Tool Box Type: Utility Chest
• Color/ Finish: White Gloss Powder Coated
• Material: Steel
• With Pump: No
• Universality: Semi-Universal
• With Locking Cap: Yes
• With Mounting Hardware: Yes
• Drilling Required: Yes
• Estimated Install Time (Hours): 1

Technical Documents

• BB-2019-Transfer-Tank-Information-Sheet.pdf
