Better Built Liquid Transfer Tank (MPN: 29211677)

Efficiently transport non-flammable liquids with a durable design.

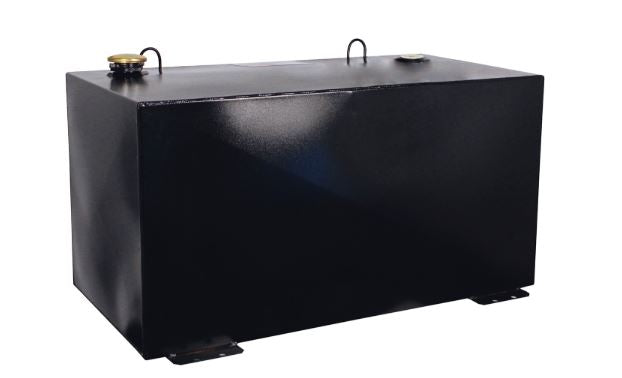

The Better Built Liquid Transfer Tank is engineered for the safe transportation of non-flammable liquids, including diesel fuel and hydraulic fluid. Constructed from 14-gauge steel, this tank features a robust powder-coated finish that enhances durability and resistance to scratching. With a generous 100-gallon capacity, it is designed to accommodate various liquid types while ensuring secure transport.

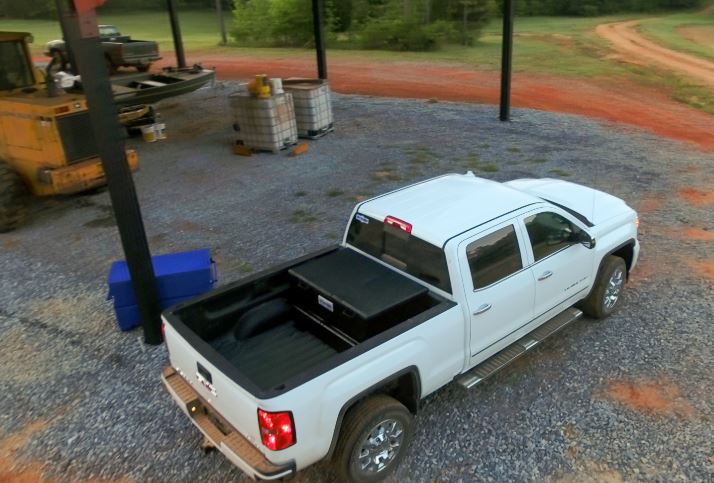

This rectangular tank measures 24 inches in length, 45 inches in width, and 24 inches in height, making it suitable for installation alongside saddle or gull wing truck boxes. The built-in baffle design adds structural integrity and minimizes liquid movement during transit. Additionally, the tank is equipped with a lockable cap and coupler, along with dual reinforced bungs for efficient liquid flow.

Safety features include an overfill restriction that automatically shuts off the pump to prevent spills, and fully welded mounting brackets that secure the tank in place. The installation kit includes vibration reduction hardware, ensuring stability during transport. The tank has undergone rigorous quality inspections, including dual pressure and submersion leak tests, to guarantee reliability and performance.

Features

• Durable Black Powder-Coat Finish Resists Scratching; Constructed Of 14-Gauge Steel
• 100 Gallon Capacity Fuel Transfer Tank
• Easy Transport Of Non-Flammable Liquids Such As Diesel Fuel, Water And Fertilizer
• Overfill Restriction Provides Automatic Shutoff At The Pump To Prevent Spilling
• Lockable Cap And Coupler; Flush Mounted Dual 2 Inch Reinforced Bungs Allow For Fast Flow
• Fully Welded, 11-Gauge Mounting Brackets Hold The Tank Securely In Place
• Built-In Baffles Add Strength While Preventing The Contents From Shifting Too Quickly; Tank Is Not Intended For Use With Gasoline Or Other Flammable Fuels
• 100 Percent Quality Inspected With A Dual Pressure And Submersion Leak Test; Sturdy 5/16 Inch Lifting Eyes For Installation When Tank Is Empty
• Reinforced Pump Mounting Location; Not To Be Connected To An Existing Fuel System

Specifications

• Manufacturer: Better Built Company
• Manufacturer Part Number: 29211677
• Type: Liquid Transfer Tank Only
• Liquid Type: Diesel
• Shape: Rectangular
• Tank Volume: 100 Gallon
• Tank Length: 24 Inch
• Tank Width: 45 Inch
• Tank Height: 24 Inch
• Deck Height: Not Applicable
• Tool Box Type: Without Tool Box
• Tool Box Capacity: Without Tool Box
• Tool Box Length: Without Tool Box
• Tool Box Width: Without Tool Box
• Tool Box Height: Without Tool Box
• Color/ Finish: Black Gloss Powder Coated
• Material: Steel
• With Pump: No
• Universality: Semi-Universal
• With Locking Cap: Yes
• With Mounting Hardware: Yes
• Drilling Required: No
• Estimated Install Time (Hours): 1

Compatibility / Fit

• 1985-1986 Chevrolet C10
• 1988-1998 Chevrolet C1500
• 1985-1986 Chevrolet C20
• 1988-2000 Chevrolet C2500
• 1985-1986 Chevrolet C30
• 1988-2000 Chevrolet C3500
• 1986-1986 Chevrolet K10
• 1988-1998 Chevrolet K1500
• 1985-1986 Chevrolet K20
• 1988-2000 Chevrolet K2500
• 1985-1986 Chevrolet K30
• 1988-2000 Chevrolet K3500
• 1987-1987 Chevrolet R10
• 1987-1988 Chevrolet R20
• 1989-1989 Chevrolet R2500
• 1987-1988 Chevrolet R30
• 1989-1991 Chevrolet R3500
• 1999-2007 Chevrolet Silverado 1500
• 2009-2018 Chevrolet Silverado 1500
• 2020-2021 Chevrolet Silverado 1500
• 2023-2026 Chevrolet Silverado 1500
• 2007-2007 Chevrolet Silverado 1500 Classic
• 2019-2019 Chevrolet Silverado 1500- New Model
• 2022-2022 Chevrolet Silverado 1500- New Model
• 1999-2003 Chevrolet Silverado 2500
• 2001-2014 Chevrolet Silverado 2500 HD
• 2007-2007 Chevrolet Silverado 2500 HD Classic
• 2001-2006 Chevrolet Silverado 3500
• 2007-2007 Chevrolet Silverado 3500 Classic
• 2007-2014 Chevrolet Silverado 3500 HD
• 1987-1987 Chevrolet V10
• 1987-1987 Chevrolet V20
• 1987-1988 Chevrolet V30
• 1989-1991 Chevrolet V3500
• 1995-2010 Dodge Ram 1500
• 1995-1998 Dodge Ram 2500
• 2000-2010 Dodge Ram 2500
• 1995-2010 Dodge Ram 3500
• 1987-2003 Ford F-150
• 2004-2004 Ford F-150 Heritage
• 1987-1997 Ford F-250
• 1997-1997 Ford F-250 HD
• 1987-1996 Ford F-350
• 1985-1986 GMC C1500
• 1988-1996 GMC C1500
• 1998-1998 GMC C1500
• 1985-1986 GMC C2500
• 1988-2000 GMC C2500
• 1985-1986 GMC C3500
• 1988-2000 GMC C3500
• 1985-1986 GMC K1500
• 1988-1998 GMC K1500
• 1985-1986 GMC K2500
• 1988-2000 GMC K2500
• 1985-1986 GMC K3500
• 1988-2000 GMC K3500
• 1987-1987 GMC R1500
• 1987-1989 GMC R2500
• 1987-1991 GMC R3500
• 1999-2018 GMC Sierra 1500
• 2020-2021 GMC Sierra 1500
• 2023-2026 GMC Sierra 1500
• 2007-2007 GMC Sierra 1500 Classic
• 2019-2019 GMC Sierra 1500- New Model
• 2022-2022 GMC Sierra 1500- New Model
• 1999-2003 GMC Sierra 2500
• 2001-2014 GMC Sierra 2500 HD
• 2007-2007 GMC Sierra 2500 HD Classic
• 2001-2006 GMC Sierra 3500
• 2007-2007 GMC Sierra 3500 Classic
• 2007-2014 GMC Sierra 3500 HD
• 1987-1987 GMC V1500
• 1987-1987 GMC V2500
• 1987-1991 GMC V3500
• 2011-2018 Ram 1500
• 2019-2023 Ram 1500 Classic- Old Model
• 2011-2024 Ram 2500
• 2011-2024 Ram 3500

Technical Documents

• document_29211584_BUL.pdf
