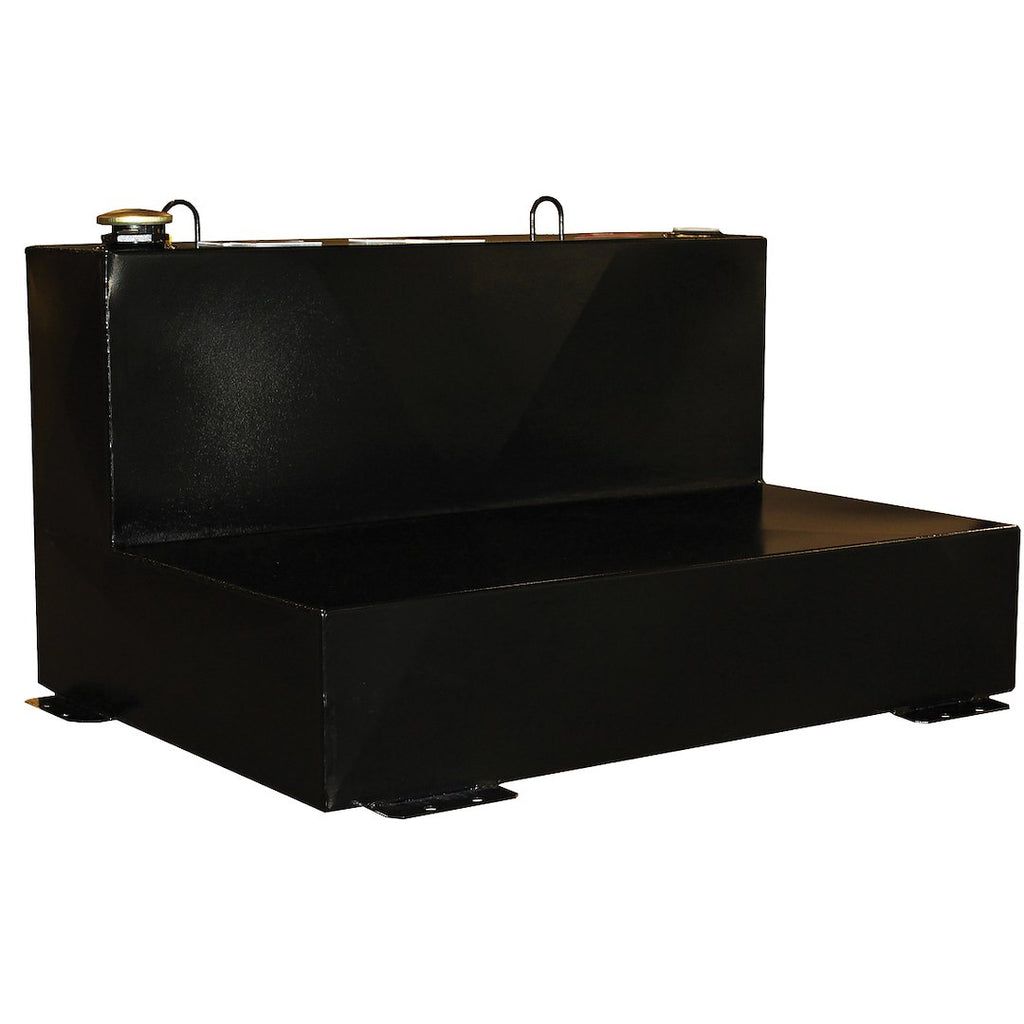

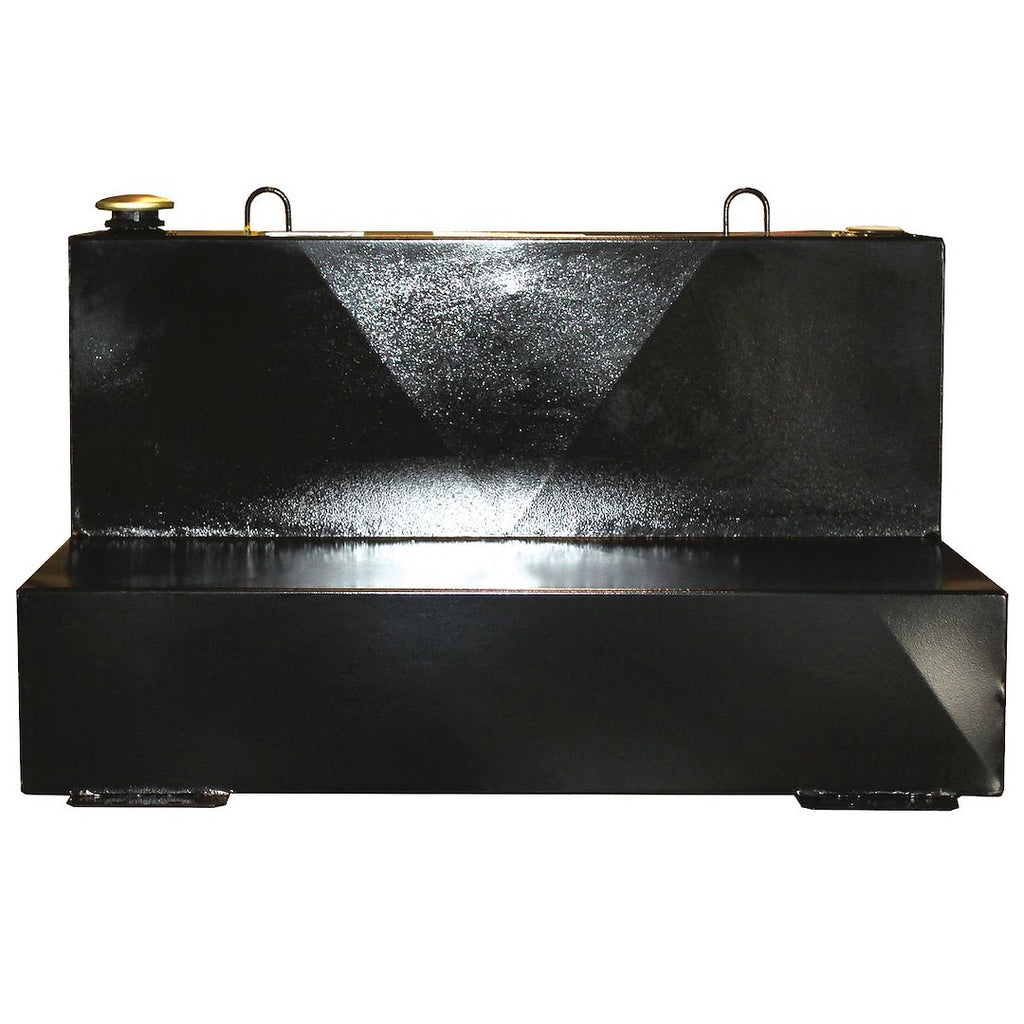

Better Built Liquid Transfer Tank (MPN: 29211580)

Efficiently transport non-flammable liquids with secure design features.

The Better Built Liquid Transfer Tank is engineered for the safe transportation of non-flammable liquids, including diesel fuel and hydraulic fluid. Constructed from 14-gauge steel, this tank is 100 percent pressure tested to ensure durability and reliability. The powder-coated black finish not only enhances the tank's aesthetic but also provides resistance against scratches and environmental wear. Designed with baffles, the tank maintains stability by preventing liquid from shifting during transport, which is crucial for safe handling.

With a generous 75-gallon capacity, the L-shaped design allows for compatibility with saddle or gull wing truck boxes, maximizing space efficiency. The tank features a lockable cap and coupler, ensuring security during transit. Fully welded mounting brackets provide a secure installation, while the overfill restriction feature automatically shuts off the pump to prevent spills. This transfer tank is ideal for transporting various non-flammable liquids, making it a versatile addition to any vehicle setup.

Features

• 75 Gallon Capacity Fuel Transfer Tank; Durable Black Powder Coated Finish Resists Scratching
• Baffles Add Strength While Preventing Contents From Shifting
• Lockable Cap And Coupler For Security
• Fully Welded, 11-Gauge Mounting Brackets Hold The Unit Securely In Place
• 100 Percent Quality Inspected With A Dual Pressure And Submersion Leak Test
• Overfill Restriction Provides Automatic Shutoff At The Pump To Prevent Spilling
• Flush Mounted Dual 2 Inch Reinforced Bungs Allow For Fast Flow; Not To Be Connected To An Existing Fuel System
• Easy Transport Of Non-Flammable Liquids Such As Diesel Fuel, Water And Fertilizer
• Sturdy 5/16 Inch Lifting Eyes For Installation When Tank Is Empty; Features Mounting Kit With Fully Welded Mounting Brackets

Specifications

• Manufacturer: Better Built Company
• Manufacturer Part Number: 29211580
• Type: Liquid Transfer Tank Only
• Liquid Type: Diesel
• Shape: L-Shape
• Tank Volume: 75 Gallon
• Tank Length: 31 Inch
• Tank Width: 43-1/2 Inch
• Tank Height: 24 Inch
• Deck Height: Not Applicable
• Tool Box Type: Without Tool Box
• Tool Box Capacity: Without Tool Box
• Tool Box Length: Without Tool Box
• Tool Box Width: Without Tool Box
• Tool Box Height: Without Tool Box
• Color/ Finish: Black Gloss Powder Coated
• Material: Steel
• With Pump: No
• Universality: Semi-Universal
• With Locking Cap: Yes
• With Mounting Hardware: Yes
• Drilling Required: Yes
• Estimated Install Time (Hours): 1

Technical Documents

• BB-2019-Transfer-Tank-Information-Sheet.pdf
