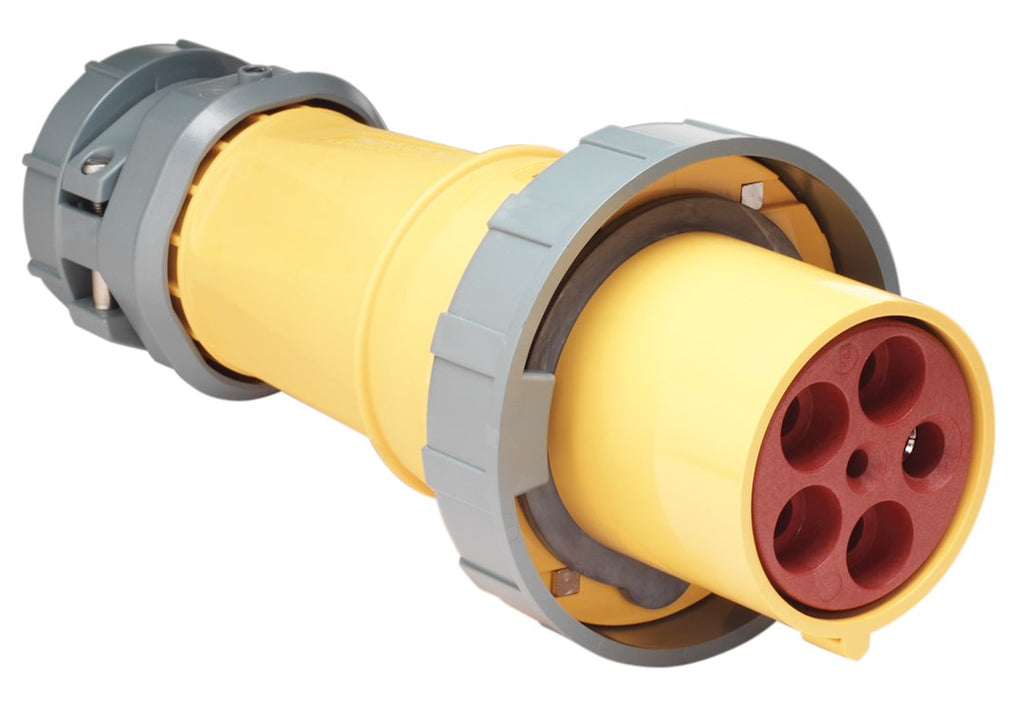

BEP Marine Power Cord Plug End (MPN: M5100C9R)

Durable and reliable connector for marine and RV applications.

The BEP Marine Power Cord Plug End is engineered for high performance in demanding environments. It is compatible with 1/0-3 AWG wires and accommodates cords with an outside diameter ranging from 0.98 inches to 1.97 inches. This connector is rated for 100 amps and operates at 125/208 volts, making it suitable for three-phase applications. Constructed from a nylon and ABS blend, it is designed to withstand extreme conditions, ensuring longevity and reliability in marine and RV settings.

This power cord plug features a female reverse service connector and is equipped with pillar type terminals for secure connections. The product is IP67 rated, providing excellent protection against dust and water ingress. With two nickel-plated brass terminal screws included, installation is straightforward and efficient. The plug measures 11.54 inches in length and 5.16 inches in diameter, making it compact yet robust.

BEP Marine products are certified by ROHS, cULus, ABYC, and the US Coast Guard, ensuring compliance with stringent safety and performance standards. This power cord plug end is designed for easy installation and is built to meet the exacting specifications required for marine applications.

Features

• BEP Meets Exacting Performance Specifications
• Designed To Withstand Extreme Conditions
• UL And CSA Certified
• Easy To Install

Specifications

• Manufacturer: BEP Marine
• Manufacturer Part Number: M5100C9R
• Compatibility: 1/0-3 AWG Wires
• Ampere Rating: 100 Amp
• End Type: Female Reverse Service Connector
• Color: Yellow
• Material: ABS/ Nylon
• Electrical Certifications: ROHS/ cULus/ ABYC/ US Coast Guard Certified
• With Plug Head Handle: Yes
• Marine: Yes

Technical Documents

• M5100C9R_SPEC.pdf
