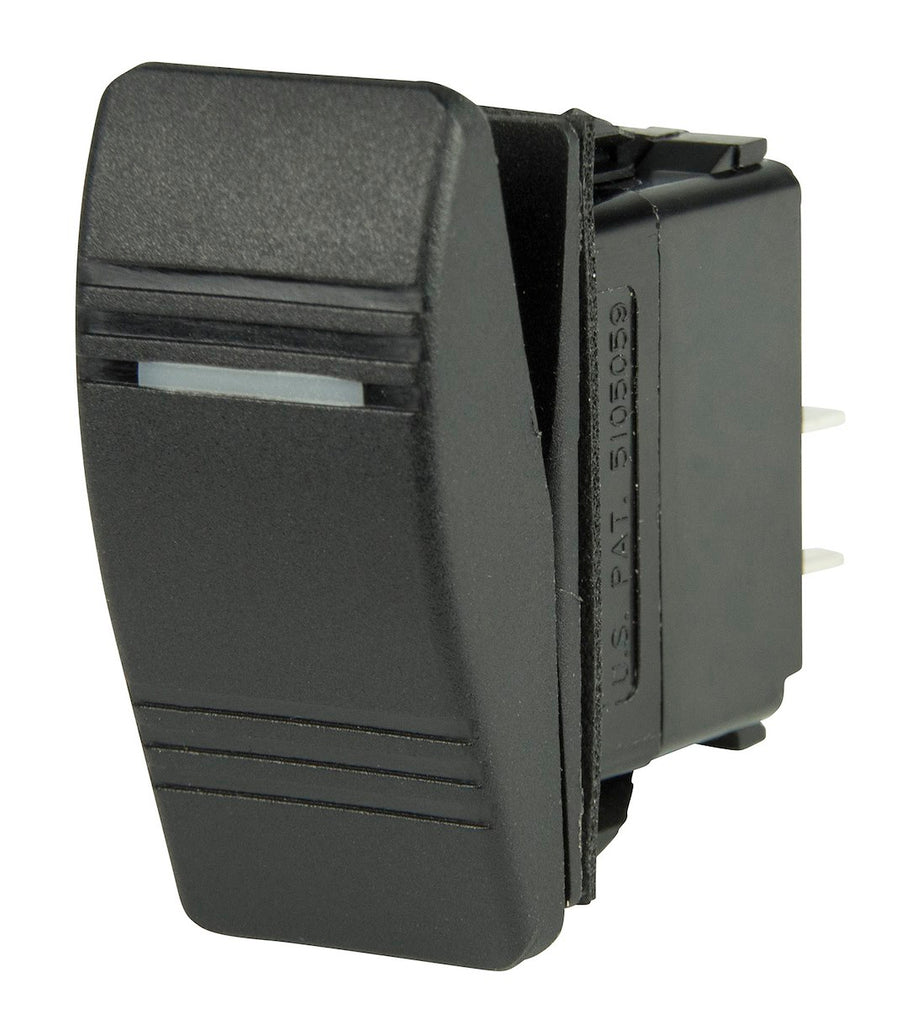

BEP Marine Multi Purpose Switch (MPN: 1001811)

Efficiently control multiple circuits with a durable design.

The BEP Marine Multi Purpose Switch is engineered for reliable operation in marine environments. This double pole, single throw switch allows for simultaneous control of two circuits, making it suitable for applications such as anchor and running lights. Rated for both 12 and 24 Volt DC systems, it supports a current rating of 20 Amperes at 12 Volts and 15 Amperes at 24 Volts, ensuring robust performance under various conditions.

Constructed to meet IP66 standards, this switch is resistant to high-pressure washing, making it an excellent choice for waterproof electrical panels. The snap-in mounting design fits panel holes measuring 1.45 inches by 0.83 inches, accommodating panels with thicknesses ranging from 0.093 inches to 0.187 inches. The switch features a single amber LED for illumination, enhancing visibility in low-light conditions.

With interchangeable black and gray covers, the BEP Marine Multi Purpose Switch can seamlessly replace similar switches found in many common boat types. Its durable construction and technical specifications make it a reliable component for marine electrical systems.

Features

• Nominal Voltage 12 Volt And 24 Volt DC
• 1/4 Inch Blade Terminals
• Features One Amber LED
• Rated For 20 Ampere At 12 Volt DC, 15 Ampere At 24 Volt DC
• Snap-In Mounting To Fit Panel Hole 1.45 Inch X .83 Inch Into Panels .093 Inch To .187 Inch Thick

Specifications

• Manufacturer: BEP Marine
• Manufacturer Part Number: 1001811
• Design: Rocker
• Activation: Constant
• Switch Positions: On-Off
• Operation: Double Pole Single Throw
• Current Rating: 20 Amp
• Number Of Switches: 1
• Color: Black
• Illumination: White
• Marine: Yes
• Voltage: 12/ 24 Volt
• Terminal Type: Blade

Technical Documents

• BEP_BRO_002.pdf
