Enhance electronic performance and lightning protection with advanced hull bonding.

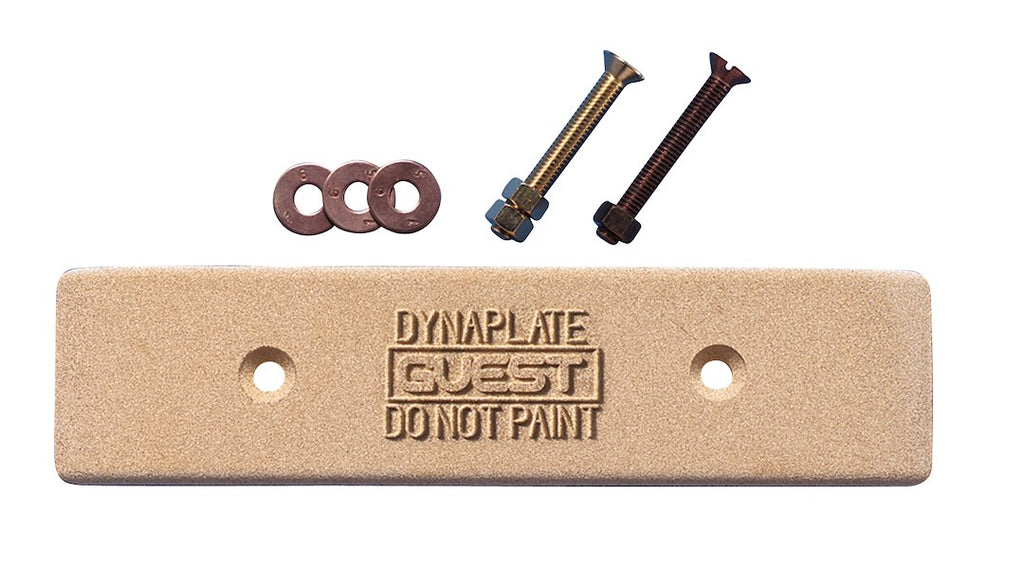

The BEP Marine Ground Shoe is designed to improve the performance of marine electronics while providing effective lightning protection. This product features a sintered porous bronze matrix with approximately 50 percent porosity, ensuring optimal conductivity in a compact size. With a streamlined low resistance shape, it offers a significant grounding area of 48 to 1 for its size, delivering 34 percent more grounding capability compared to other available plates.
Installation is straightforward with a two-step thru-hull process, making it accessible for various marine applications. The ground shoe is compliant with ABYC standards and includes a gold plated terminal mounting bolt along with bronze mounting nuts for a secure connection. This design not only deters electrolysis and galvanic corrosion but also minimizes RF interference, enhancing the overall performance of onboard electronics.
The BEP Marine Ground Shoe is equivalent to 12 square feet of copper foil, providing an efficient alternative for hull bonding without the need for extensive runs of copper foil. Its low drag, non-fouling shape ensures easy maintenance, allowing for cleaning with a wire brush to maintain optimal performance.
Features
- Improves Performance Of Electronics And Reduces RF Interference
- Offers The Best Path For Hull Bonding Without Long Runs Of Copper Foil
- Deters Electrolysis And Galvanic Corrosion
- Sintered Porous Bronze Sphere Construction For Maximum Conductivity In A Compact Size
- Low Drag, Non-Fouling Shape
- Easy To Clean With Wire Brush
- Conforms To ABYC Standards
- Gold Plated Mounting Bolt And Bronze Mounting Nuts
- Equivalent To 12 Square Feet Of Copper Foil
Specifications
- Manufacturer: BEP Marine
- Manufacturer Part Number: 4012
- Dimensions: 12 Inch Width x 3 Inch Depth x 1/2 Inch Thickness
- Material: Bronze
- Includes: With Gold Plated Mounting Bolt/ Bronze Mounting Nuts
