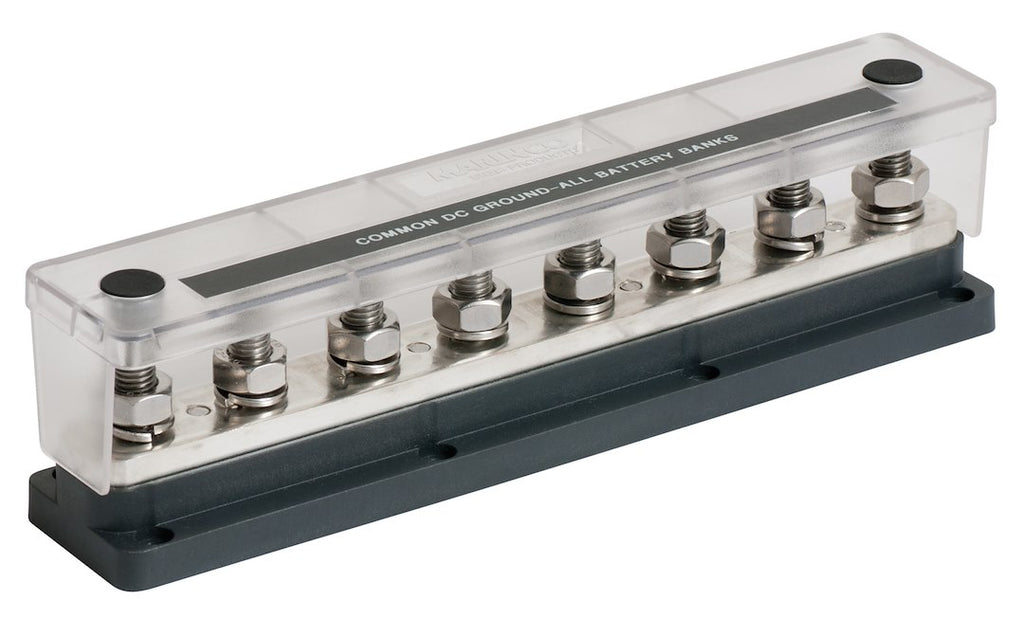

BEP Marine Busbar Flat Strip Type (MPN: 777-BB8S-650)

Versatile 8 Terminal Busbar for Efficient Power Distribution

The BEP Marine Busbar Flat Strip Type is engineered for high-performance power distribution with a maximum capacity of 650 Amps. This busbar features eight terminal points, allowing for extensive connectivity options in various electrical systems. Its compact dimensions of 9.8 inches in length and 1.91 inches in width make it suitable for installations where space is a premium. Constructed with tinned copper conductors and stainless steel studs, this busbar ensures durability and reliable conductivity.

Designed with flexibility in mind, the busbar includes snap-out side skirts that facilitate additional cable entry, enhancing installation versatility. The radiused ends of the busbar improve cable routing, making it easier to manage connections. The secure cover attachment is designed to protect the internal components without interfering with cabling, ensuring a neat and organized setup. This product is compatible with other Pro Installer products, thanks to a common interconnection height, allowing for seamless integration into existing systems.

Features

• Compact Footprint Saves Space
• Clear, Polycarbonate Covers Insulate And Protect On Three Sides
• Secure Cover Attachment Does Not Interfere With Cabling
• Snap-Out Skirts For Flexible Cable Entry
• Radiused Ends Improve Cable Routing
• Long, Threaded Studs To Connect Up To 4 Large Cable Lugs
• Plated Brass Nuts And Stainless Steel Studs Prevent Thread Galling During Tightening

Specifications

• Manufacturer: BEP Marine
• Manufacturer Part Number: 777-BB8S-650
• Type: Flat Strip
• Number Of Terminals: 8
• Voltage Rating: 50 Volt
• Ampere: 650 Amp
• Length (IN): 9.8 Inch
• Width (IN): 1.91 Inch
• Material: Copper Conductor/ Stainless Steel Studs
• With Insulated Cover: No

Technical Documents

• MAR_BRO_014.pdf
• 777-BB4S-500_INSTL_1.pdf
• 777-BB3S-650_INSTL_2.pdf
