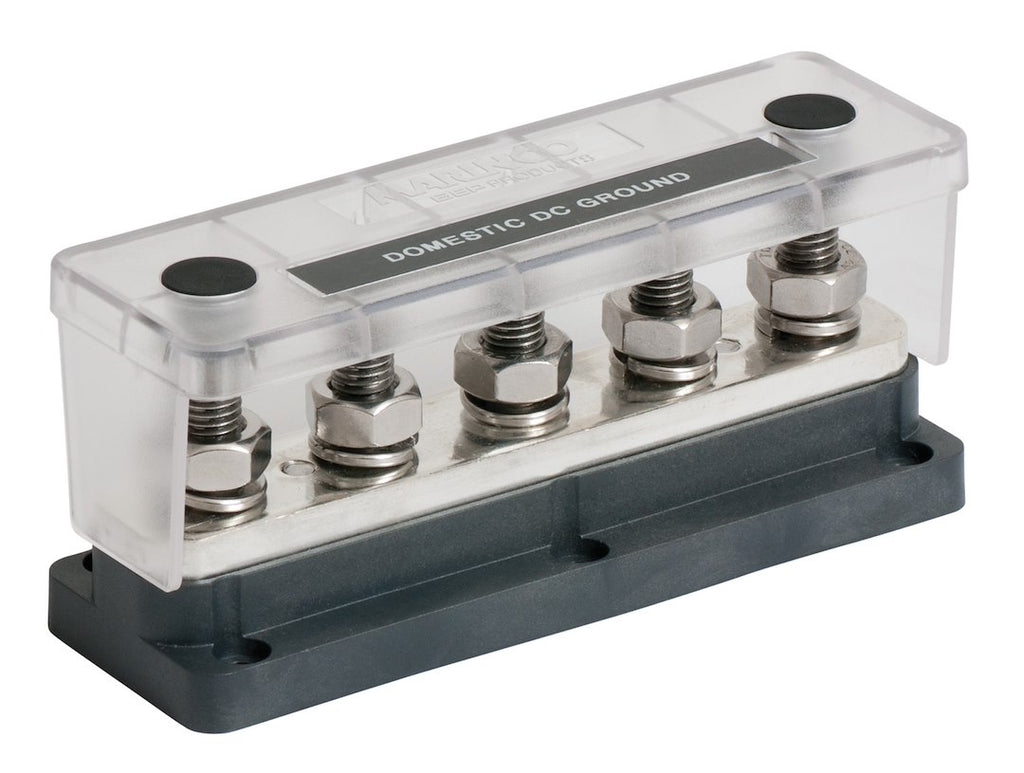

Versatile busbar with 5 terminals for efficient power distribution
The BEP Marine Busbar Flat Strip Type is engineered for high-performance power distribution with a maximum capacity of 650 Amps. This busbar features five terminal points, allowing for flexible connections and scalability in various electrical systems. Its compact dimensions of 5.8 inches in length and 1.91 inches in width make it suitable for installations where space is a premium.
Constructed with tinned copper conductors and stainless steel studs, this busbar ensures durability and resistance to corrosion. The design includes snap-out side skirts that facilitate additional cable entry, while the radiused ends enhance cable routing options. The secure cover attachment is designed to protect the connections without interfering with cabling, making installation straightforward and efficient.
This busbar is compatible with other Pro Installer products, thanks to a common interconnection height, which simplifies integration into existing setups. The plated brass nuts and stainless steel studs prevent thread galling during tightening, ensuring a reliable and secure connection. Overall, the BEP Marine Busbar Flat Strip Type is a robust solution for managing electrical connections in marine and other demanding environments.
Features
- Compact Footprint Saves Space
- Clear, Polycarbonate Covers Insulate And Protect On Three Sides
- Secure Cover Attachment Does Not Interfere With Cabling
- Snap-Out Skirts For Flexible Cable Entry
- Radiused Ends Improve Cable Routing
- Long, Threaded Studs To Connect Up To 4 Large Cable Lugs
- Plated Brass Nuts And Stainless Steel Studs Prevent Thread Galling During Tightening
Specifications
- Manufacturer: BEP Marine
- Manufacturer Part Number: 777-BB5S-650
- Type: Flat Strip
- Number Of Terminals: 5
- Voltage Rating: 50 Volt
- Ampere: 650 Amp
- Length (IN): 5.8 Inch
- Width (IN): 1.91 Inch
- Material: Copper Conductor/ Stainless Steel Studs
- With Insulated Cover: No
