Efficiently manage dual battery banks with advanced sensing technology.

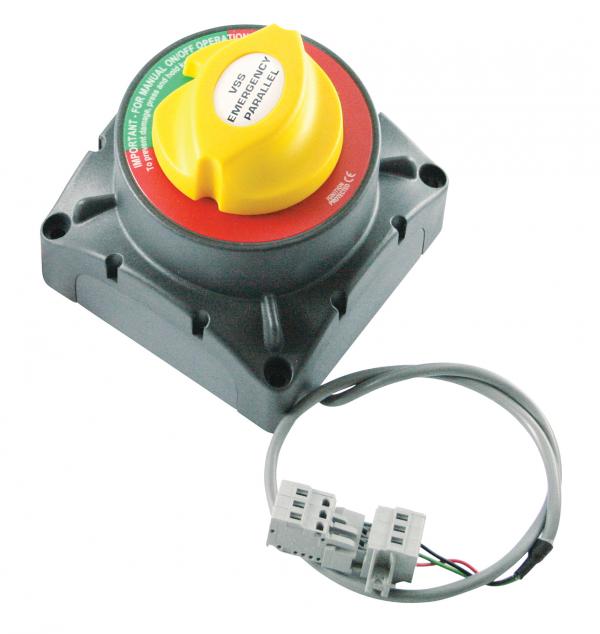

The BEP Marine Battery Voltage Sensing Relay is designed to optimize the charging of two independent battery banks from a single charging source. This relay automatically senses the voltage of connected battery banks, ensuring efficient charging and management. It features a dual 12/24 volt operation and is capable of handling up to 500 amps continuous and 700 amps intermittent, making it suitable for various applications in marine environments.
Constructed with durability in mind, the relay utilizes tinned copper conductors and stainless steel nuts, ensuring longevity even in harsh conditions. The high temperature, fiber reinforced plastics used in its design contribute to its reliability. The ignition protected unit offers both On/Off switching operation and can be mounted either recessed or on the surface, providing flexibility in installation.
Additionally, the relay includes a remote emergency parallel function, allowing users to connect the batteries for a limited time through a momentary button. This feature is particularly useful in emergency situations, providing a quick boost when needed. The low power consumption and lowered cut-in voltage make it compatible with low output alternators and high temperature environments, enhancing its versatility.
Features
- Dual Battery Sensing
- Manual Override Option
- Dual 12/24 Volt Operation
- Low Power Consumption
- Lowered Cut In Voltage Suits Low Output Alternators And High Temperature Environments
Specifications
- Manufacturer: BEP Marine
- Manufacturer Part Number: 720-MDVSO
- Function: Allows Charging Of Two Independent Battery Banks From Any Single Charging Source
- Operating Voltage: 12/ 24 Volt
- Ampere Rating: 500 Amp Continuous/ 700 Amp Intermittent
- Length (IN): 4 Inch
- Width (IN): 4 Inch
- Height (IN): 4-5/16 Inch
- Mounting Type: Surface
