Efficiently manage electrical loads with remote operation capabilities.

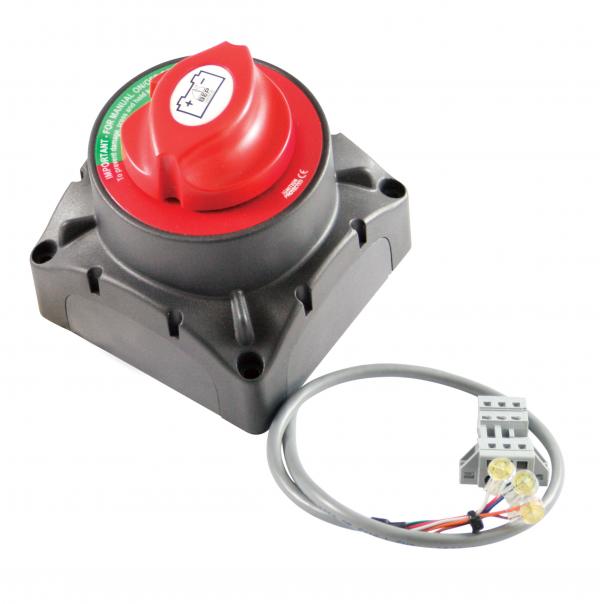

The BEP Marine Battery Disconnect Switch is designed for 12/24 volt systems with a robust 500 amp continuous rating, making it suitable for high-demand applications on boats. This motor-driven switch allows for installation close to the battery, significantly reducing cable lengths and sizes, which leads to cost savings and weight reduction in copper battery cables. It is particularly effective for remote isolation of bow and stern thrusters, enhancing operational efficiency.
This switch features both manual and remote operation options, ensuring compliance with CE and ABYC requirements. The LED status identification aids in monitoring the switch's operation from a distance, while the interchangeable labeling system allows for easy customization. The switch can be mounted either on the surface or rear panel, providing flexibility in installation.
With the capability to switch both positive and negative lines, the BEP Marine Battery Disconnect Switch isolates main contacts from the control circuit, allowing operation via an alternative battery source. Its low standby current draw further enhances its efficiency, making it a reliable choice for managing electrical systems in marine environments.
Features
- Motor Driven By Remote Operation And Manual Override Option To Meet CE And ABYC Requirements
- Battery Switch Can Be Mounted Alongside Battery, Reducing Cable Lengths And Cable Sizes
- Reduced Installation Labor Due To Shorter Battery Cable Runs
- LED Status Identification For Remote Control Switch
- Can Be Either Surface, Or Rear Panel Mounted
- Uses Interchangeable Labeling System
- Same Easy Connection For Standard Installation; Ability To Control Different Voltage Circuits
- Can Be Used To Switch Positive Or Negative Lines; Main Contacts Can Be Isolated From Control Circuit Allowing Operation Via Another Battery Source
- Low Stand By Current Draw
Specifications
- Manufacturer: BEP Marine
- Manufacturer Part Number: 720-MDO
- Type: Rotary With Removable Knob
- Activation Type: Manual
- Continuous Ampere Rating (A): 500 Amp
- Surge Ampere Rating (A): 700 Amp
- Installation Type: Bolt-On
