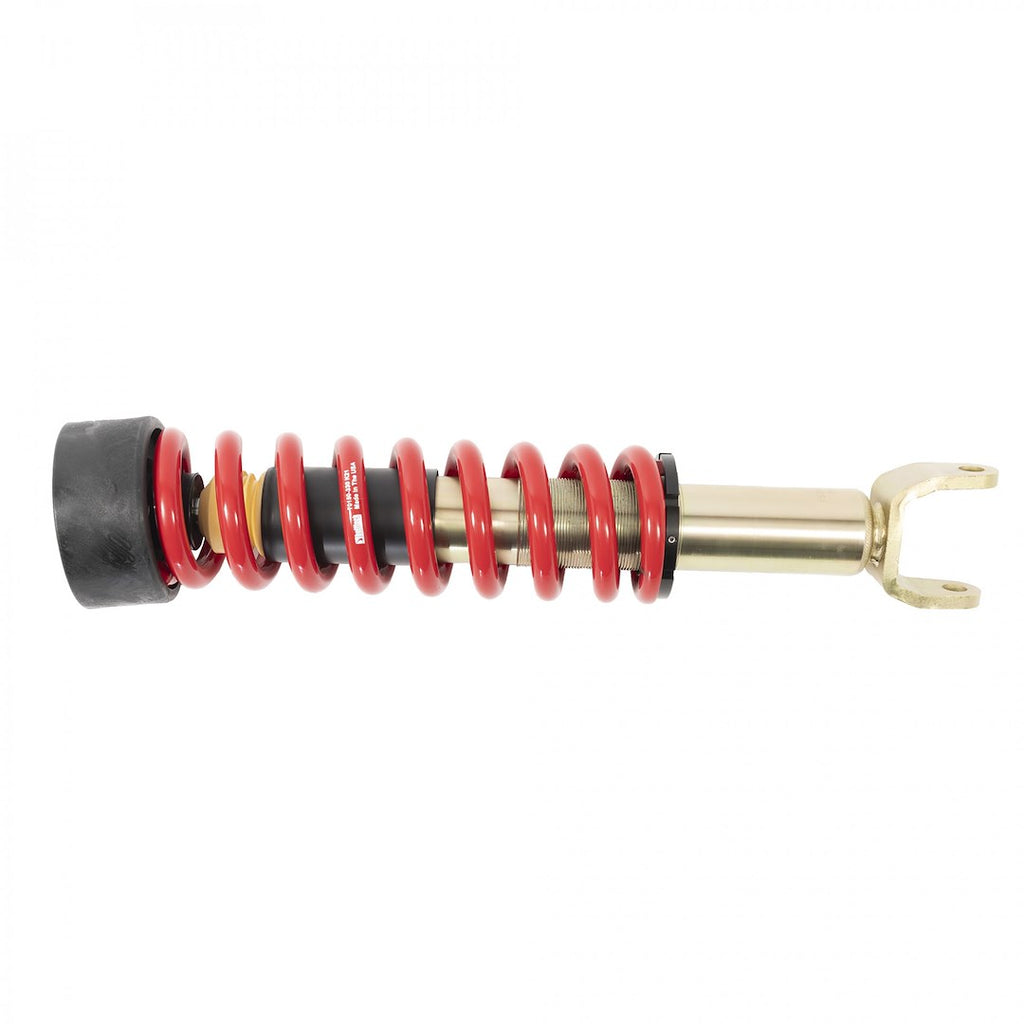

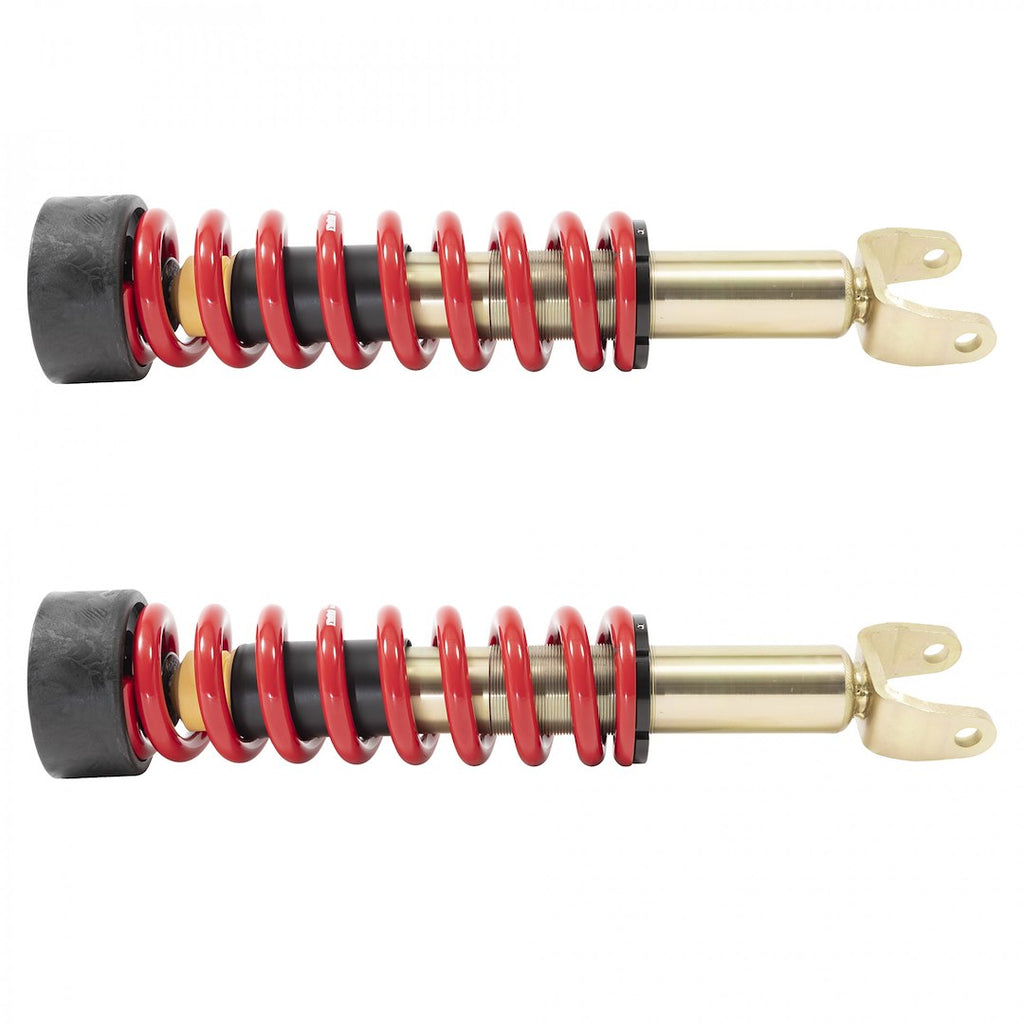

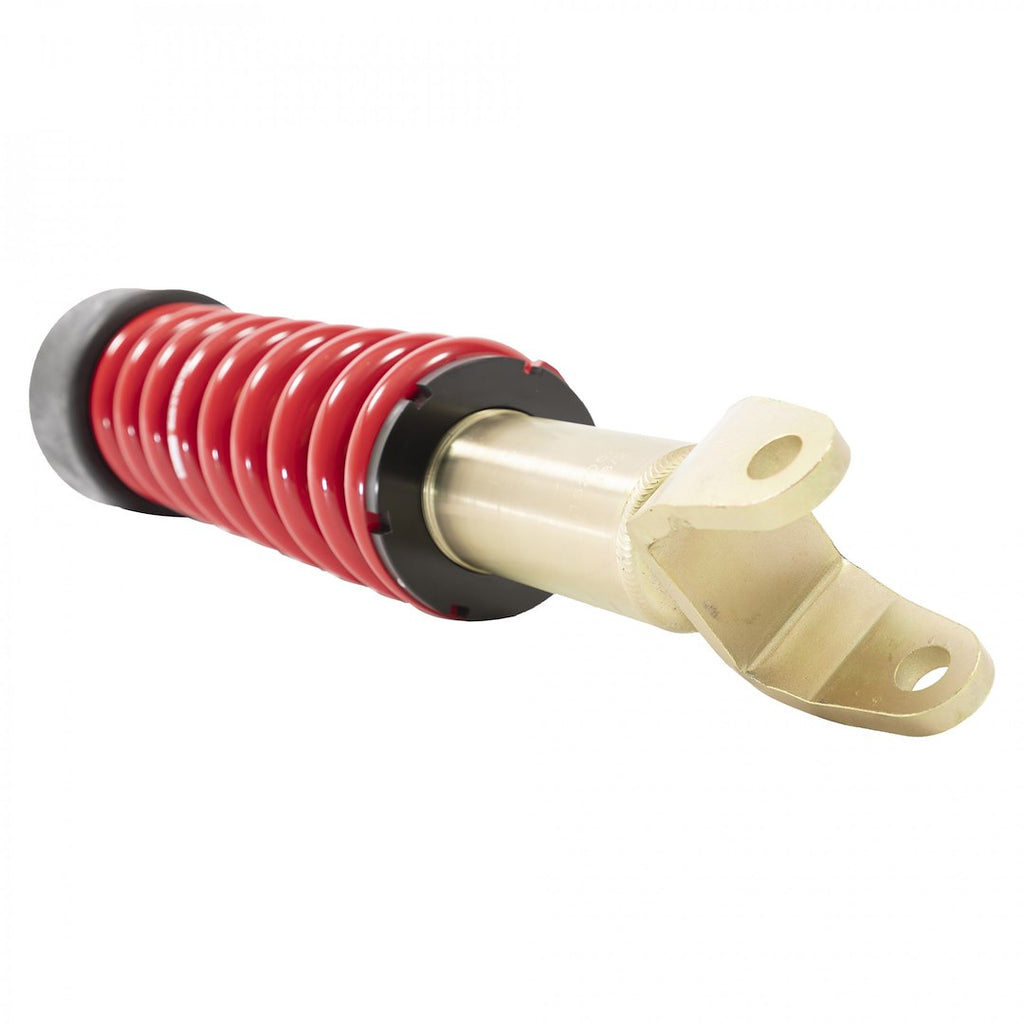

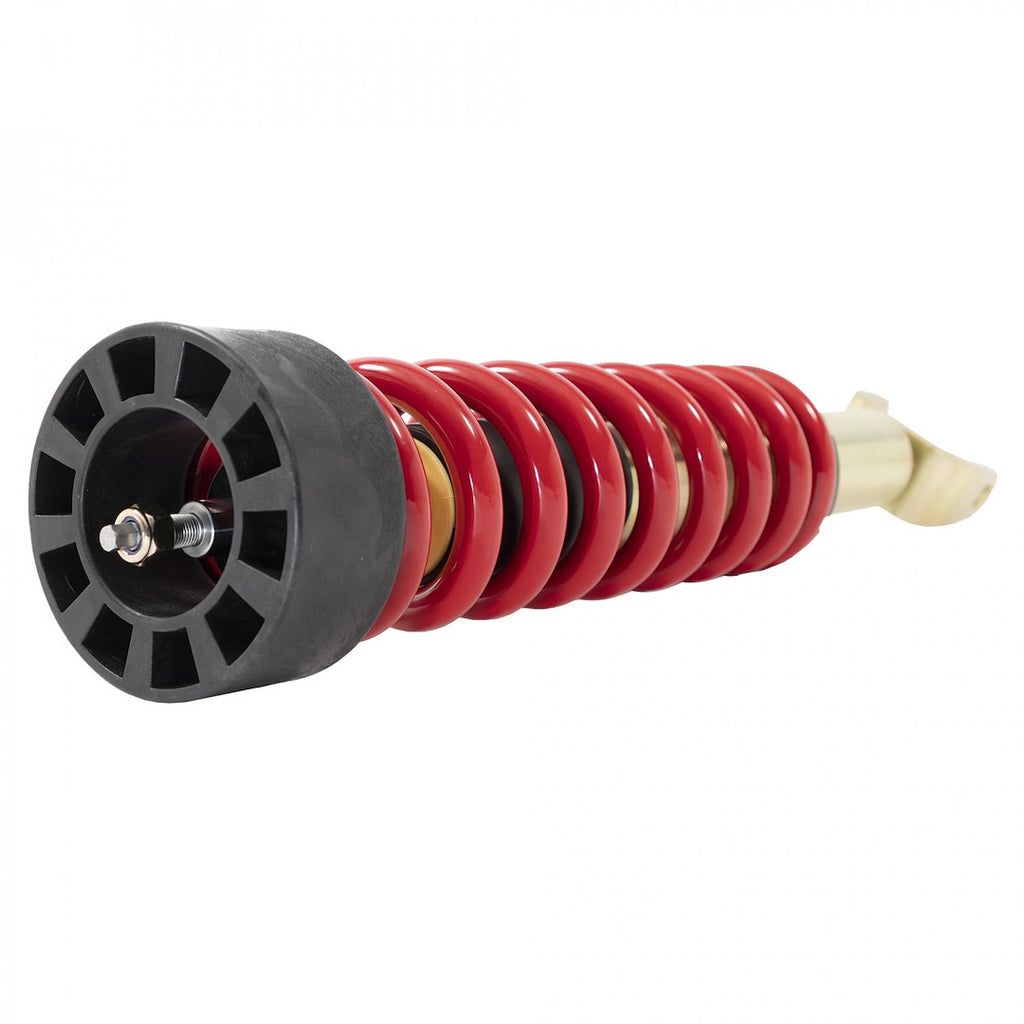

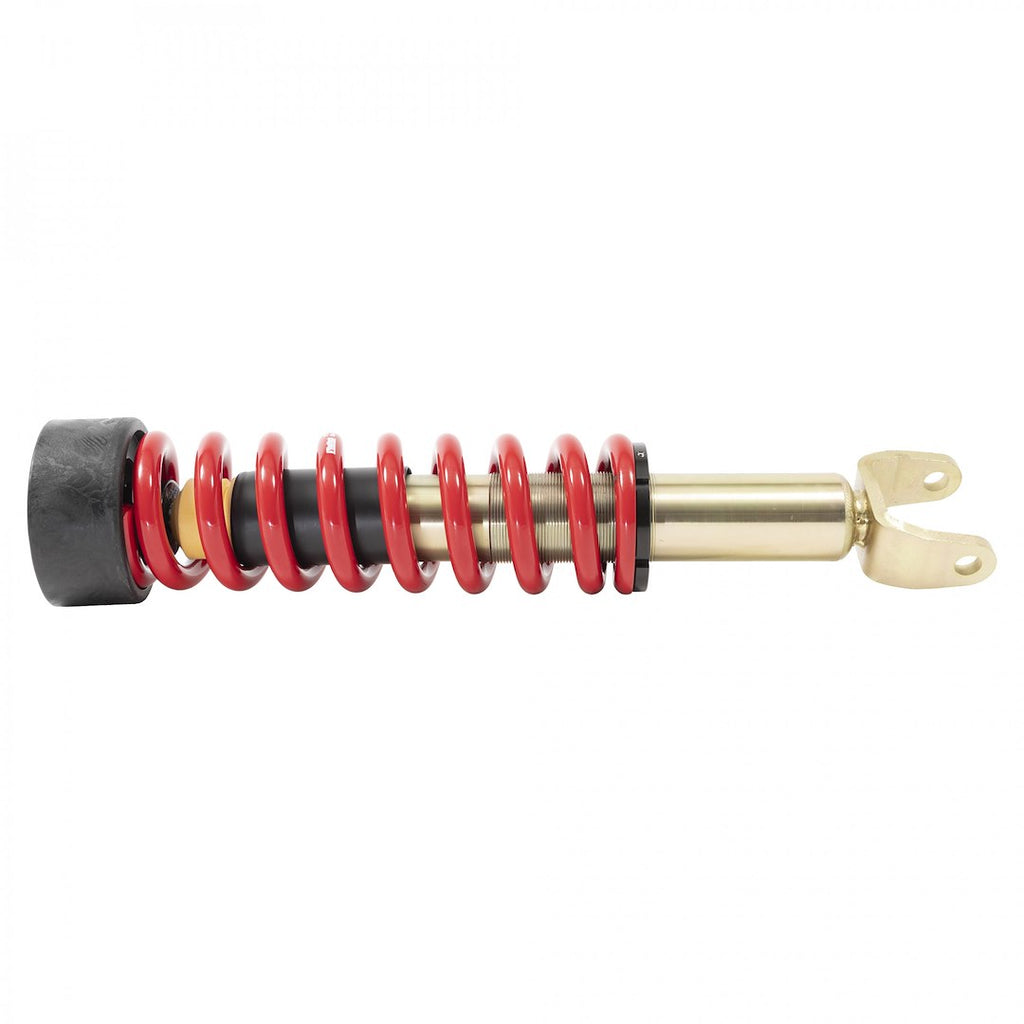

Adjustable height coilover system for enhanced performance and comfort.
The Belltech coil over shock absorber system provides a comprehensive solution for height adjustment in strut-equipped trucks and SUVs. This system features a complete coilover unit that includes performance dampers and matched coil springs, allowing for a height adjustment range of 6 to 8 inches. The design enhances grip and reduces body roll while maintaining daily driving comfort, making it suitable for various driving conditions.
Each kit is equipped with two large 60mm body performance dampers that offer independent compression and rebound damping force adjustability. This feature allows users to fine-tune their ride quality according to their preferences. The coilovers come preassembled with aluminum spring perches, progressive rate bump stops, and dust boots, ensuring a straightforward installation process.
Constructed with high tensile steel springs that are powder coated for durability, the Belltech coil over system is designed to increase clearance and accommodate larger tires and wheels. The advanced valving system, including independent compression and adjustable rebound, contributes to improved handling and ride quality, making it a valuable addition to any vehicle.
Features
- Height Adjustable 6 Inch To 8 Inch
- 20 Millimeter Hardened Chrome Piston Rod
- 35 Millimeter Independent Rebound And Compression Valves
- Increases Clearance
- Allows Room For Larger Tires/Wheels
- Enhances Ride Quality
- Perfected And Preset Damping Forces
- ProgrHigh Tensile Steel Spring, Powder Coated For Longevityessive Rate Polymer, Open-Cell, Bump Stop
- Trail Performance Dampers
Specifications
- Manufacturer: Bell Tech
- Manufacturer Part Number: 15305
- Adjustable: Yes
- Upper Mounting Type: Stud
- Lower Mounting type: Clevis
- Front/Rear Drop (IN): 6 To 8 Inch
- Extended Height (IN): OEM
- Compressed Height (IN): OEM
- Quantity: Set Of 2
- Valving Type: Independent Compression And Adjustable Rebound Valving
- Shock Type: Twin Tube
- Shock Body Color: Black/ Gold
- Shock Body Material: Stainless Steel
- Spring Style: Progressive Flat End
- Spring Finish: Powder Coated
- Spring Color: Red
- Spring Material: Steel
- Includes Mounting Hardware: No
Compatibility / Fit
- 2024-2024 Ram 1500
- 2019-2023 Ram 1500- New Model
