Efficient cooling solution for automatic transmission fluid management.
The BD Diesel Fluid Cooler is designed to effectively manage transmission fluid temperatures, ensuring optimal performance during high-demand situations. With a double-stacked construction and dimensions of 15 inches in width, 12 inches in height, and 5 inches in depth, this cooler is engineered to handle up to 30,000 pounds gross vehicle weight. The unit features 200 micro extruded passages that enhance heat transfer, promoting efficient cooling through turbulent oil flow design.
Equipped with a thermostatically controlled electric fan rated at 80 watts and capable of moving 800 cubic feet of air per minute, this cooler maintains automatic oil temperature control. The xtruded transmission oil cores deliver over 40,000 British Thermal Units per hour of cooling, achieving a significant temperature drop compared to standard systems. This product comes complete with all necessary fittings, clamps, hoses, and mounting hardware, facilitating a straightforward installation process.
Constructed from durable aluminum with a natural finish, the BD Diesel Fluid Cooler is built to withstand the rigors of performance applications. Its design includes a hose barb inlet and outlet, both sized at 5/8 inch, ensuring compatibility with various setups. This cooler is an essential component for maintaining transmission fluid at optimal temperatures, thereby enhancing the longevity and reliability of automatic transmissions.
Features

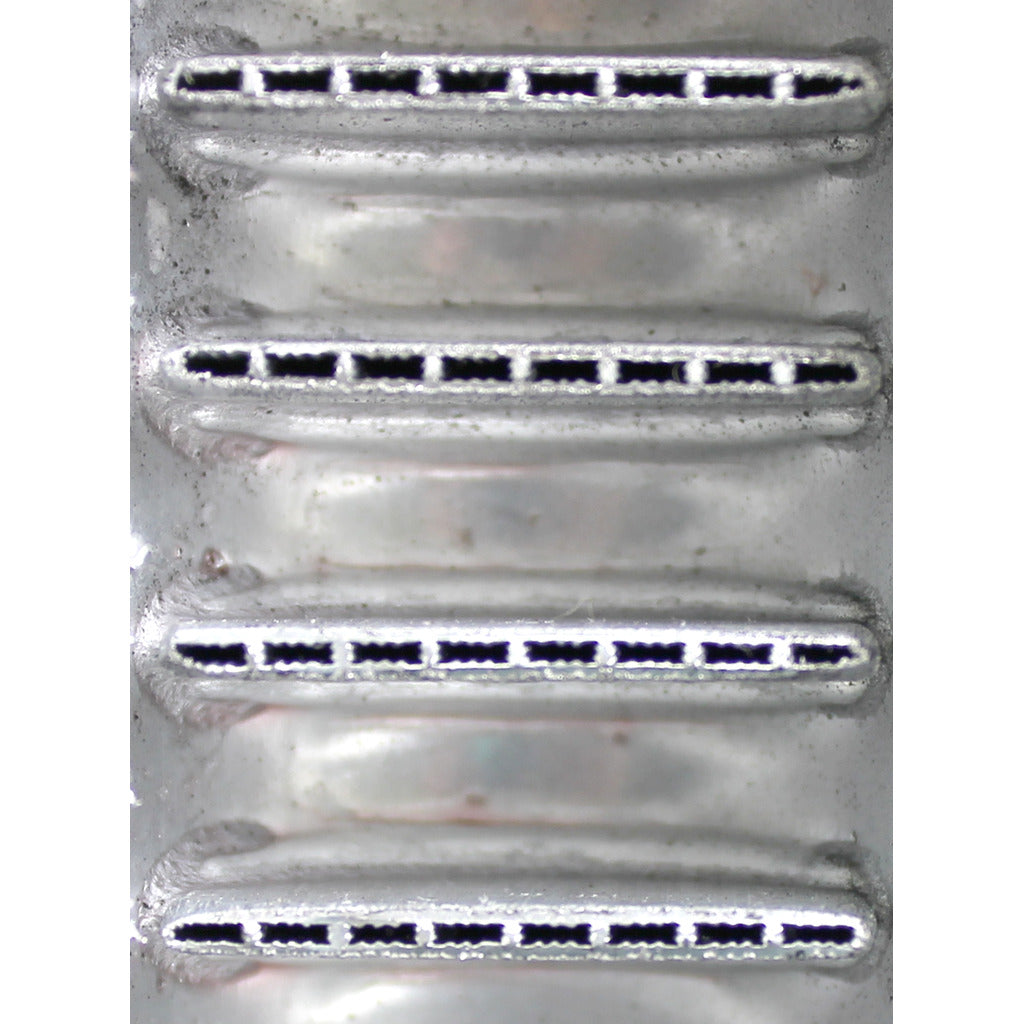

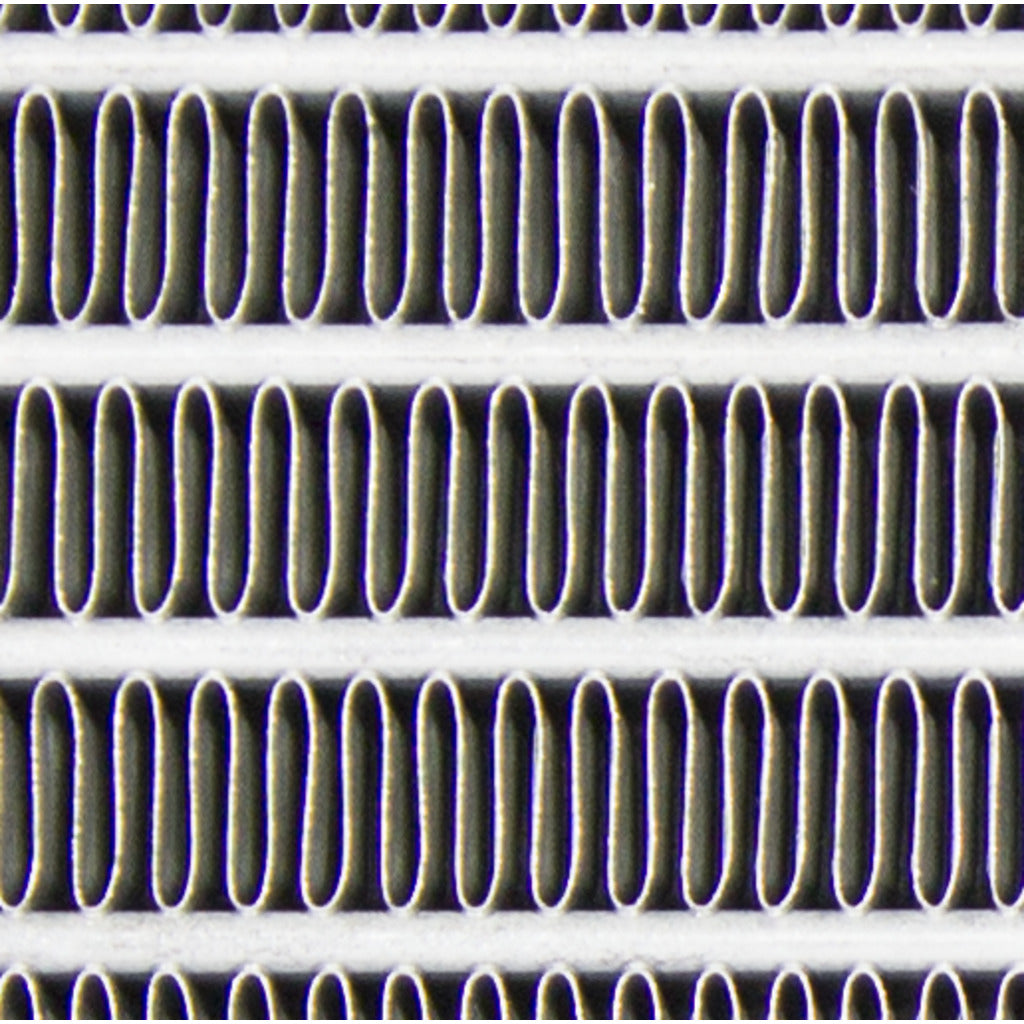

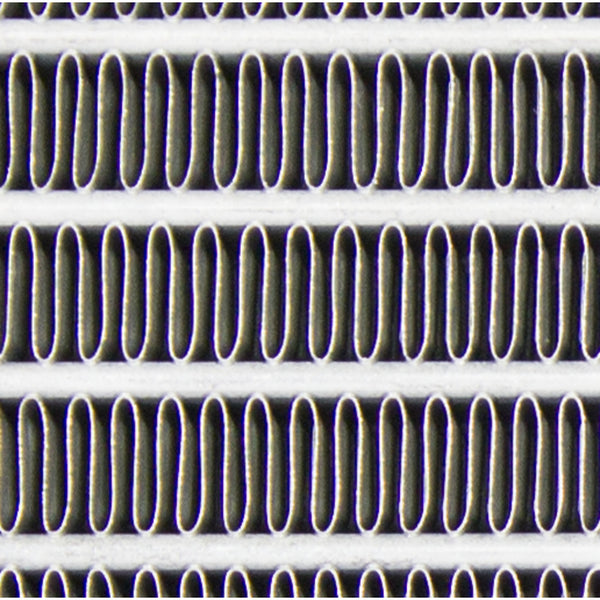

- The 200 Micro Extruded Passages In Each Cooler Provide A Large Surface Area To Transfer Heat For External Air Flow Cooling While Turbulent Oil Flow Design Promotes A More Complete Cooling
- The Thermostatically Controlled 80 Watt, 800 Cubic Foot Per Minute Electric Fan Offers Ultimate Automatic Oil Temperature Control
- Xtruded Trans Oil Cores To Deliver Over 40,000 British Thermal Unit Per Hour Of Cooling And Over 350 Percent Temperature Drop Versus The Factory System
- 136 Percent Better Temperature Drop Than Standard Single Core Kit

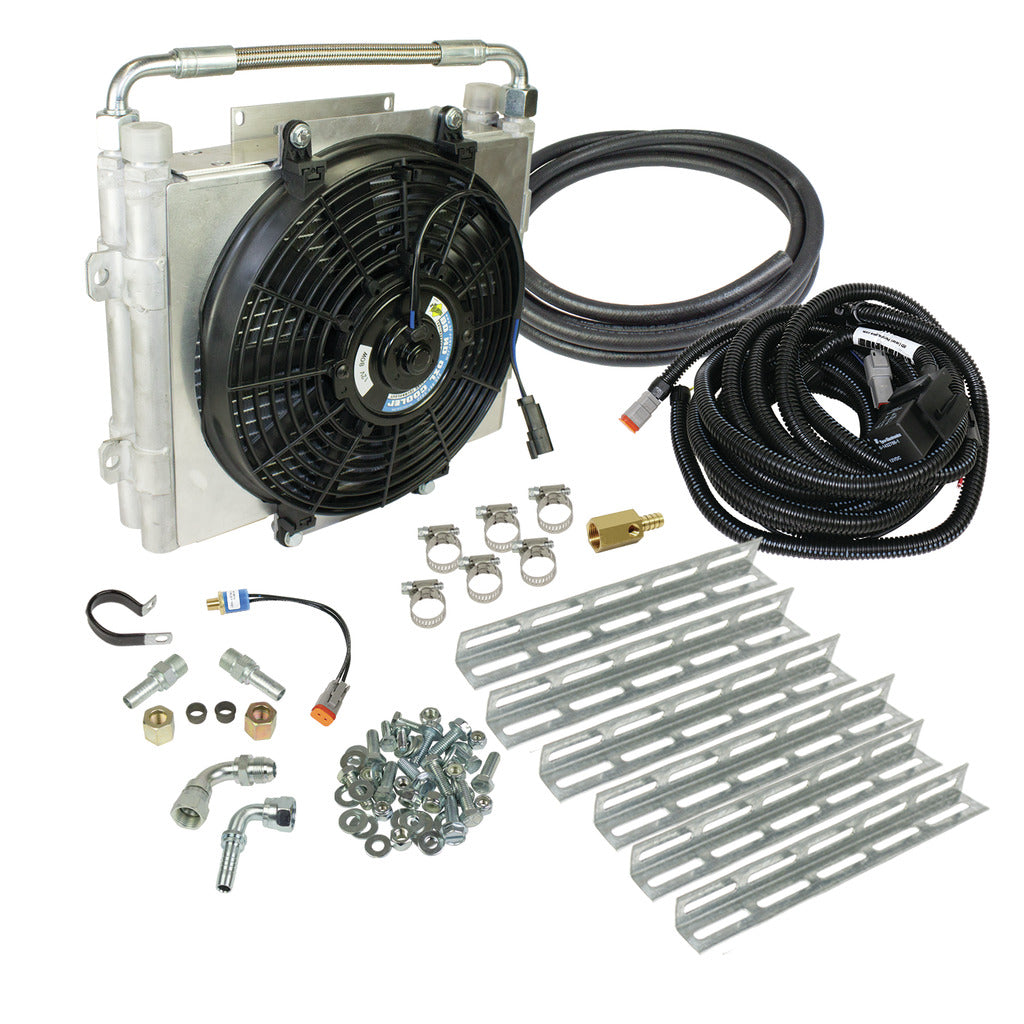

- Come Complete With All Fittings, Clamps, Hoses, Hardware And A Build-It-Yourself Galvanized Bracket Kit For Quicker And Cleaner Installation
Specifications
- Manufacturer: BD Diesel
- Manufacturer Part Number: 1030606-DS-58
- Condition: New
- Recommended Use: Transmission Fluid
- Construction: Double Stacked
- Overall Height (IN): 12 Inch
- Overall Width (IN): 15 Inch
- Overall Depth (IN): 5 Inch
- Number Of Cooling Rows: 2
- Inlet Attachment: Hose Barb
- Inlet Size: 5/8 Inch (-10 AN)
- Outlet Attachment: Hose Barb
- Outlet Size: 5/8 Inch (-10 AN)
- Color: Silver
- Material: Aluminum
- With Fan: Yes
- Fan Control: Thermostatic Switch
- Finish: Natural
- Fan CFM Rating: 800 CFM
- Fan Diameter: 10 Inch
- With Mounting Hardware: Yes
Compatibility / Fit
- 2001-2016 Chevrolet Silverado 2500 HD
- 2001-2006 Chevrolet Silverado 3500
- 2007-2007 Chevrolet Silverado 3500 Classic
- 2007-2016 Chevrolet Silverado 3500 HD
- 2001-2016 GMC Sierra 2500 HD
- 2001-2006 GMC Sierra 3500
- 2007-2007 GMC Sierra 3500 Classic
- 2007-2016 GMC Sierra 3500 HD
