Advanced cooling technology for enhanced transmission performance.

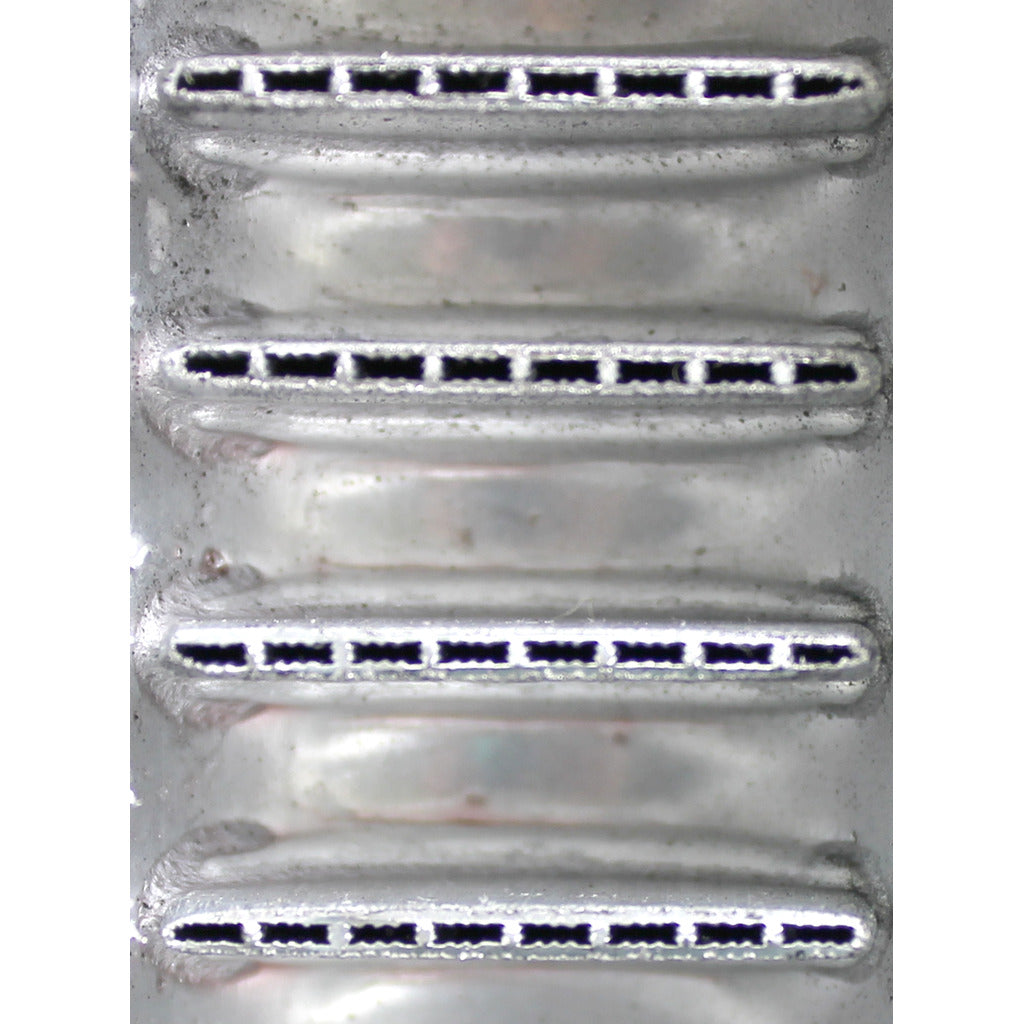

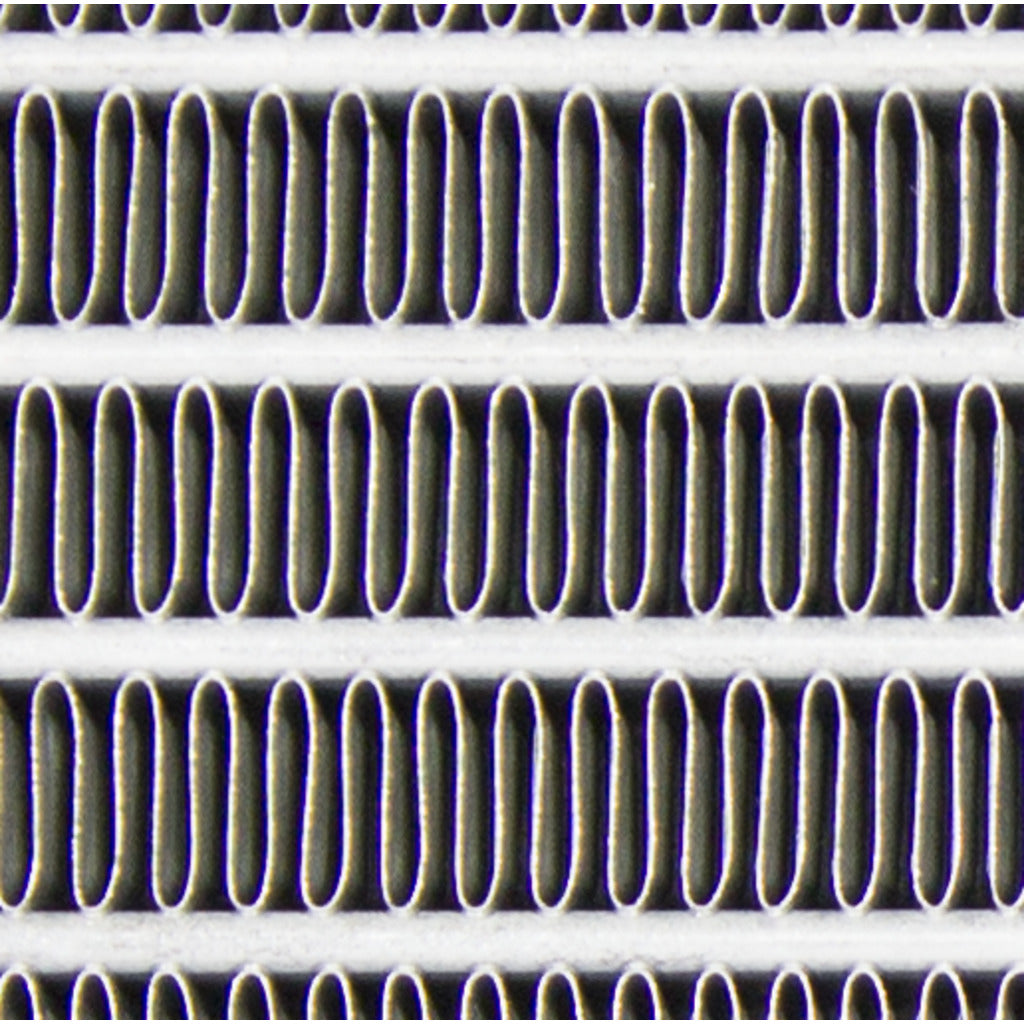

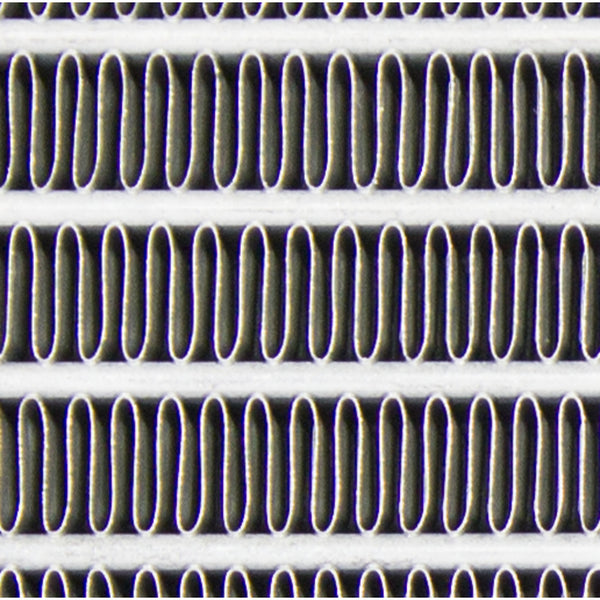

The BD Diesel Fluid Cooler is designed to combat the detrimental effects of heat on transmission fluid, a leading cause of transmission failure. Utilizing high efficiency Micro Extruded bar technology, this cooler offers 22 percent more cooling capacity compared to traditional designs. The 200 Micro Extruded passages create a large surface area that facilitates effective heat transfer, ensuring optimal cooling through external air flow.

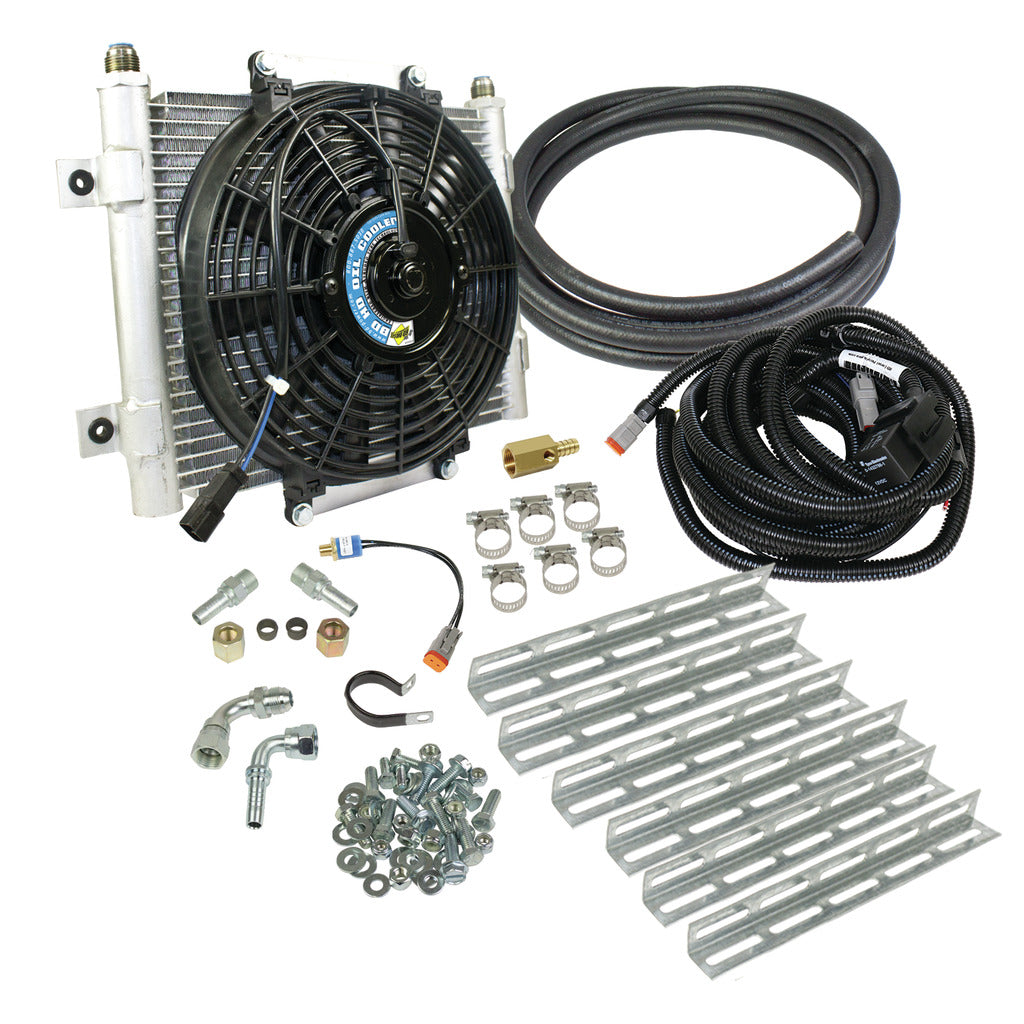

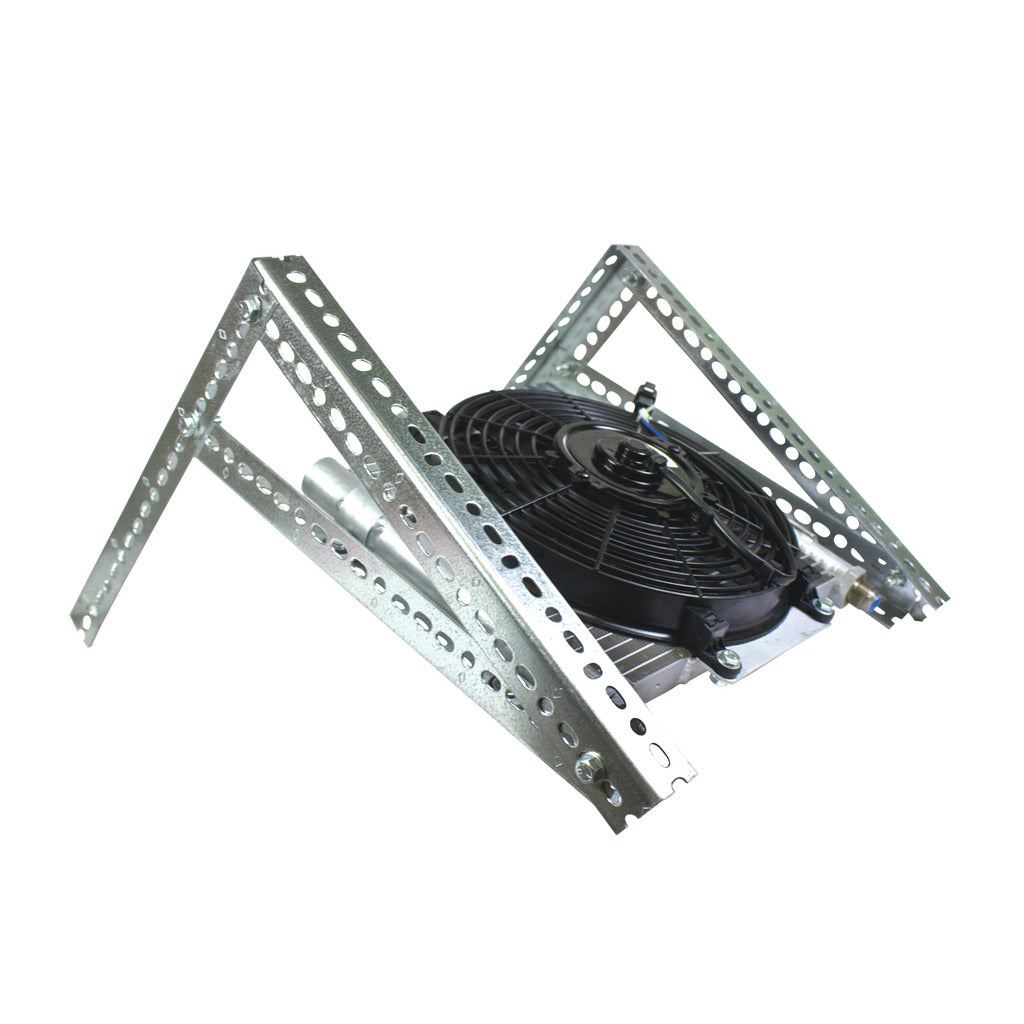

This product comes complete with all necessary fittings, clamps, hoses, and hardware for straightforward installation. Additionally, it includes a build-it-yourself galvanized bracket kit, allowing for a quicker and cleaner setup without the need for fabricating brackets from scrap metal.
Constructed from durable copper and aluminum materials, the cooler features a thermostatically controlled fan with a CFM rating of 800, ensuring efficient operation. With dimensions of 12-3/4 inches in height, 15-3/4 inches in width, and 3-1/2 inches in depth, it is designed to fit a variety of applications. The BD Diesel Fluid Cooler is an essential component for maintaining transmission fluid temperatures, thereby extending the life of your transmission.
Features
- BD’s Xtruded Transmission Oil Coolers Uses The Same High Efficiency Micro Extruded Bar Technology
- Comes Complete With All Fittings, Clamps, Hoses, Hardware
- Build-It-Yourself Galvanized Bracket Kit For Quicker And Cleaner Installation, No Wasting Time Fabricating Brackets Out Of Scrap Metal
Specifications
- Manufacturer: BD Diesel
- Manufacturer Part Number: 1030606-1/2
- Condition: New
- Recommended Use: Transmission Fluid
- Construction: Plate
- Overall Height (IN): 12-3/4 Inch
- Overall Width (IN): 15-3/4 Inch
- Overall Depth (IN): 3-1/2 Inch
- Inlet Attachment: Male Threads
- Inlet Size: 1/2 Inch (-8 AN)
- Outlet Attachment: Male Threads
- Outlet Size: 1/2 Inch (-8 AN)
- Color: Black/ Silver
- Material: Copper/ Aluminum
- With Fan: Yes
- Fan Control: Thermostatic Switch
- Finish: Natural
- Fan CFM Rating: 800 CFM
- Fan Diameter: 10 Inch
- With Mounting Hardware: Yes
Compatibility / Fit
- 2004-2006 Dodge Ram 1500
- 1994-2010 Dodge Ram 2500
- 1994-2010 Dodge Ram 3500
- 2006-2010 Ford F-250 Super Duty
- 2006-2010 Ford F-350 Super Duty
- 2011-2016 Ram 2500
- 2011-2016 Ram 3500
