Enhance cooling and durability with advanced design features.

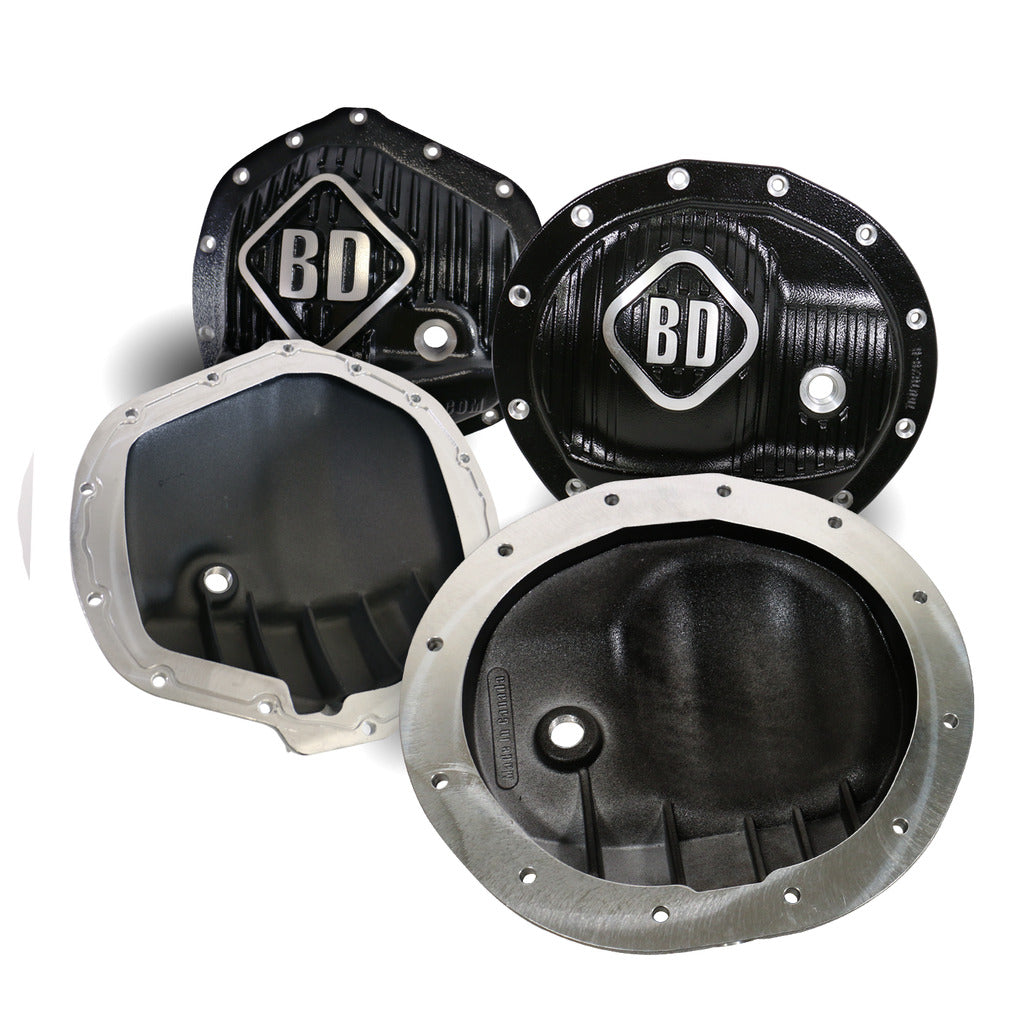

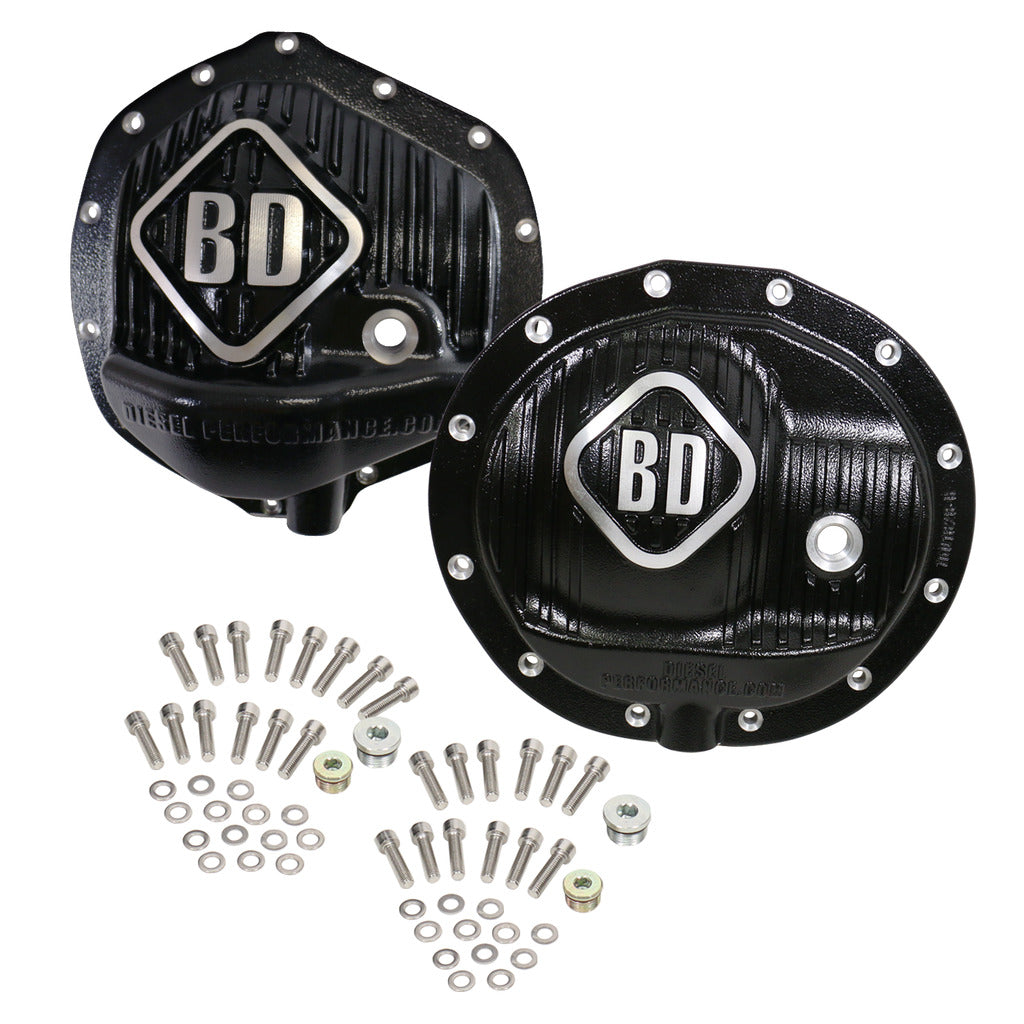

The BD Diesel Differential Cover is engineered for Dodge 12 - 9.25 Front and 14 - 11.5 Rear axles, providing a robust solution for differential protection and performance. Constructed from cast aluminum, this cover features both internal and external cooling fins that enhance heat dissipation, ensuring optimal operating temperatures for the differential components. The innovative design includes separate fill and drain ports equipped with stainless steel plugs, facilitating easier maintenance and servicing.
The rear cover is specifically designed to deflect oil back onto the ring gear and into the pinion gear, promoting cooler operation and extending the lifespan of critical components. Additionally, the cover incorporates a magnetic drain plug that captures suspended particles in the oil, further protecting the differential from wear. With a gasket-less design featuring an integral reusable Viton O-ring, this cover ensures a secure seal without the need for additional gaskets.
The BD Diesel Differential Cover not only enhances functionality but also adds a sleek aesthetic to your vehicle with its powder-coated black finish. It is compatible with aftermarket track bars, making it a versatile choice for performance enthusiasts. With a front cover capacity of 2.7 quarts, this differential cover is designed to meet the demands of high-performance applications.
Features
- Cast Aluminum Internal And External Cooling Fins
- Separate Fill And Drain Port
- Stainless Steel Allen Head Cap Bolts And Fill Plugs
- Magnetic Drain Plug
- Engineered Cover Design Keeps Oil On The Gears (Rear)
- Deflects Oil Back Onto The Ring Gear And Into The Pinion Gear For Cooler Longer Life (Rear)
- Extra Capacity Sump Located At Bottom For Gears To Pick Up Oil (Rear)
- Gasket Less Cover Has Integral Re-Usable Viton O-Ring (Rear)
- Front Cover Capacity 2.7 Quarts
Specifications
- Manufacturer: BD Diesel
- Manufacturer Part Number: 1061829
- Axle Model: Chrysler 9.25 Inch
- Cover Bolts: 12
- Color: Black
- Material: Stainless Steel Alloy Head Cap Bolts/ Cast Aluminum Internal And External Cooling Fins
- Type: Ribbed/ Slotted
- Finish: Powder Coated
- Carrier Main Cap Support/Girdle: No
- Includes Drain Plug: Yes
- Includes Filler Plug: Yes
- Includes Gaskets: Yes
- Includes Bolts/Studs: Yes
Compatibility / Fit
- 2013-2018 Ram 2500
- 2013-2018 Ram 3500
