Advanced design for enhanced lubrication and cooling efficiency.

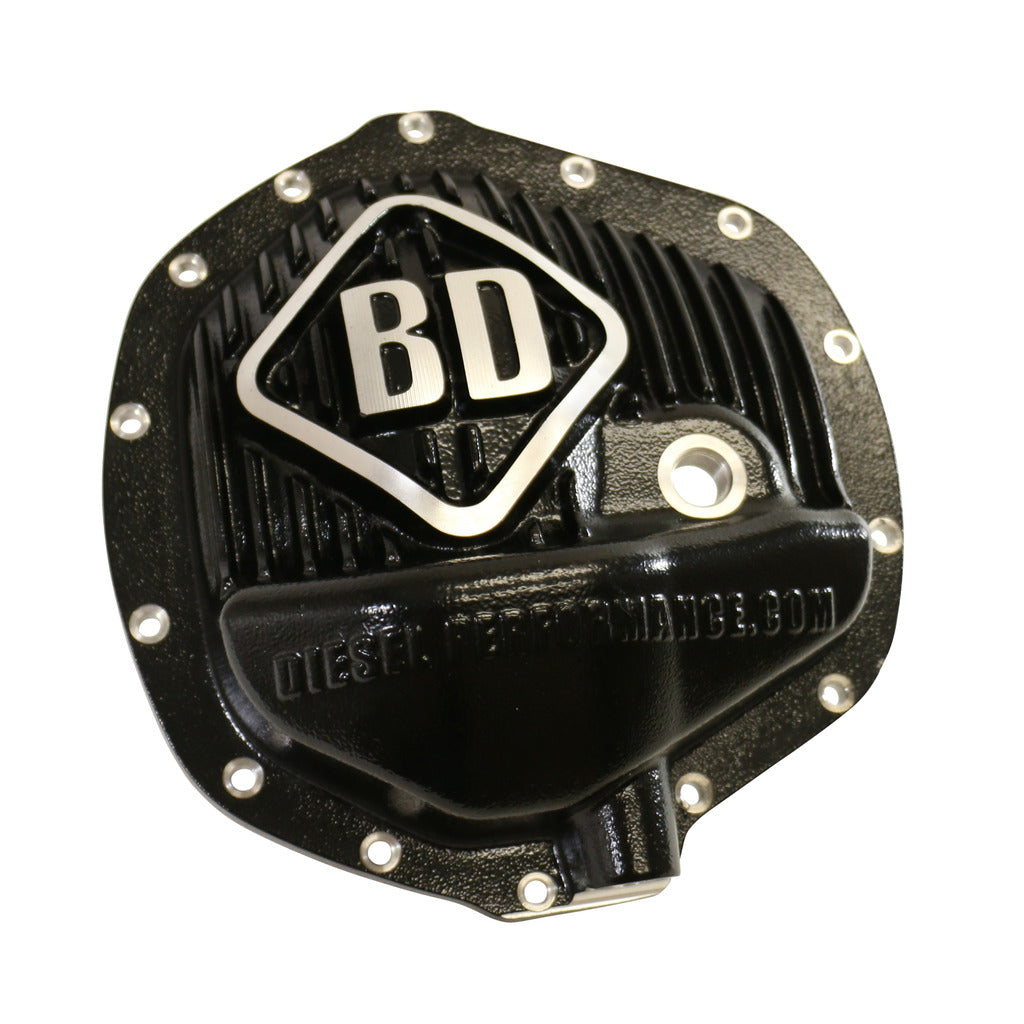

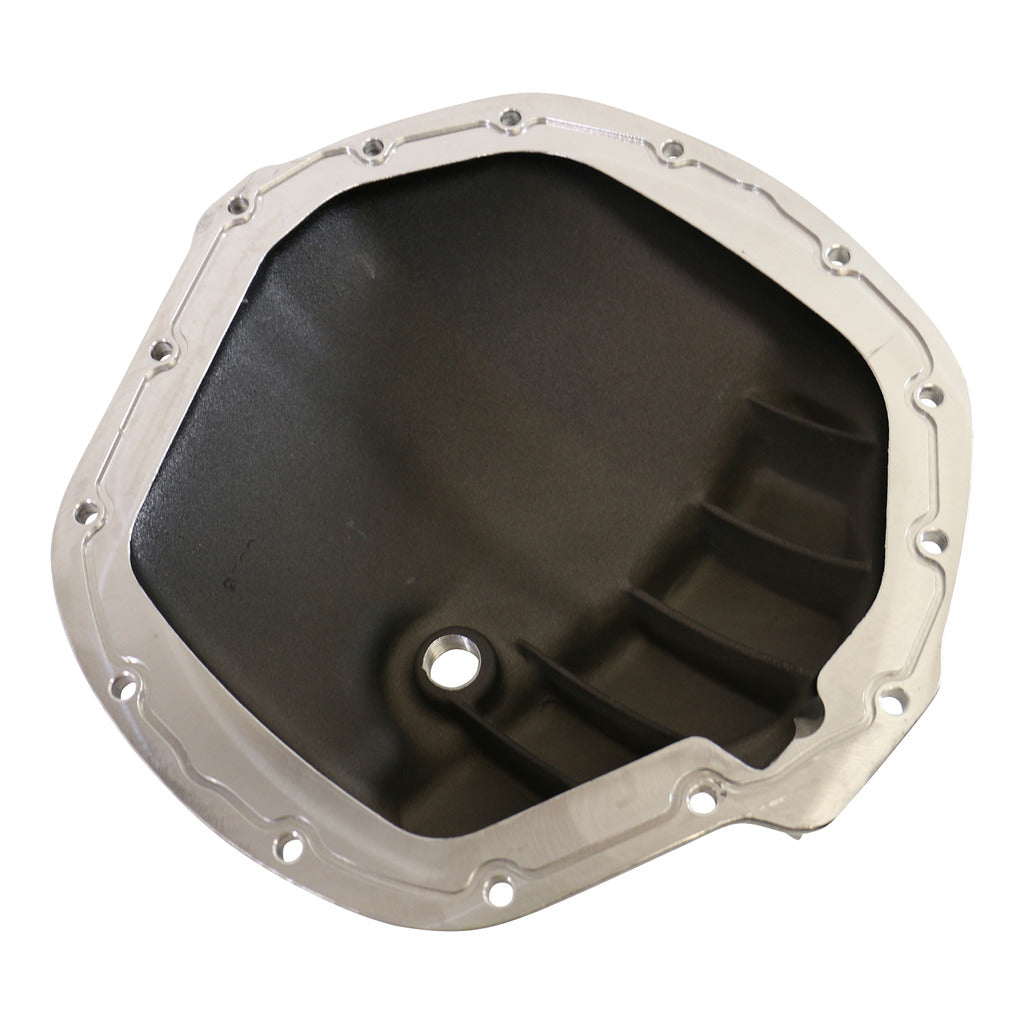

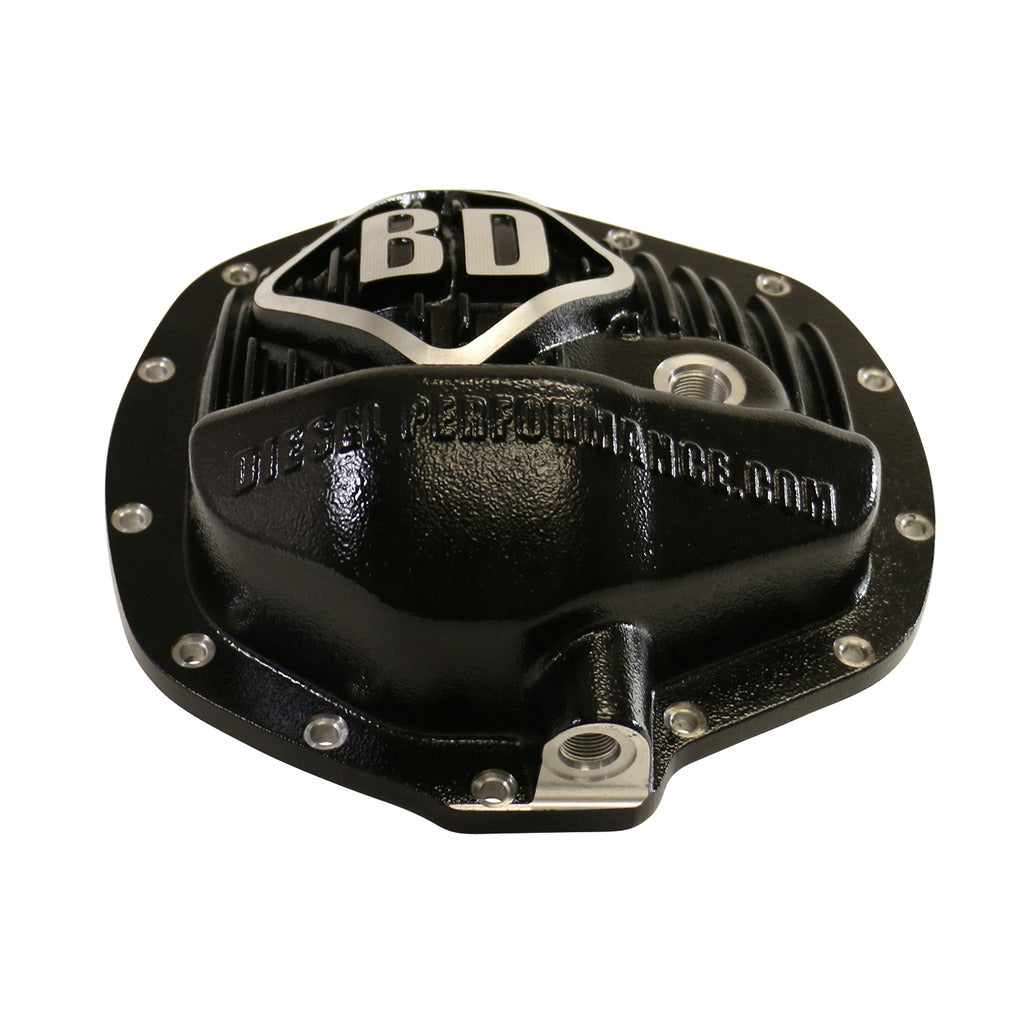

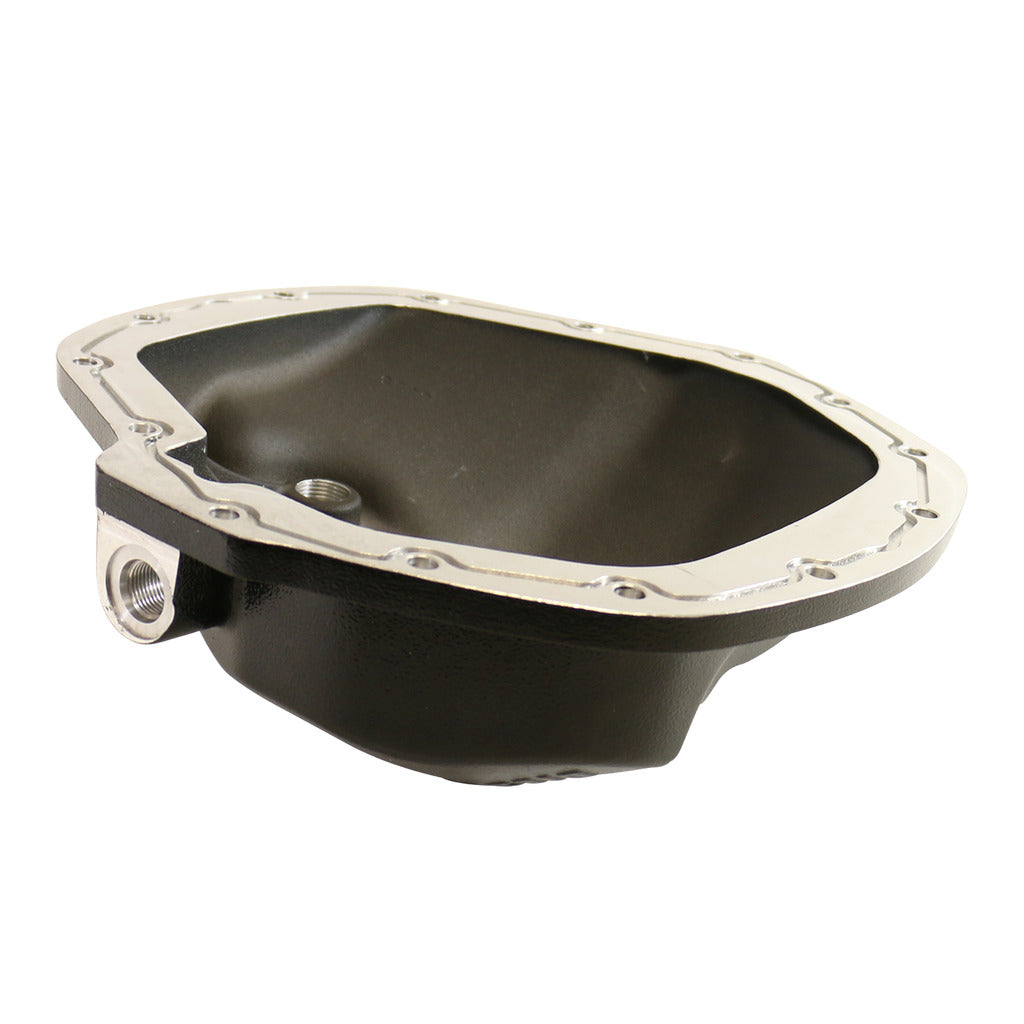

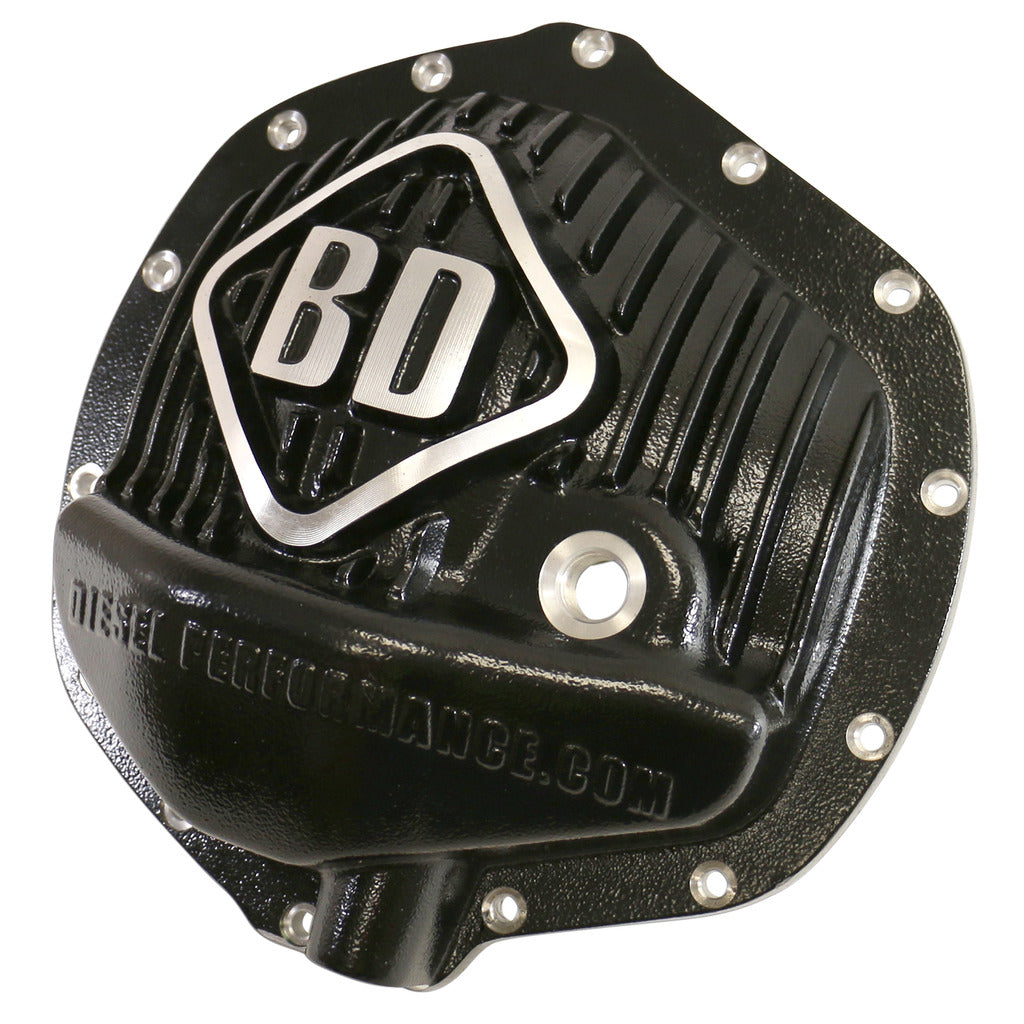

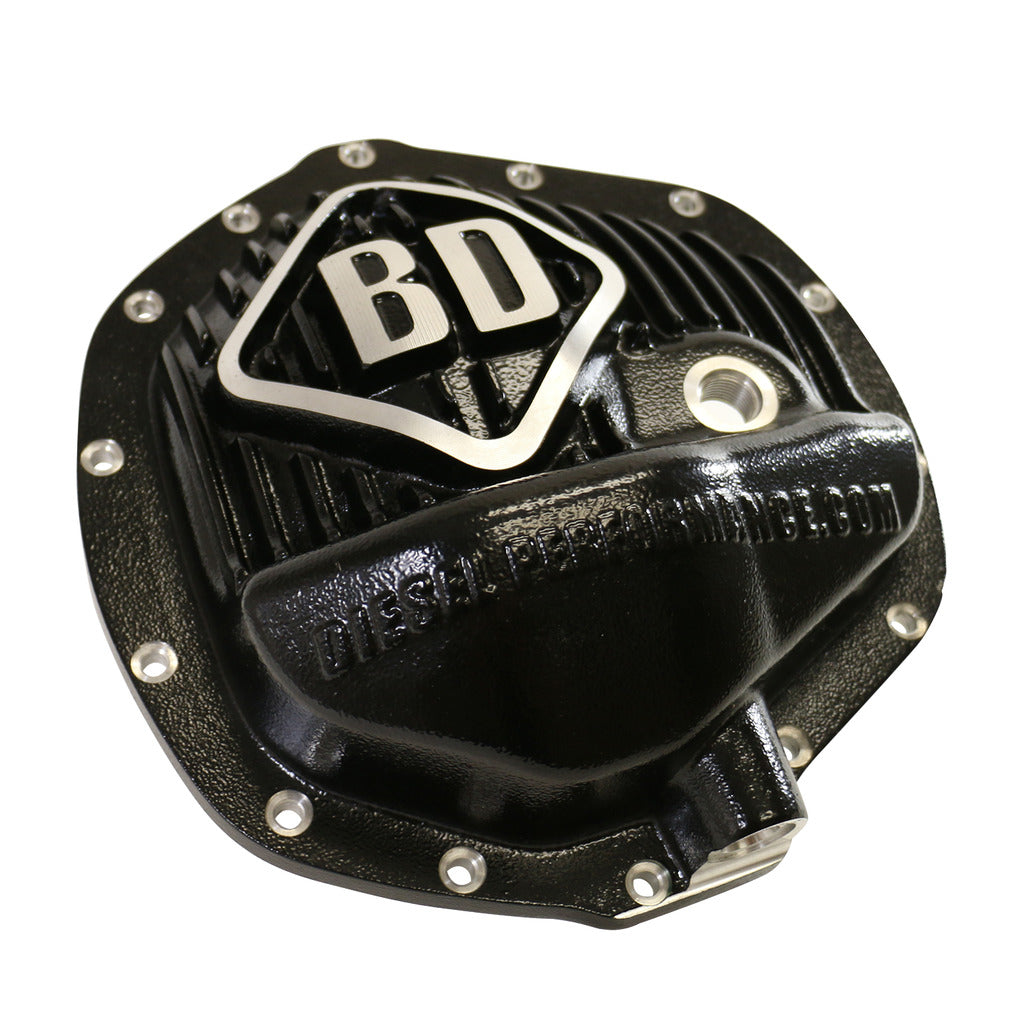

The BD Diesel Differential Cover is engineered specifically for Dodge and Chevy 11-1/2 inch rear axles, providing a robust solution for performance diesel applications. This cover features a unique design that deflects oil back onto the ring gear and into the pinion gear, promoting cooler operation and extending the life of critical components. With an extra capacity sump located at the bottom, it nearly doubles the fluid capacity, ensuring optimal lubrication under demanding conditions.
Constructed from durable aluminum and finished with a powder coating, this differential cover is built to withstand the rigors of performance driving. It includes internal and external cooling fins that enhance heat dissipation, while stainless steel Allen head cap bolts and fill plugs ensure secure installation. The gasketless design incorporates a reusable Viton O-ring, eliminating the need for traditional gaskets and simplifying maintenance.
Additionally, the cover is equipped with a magnetic drain plug that captures metal particles, further protecting the differential from wear. This innovative design addresses common issues found in other bulky differential covers, which can lead to oil being flung off the ring gear, resulting in increased heat and wear. The BD Diesel Differential Cover is a practical choice for those seeking reliability and performance in their vehicle's drivetrain.
Features
- Engineered Cover Design Keeps Oil On The Gears
- Extra Capacity Sump Located At Bottom For Gears To Pick Up Oil, Almost Double The Fluid Capacity
- Internal And External Cooling Fins
- Stainless Steel Allen Head Cap Bolts And Fill Plugs
- Gasketless Cover Has Integral Re-Usable Viton O-Ring
- Other Differential Covers Are Large And Bulky Resulting In Lubricating Oil Being Flung Off The Ring Gear
- Design Deflects The Oil Back Onto The Ring Gear And Into The Pinion Gear For Cooler Longer Life
- Magnetic Drain Plug And Gasketless Cover Has Integral Re-Usable Viton O-Ring
Specifications
- Manufacturer: BD Diesel
- Manufacturer Part Number: 1061825
- Axle Model: Dodge/ Chevy 11-1/2 Inch
- Cover Bolts: 14
- Color: Black
- Material: Aluminum
- Type: Non Ribbed
- Finish: Powder Coated
- Carrier Main Cap Support/Girdle: No
- Includes Drain Plug: Yes
- Includes Filler Plug: Yes
- Includes Gaskets: Yes
- Includes Bolts/Studs: Yes
Compatibility / Fit
- 2001-2019 Chevrolet Silverado 2500 HD
- 2001-2006 Chevrolet Silverado 3500
- 2007-2007 Chevrolet Silverado 3500 Classic
- 2007-2019 Chevrolet Silverado 3500 HD
- 2003-2010 Dodge Ram 2500
- 2003-2010 Dodge Ram 3500
- 2001-2019 GMC Sierra 2500 HD
- 2001-2006 GMC Sierra 3500
- 2007-2019 GMC Sierra 3500 HD
- 2011-2018 Ram 2500
- 2011-2018 Ram 3500
