BD Diesel Auxiliary Transmission Cooler (MPN: 1030606-5/8)

Enhance transmission longevity with advanced cooling technology.

The BD Diesel Auxiliary Transmission Cooler is designed to combat the detrimental effects of heat on transmission fluid. Overheating is a primary cause of transmission failure, especially when towing heavy loads or navigating challenging terrains. This cooler utilizes high efficiency Micro Extruded bar technology, which is also found in BD's air-to-air Charge Air Coolers, resulting in 22 percent more cooling capacity compared to traditional designs.

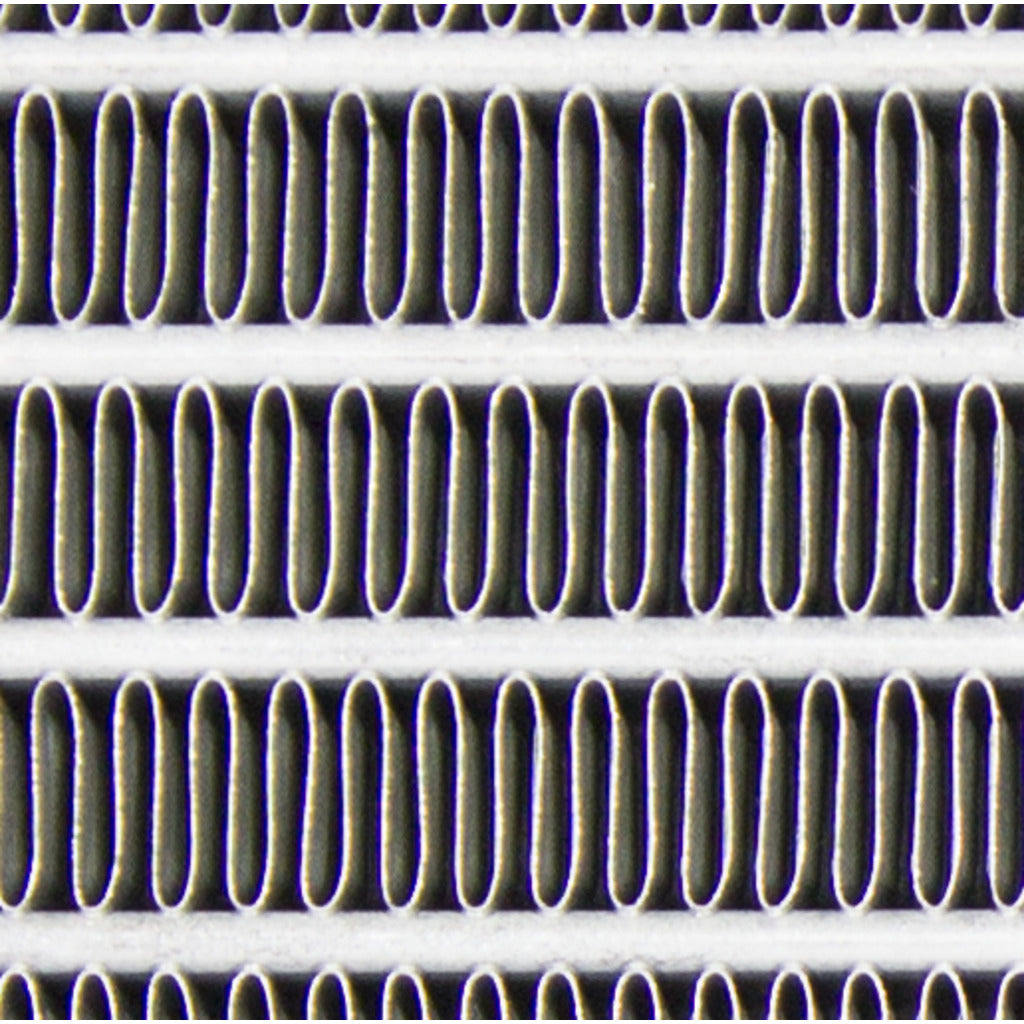

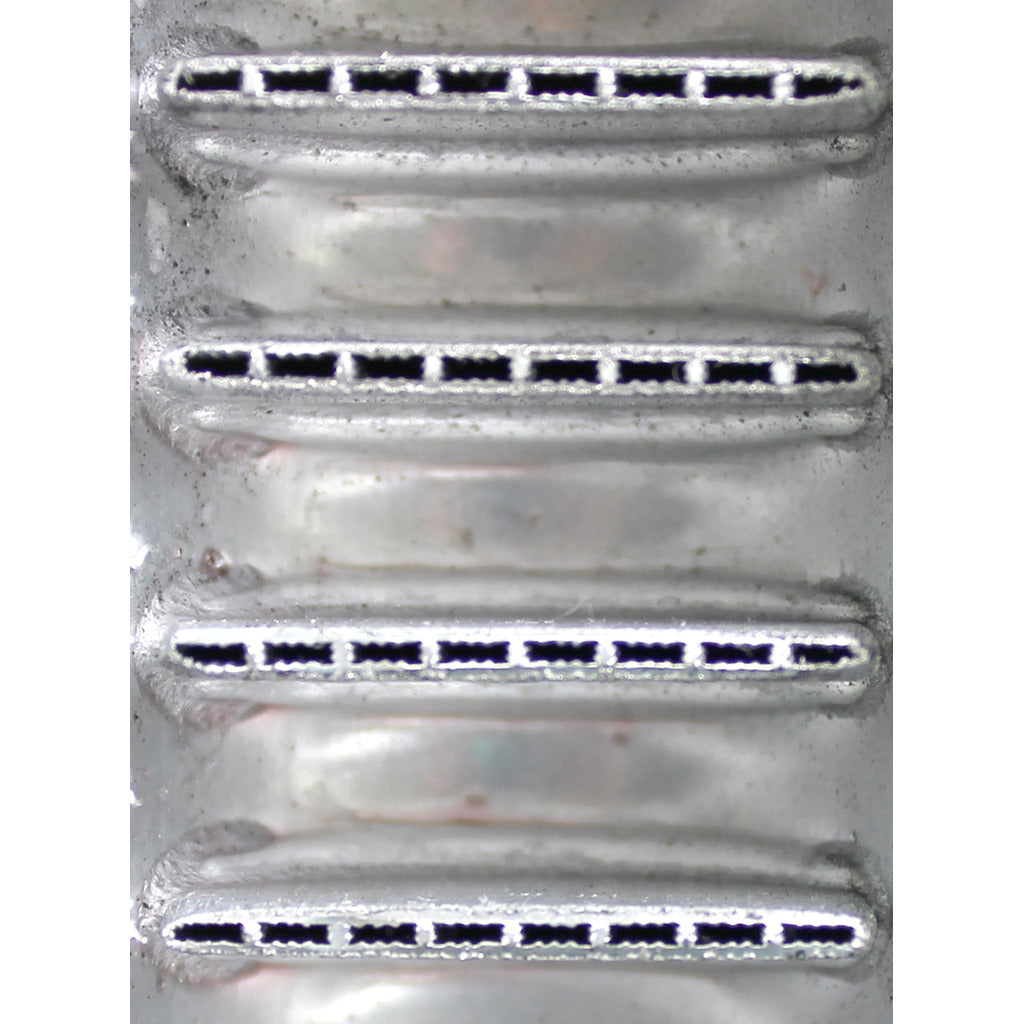

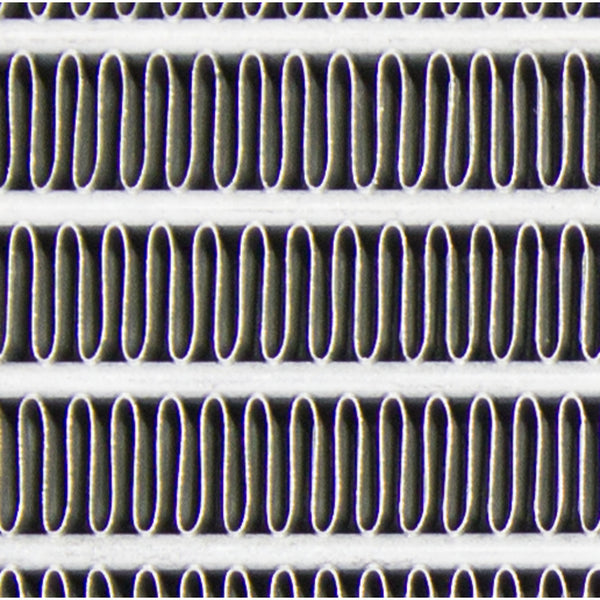

Featuring 200 Micro Extruded passages, this cooler maximizes surface area for effective heat transfer, ensuring optimal cooling through external airflow. The innovative turbulent oil flow design enhances the cooling process, making it suitable for various demanding applications. The unit comes complete with all necessary fittings, clamps, hoses, and hardware for straightforward installation.

Additionally, the build-it-yourself galvanized bracket kit allows for a quicker and cleaner setup, eliminating the need for time-consuming fabrication. With a robust construction of copper and aluminum, this cooler is built to withstand the rigors of heavy use while maintaining a sleek black and silver finish. The integrated fan, controlled by a thermostatic switch, provides an impressive airflow of 800 CFM, further enhancing cooling efficiency.

Features

• BD’s Xtruded Transmission Oil Coolers Uses The Same High Efficiency Micro Extruded Bar Technology

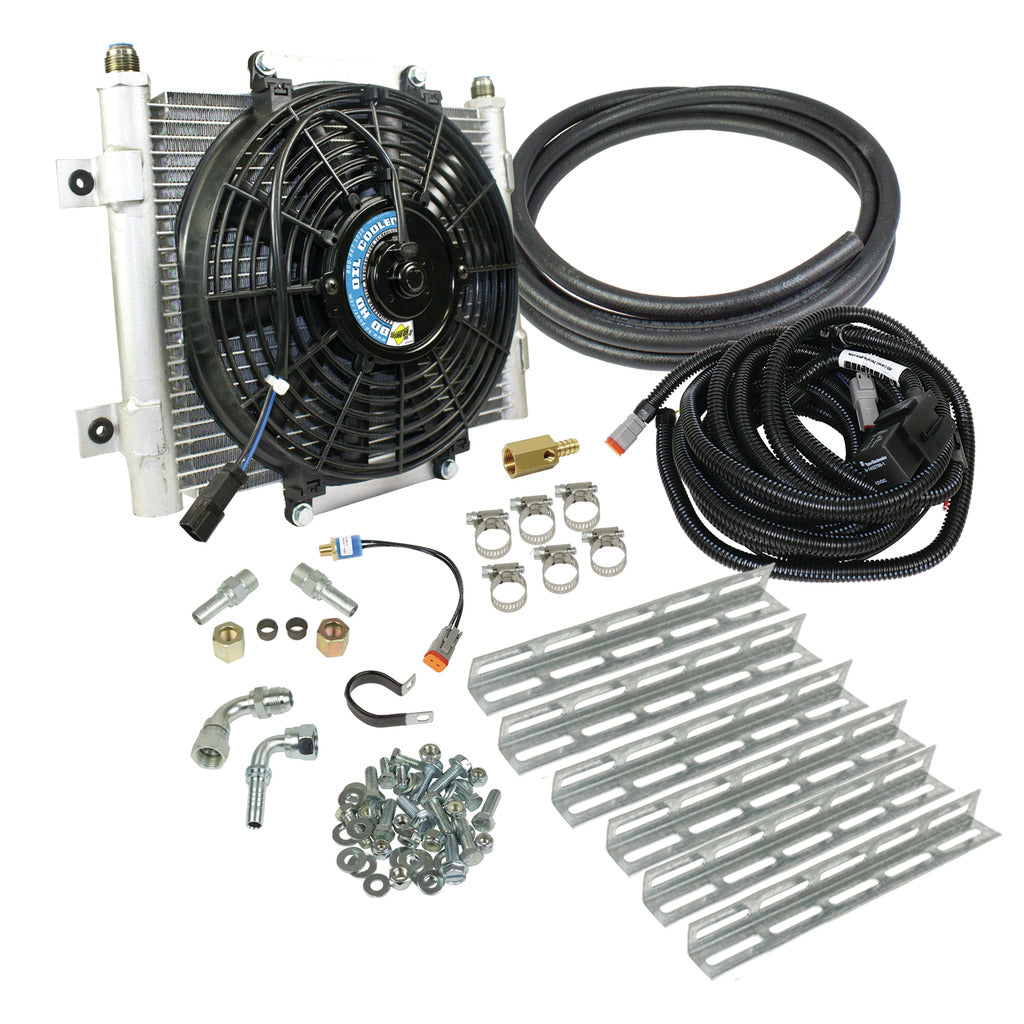

• Comes Complete With All Fittings, Clamps, Hoses, Hardware

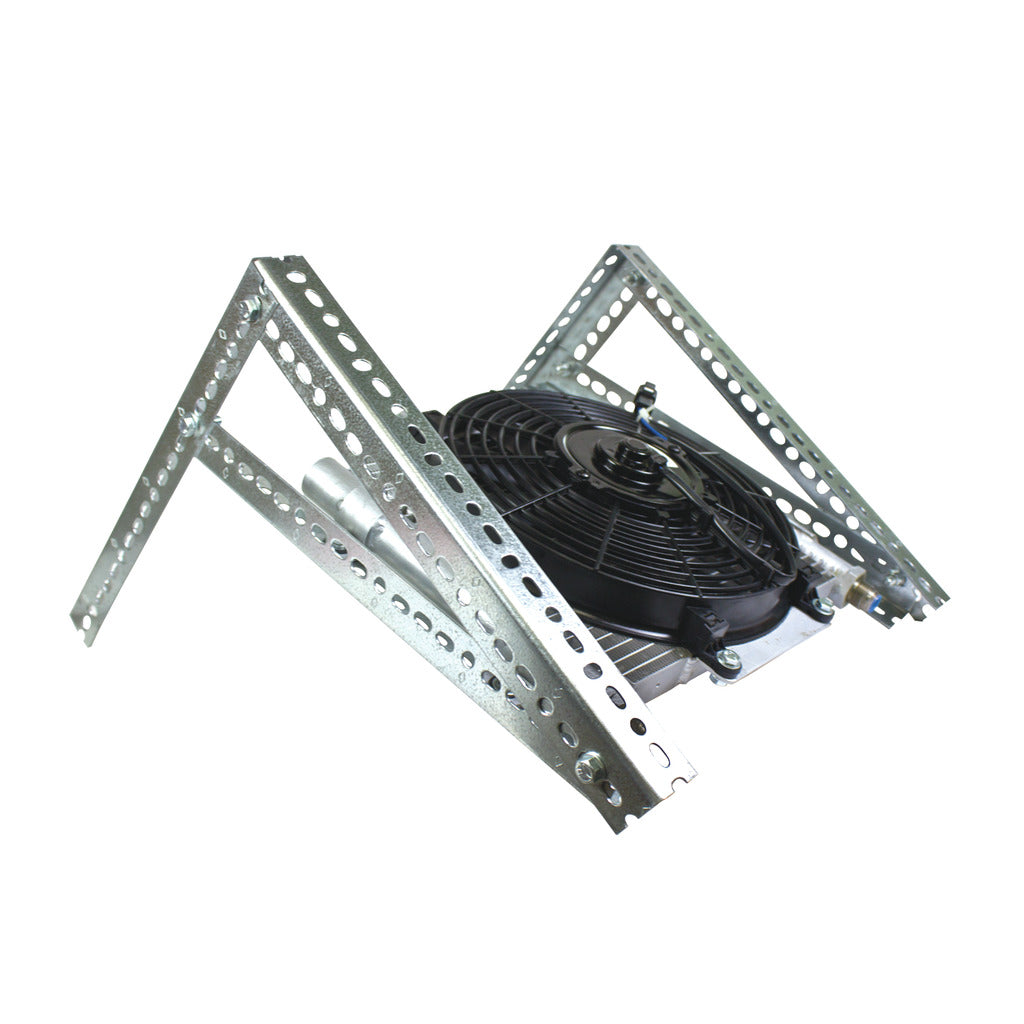

• Build-It-Yourself Galvanized Bracket Kit For Quicker And Cleaner Installation, No Wasting Time Fabricating Brackets Out Of Scrap Metal

Specifications

• Manufacturer: BD Diesel
• Manufacturer Part Number: 1030606-5/8
• Condition: New
• Recommended Use: Transmission Fluid
• Construction: Plate
• Overall Height (IN): 12-3/4 Inch
• Overall Width (IN): 15-3/4 Inch
• Overall Depth (IN): 3-1/2 Inch
• Inlet Attachment: Male Threads
• Inlet Size: 5/8 Inch (-10 AN)
• Outlet Attachment: Male Threads
• Outlet Size: 5/8 Inch (-10 AN)
• Color: Black/ Silver
• Material: Copper/ Aluminum
• With Fan: Yes
• Fan Control: Thermostatic Switch
• Finish: Natural
• Fan CFM Rating: 800 CFM
• Fan Diameter: 10 Inch
• With Mounting Hardware: Yes

Compatibility / Fit

• 2001-2019 Chevrolet Silverado 2500 HD
• 2001-2006 Chevrolet Silverado 3500
• 2007-2007 Chevrolet Silverado 3500 Classic
• 2007-2019 Chevrolet Silverado 3500 HD
• 2001-2016 GMC Sierra 2500 HD
• 2001-2006 GMC Sierra 3500
• 2007-2007 GMC Sierra 3500 Classic
• 2007-2016 GMC Sierra 3500 HD

Technical Documents

• (i-00213)_1030606_-_transmission_oil_cooler.pdf
• bd_warranty_statement.pdf
