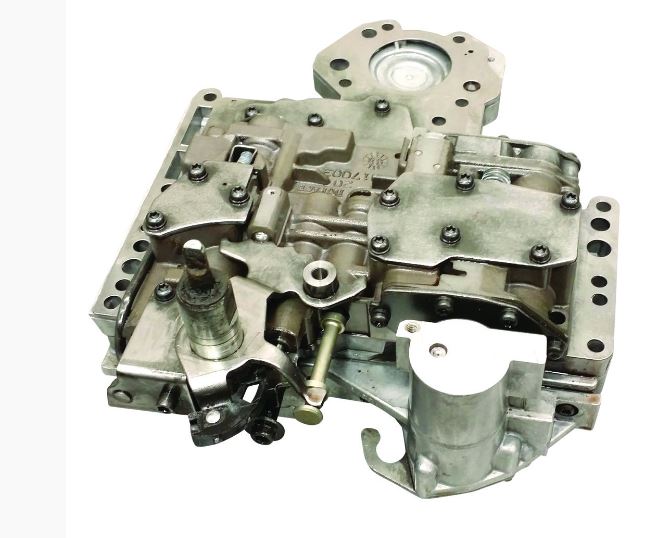

BD Diesel Auto Trans Valve Body (MPN: 1030423-FM)

Enhanced performance with manual shifting and optimized design features.

The BD Diesel Auto Trans Valve Body is engineered for the 48RE transmission, providing a standard shift pattern with manual shifting capabilities. This valve body has been modified, tuned, and tested to ensure optimum performance, making it a reliable choice for those seeking enhanced control over their vehicle's transmission. Key features include a revised valve design and larger oil ports that facilitate improved fluid flow, while hand-lapped surfaces help prevent internal leakage, ensuring durability and efficiency.

This product also boasts new trim valves that increase mainline pressure and enhance clutch holding capacity, allowing for more robust performance under load. The full manual control of gear selection provides drivers with the ability to manage their shifting preferences effectively. Additionally, the torque converter lock-up feature is available in all forward gears, contributing to better fuel efficiency and performance during operation. Constructed from high-quality aluminum, this valve body is designed to withstand the demands of high-performance applications.

Features

• Modified, Tuned And Tested To Provide Optimum Performance
• Revised Valve Design
• Larger Oil Ports
• Hand-Lapped Surfaces Prevent Internal Leakage
• New Trim Valves Increase Mainline Pressure
• Increased Clutch Holding Capacity
• Full Manual Control Of Gear Selection
• Lock-Up Available In All Forward Gears

Specifications

• Manufacturer: BD Diesel
• Manufacturer Part Number: 1030423-FM
• Transmission Model: 48RE
• Shifting Type: Manual Shifting
• Shift Pattern: Standard Shift Pattern
• With Trans Brake Function: No
• With Torque Convertor Lock-up: Yes
• Material: Aluminum

Compatibility / Fit

• 2005-2006 Dodge Ram 1500
• 2005-2007 Dodge Ram 2500
• 2005-2007 Dodge Ram 3500
