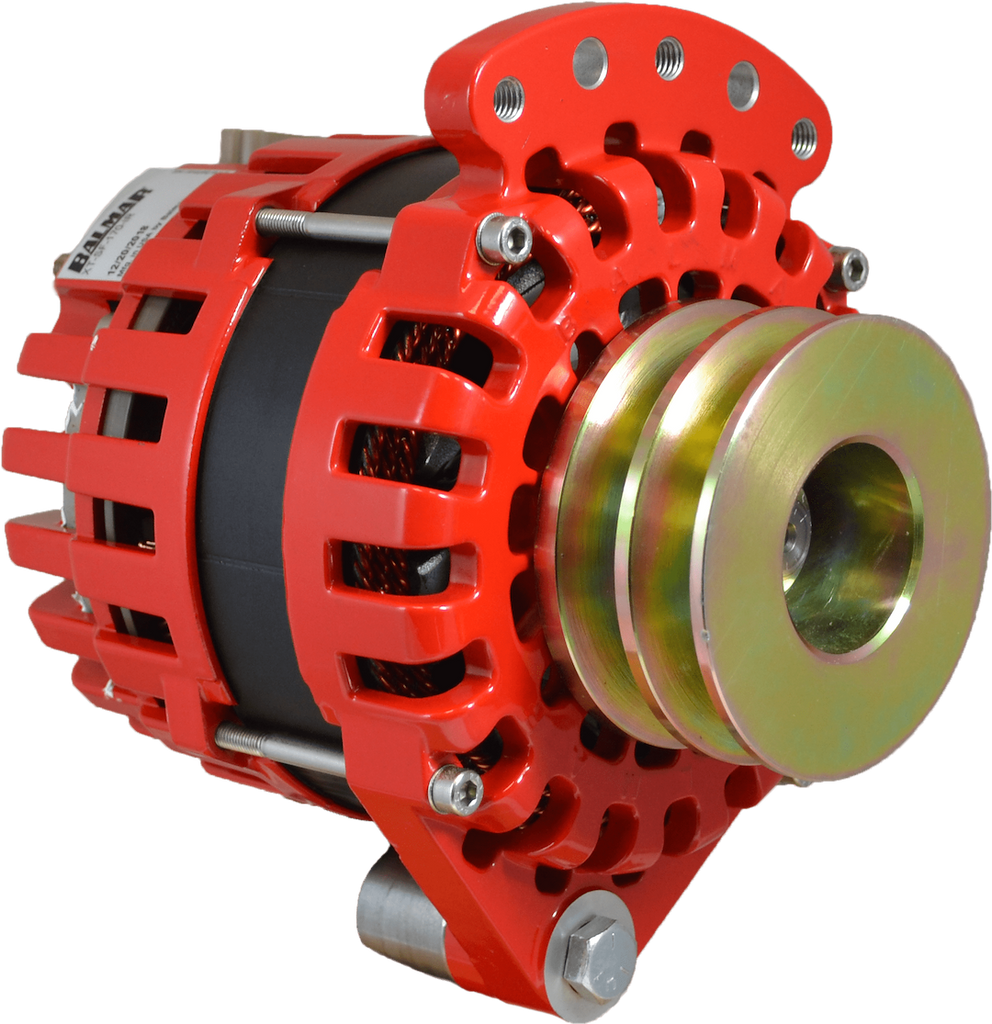

Balmar XT Series Alternator (MPN: XT-SF-170-DV)

Compact design with high output for marine applications

The Balmar XT Series Alternator is engineered to provide exceptional charging power in a compact, marine-friendly design. With a 170 Ampere output and a 12 Volt system, this alternator is optimized for performance, featuring a braided stator wire design that enhances efficiency and reduces operating temperatures by 5 to 10 degrees Celsius compared to previous models. The dual fan cooling system ensures high airflow, maintaining optimal performance even under demanding conditions.

This alternator is equipped with Balmar's Smart Ready internal regulator technology, which adds an extra layer of fault tolerance, making it suitable for cruising boaters. The XT Series also supports various mounting styles, including the Vortec design compatible with many GM gasoline engines. With a power-coated finish and a ventilated cast aluminum case, the XT Series is built to withstand the rigors of marine environments while delivering reliable power.

Designed for versatility, the Balmar XT Series Alternator is ideal for use with lithium battery banks and meets USCG Title 33, ISO 8846, and SAE J1171 certifications. Its compact dimensions and high output capabilities make it a valuable addition to any marine electrical system.

Features

• 170 Ampere Or 250 Ampere In A Small Case Package
• Up To 180 Ampere At Idle Speeds
• Patented Smart Ready Technology
• Dual Fan Cooling, High Airflow Frame
• Ideal For Lithium Battery Banks
• USCG Title 33, ISO 8846 And SAE J1171 Certified

Specifications

• Manufacturer: Balmar
• Manufacturer Part Number: XT-SF-170-DV
• Condition: New
• Amperage Output: 170 Amp
• Voltage: 12 Volt
• Case Style: P-Type Small Case
• Includes Pulley: Yes
• Pulley Type: 2 Groove V-Belt
• Wire Type: No Wire
• Finish: Power Coated
• Includes Belt: No
• Includes Brackets: No

Technical Documents

• XT-Series-170-250-Datasheet-March-2023_WEB.pdf
