High-performance LED light bar with customizable mounting options and superior brightness.
The Baja Designs XL Series LED Light Bar offers a robust lighting solution with a length of 39.16 inches and a powerful output of 18,900 lumens. This light bar features 24 Cree LEDs, delivering exceptional visibility with a combination beam pattern for both driving and spot applications. Constructed with a hardcoated clear polycarbonate lens and a powder-coated black cast aluminum housing, it is designed for durability and performance in various conditions.
This light bar is equipped with advanced features such as MoistureBlock technology, ensuring it is waterproof and submersible, making it suitable for challenging environments. The UService feature allows for easy replacement of lenses and optics, enhancing the longevity of the product. With a copper drive system, the LEDs are driven at 100 percent, providing maximum brightness and efficiency.
Installation is straightforward with the included mounting hardware, two mounting brackets, and a pre-load L-bracket kit, allowing for behind grille mounting. The plug and play wiring harness simplifies the connection process, making it accessible for users with varying levels of technical expertise. The Baja Designs XL Series LED Light Bar is an excellent choice for those seeking high-quality lighting solutions for off-road and on-road applications.
Features
- MoistureBlock - Waterproof, Rain Proof, Submersible
- UService - Replaceable Lenses And Optics
- CopperDrive – Only LED Driven At 100 Percent
- ClearView – All The Light, Right Where You Need It
Specifications
- Manufacturer: Baja Design
- Manufacturer Part Number: 448067
- Bulb Type: LED
- Style: Straight
- Length: 39-1/8 Inch
- Beam Type: Combo Beam Driving And Spot
- Number Of Rows: 1
- Light Color: White
- Housing Color: Black
- Smart Technology Compatible: Not Smart Technology Compatible
- Beam Angle (Deg): 45 Degree
- Lumens: 3162 Raw/ 18900 Effective Lumens
- Wattage: 156 Watt
- Width: 2.8 Inch
- Height: 4.43 Inch
- Bulb Specifications: 24 Clear 6.5 Watt LED Bulbs
- Lens Material: Polycarbonate
- Housing Material: Aluminum
- Mounting Style: Behind Grille Mount
- Connection Type: Plug And Play Wiring Harness

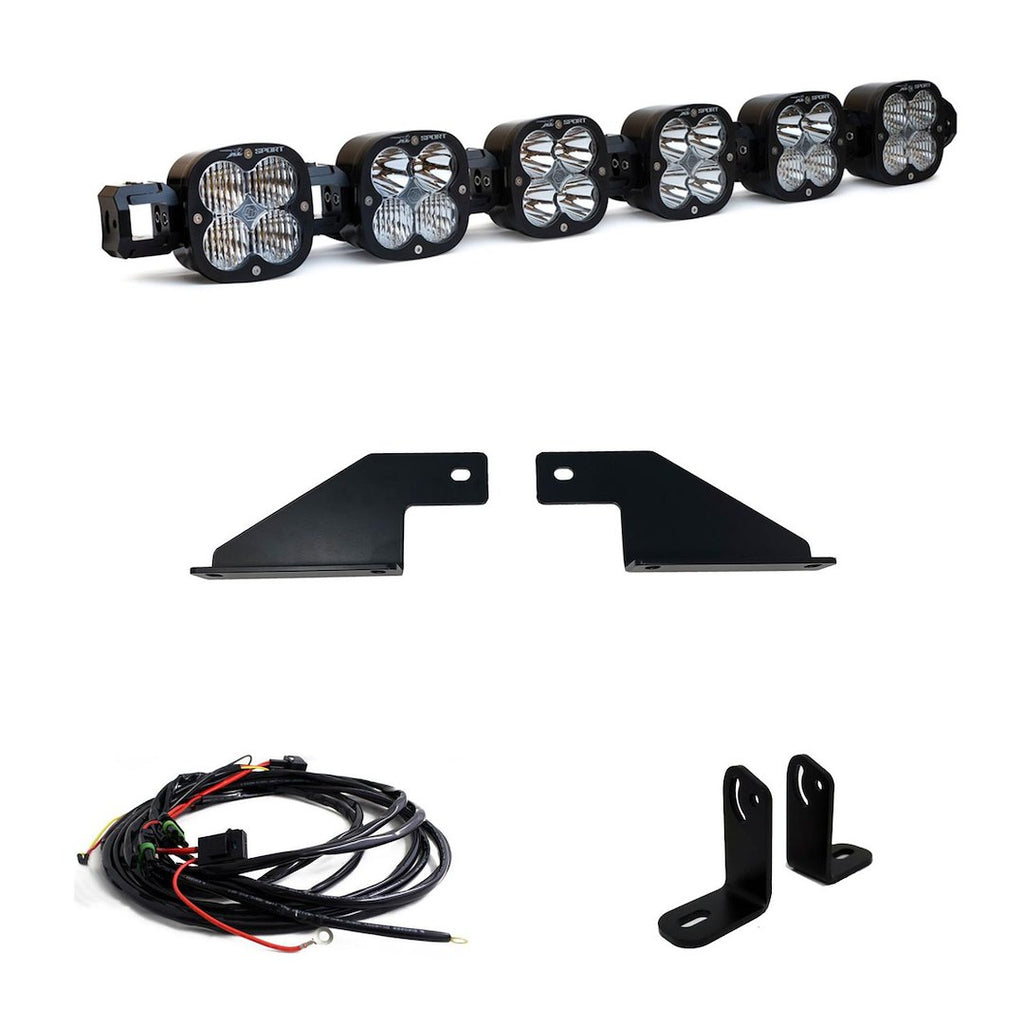

- Includes: With 6 XL Linkable Kit/2 Mounting Brackets/Pre-Load L-Bracket Kit/ Wiring Harness/ Mounting Hardware
- Estimated Install Time (Hours): 1.5
- Marine: No

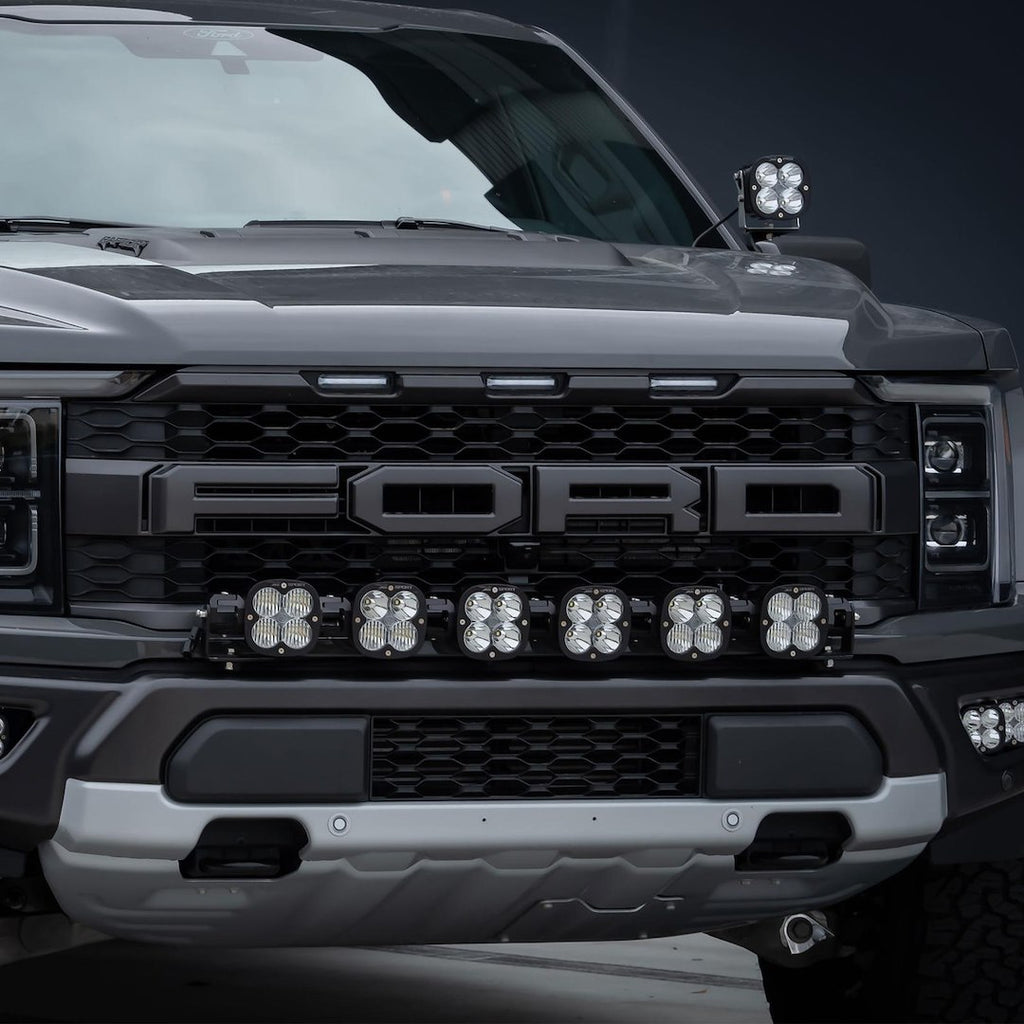

Compatibility / Fit
- 2021-2026 Ford F-150
