Baja Designs Squadron Sport LED Light Kit (MPN: 447755UP)

High-performance LED lights for enhanced visibility and safety.

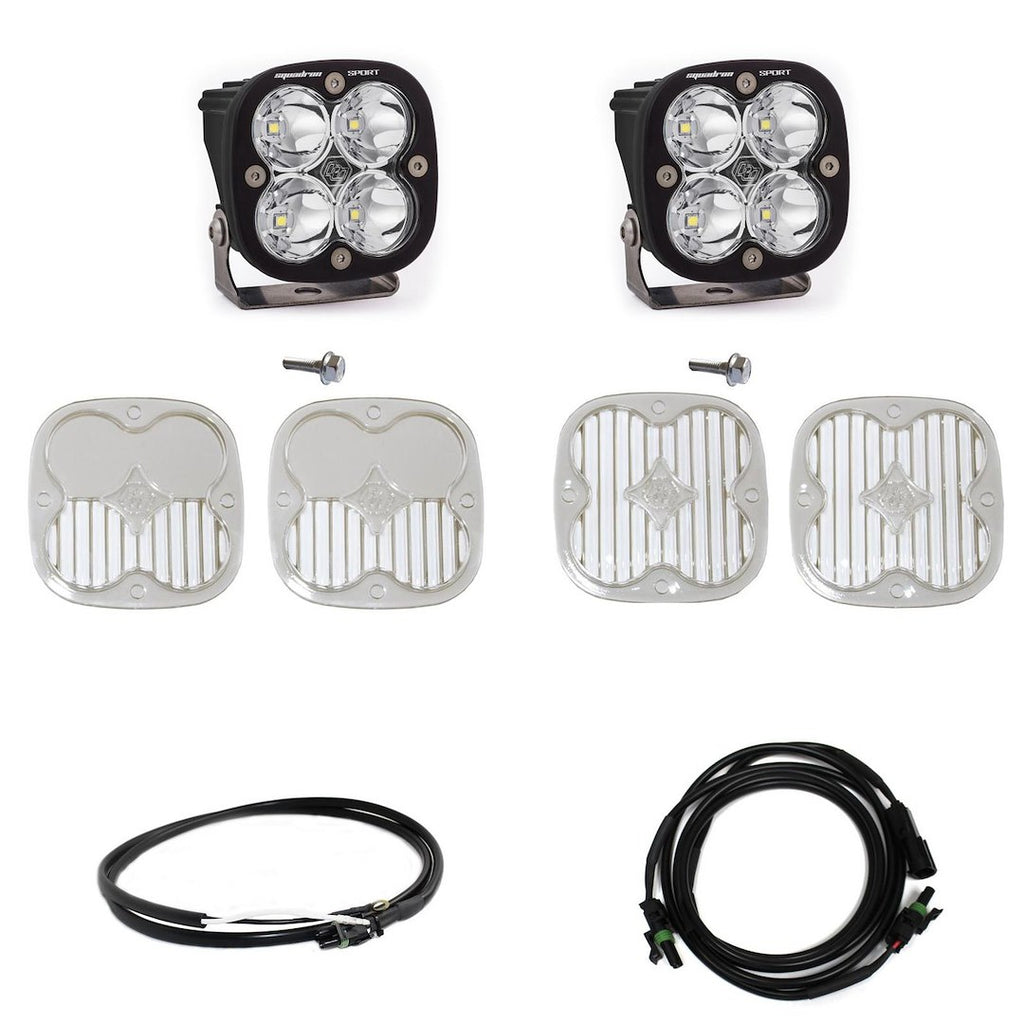

The Baja Designs Squadron Sport LED Light Kit offers a robust lighting solution designed for off-road enthusiasts. This kit includes two 3-inch square LED lights featuring a combination of driving and spot beam patterns, delivering a total output of 3150 lumens. The lights are constructed with a hardcoated clear polycarbonate lens and a powder-coated black cast aluminum housing, ensuring durability and resistance to harsh conditions.

With a power draw of 26 watts and an amp draw of 2 amps, these lights operate efficiently within a voltage range of 9 to 28 volts. The kit is equipped with replaceable lenses and optics, allowing users to customize their lighting setup. Additionally, the moisture-block technology ensures that the lights are waterproof and submersible, making them suitable for various weather conditions.

Installation is straightforward, requiring no cutting or drilling, and includes all necessary mounting hardware and an upfitter harness. The built-in overvoltage protection and compliance with IP69K and MIL-STD810G standards further enhance the reliability of these lights. With a color temperature of 5000K, the Squadron Sport lights provide natural daylight illumination, reducing driver fatigue during extended use.

Features

• UService – Replaceable Lenses And Optics
• ClearView– All The Light, Right Where You Need It
• MoistureBlock - Waterproof, Rain Proof, Submersible
• CopperDrive– Only LED Driven At 100 Percent
• 5000K Daylight – Less Driver Fatigue, Natural Color
• Built-In Overvoltage Protection
• IP69K: Waterproof
• Exceeds MIL-STD810G
• IK10 Compliant

Specifications

• Manufacturer: Baja Design
• Manufacturer Part Number: 447755UP
• Shape: Square
• Beam Type: Combo Beam Driving And Spot
• Diameter: Not Applicable
• Height/ Width: 3 Inch Height X 3 Inch Width
• Bulb Type: LED
• Light Color: White
• Quantity: Set Of 2
• Universality: Vehicle Specific
• Depth: 2-11/16 Inch
• Wattage: 26 Watt
• Voltage Rating: 9 To 28 Volt
• Mounting Style: A-Pillar Mount
• Ampere Rating At 12 Volts: 2 Amp
• Ampere Rating At 24 Volts: 1.08 Amp
• Lumens: 3150 Lumens
• Bulb Specifications: 4 Clear LED Bulbs
• Lens Material: Polycarbonate
• Housing Color: Black
• Housing Material: Cast Aluminum
• Includes: With Mounting Hardware/ Upfitter Harness
• Estimated Install Time (Hours): 1.5

Compatibility / Fit

• 2021-2026 Ford Bronco

Technical Documents

• FGXX_447755-INS_001.pdf
