Baja Designs Squadron Sport LED Driving Light (MPN: 447536)

High-performance LED lights with advanced features for optimal visibility.

The Baja Designs Squadron Sport LED Driving Light is engineered to provide exceptional illumination with a wide cornering beam. This compact 3-inch cube light features a powerful output of 3150 lumens, ensuring that you have all the light you need for various driving conditions. Constructed with a hardcoated clear polycarbonate lens and a powder-coated black cast aluminum housing, these lights are built to withstand harsh environments while maintaining performance.

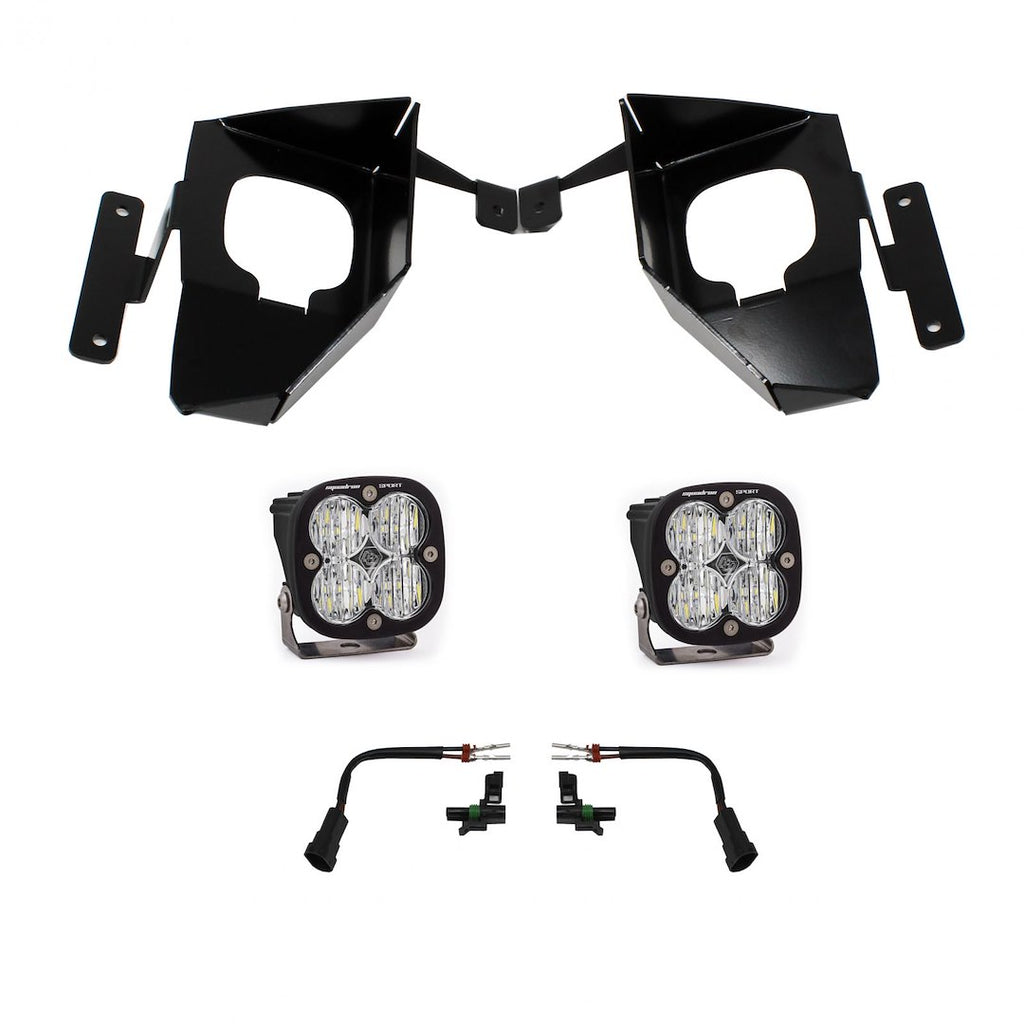

Designed for easy installation, the Squadron Sport comes as a set of two and includes mounting brackets and a plug-and-play harness. The lights are equipped with UService technology, allowing for replaceable lenses and optics, which enhances their longevity and adaptability. With an IP69K rating, these lights are waterproof, rainproof, and submersible, making them suitable for any weather conditions.

The CopperDrive technology ensures that the LEDs are driven at 100 percent, providing consistent brightness and efficiency. Additionally, the 5000K daylight color temperature reduces driver fatigue by delivering natural color light. Built-in overvoltage protection and compliance with MIL-STD810G and IK10 standards further enhance the reliability and durability of these lights, making them a robust choice for vehicle-specific applications.

Features

• UService– Replaceable Lenses And Optics
• ClearView– All The Light, Right Where You Need It
• MoistureBlock– Waterproof, Rain Proof, Submersible
• CopperDrive– Only LED Driven At 100 Percent
• 5000K Daylight – Less Driver Fatigue, Natural Color
• Built-In Overvoltage Protection
• IP69K: Waterproof
• Exceeds MIL-STD810G (Mil-Specification Testing)
• IK10 Compliant (Mechanical Impact Testing)

Specifications

• Manufacturer: Baja Design
• Manufacturer Part Number: 447536
• Shape: Round
• Beam Type: Wide Cornering Beam
• Diameter: 3 Inch
• Height/ Width: Not Applicable
• Bulb Type: LED
• Light Color: White
• Quantity: Set Of 2
• Universality: Vehicle Specific
• Depth: 2-11/16 Inch
• Wattage: 26 Watt
• Mounting Style: Fog Pocket Mount
• Ampere Rating At 12 Volts: 2 Amp
• Lumens: 3150 Lumens
• Bulb Specifications: 4 Clear CREE LED Bulbs
• Lens Material: Polycarbonate
• Housing Color: Black
• Housing Material: Aluminum
• Includes: With Mounting Brackets/ Plug And Play Harness
• Estimated Install Time (Hours): 1.5

Compatibility / Fit

• 2016-2018 Chevrolet Silverado 1500
• 2019-2019 Chevrolet Silverado 1500 LD- Old Model

Technical Documents

• FGXX_447536-INS_001.pdf
