High-performance fog lights with optimized circuitry for street legality.

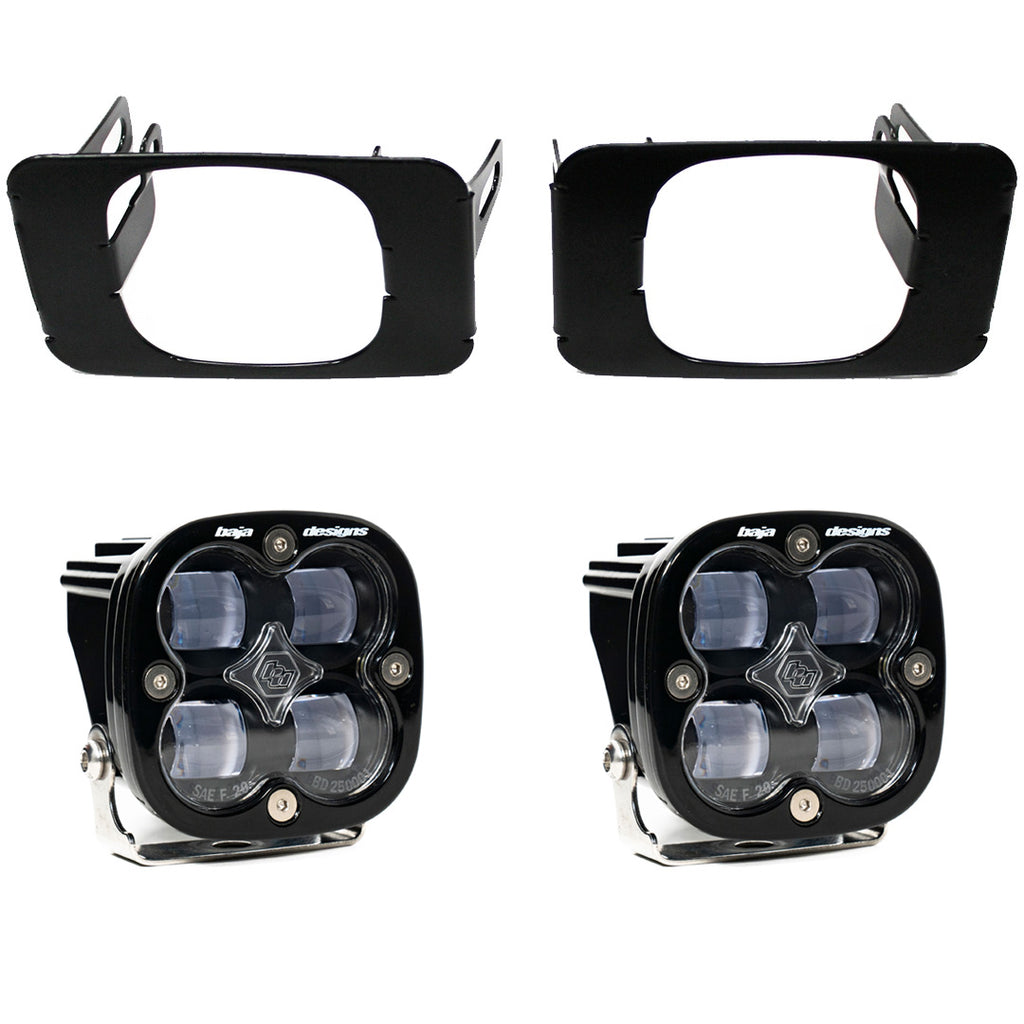

The Baja Designs Squadron SAE LED Fog Light is engineered to provide superior illumination with its wide cornering beam pattern. Featuring four Cree LED bulbs, this light delivers an impressive 2480 lumens while drawing only 1.6 amps at 12 volts. The robust design includes a hardcoated clear polycarbonate lens and a powder-coated black cast aluminum housing, ensuring durability and resistance to harsh conditions.
This fog light is SAE certified, making it a street-legal option that surpasses the performance of standard LED, HID, and halogen factory fog lights. The moisture-block technology guarantees waterproof and submersible capabilities, while the built-in overvoltage protection enhances reliability. The light is designed for easy installation with OE mounting and includes all necessary wiring harness and mounting hardware.
With dimensions of 3 inches by 3 inches and a depth of 2-11/16 inches, the compact design fits a variety of vehicle applications. The replaceable lenses and optics feature the UService technology, allowing for maintenance and longevity. The Baja Designs Squadron SAE LED Fog Light is a practical choice for those seeking enhanced visibility and safety on the road.
Features
- MoistureBlock - Waterproof, Rain Proof, Submersible
- UService - Replaceable Lenses And Optics
- IP69K: Waterproof
- Built-In Overvoltage Protection
- Exceeds MIL-STD810G (Mil-Specification Testing)
- Housing: Hard Anodized Machined Aluminum
- Bezel: Billet Machined Aluminum
Specifications
- Manufacturer: Baja Design
- Manufacturer Part Number: 447618
- Shape: Square
- Beam Type: Wide Cornering Beam
- Diameter: Not Applicable
- Height/ Width: 3 Inch Height X 3 Inch Width
- Bulb Type: LED
- Light Color: White
- Quantity: Set Of 2
- Universality: Vehicle Specific
- Depth: 2-11/16 Inch
- Wattage: 22 Watt
- Voltage Rating: 9 To 36 Volt
- Mounting Style: OE Mount
- Ampere Rating At 12 Volts: 1.6 Amp
- Lumens: 2480 Lumens
- Bulb Specifications: 4 Clear CREE LED Bulbs
- Lens Material: Polycarbonate
- Housing Color: Black
- Housing Material: Aluminum
- Includes: With Mounting Hardware And Wiring Harness
- Estimated Install Time (Hours): 1.5
Compatibility / Fit
- 2015-2020 Ford F-150
- 2017-2022 Ford F-250 Super Duty
- 2017-2022 Ford F-350 Super Duty
