Baja Designs Squadron-R Pro LED Fog Light (MPN: 597503)

High-performance LED fog lights with advanced features for enhanced visibility.

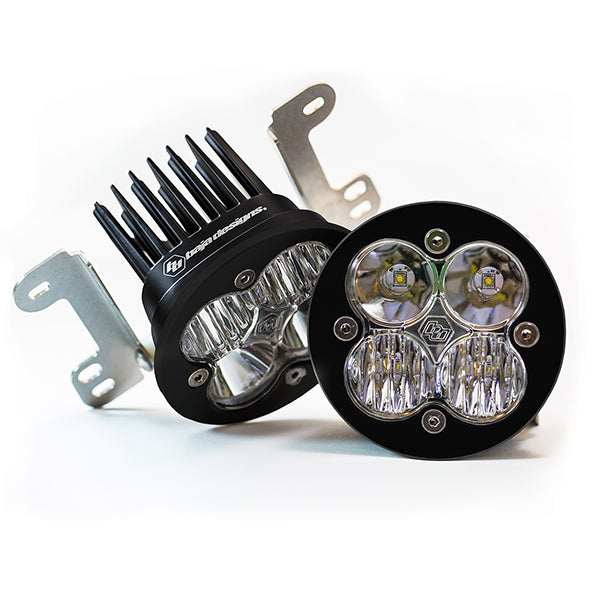

The Baja Designs Squadron-R Pro LED Fog Light is engineered to provide superior illumination with its four Cree LED bulbs, delivering an impressive 4600 lumens. Designed in a compact 3-inch round shape, these lights feature a wide cornering beam that enhances visibility in challenging driving conditions. The robust construction includes a hardcoated clear polycarbonate lens and a powder-coated black cast aluminum housing, ensuring durability and resistance to the elements.

These fog lights are equipped with advanced technologies such as MoistureBlock, making them waterproof and submersible, and ClearView optics that direct light precisely where it is needed. With a color temperature of 5000K, they reduce driver fatigue by providing a natural daylight effect. The lights also meet rigorous standards, exceeding MIL-STD810G for military specification testing and achieving an IP69K rating for waterproofing.

Installation is straightforward with the included OEM fog mount, mounting hardware, and wiring harness. The Squadron-R Pro lights are designed for vehicle-specific applications, ensuring a perfect fit and optimal performance. With built-in overvoltage protection and IK10 compliance for mechanical impact testing, these lights are built to withstand harsh conditions while providing reliable performance.

Features

• UService - Replaceable Lenses And Optics
• ClearView – All The Light, Right Where You Need It
• MoistureBlock - Waterproof, Rain Proof, Submersible
• 5000K Daylight – Less Driver Fatigue, Natural Color
• Exceeds MIL-STD810G (Mil-Specification Testing)
• Built-In Overvoltage Protection
• IP69K: Waterproof
• IK10 Compliant (Mechanical Impact Testing)

Specifications

• Manufacturer: Baja Design
• Manufacturer Part Number: 597503
• Shape: Round
• Beam Type: Wide Cornering Beam
• Diameter: 3 Inch
• Height/ Width: Not Applicable
• Bulb Type: LED
• Light Color: White
• Quantity: Set Of 2
• Universality: Vehicle Specific
• Depth: 2-11/16 Inch
• Wattage: 40 Watt
• Mounting Style: OE Fog Mount
• Ampere Rating At 12 Volts: 2.9 Amp
• Lumens: 4900 Lumens
• Bulb Specifications: Clear CREE LED Bulbs
• Lens Material: Polycarbonate
• Housing Color: Black
• Housing Material: Aluminum
• Includes: With Mounting Hardware And Wiring Harness
• Estimated Install Time (Hours): 1.5

Compatibility / Fit

• 2007-2018 Jeep Wrangler JK

Technical Documents

• FGXX_597503-INS_001.pdf
