High-performance 20 inch light bar with advanced features for optimal visibility.
The Baja Designs S8 Series LED Light Bar is engineered for maximum performance while maintaining a low profile. This 20 inch light bar features 16 clear CREE bulbs, delivering an impressive 12700 lumens output with a 120 watt power draw. Designed for easy installation, the kit includes mounts that fit into factory locations without the need for cutting or trimming, along with a complete wiring harness for straightforward setup.
Constructed with a clear hard coated polycarbonate lens and a durable black aluminum housing, the S8 light bar is built to withstand harsh conditions. It incorporates advanced technologies such as UService for replaceable lenses and optics, and MoistureBlock for waterproof and submersible capabilities. The CopperDrive technology ensures that the LEDs are driven at 100 percent, providing consistent and reliable illumination.
With a color temperature of 5000K, the S8 light bar reduces driver fatigue by offering natural daylight-like illumination. The combo beam design allows for both driving and spot light capabilities, making it versatile for various applications. This light bar is an essential addition for those seeking enhanced visibility and performance in their vehicle lighting.
Features
- UService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
Specifications
- Manufacturer: Baja Design
- Manufacturer Part Number: 448049
- Bulb Type: LED
- Style: Straight
- Length: 20 Inch
- Beam Type: Combo Beam Driving And Spot
- Number Of Rows: 1
- Light Color: White
- Housing Color: Black
- Smart Technology Compatible: Not Smart Technology Compatible
- Lumens: 12700 Lumens
- Wattage: 120 Watt
- Width: 3 Inch
- Height: 1.6 Inch
- Voltage Rating: 9 To 36 Volt
- Bulb Specifications: 16 Clear CREE LED Bulbs
- Lens Material: Polycarbonate
- Housing Material: Aluminum
- Mounting Style: Grille Mount
- Connection Type: Hard Wired

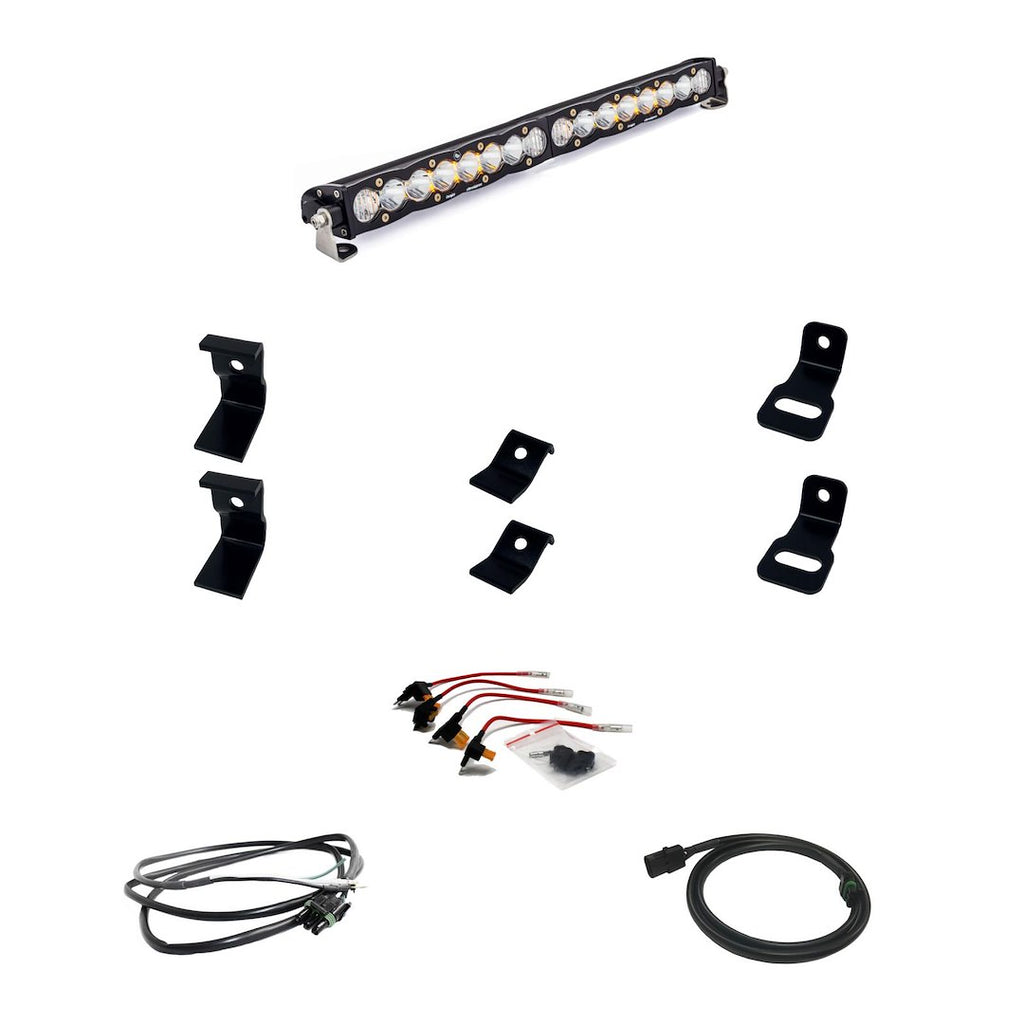

- Includes: With Four Mounting Brackets/ Upfitter Harness/ 5 Foot Wiring Harness Extension/ Mounting Hardware
- Estimated Install Time (Hours): 1.5
Compatibility / Fit
- 2024-2024 Ram 1500
- 2019-2023 Ram 1500- New Model
