Compact and powerful LED lights with advanced features for versatile applications.
The Baja Designs S1 LED Driving Fog Light is engineered to deliver exceptional illumination in a compact design. Measuring 2.1 inches square, this light features a wide cornering beam that produces an impressive 2375 lumens, making it suitable for various applications, from off-road driving to campsite lighting. The S1 utilizes a specialized reflector and LED combination, ensuring superior performance and visibility in challenging conditions.
Constructed with a hardcoated clear polycarbonate lens and a powder-coated white cast aluminum housing, the S1 is built to withstand harsh environments. It is equipped with MoistureBlock technology, making it waterproof, rainproof, and submersible, while the UService feature allows for easy replacement of lenses and optics. The CopperDrive technology ensures that the LED operates at 100 percent efficiency, providing reliable lighting when needed most.

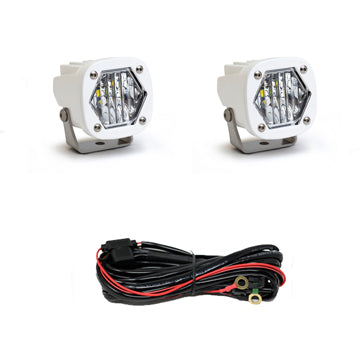

With built-in overvoltage protection and an IP69K rating for waterproofing, the Baja Designs S1 is designed for durability and longevity. This set of two lights includes all necessary mounting hardware and wiring harness, making installation straightforward. The S1 is compatible with a voltage range of 9 to 28 volts and draws 1.45 amps at 12 volts, making it a versatile choice for various vehicles and applications.
Features
- MoistureBlock - Waterproof, Rain Proof, Submersible
- UService – Replaceable Lenses And Optics
- CopperDrive – Only LED Driven At 100 Percent
- Built-In Overvoltage Protection
- Housing: Hard Anodized And Powder Coated Cast Aluminum
- IP69K: Waterproof
Specifications
- Manufacturer: Baja Design
- Manufacturer Part Number: 387805WT
- Shape: Square
- Beam Type: Wide Cornering Beam
- Diameter: Not Applicable

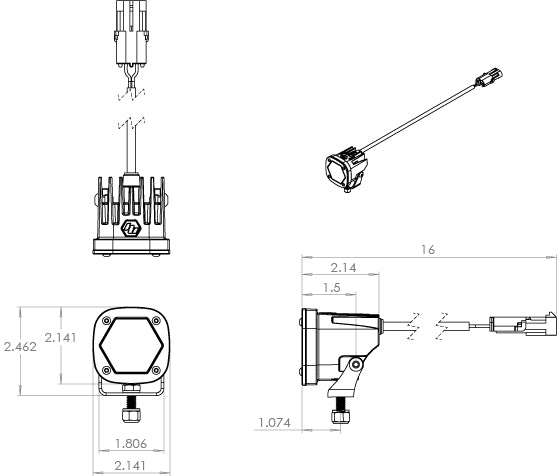

- Height/ Width: 2-1/8 Inch Height X 2-1/8 Inch Width
- Bulb Type: LED
- Light Color: White
- Quantity: Set Of 2
- Universality: Fully Universal
- Depth: 2 Inch
- Wattage: 20 Watt
- Voltage Rating: 9 To 28 Volt
- Mounting Style: Bracket Mount
- Ampere Rating At 12 Volts: 1.45 Amp
- Lumens: 2375 Lumens
- Bulb Specifications: 1 Clear LED Bulb
- Lens Material: Polycarbonate
- Housing Color: White
- Housing Material: Aluminum
- Includes: With Mounting Brackets
- Estimated Install Time (Hours): 1.5
