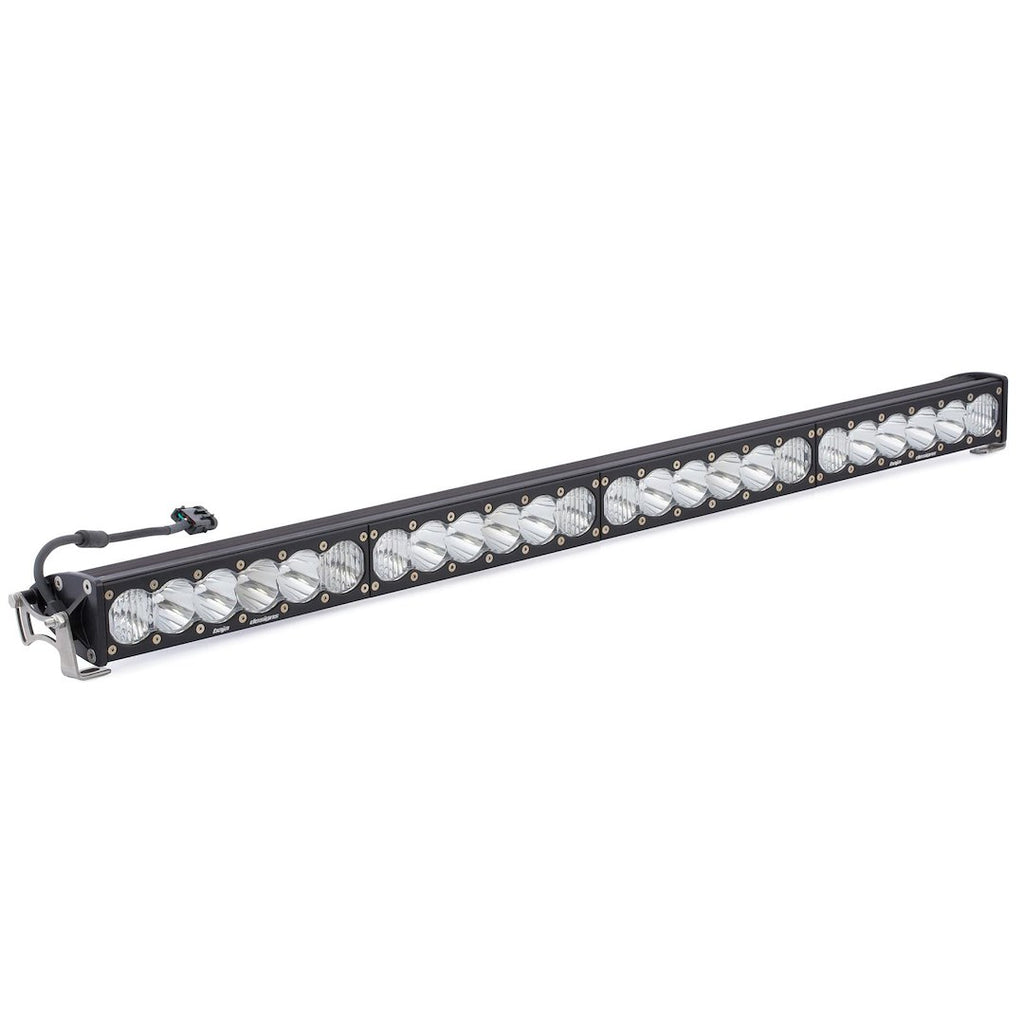

Baja Designs OnX6 Series LED Light Bar (MPN: 454003)

High-performance 40 inch LED light bar with advanced features for superior visibility.

The Baja Designs OnX6 Series LED Light Bar is engineered for maximum performance and durability. Measuring 40 inches in length, this light bar features 24 clear CREE bulbs that deliver an impressive 38900 lumens in high mode and 32440 lumens in low mode. The driving combo beam design ensures optimal visibility in various conditions, making it suitable for off-road and on-road applications. Built with a hard anodized machined aluminum housing and a clear hard coated polycarbonate lens, this light bar is designed to withstand harsh environments.

Incorporating advanced features such as Battery Management Technology (BMT) and MoistureBlock technology, the OnX6 light bar is waterproof, rainproof, and submersible, ensuring reliable performance in wet conditions. The dual power cord and dual switch allow for independent control of the ends and center sections of the bar, providing versatility in lighting options. Additionally, the light bar is equipped with built-in overvoltage protection and exceeds MIL-STD810G specifications for military-grade durability.

The OnX6 Series is compatible with aftermarket mounting systems, making installation straightforward with the included mounting hardware and hi-low dongle. With a voltage rating of 9 to 36 volts and a low amp draw, this light bar is efficient while delivering high-intensity illumination. The robust construction and innovative features make the Baja Designs OnX6 Series LED Light Bar a reliable choice for those seeking high-quality lighting solutions.

Features

• Dual Power Cord And Dual Switch. Control The Ends Of Your Bar Separately From The Center Sections, For The Ultimate In Versatility
• Features Battery Management Technology (BMT)
• MoistureBlock - Waterproof, Rain Proof, Submersible
• UService - Replaceable Lenses And Optics
• IP69K: Waterproof
• Built-In Overvoltage Protection
• Exceeds MIL-STD810G (Mil-Specification Testing)
• Housing: Hard Anodized Machined Aluminum
• Bezel: Billet Machined Aluminum

Specifications

• Manufacturer: Baja Design
• Manufacturer Part Number: 454003
• Bulb Type: LED
• Style: Straight
• Length: 40 Inch
• Beam Type: Combo Beam Driving And Spot
• Number Of Rows: 1
• Light Color: White
• Housing Color: Black
• Smart Technology Compatible: Not Smart Technology Compatible
• Lumens: 38900 Lumens High Mode/ 32440 Lumens Low Mode
• Wattage: 346 Watt High Mode/ 290 Watt Low Mode
• Width: 4.29 Inch
• Height: 2.69 Inch
• Voltage Rating: 9 To 36 Volt
• Ampere Rating At 12 Volts: 26.8 Amp High Mode/ 22.4 Amp Low Mode
• Bulb Specifications: 24 Clear CREE LED Bulbs
• Lens Material: Polycarbonate
• Housing Material: Aluminum
• Mounting Length: 42.43 Inch
• Mounting Style: Bracket Mount
• Includes: With Hi-Low Dongle/ Mounting Hardware
• Estimated Install Time (Hours): 1.5
