Baja Designs OnX6 Plus LED Light Bar (MPN: 448031)

Experience enhanced visibility with advanced LED technology for night driving.

The Baja Designs OnX6 Plus LED Light Bar is engineered for optimal performance in low-light conditions. With a length of 20 inches and featuring 18 clear CREE bulbs, this light bar delivers an impressive 24920 lumens in high mode and 18460 lumens in low mode. The combination beam design ensures that you receive both driving and flood light capabilities, enhancing your visibility on the road or trail. Constructed with a durable black aluminum housing and a clear hard-coated polycarbonate lens, this light bar is built to withstand harsh environments.

This light bar operates efficiently with a wattage of 216 watts in high mode and 160 watts in low mode, drawing 16.6 amps and 12 amps respectively. The 5000K daylight color temperature mimics natural light, reducing driver fatigue and improving trail recognition. The OnX6 Plus is designed for easy installation with a bumper mount style and includes all necessary wiring harness and mounting hardware, requiring no drilling or modifications to your vehicle.

Baja Designs incorporates several advanced features into the OnX6 Plus, including UService for replaceable lenses and optics, ClearView technology for focused light output, and MoistureBlock for waterproof and submersible performance. The CopperDrive technology ensures that the LEDs are driven at 100 percent, maximizing their lifespan up to 50,000 hours. This light bar is a reliable choice for those seeking enhanced visibility and durability in their lighting solutions.

Features

• UService – Replaceable Lenses And Optics
• ClearView – All The Light, Right Where You Need It
• MoistureBlock – Waterproof, Rain Proof, Submersible
• CopperDrive – Only LED Driven At 100 Percent
• 5000K Daylight – Less Driver Fatigue, Natural Color

Specifications

• Manufacturer: Baja Design
• Manufacturer Part Number: 448031
• Bulb Type: LED
• Style: Straight
• Length: 20 Inch
• Beam Type: Combo Beam Driving And Flood
• Number Of Rows: 1
• Light Color: White
• Housing Color: Black
• Smart Technology Compatible: Not Smart Technology Compatible
• Lumens: 24920 Lumens High Mode/ 18460 Lumens Low Mode
• Wattage: 216 Watt High Mode/ 160 Watt Low Mode
• Width: 4.29 Inch
• Height: 2.69 Inch
• Voltage Rating: 9 To 36 Volt
• Ampere Rating At 12 Volts: 12 Amp High Mode/ 16.6 Amp Low Mode
• Bulb Specifications: 18 Clear CREE LED Bulbs
• Lens Material: Polycarbonate
• Housing Material: Aluminum
• Mounting Style: Bumper Mount
• Connection Type: Plug And Play Wiring Harness

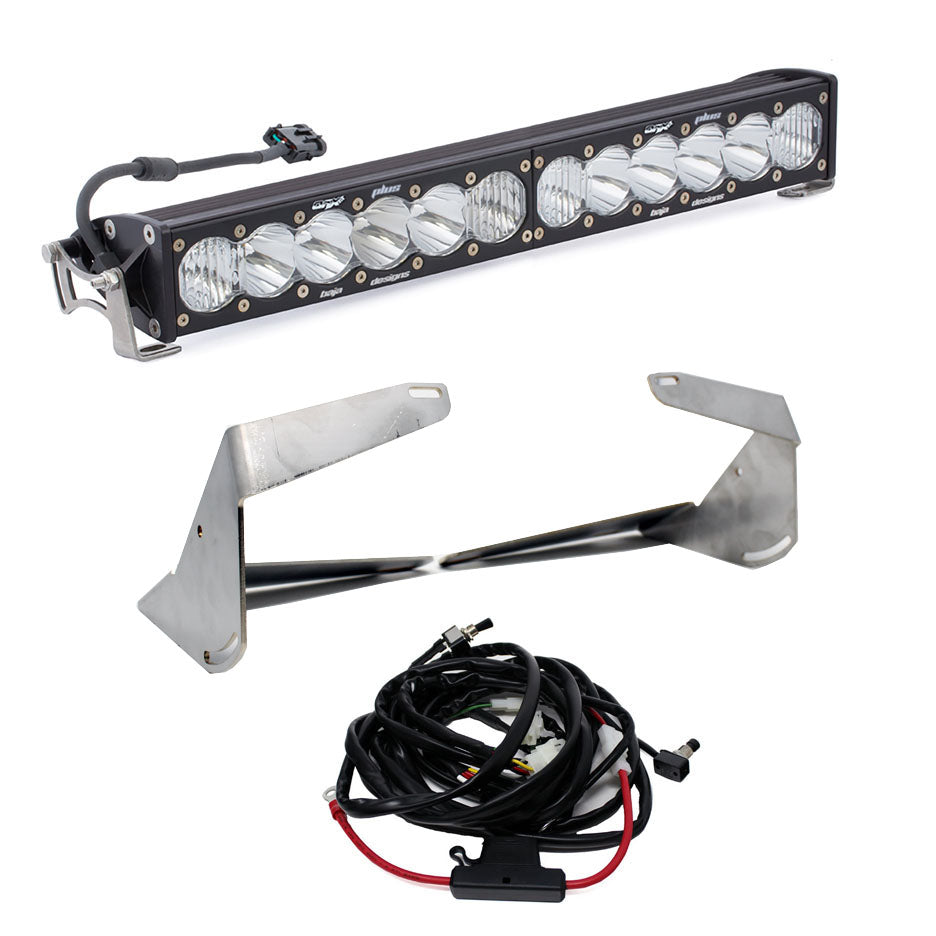

• Includes: With Mounting Hardware/ Wiring Harness
• Estimated Install Time (Hours): 1.5

Compatibility / Fit

• 2019-2025 Ram 2500
• 2019-2025 Ram 3500

Technical Documents

• FGXX_448031-INS_001.pdf
