High-performance 10 inch light bar with superior brightness and durability.

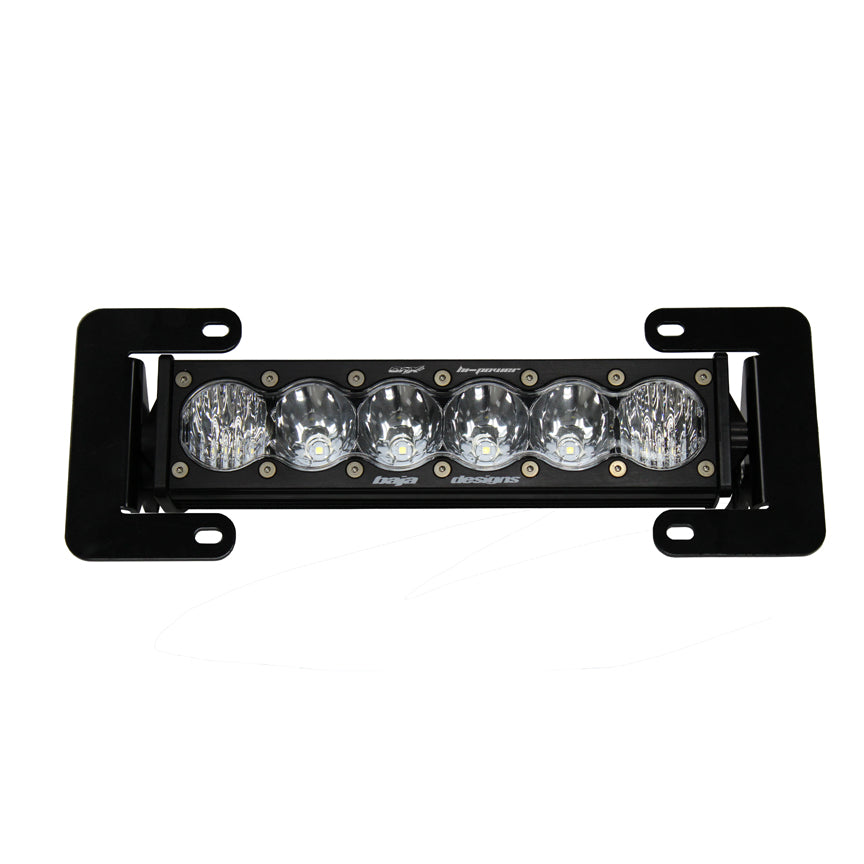

The Baja Designs OnX6 Plus LED Light Bar is engineered for optimal performance and longevity. Measuring 10 inches in length, this light bar features six clear CREE bulbs that deliver an impressive 12,460 lumens in high mode and 9,230 lumens in low mode. With a robust black aluminum housing and a clear polycarbonate lens, it is designed to withstand harsh conditions while providing exceptional visibility. The light bar operates efficiently at 108 watts with an 8.4 amp draw in high mode and 80 watts with a 5.7 amp draw in low mode, making it suitable for various applications.
This light bar utilizes advanced technologies such as UService for replaceable lenses and optics, and MoistureBlock to ensure waterproof and submersible capabilities. The CopperDrive technology ensures that the LEDs are driven at 100 percent, maximizing output and efficiency. With a color temperature of 5000K, it mimics natural daylight, reducing driver fatigue and enhancing trail recognition. The Baja Designs OnX6 Plus is designed for easy installation behind the lower front grille, complete with mounting hardware and wiring harness.
Features
- UService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
Specifications
- Manufacturer: Baja Design
- Manufacturer Part Number: 447557
- Bulb Type: LED
- Style: Straight
- Length: 10 Inch
- Beam Type: Combo Beam Driving And Spot
- Number Of Rows: 1
- Light Color: White
- Housing Color: Black
- Smart Technology Compatible: Not Smart Technology Compatible
- Lumens: 12460 Lumens High Mode/ 9230 Lumens Low Mode
- Wattage: 108 Watt
- Width: 4.29 Inch
- Height: 2.69 Inch
- Voltage Rating: 9 To 36 Volt
- Ampere Rating At 12 Volts: 8.4 Amp High Mode/ 5.7 Amp Low Mode
- Bulb Specifications: 6 Clear CREE LED Bulbs
- Lens Material: Polycarbonate
- Housing Material: Aluminum

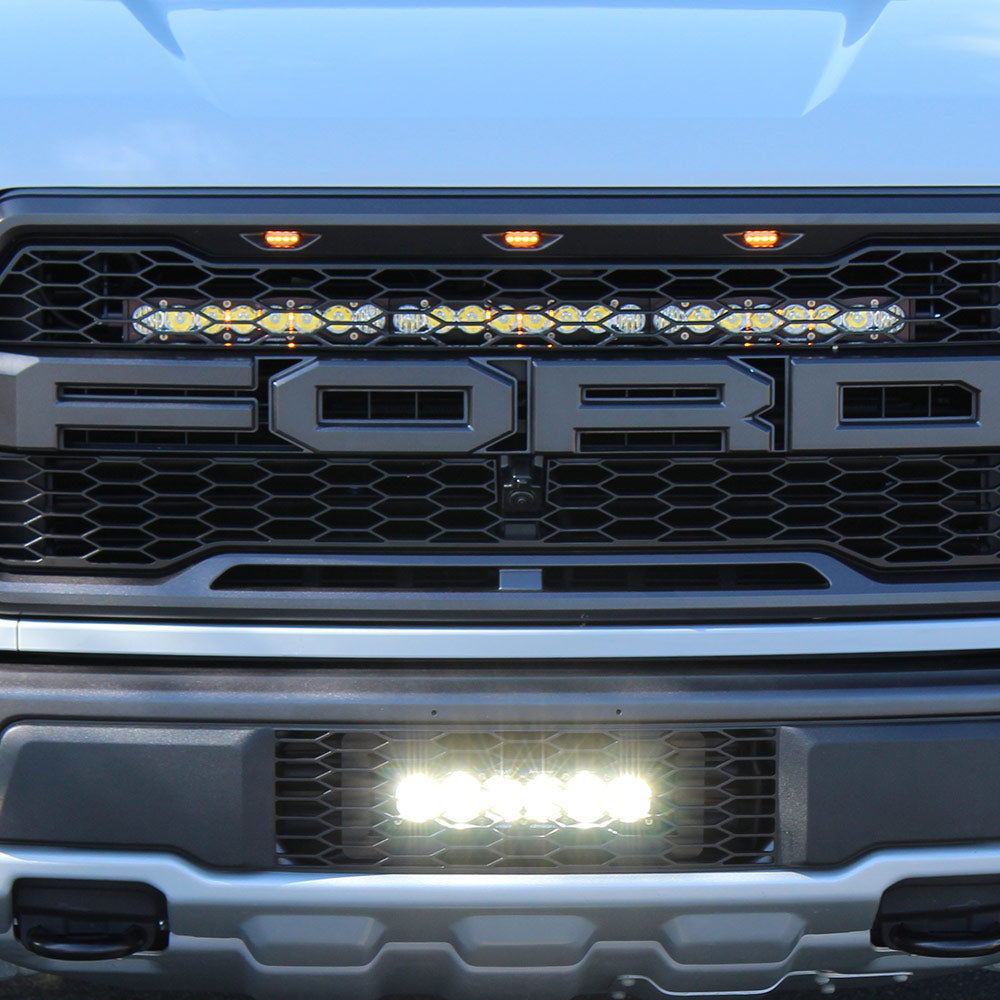

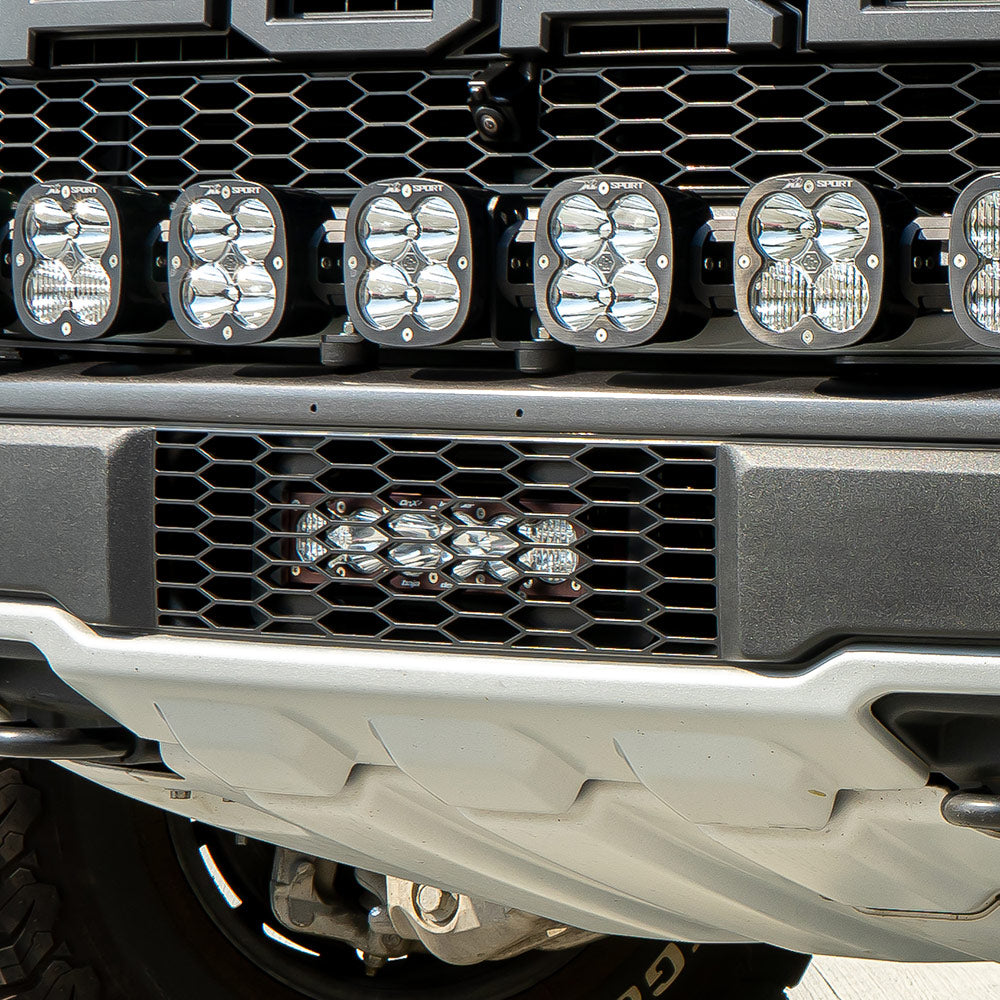

- Mounting Style: Behind Lower Front Grille Bracket Mount
- Includes: With Mounting Hardware/ Wiring Harness
- Estimated Install Time (Hours): 1.5
Compatibility / Fit
- 2017-2020 Ford F-150
