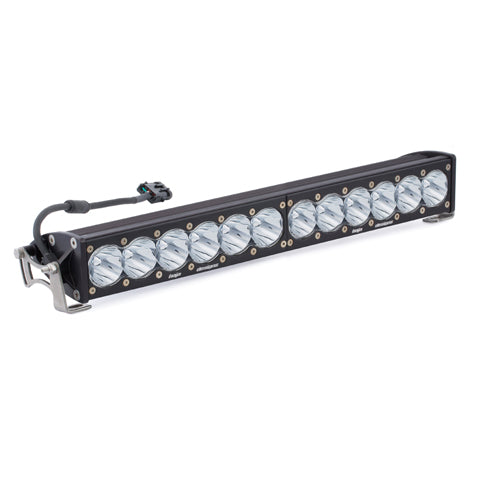

Baja Designs OnX6+ LED Light Bar (MPN: 452001)

High-performance 20 inch LED light bar with advanced features for superior visibility.

The Baja Designs OnX6+ LED light bar is engineered for maximum performance and durability. With a length of 20 inches and featuring 12 clear CREE bulbs, this light bar delivers an impressive 24920 lumens in high mode and 18460 lumens in low mode. The spot beam design ensures focused illumination, making it suitable for various applications including off-road driving and outdoor activities. Built with a clear hard coated polycarbonate lens and a robust black aluminum housing, it is designed to withstand harsh conditions.

This light bar incorporates Baja Designs’ High Speed Spot reflector technology, providing the furthest projecting LED light bar available. It is compatible with aftermarket mounting systems due to its industry-standard sizing. The OnX6+ also features UService for replaceable lenses and optics, ensuring longevity and ease of maintenance. With a waterproof rating of IP69K and compliance with MIL-STD810G and IK10 standards, it is built to perform in extreme environments.

Additional features include CopperDrive technology, which ensures the LEDs are driven at 100 percent, and a color temperature of 5000K for reduced driver fatigue. The light bar is equipped with built-in overvoltage protection and is moisture-blocked to prevent water ingress. Installation is straightforward with included mounting hardware and a hi-low dongle, making it a versatile choice for enhancing visibility in any situation.

Features

• UService– Replaceable Lenses And Optics
• ClearView– All The Light, Right Where You Need It
• MoistureBlock– Waterproof, Rain Proof, Submersible
• CopperDrive– Only LED Driven At 100 Percent
• 5000K Daylight – Less Driver Fatigue, Natural Color
• Built-In Overvoltage Protection
• IP69K: Waterproof
• Exceeds MIL-STD810G (Mil-Specification Testing)
• IK10 Compliant (Mechanical Impact Testing)

Specifications

• Manufacturer: Baja Design
• Manufacturer Part Number: 452001
• Bulb Type: LED
• Style: Straight
• Length: 20 Inch
• Beam Type: Spot Beam
• Number Of Rows: 1
• Light Color: White
• Housing Color: Black
• Lumens: 24920 Lumens High Mode/ 18460 Lumens Low Mode
• Wattage: 216 Watt High Mode/ 160 Watt Low Mode
• Width: 4.29 Inch
• Height: 2.69 Inch
• Voltage Rating: 9 To 36 Volt
• Ampere Rating At 12 Volts: 16.6 Amp High Mode/ 12 Amp Low Mode
• Bulb Specifications: 12 Clear CREE LED Bulbs
• Lens Material: Polycarbonate
• Housing Material: Aluminum
• Mounting Style: Surface Mount
• Connection Type: Hard Wired
• Includes: With Hi-Low Dongle/ Mounting Hardware
• Estimated Install Time (Hours): 1.5
