Baja Designs OnX6 LED Light Bar (MPN: 447089)

High-performance 10 inch light bar with advanced features for optimal visibility.

The Baja Designs OnX6 LED Light Bar is engineered for high-performance lighting in off-road conditions. Measuring 10 inches in length, this light bar features six clear LED bulbs that deliver an impressive 12460 lumens in high mode and 9230 lumens in low mode. With a combination of 42-degree wide driving and 6-degree spot beams, it provides versatile illumination for various terrains and driving conditions.

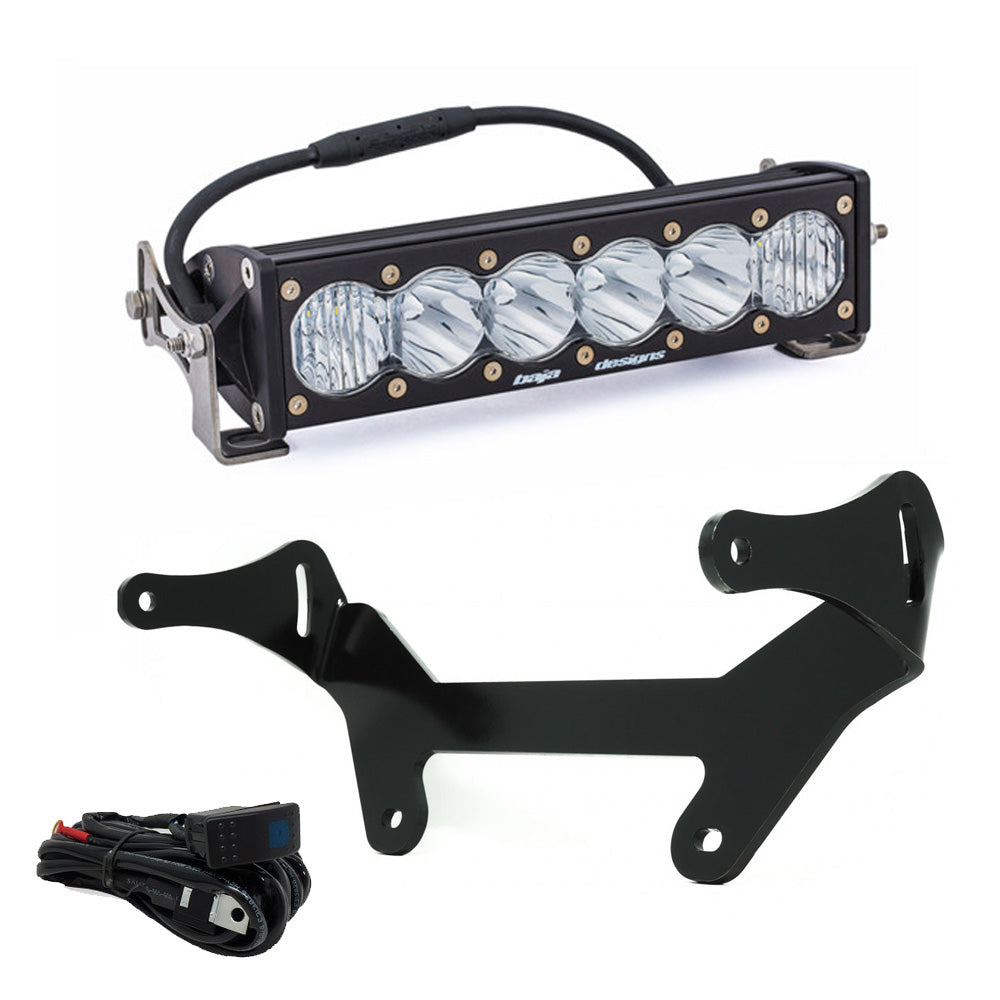

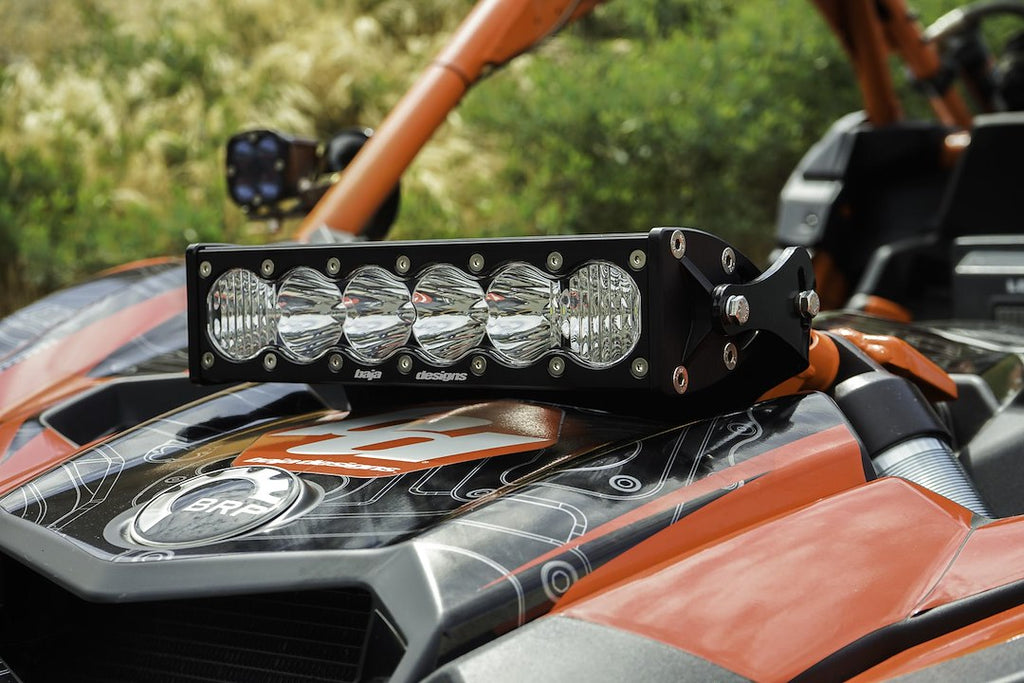

Constructed with a clear hard-coated polycarbonate lens and a durable black aluminum housing, the OnX6 light bar is designed to withstand harsh environments. The included bracket mount ensures a secure installation on factory shock towers, maintaining stability even at high speeds. This light bar is equipped with advanced technologies such as UService for replaceable lenses, ClearView for optimal light distribution, and MoistureBlock for waterproof performance.

With a wattage of 108 watts at 8.4 amps in high mode and 80 watts at 5.7 amps in low mode, the OnX6 is powered efficiently across a voltage range of 9 to 36 volts. The 5000K daylight color temperature reduces driver fatigue and enhances visibility, making it a reliable choice for off-road enthusiasts seeking enhanced forward projection without compromising on style.

Features

• UService – Replaceable Lenses And Optics
• ClearView – All The Light, Right Where You Need It
• MoistureBlock – Waterproof, Rain Proof, Submersible
• CopperDrive – Only LED Driven At 100 Percent
• 5000K Daylight – Less Driver Fatigue, Natural Color

Specifications

• Manufacturer: Baja Design
• Manufacturer Part Number: 447089
• Bulb Type: LED
• Style: Straight
• Length: 10 Inch
• Beam Type: Combo Beam Driving And Spot
• Number Of Rows: 1
• Light Color: White
• Housing Color: Black
• Smart Technology Compatible: Not Smart Technology Compatible
• Beam Angle (Deg): 6 Degree Spot/ 42 Degree Wide Driving
• Lumens: 12460 Lumens High Mode/ 9230 Lumens Low Mode
• Wattage: 108 Watt High Mode/ 80 Watt Low Mode
• Width: 4.29 Inch
• Height: 2.69 Inch
• Voltage Rating: 9 To 36 Volt
• Ampere Rating At 12 Volts: 8.4 Amp High Mode/ 5.7 Amp Low Mode
• Bulb Specifications: 6 Clear LED Bulbs
• Lens Material: Polycarbonate
• Housing Material: Aluminum
• Mounting Style: Bracket Mount
• Includes: With Mounting Hardware
• Estimated Install Time (Hours): 1.5

Compatibility / Fit

• 2018-2018 Can-Am Maverick X3 900 HO
• 2021-2024 Can-Am Maverick X3 DS Turbo
• 2020-2021 Can-Am Maverick X3 DS Turbo R
• 2022-2024 Can-Am Maverick X3 DS Turbo RR
• 2021-2024 Can-Am Maverick X3 Max DS Turbo
• 2020-2021 Can-Am Maverick X3 Max DS Turbo R
• 2022-2024 Can-Am Maverick X3 Max DS Turbo RR
• 2020-2021 Can-Am Maverick X3 Max RS Turbo R
• 2022-2024 Can-Am Maverick X3 Max RS Turbo RR
• 2018-2020 Can-Am Maverick X3 Max Turbo
• 2017-2019 Can-Am Maverick X3 Max Turbo R
• 2017-2019 Can-Am Maverick X3 Max X ds Turbo R
• 2020-2024 Can-Am Maverick X3 Max X ds Turbo RR
• 2020-2024 Can-Am Maverick X3 Max X mr Turbo RR
• 2017-2019 Can-Am Maverick X3 Max X rs Turbo R
• 2020-2024 Can-Am Maverick X3 Max X rs Turbo RR
• 2021-2024 Can-Am Maverick X3 Max X rs Turbo RR Smart-Shox
• 2020-2021 Can-Am Maverick X3 RS Turbo R
• 2022-2024 Can-Am Maverick X3 RS Turbo RR
• 2018-2020 Can-Am Maverick X3 Turbo
• 2017-2019 Can-Am Maverick X3 Turbo R
• 2017-2019 Can-Am Maverick X3 X ds Turbo R
• 2020-2024 Can-Am Maverick X3 X ds Turbo RR
• 2018-2021 Can-Am Maverick X3 X mr Turbo
• 2018-2019 Can-Am Maverick X3 X mr Turbo R
• 2020-2021 Can-Am Maverick X3 X mr Turbo RR
• 2022-2024 Can-Am Maverick X3 X mr Turbo RR 64
• 2022-2024 Can-Am Maverick X3 X mr Turbo RR 72
• 2018-2021 Can-Am Maverick X3 X rc Turbo
• 2018-2019 Can-Am Maverick X3 X rc Turbo R
• 2020-2021 Can-Am Maverick X3 X rc Turbo RR
• 2022-2024 Can-Am Maverick X3 X rc Turbo RR 64
• 2022-2024 Can-Am Maverick X3 X rc Turbo RR 72
• 2017-2019 Can-Am Maverick X3 X rs Turbo R
• 2020-2024 Can-Am Maverick X3 X rs Turbo RR
• 2021-2024 Can-Am Maverick X3 X rs Turbo RR Smart-Shox

Technical Documents

• FGXX_447089-INS_001.pdf
