Compact yet powerful LED lights with advanced cooling technology.

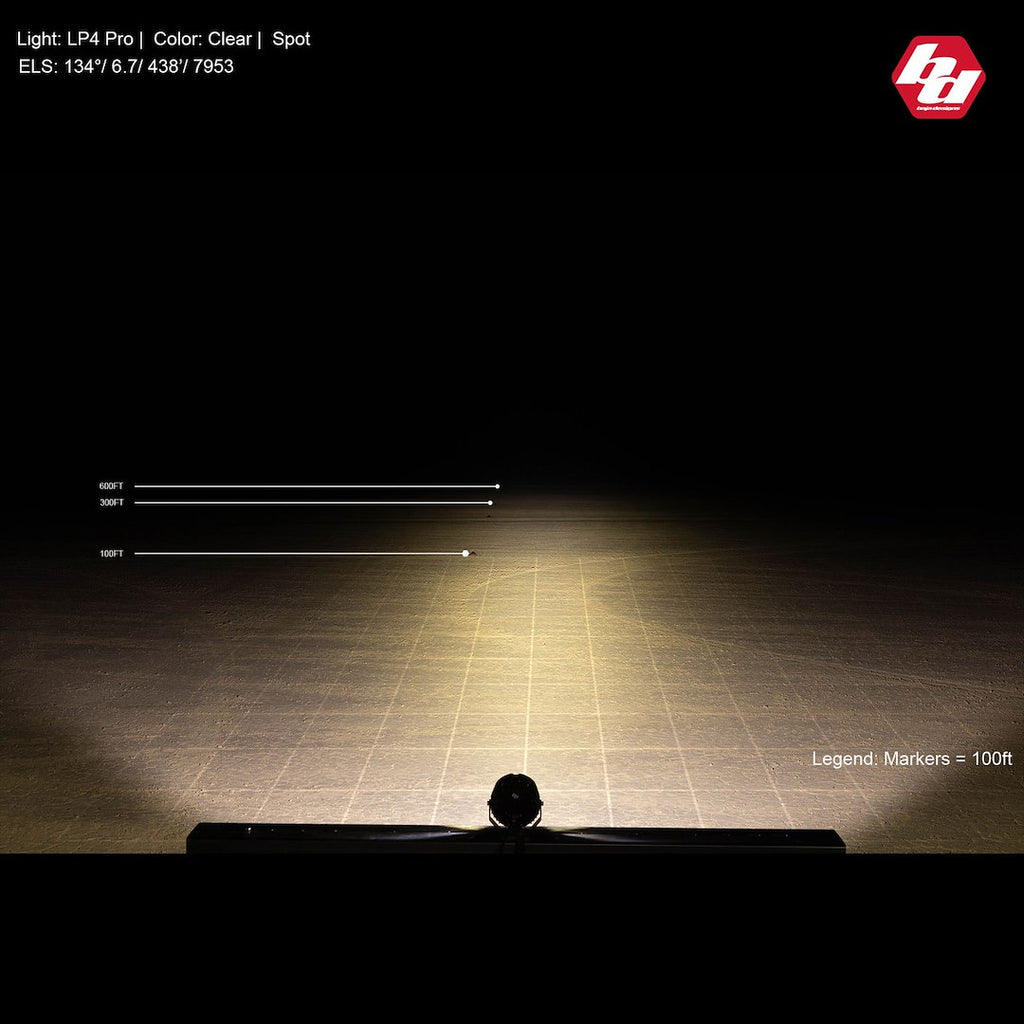

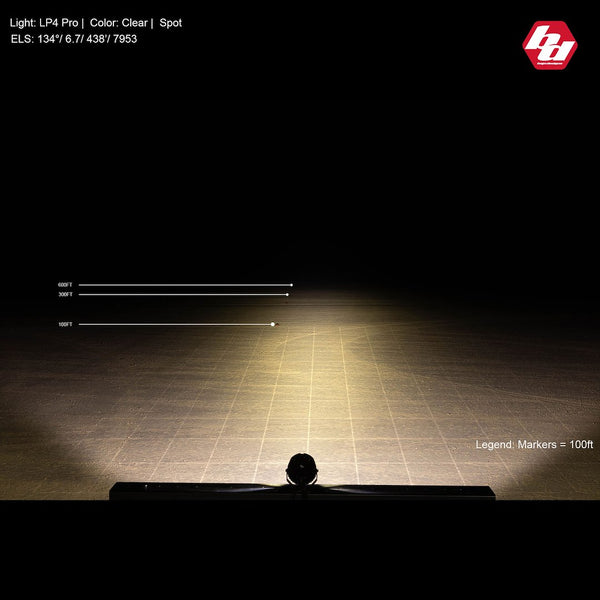

The Baja Designs LP4 Pro LED Driving Fog Light is designed to deliver exceptional illumination in a compact form factor. With a total output of 8,750 lumens, this light features a combination of 7,050 lumens for forward projection and 1,700 lumens for peripheral lighting, ensuring a wide 200-degree spread of usable light. The patented Integrated Peripheral Technology (IPT) enhances visibility, making it suitable for various driving conditions.

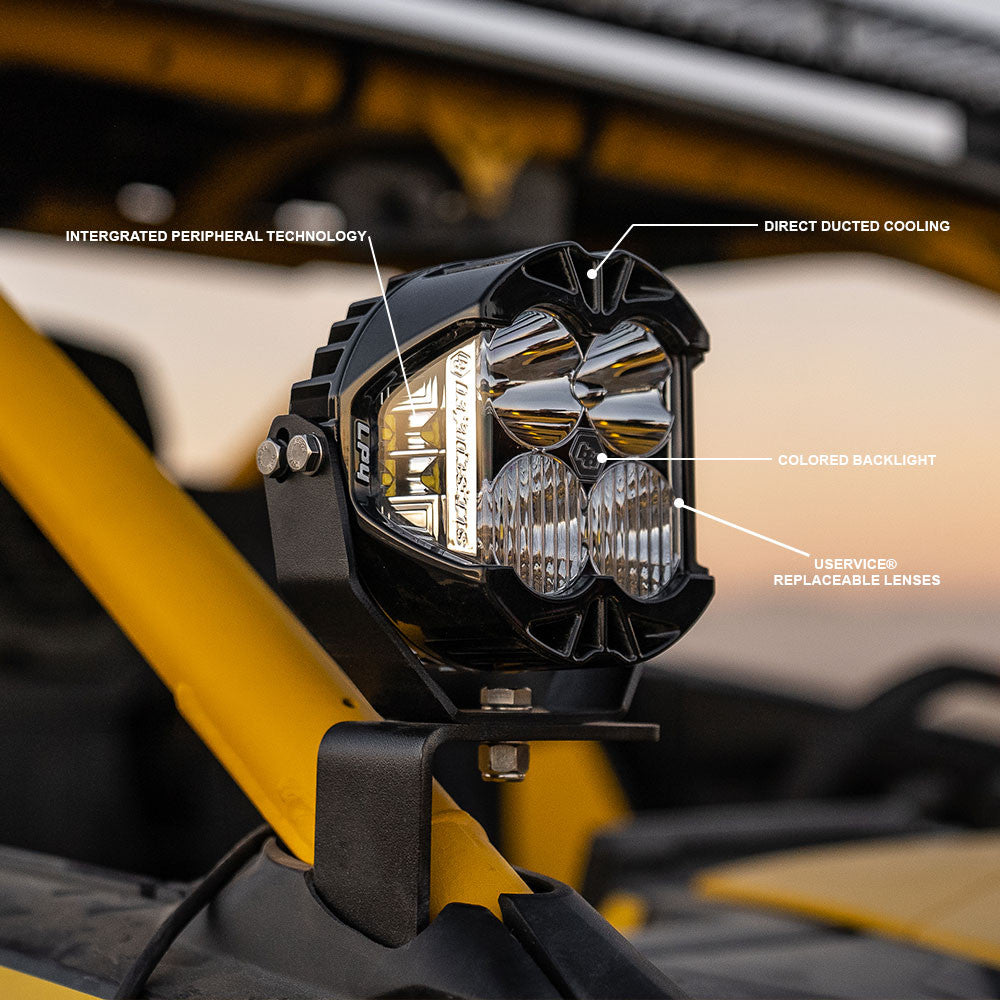

Constructed with a hardcoated clear polycarbonate lens and a powder-coated black cast aluminum housing, the LP4 is built to withstand harsh environments. It incorporates Direct Ducted Cooling (DDC) technology, allowing for efficient airflow over the heat sinks, which significantly improves cooling capacity and overall performance. This ensures that the light maintains optimal functionality even during extended use.
The LP4 Pro is also equipped with features such as MoistureBlock technology, making it waterproof and submersible, and Uservice capability for easy lens and optics replacement. With an IP69K rating for waterproofing and built-in overvoltage protection, this light is engineered for durability and reliability in demanding conditions. The set includes mounting hardware and a wiring harness for straightforward installation.
Features
- MoistureBlock - Waterproof, Rain Proof, Submersible
- Uservice - Replaceable Lenses And Optics
- IP69K: Waterproof
- Built-In Overvoltage Protection
Specifications
- Manufacturer: Baja Design
- Manufacturer Part Number: 297803
- Shape: Round
- Beam Type: Combo Beam Driving And Spot

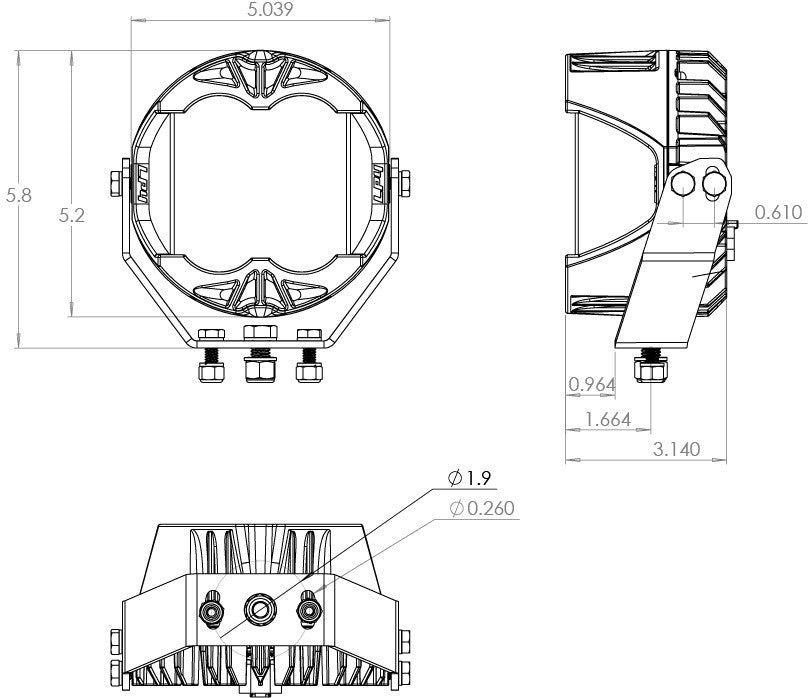

- Diameter: 5 Inch
- Height/ Width: Not Applicable
- Bulb Type: LED
- Light Color: White
- Quantity: Set Of 2
- Universality: Fully Universal
- Depth: 3-3/16 Inch
- Wattage: 60 Watt Forward Projecting Light/ 15 Watt Peripheral Light/ 4.83 Watt Backlight
- Voltage Rating: 12 Volt
- Mounting Style: Surface Mount
- Ampere Rating At 12 Volts: 6.5 Amp
- Lumens: 7050 Lumens
- Bulb Specifications: 4 LED Bulbs
- Lens Material: Polycarbonate
- Housing Color: Black
- Housing Material: Aluminum

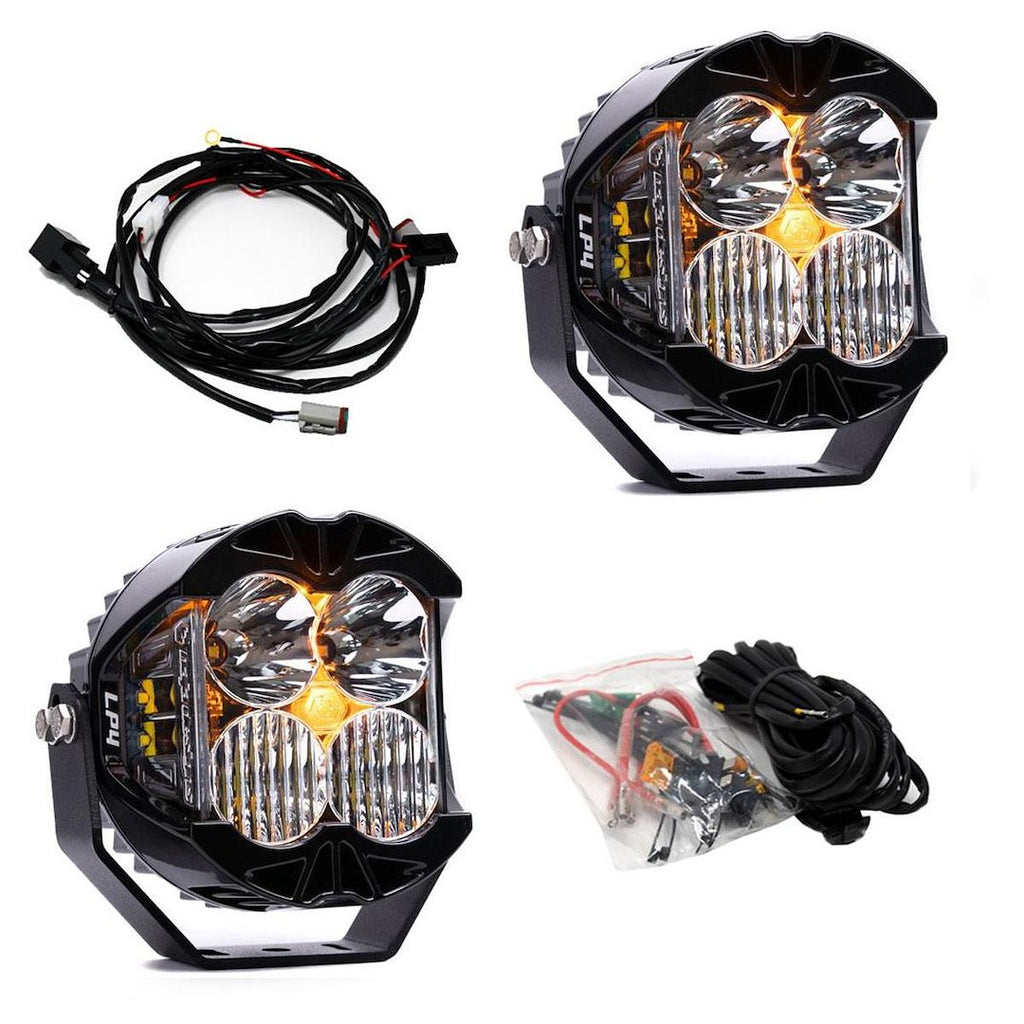

- Includes: With Mounting Hardware And Wiring Harness
- Estimated Install Time (Hours): 1.5
