Customizable LED light bar with superior performance and durability.

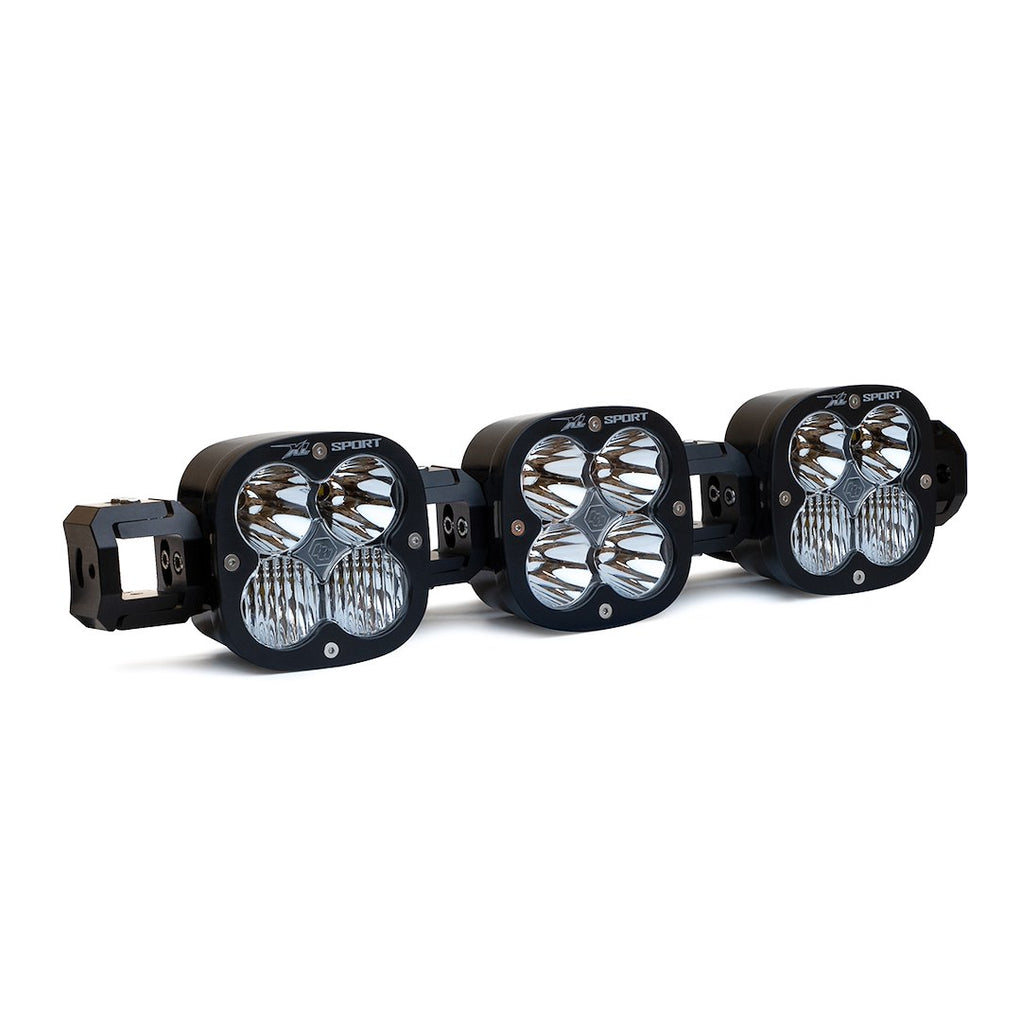

The Baja Designs LED Light Bar is engineered for enthusiasts seeking a customizable lighting solution. With a length of 20.63 inches and featuring 12 high-performance LED bulbs, this light bar delivers an impressive 9450 lumens output. The combination of a 44-degree wide cornering beam and a 6-degree spot beam ensures optimal visibility in various driving conditions. The robust construction includes a hardcoated clear polycarbonate lens and a powder-coated cast aluminum housing, providing durability and resistance to the elements.
This light bar is designed for full adjustment, allowing for a vertical pitch of 45 degrees and independent horizontal adjustments. This flexibility enables users to configure the light bar to match the contours of their vehicle. The system is equipped with advanced features such as MoistureBlock technology for waterproofing, CopperDrive for maximum LED efficiency, and UService for easy lens replacement. With an IP69K rating, this light bar is built to withstand harsh environments, making it suitable for off-road adventures.
Installation is straightforward, with an estimated time of 1.5 hours, and the package includes three XL Sport rock guards and necessary mounting hardware. The Baja Designs LED Light Bar is a reliable choice for those who demand high performance and versatility in their lighting solutions.
Features
- MoistureBlock - Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- ClearView – All The Light, Right Where You Need It
- UService – Replaceable Lenses And Optics
- Housing: Powder Coated Cast Aluminum
- IP69K: Waterproof
Specifications
- Manufacturer: Baja Design
- Manufacturer Part Number: 740001
- Bulb Type: LED
- Style: Straight

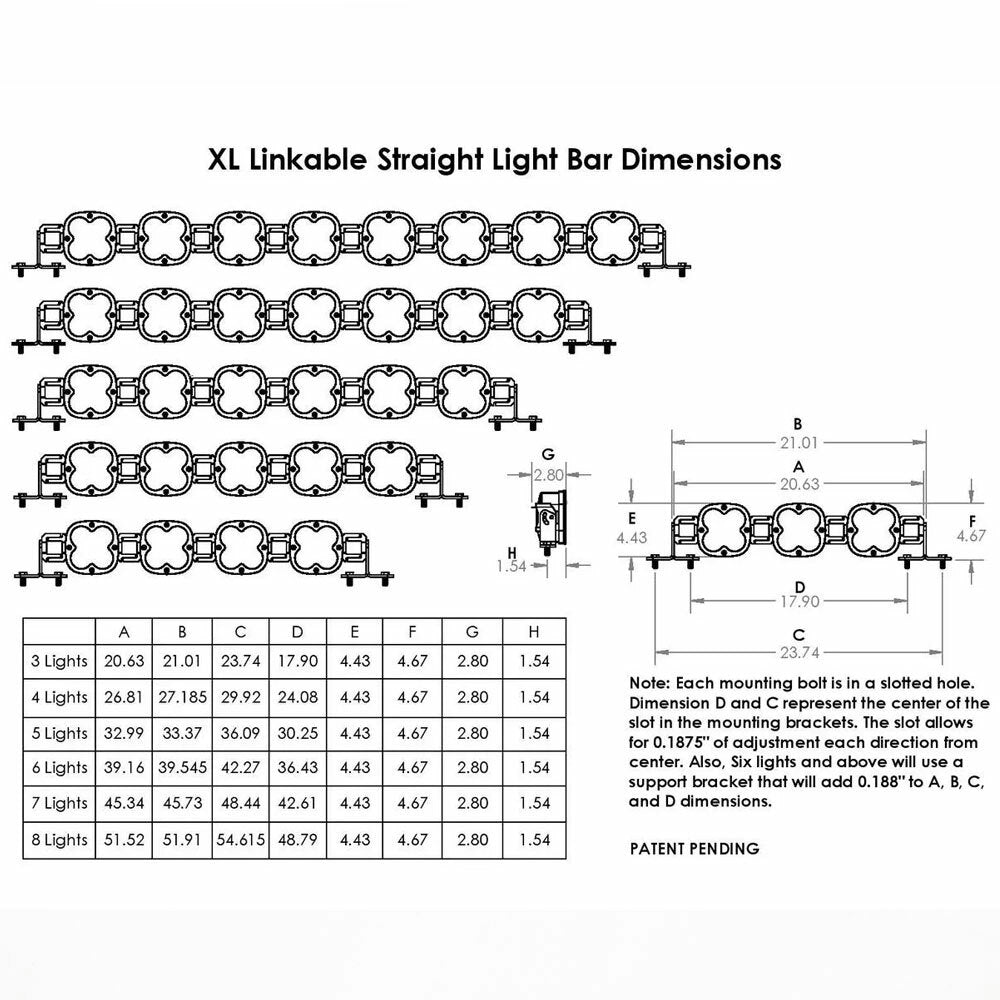

- Length: 20-5/8 Inch
- Beam Type: Combo Beam Driving And Spot
- Number Of Rows: 1
- Light Color: White
- Housing Color: Black
- Smart Technology Compatible: Not Smart Technology Compatible
- Beam Angle (Deg): 6 Degree Vertical/ 44 Degree Horizontal
- Lumens: 3162 Raw/ 9486 Effective Lumens
- Wattage: 78 Watt
- Width: 2.8 Inch
- Height: 4.43 Inch
- Bulb Specifications: 12 Clear 6.5 Watt LED Bulbs
- Lens Material: Polycarbonate
- Housing Material: Aluminum
- Mounting Style: Bumper Mount

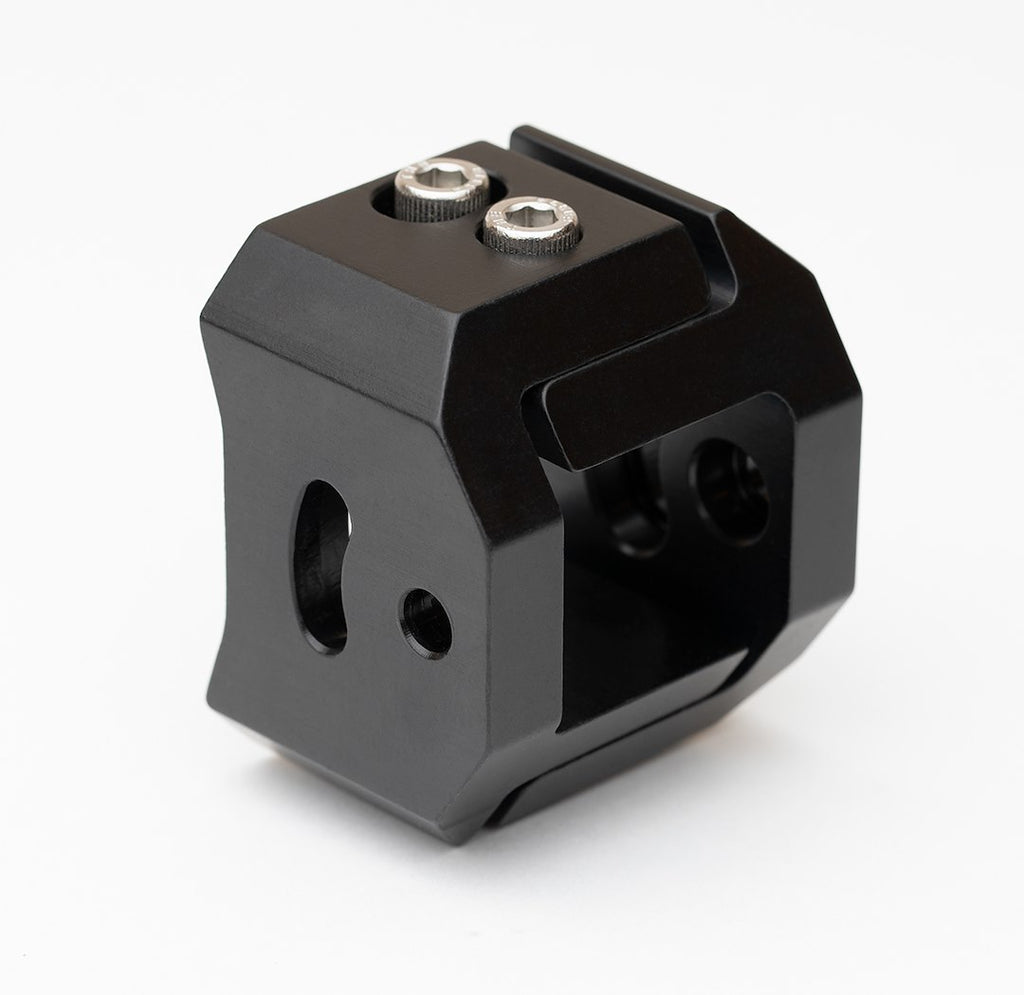

- Includes: With 3 XL Sport Rock Guards/ Mounting Hardware
- Estimated Install Time (Hours): 1.5
- Marine: No
