Baja Design LED Light Bar (MPN: 447732)

Customizable LED light package for extreme performance and versatility.

The Baja Design LED Light Bar is engineered for enthusiasts seeking a customizable lighting solution. With a length of 45.34 inches and featuring 28 high-performance LED bulbs, this light bar delivers an impressive 22050 lumens output. The combination of a 44-degree wide cornering beam and a 6-degree spot beam ensures optimal visibility in various driving conditions. Constructed with a hardcoated clear polycarbonate lens and a powder-coated black cast aluminum housing, this light bar is designed for durability and resilience against harsh environments.

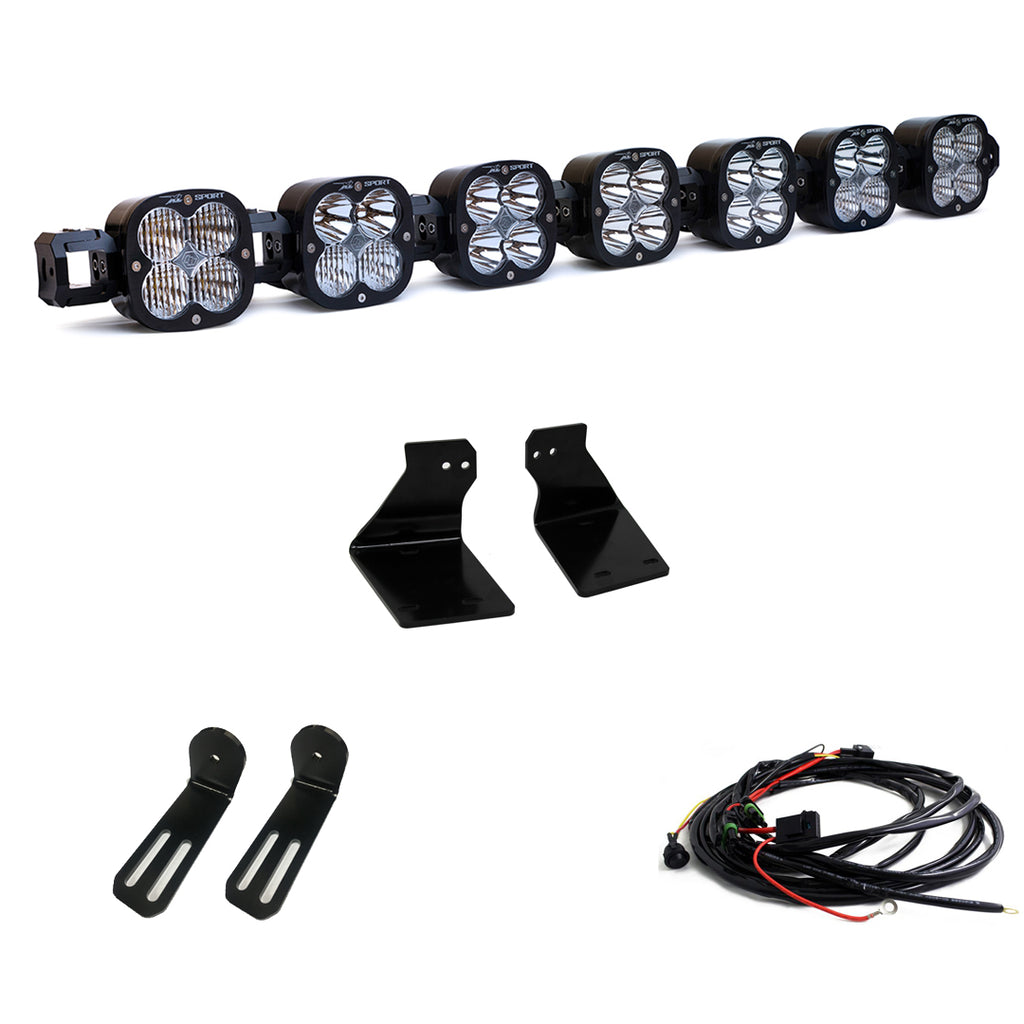

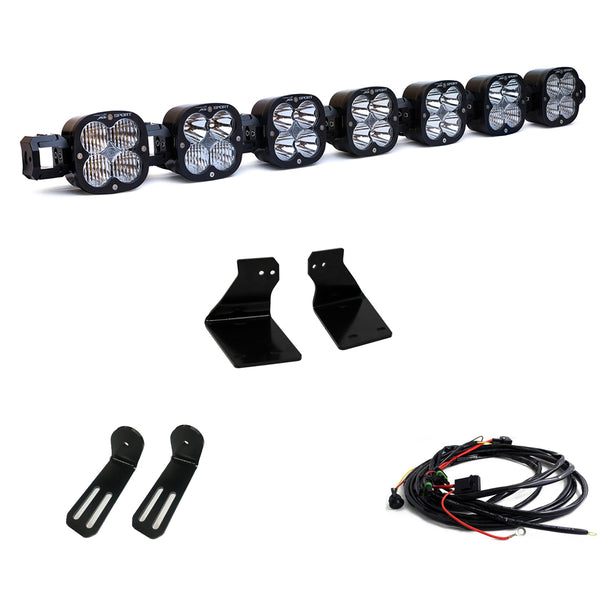

This light bar kit includes a comprehensive set of components, such as 7 XL Sport rock guards, a pre-load support bracket, and a plug-and-play wiring harness, making installation straightforward and efficient. The MoistureBlock technology ensures that the light bar is waterproof and submersible, while the CopperDrive feature guarantees that the LEDs operate at 100 percent efficiency. The UService capability allows for easy replacement of lenses and optics, enhancing the longevity of the product.

With a beam angle of 6 degrees vertical and 44 degrees horizontal, the Baja Design LED Light Bar is suitable for a variety of applications, providing both driving and spot lighting. The robust construction and advanced features make it a reliable choice for those who demand high performance from their lighting solutions.

Features

• MoistureBlock – Waterproof, Rain Proof, Submersible
• CopperDrive – Only LED Driven At 100 Percent
• ClearView – All The Light, Right Where You Need It
• UService – Replaceable Lenses And Optics
• Housing: Powder Coated Cast Aluminum

Specifications

• Manufacturer: Baja Design
• Manufacturer Part Number: 447732
• Bulb Type: LED
• Style: Straight
• Length: 45-5/16 Inch
• Beam Type: Combo Beam Driving And Spot
• Number Of Rows: 1
• Light Color: Amber/ White
• Housing Color: Black
• Smart Technology Compatible: Not Smart Technology Compatible
• Beam Angle (Deg): 6 Degree Vertical/ 44 Degree Horizontal
• Lumens: 22134 Lumens
• Wattage: 182 Watt
• Width: 2.8 Inch
• Height: 4.43 Inch
• Bulb Specifications: 28 Clear 6.5 Watt LED Bulbs
• Lens Material: Polycarbonate
• Housing Material: Aluminum
• Mounting Style: Grille Mount
• Connection Type: Plug And Play Wiring Harness
• Includes: With 7 XL Sport Rock Guards/ Pre Load Kit/ Bracket/ Harness
• Estimated Install Time (Hours): 1.5
• Marine: No

Compatibility / Fit

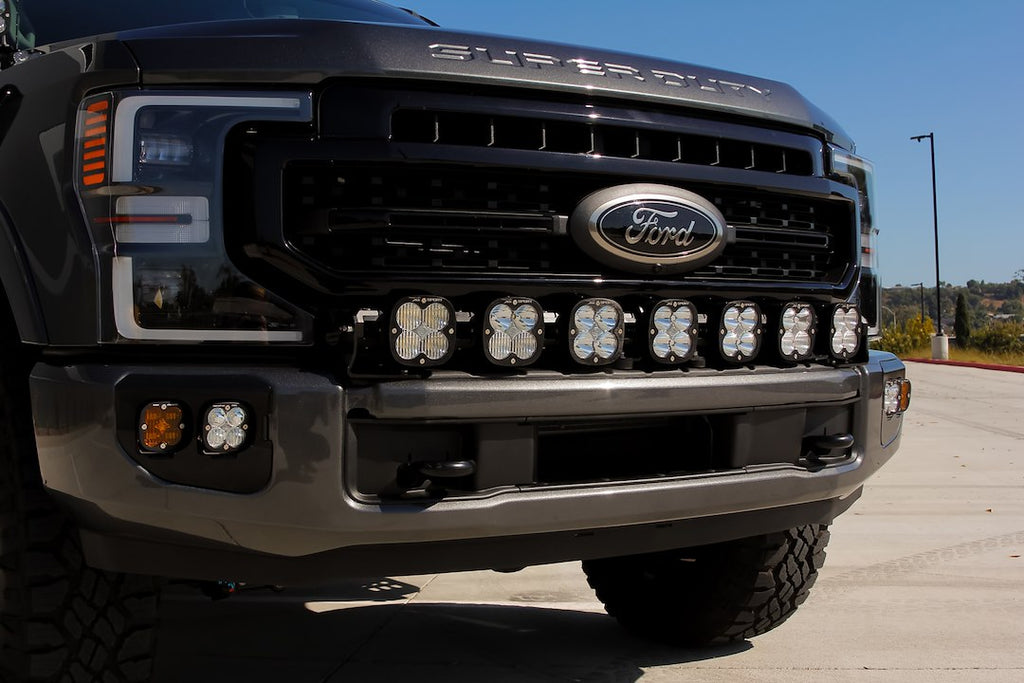

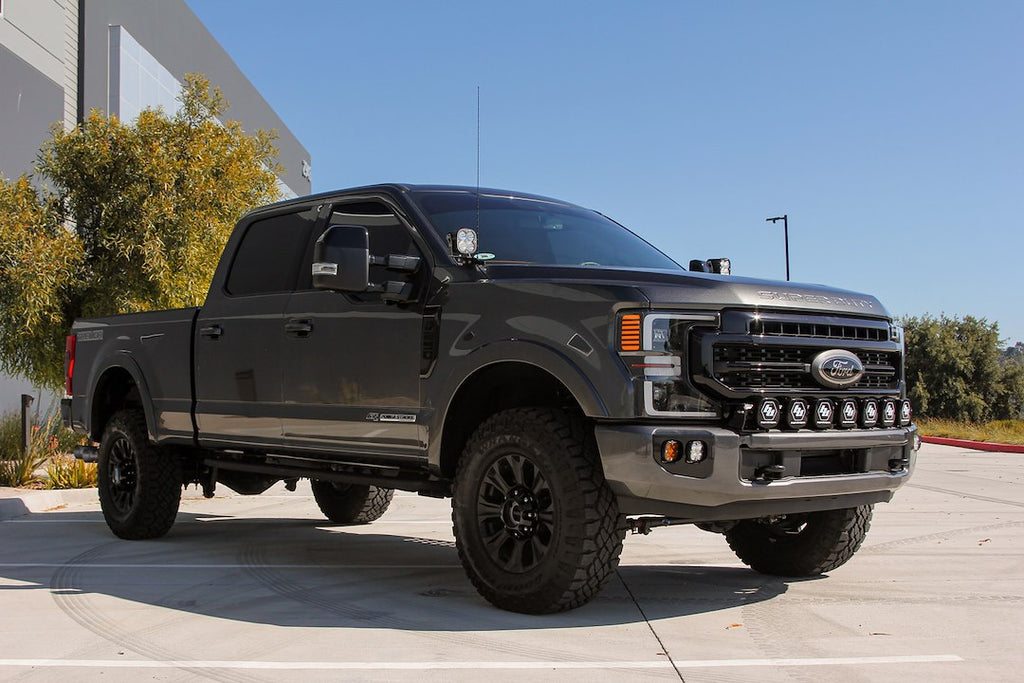

• 2020-2022 Ford F-250 Super Duty
• 2020-2022 Ford F-350 Super Duty

Technical Documents

• FGXX_447732-INS_001.pdf

Product Videos
