B&B Molders Fresh Water Inlet (MPN: 94253)

Durable and Reliable Fresh Water System Component for RVs

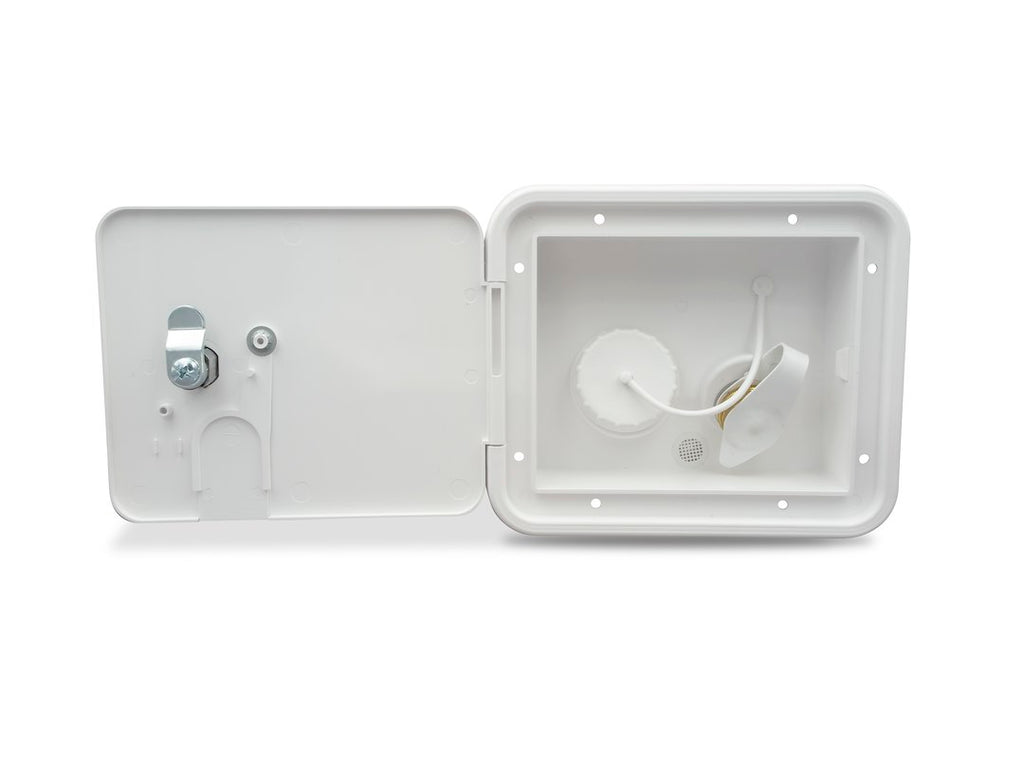

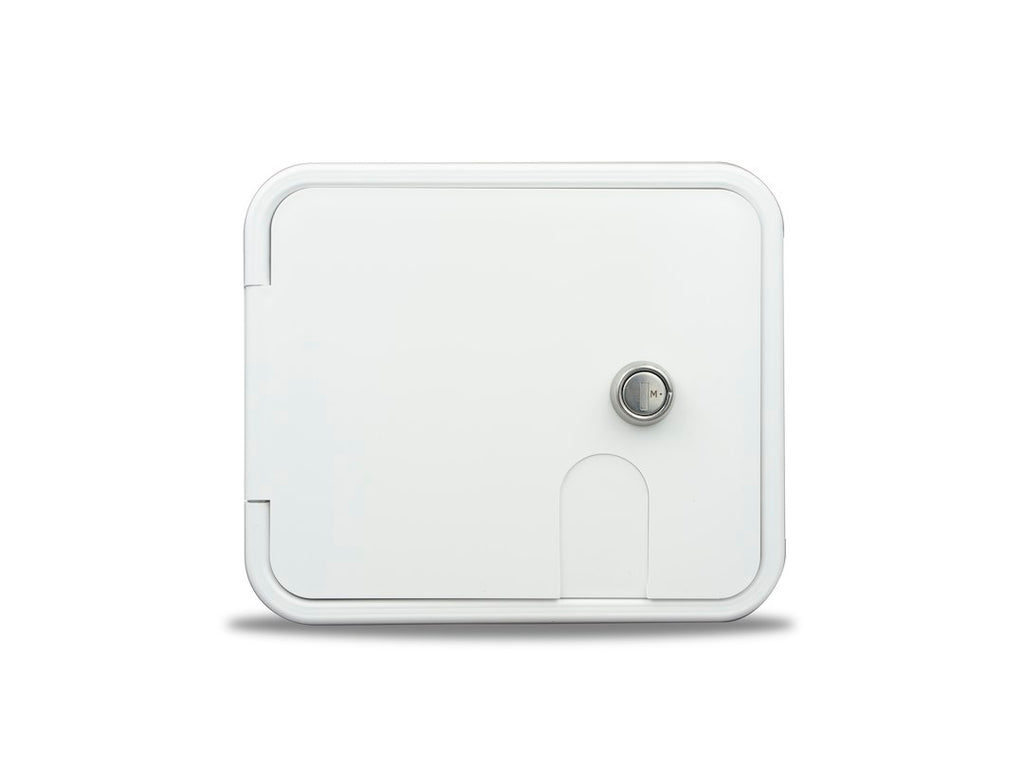

The B&B Molders Fresh Water Inlet is designed for use in RV fresh water systems, providing a reliable and efficient solution for water filling. This product features a gravity water fill system that accepts both 1-1/4 inch and 1-3/8 inch water fill hoses, ensuring compatibility with various setups. Constructed from UV and impact resistant materials, this inlet is built to withstand harsh environmental conditions while maintaining its functionality and appearance.

With a cutout dimension of 5-7/8 inches in width and 4-3/4 inches in height, and an outside dimension of 7-5/8 inches in width and 6-1/2 inches in height, this inlet is designed for recessed mounting, allowing for a clean installation. The included lead-free brass check valve with 1/2 inch male pipe thread enhances the safety and reliability of the water system. Additionally, the 3/8 inch tank vent connection facilitates proper ventilation, preventing pressure build-up.

Certified by IAPMO, NSF, and CSA, this product meets stringent safety and quality standards, making it a dependable choice for RV owners. The lockable hatch is key alike ready, allowing for easy integration with existing locks on entry doors or compartments. Made in the USA, the B&B Molders Fresh Water Inlet is an essential component for maintaining a functional and safe fresh water system in recreational vehicles.

Features

• UV Stable And Colorfast
• Impact And Road Salt Resistant; Paintable
• Non-Yellowing White
• Original Factory Parts Or Direct OEM Replacement
• Lock Is "Key Alike Ready" To Match Entry Door Or Other Compartment Locks
• Spout Accepts Either 1-1/4 Inch Or 1-3/8 Inch Water Fill Hose; Features Lead Free Brass Check Valve With 1/2 Inch Male Pipe Thread
• Features 3/8 Inch Tank Vent Connection; Replaceable Door
• IAPMO, NSF And CSA Certified
• Made In USA

Specifications

• Manufacturer: B&B Molders
• Manufacturer Part Number: 94253
• Inlet Connection: City Water Female Threads and Gravity Feed
• Mounting Type: Recessed Mount
• Recess Depth: 2-3/4 Inch
• Outlet Connection: 1/2 Inch Male Threads
• Tank Vent: 3/8 Inch Tank Vent
• Cutout Size (IN): 5-7/8 Inch Width x 4-3/4 Inch Height
• Diameter (IN): Not Applicable
• Width (IN) And Height (IN): 7-5/8 Inch Width X 6-1/2 Inch Height
• Color: Polar White
• Material: Plastic
• With Dust Cover: Yes
• With Built-In Check Valve: Yes
