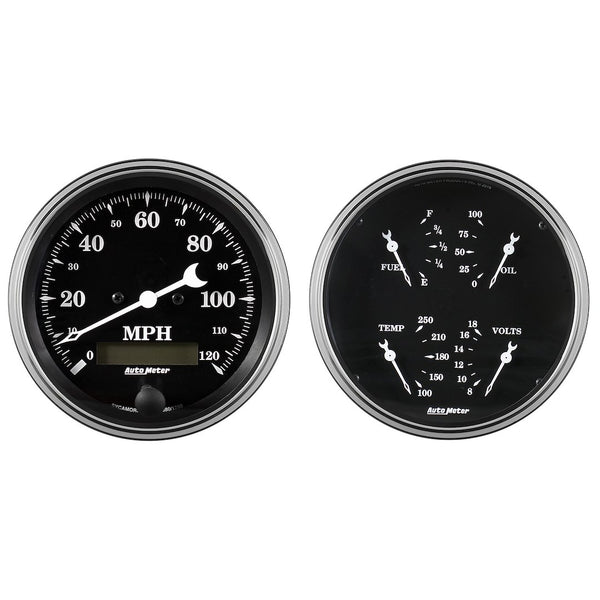

AutoMeter Quad Gauge System (MPN: 1703)

AutoMeter Quad Gauge System (MPN: 1703)

  • Sale
  • $1,066.63
Accepted Credit Cards

Compact and accurate gauge solution for monitoring key vehicle metrics.

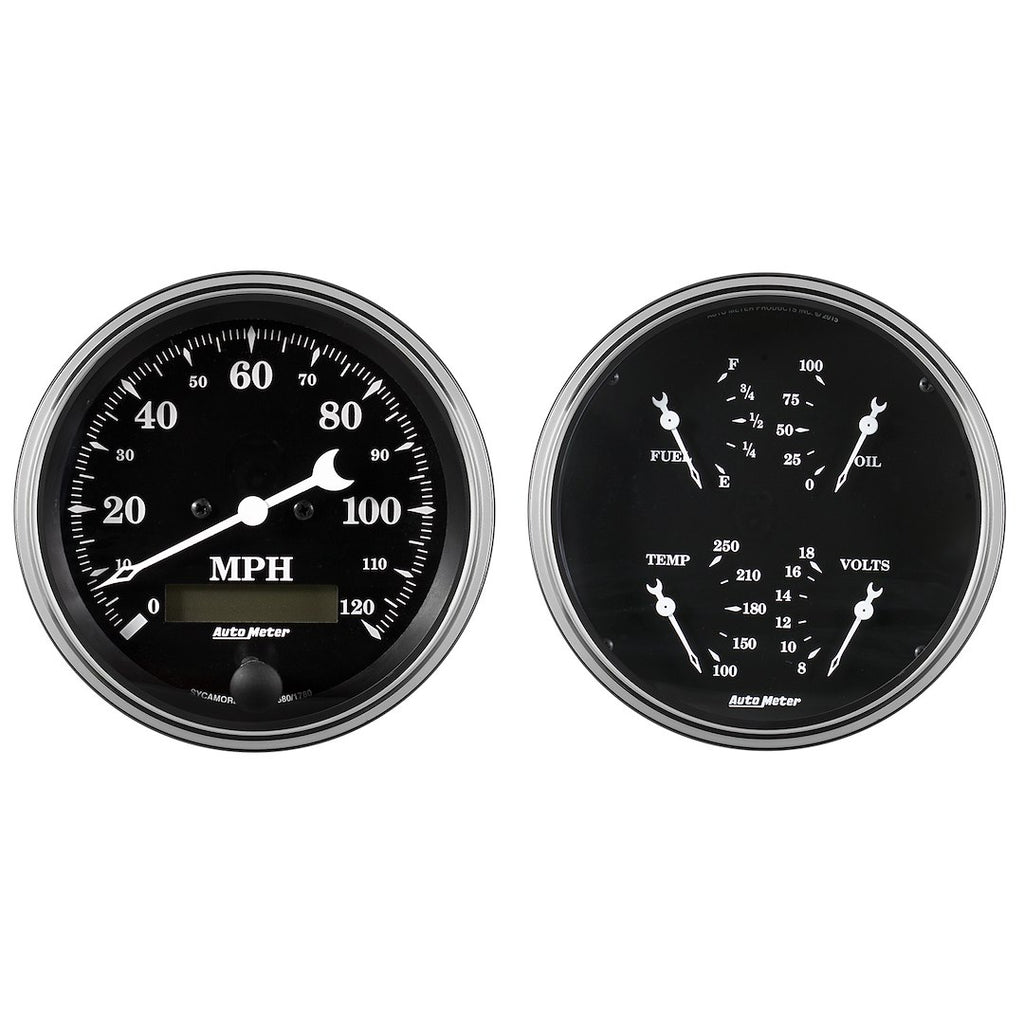

The AutoMeter Quad Gauge System is designed to optimize dashboard space while providing essential readings for fuel level, oil pressure, voltmeter, and water temperature. This system features two 5-inch analog gauges, including a quad gauge that offers electric readings for fuel level, oil pressure, voltmeter, and water temperature, alongside a mechanical speedometer. The speedometer provides a full sweep from 0 to 120 MPH and includes a digital odometer capable of tracking up to one million miles with two resettable trip odometers.

Each gauge utilizes traditional incandescent lighting to illuminate the dial perimeter, ensuring visibility in various lighting conditions. The air-core electric instruments deliver quick and accurate readings, maintaining safety by keeping hazardous fluids outside the vehicle. The speedometer is equipped with a simple push-button calibration for easy adjustments, accommodating changes in gear ratios or wheel and tire combinations without the need for dip switches.

This 4-in-1 gauge design is compatible with both 12 and 16-volt electrical systems, making it suitable for a wide range of street and race cars. The fuel level gauge operates within a resistance range of 240 ohms empty to 33 ohms full, while the oil pressure gauge measures from 0 to 100 PSI. The voltmeter reads from 8 to 18 volts, and the water temperature gauge ranges from 100 to 250 degrees Fahrenheit, providing comprehensive monitoring of critical vehicle parameters.

Features

  • Traditional Incandescent Lighting Illuminates Around The Perimeter Of The Dial
  • Race Proven Air-Core Electric Instruments Provide Quick And Accurate Readings While Keeping Hazardous Fluids Outside Of The Vehicle
  • Speedometer Has A Simple Push Button, 2 Mile Drive Calibration
  • No Dip Switches And Can Be Reprogramed At Any Time To Accommodate Changes In Gear Ratio Or Wheel And Tire Combination
  • Speedometer Features Lit LCD Odometer - Capable Of Registering One-Million Miles With Two Resettable Trip Odometers
  • 4 In 1 Gauge Design Saves Valuable Real Estate On Your Dash While Allowing You To Monitor Critical Parameters
  • 12 And 16 Volt Compatible, Compatible With Nearly Every Street Car Or Race Car Electrical System

Specifications

  • Manufacturer: AutoMeter
  • Manufacturer Part Number: 1703
  • Size (IN): 5 Inch
  • Type: Electrical And Mechanical
  • Fuel Level Gauge Range (OHM): 240 Ohms Empty To 33 Ohms Full
  • Oil Pressure Gauge Range (PSI): 0 To 100 Pounds Per Square Inch
  • Speedometer Range (MPH): 0 To 120 Miles Per Hour
  • Voltmeter Range (Volt): 8 To 18 Volts
  • Water Temperature Gauge Range (Deg F): 100 To 250 Degree Fahrenheit
  • Display: Analog
  • Sweep: Full
  • Face Color: Black
  • Needle Color: White
  • Bezel Color: Silver
  • Number Color: White
  • Mounting Type: Dash Mount
  • Includes Warning Indicator: No
  • Warning Indicator Type: Not Applicable
  • Includes Peak Memory: No
  • Liquid-Filled: No
  • Includes Sending Unit: Yes
  • Includes Wiring Harness: No
  • Includes Fittings: No
  • Includes Mounting Bracket: Yes
